The AT-M features an environmentally sealed enclosure. It is weatherproof, dustproof and shockproof. Meeting or exceeding IP65 rating.

Complete Kit

The PosiTest AT kits come complete with Manual Adhesion Tester, built-in rechargeable NiMH battery with charger, dollies, abrasive pad, cutting tool, glue with mixing sticks and palettes, cotton swabs, USB cable, PosiSoft Software, instruction booklet and video, shoulder strap, Certificate of Calibration traceable to NIST, two-year warranty, and a sturdy, lightweight carrying case.

The post PosiTest AT-M
Manual Pull-Off Adhesion Tester first appeared on EgeRate Elektronik.

The post BCS
Electronic Crane Scale first appeared on EgeRate Elektronik.

One of the foremost reasons for choosing an electronic dynamometer is added functionality. The radio or hardwired options available with the EDXtreme offer the convenience and safety of remote operation. Additionally, data from the dynamometer(s) can be downloaded to a PC via an RS-232 connection for compilation and analysis or to generate hard-copy printouts.

Remote control and radio communications are not new to the Dillon product line. In fact, it is the depth of Dillon’s experience in this area that led to meaningful innovations in the design of the EDXtreme and its optional remote Communicator.

Improved radio performance
Unlike the many products on the market today, the EDXtreme radio dynamometer utilizes leading-edge 2.4Ghz radio frequency technology to eliminate common interference issues. This spread spectrum technology will establish and maintain the strongest, most reliable communications.

Dynamic monitoring and control
The optional Communicator is an extremely powerful hand-held remote that can define the function and manage the operation of one or more EDXtreme dynamometers using wired or radio technologies. Through the programmable SOFTKEY interface, one or more Communicators can monitor multiple dynamometers within the same airspace. In multiple-link lifting arrays, the Communicator can display

The post EDX-COMM-II
Remote Communicator for EDXtreme ... first appeared on EgeRate Elektronik.

This internal design structure not only provides the product with an unrivaled strength to weight ratio but also allows the use of a separate internal sealed enclosure providing the load cell’s electronic components with IP67/NEMA6 environmental protection even with the battery cover plate missing, making this industry leading dynamometer even more suitable for use in the harshest environments.

Featuring industry leading wireless technology and range, the versatile Radiolink plus ATEX is supplied with an update rate of 3Hz and can be easily configured to run at industry leading speeds of up to 200Hz. Data is transmitted wirelessly utilizing the latest in IEEE 802.15.4 (2.4 GHz) technology providing safe, high integrity, error free transmission of both static weight and dynamic load to an ATEX/IECEx approved wireless handheld controller, the SW-HHP-ATEX.

The Radiolink Plus ATEX utilizes easily sourced Energizer® Ultimate Lithium AA Batteries. Advanced circuitry extends battery life and the use of easily sourced alkaline batteries eliminates issues associated with rechargeable battery pack charging, failure and replacement.

The Radiolink plus-ATEX is the number one choice for weighing and dynamic load monitoring in hazardous applications.

Certificate references:
RLP- ATEX
IECEx SIR 15.0071X
Sira 15ATEX2195X

SW-HHP-ATEX
IECEx SIR 15.0072X
Sira 15ATEX2196X

The post Radiolink-Plus-ATEX
ATEX / Ex IECEx Wireless ... first appeared on EgeRate Elektronik.

The Compound Plus (CP) wireless dynamometer is the same as a Radiolink Plus but supplied without the SW-HHP Hand-Held Indicator.

The CP is constructed of high-quality aircraft-grade aluminum and features an advanced internal design structure. The design not only provides an unrivaled strength to weight ratio but also allows the use of a separate internal sealed enclosure providing the load cell’s electronic components with IP67 environmental protection even with the battery cover plate missing, making this industry-leading dynamometer even more suitable for use in the harshest environments.

When supplied with the 2.4GHz wireless output the CP featured industry-leading wireless technology and range, has an update rate of 3Hz and can be easily configured to run at industry-leading speeds of up to 200Hz. Data is transmitted wirelessly utilizing the latest in IEEE 802.15.4 (2.4 GHz) technology providing safe, high integrity, error-free transmission of both static weight and dynamic load to a wireless handheld controller.

The long-range Bluetooth signal connects to any iOS or Android device that has our free HHP app installed, providing the operator with a wireless range of up to 328ft / 100m. This allows them to stand in a safe position away from the load, with no requirement to read directly from the dynamometer. The app will also allow the operator to log data versus time, or on events such as over or underload. An adjustable alarm will alert the operator on their smartphone if any overload is occurring.

Designed for measurement of both Static and Dynamic Loads the Compound Plus can also be used in combination with our range of high-speed wireless data logging software allowing for simultaneous control, display and real-time data logging of up to 100 Straightpoint telemetry Load Cells. A .csv file format is used for data logging and opens in MS Excel allowing the easy visual presentation of the logged data and simple test certificate generation.

The Compound Plus utilizes easily sourced AA alkaline batteries. Advanced circuitry extends battery life and the use of easily sourced alkaline batteries eliminates issues associated with rechargeable battery pack charging, failure, and replacement.

A full array of wireless accessories are also available including signal boosters, LED wireless scoreboards and base stations with analog (4-20mA, 0-10v, 0-5v) or digital (RS232/485, Modbus RTU, and ASCII serial communications protocol) outputs.

The CP Compound Plus Dynamometer Loadcells are supplied without the SW-HHP Wireless Hand-Held Indicator or Software. Both are available for purchase as an option.

The post RadioLink Compound Plus
Wireless Dynamometer ... first appeared on EgeRate Elektronik.

Heavy cumbersome tools make tough jobs even harder. Through the use of aircraft quality materials, we have made the EDjunior an easy-to-position, highly mobile instrument with exceptional strength. It offer an impressive factor of safety at all capacities.

Power is supplied by two C-cell batteries that are easily accessible through a side loading port. Battery replacement, however, is a rare event. With the EDjunior’s low power consumption, typical battery life is over 400 hours.

With its NEMA4/IP55 design, the EDjunior is at home in virtually any environment and ideally-suited to exterior job-site applications as well as in-plant use.

NIST Traceable The EDjr comes with a NIST traceable calibration certificate.

Model	Capacıty	Resolutıon	Body Constructıon
EDjr-1T AWT05-506317 / 36190-0038	2,500 lbf 1,000 kgf 10,000 N	2 1 10	Aircraft quality 2024 Aluminum 700% overload max.
EDjr-2T AWT05-506318 / 36190-0046	5,000 lbf 2,000 kgf 20,000 N	5 2 20	Aircraft quality 2024 Aluminum 700% overload max.
EDjr-5T AWT05-506319 / 36190-0053	10,000 lbf 5,000 kgf 50,000 N	10 5 50	Aircraft quality 2024 Aluminum 700% overload max.
EDjr-10T AWT05-506320 / 36190-0103	25,000 lbf 10,000 kgf 100,000 N	20 10 100	Aircraft quality E4340 Alloy Steel 500% overload max.

Complete Kit

The EDjunior Dynamometer is supplied as a complete kit with Carrying Case, Batteries, manual and calibration card

The post EDjunior
Dillon Digital Dynamometer first appeared on EgeRate Elektronik.

While the EDxtreme may be configured for something as simple as a digital hanging scale, it offers a higher level of intelligence. With user-defined functions and sophisticated communication options, the EDxtreme readily adapts to multi-tasking operations or multi-link systems capable of monitoring a series of critical stress points from a single locations – it is the definition of application versatility.

Xtreme Engineering

Building a precision instrument that can survive real-world punishment requires masterful engineering. This is where Dillon’s experience shines through. The engineers assigned to the EDxtreme drew on a depth of industrial application knowledge and conducted exhaustive materials testing to achieve the highest structural integrity.

• Superior strength and corrosion resistance – High capacity models are constructed of electroless nickel-plated aircraft-quality alloy steel. Lower capacity models are anodized aircraft-quality aluminum
• 5:1 factor of safety – This measure of strength and safety is maintained at all capacities. Computer modeling confirms the low stress and long product life that is inherent in the EDxtreme design.
• Retained hardware – Allows permanent attachment of centering spacers, which eliminates fumbling during high capacity rigging.
• NEMA 4X/IP55 – The EDxtreme is clearly the choice for reliability in any environment – in-plant or out on the job site.

Xtreme Accuracy: 0.1%

High resolution and accurate repeatable readings are essential to proper weighing. The higher standards set for the EDxtreme meant taking the time to ensure that material characteristics, load element design and strain gage meshed perfectly. The result of that effort is a typical accuracy of 0.1% of full scale capacity. The enhanced resolution mode of 1 part in 5000 provides the level of readability needed for refined weighing.

Xtreme Ease

• Exclusive SOFTKEY interface –Dillon has eliminated confusing menus for faster setup and simple operation. IN addition to lbf, kgf and Newtons, programmable functions can correct for gravitational variations and allow the use of custom units of measurements.
• Wide-angle LCD –Provides improved readability over a wider viewing angle and is available with back lighting for low light conditions.
• Battery operation –The EDxtreme is powered by two standard C-cell batteries. Batteries are easily accessible for fast replacement.

NIST Traceable – The EDxtreme comes with a NIST traceable calibration certificate.

The post EDxtreme
Digital Digital Dynamometer first appeared on EgeRate Elektronik.

Rigged using industry-standard shackles such as Crosby G2130, the BlueLink has been designed to minimize headroom (6.14” or 156mm from eye to eye). With a safety factor of over 500%, its compact lightweight design does not sacrifice on strength.

Constructed from high-quality aerospace-grade aluminum, which is then hard-anodized, it features an advanced internal design structure. This design provides the product with an unrivaled strength to weight ratio. The use of a separate internal sealed enclosure administers the load cell’s electronic components with IP67 or NEMA6 environmental protection, even with the battery cover plate missing. All these features make it an industry-leading compact dynamometer, even more suitable for use in the harshest industrial or leisure environments.

The BlueLink is powered by four standard AA alkaline batteries that provide in excess of 500 hours transmission time. Its internal antennae ensures safe transmissions of loads to an accuracy of ±0.2% FS.

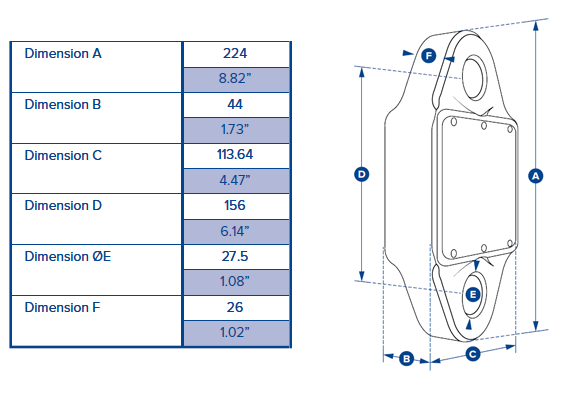

Dimensions

The post BlueLink
Bluetooth Dynamometer first appeared on EgeRate Elektronik.

Designed for measurement of both Static and Dynamic Loads the Radiolink Plus can also be used in combination with our range of high speed wireless data logging software allowing for simultaneous control, display and real time data logging of up to 100 Straightpoint telemetry Load Cells. A .csv file format is used for data logging and opens in MS Excel allowing easy visual presentation of the logged data and simple test certificate generation.

The Radiolink Plus utilizes easily sourced AA alkaline batteries. Advanced circuitry extends battery life and the use of easily sourced alkaline batteries eliminates issues associated with rechargeable battery pack charging, failure and replacement.

A full array of wireless accessories are also available including signal boosters, LED wireless scoreboards and base stations with analogue (4-20mA, 0-10v, 0-5v) or digital (RS232/485, Modbus RTU, and ASCII serial communications protocol) outputs.

The Radiolink plus is the number one choice for weighing and dynamic load monitoring in critical lift planning and execution.

Model	Capacıty	Resolutıon	Weıght	Safety Factor	Load Pın Dıameter	Overall Heıght
RLP1T-TS	2000 lb 1000 kg	1 lb 0.5 kg	3.3 lb 1.5 kg	12:1	3/4 In 19 mm	8.03″ 204 mm
RLP2T5-TS	5500 lb 2.5 te	2 lb 0.001 te	3.3 lb 1.5 kg	7:1	3/4 In 19 mm	8.03″ 204 mm
RLP6T5-TS	14300 lb 6.5 te	2 lb 0.001 te	5. lb 2.4 kg	7:1	1 In 25 mm	9.80″ 249 mm
RLP12T-TS	26000 lb 12 te	5 lb 0.002 te	8.2 lb 3.7 Kg	7:1	1-3/8 In 35 mm	12.01″ 305 mm
RLP25T-TS	55000 lb 25 te	10 lb 0.005 te	11 lb 5 kg	5:1	2 In 51 mm	13.39″ 340 mm
RLP35T-TS	77000 lb 35 te	10 lb 0.005 te	19 lb 8.6 kg	5:1	2-1/4 In 57 mm	15.47″ 393 mm
RLP55T-TS	120000 lb 55 te	20 lb 0.01 te	28.7 lb 13 kg	5:1	2-1/4 In 57 mm	16.69″ 424 mm
RLP75T-TS	165000 lb 75 te	20 lb 0.01 te	35.3 lb 16 kg	5:1	2-3/4 In 70 mm	18.50″ 470 mm
RLP100T-TS	220000 lb 100 te	100 lb 0.05 te	75 lb 34 kg	5:1	3-1/4 In 83 mm	23.94″ 608 mm
RLP150T-TS	330000 lb 150 te	100 lb 0.05 te	101.4 lb 46 kg	4:1	3-3/4 In 95 mm	26.38″ 670 mm
RLP200T-TS	440000 lb 200 te	200 lb 0.1 te	180.8 lb 82 kg	5:1	4-3/4 In 121 mm	27.56″ 700 mm
RLP250T-TS	550000 lb 250 te	200 lb 0.1 te	180.8 lb 82 kg	4:1	5 In 127 mm	27.56″ 700 mm
RLP300T-TS	660000 lb 300 te	200 lb 0.1 te	260 lb 118 kg	5:1	6 In 152 mm	31.73″ 806 mm
RLP500T-TS	1100000 lb 500 te	200 lb 0.1 te	427 Lb 194 Kg	5:1	6 In 152 mm	36.91″ 930 mm

Complete Kit

The RadioLink Plus is supplied as a complete kit including the dynamometer, wireless display, 4x AA batteries, RFID tag, calibration certificate, and instruction manual. Models up to 35T/77,000lbs are supplied in foam fitted carrying cases. Larger capacities are supplied in an approved shipping crate.

The post Radiolink-Plus
Wireless Dynamometer Tension L... first appeared on EgeRate Elektronik.

Easy-to-use menus make programming simple in eight languages. Select units, reverse display, set high/low setpoints, and all other functions in plain language.

Electroluminescent display (ELD) shows force value, unit, and peak, and can be configured with additional user-selectable data including memory data, +NG count, high/low setpoints, 1st and 2nd peaks, displacement value (using atest stand with FA option), etc.

Color-coded LED indicators alert the user to Go/NoGo conditions. Orange lights for less than low setpoint, green lights between high and low, and red for over the high.

Process and transmit 2,000 actual data per second, not just the peak from a high sampling rate. Optional Force Recorder data acquisition software is designed to process up to 2,000 data per second.

Display force and displacement data on ZTA gauges with test stands equipped with FA option.

Save data to USB flash drives. Export peak data or capture continuous data at 100 data/second to flash drives with ZTA force gauges.

ZT Logger data acquisition software downloads data from the gauge memory or captures a continuous stream of data at 10 data/second. Zero the gauge or capture data while at the computer. All gauge programming can be set and saved from the software.

The post ZTA-DPU
Digital Force Gauge with Remote Senso... first appeared on EgeRate Elektronik.
