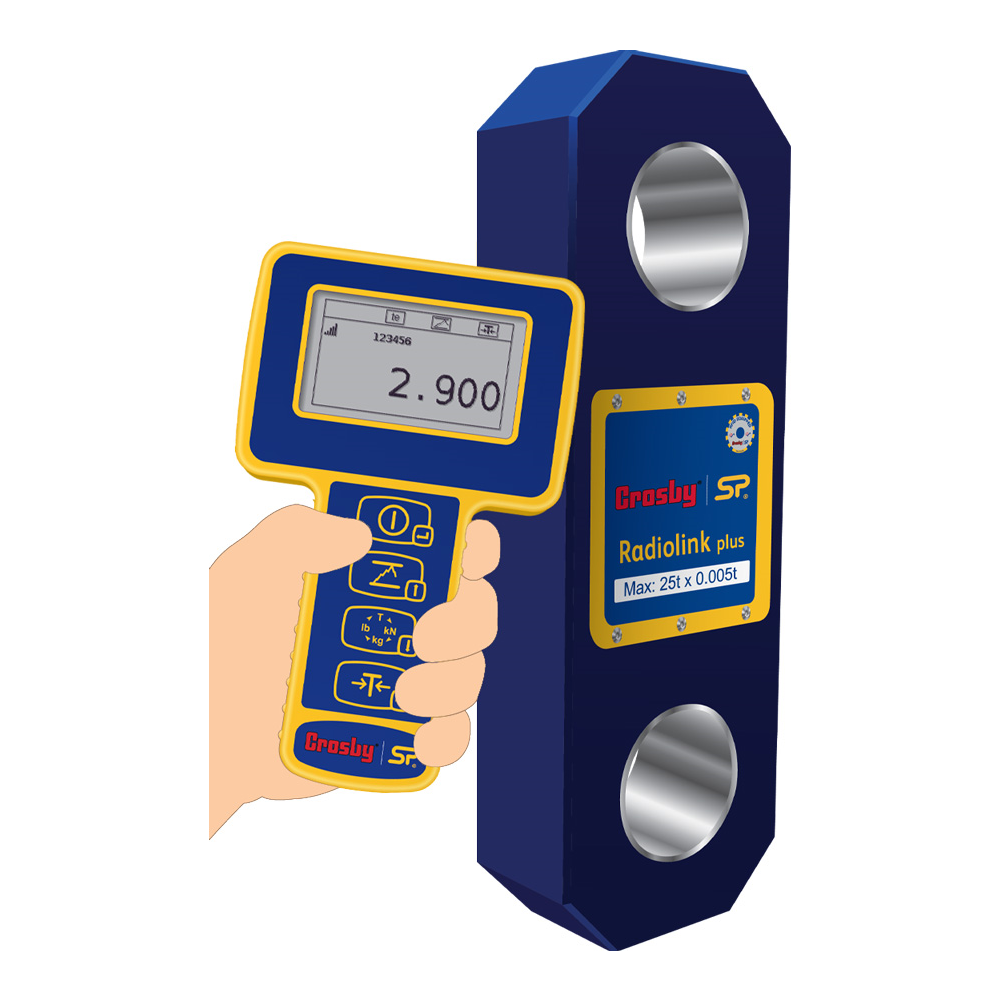

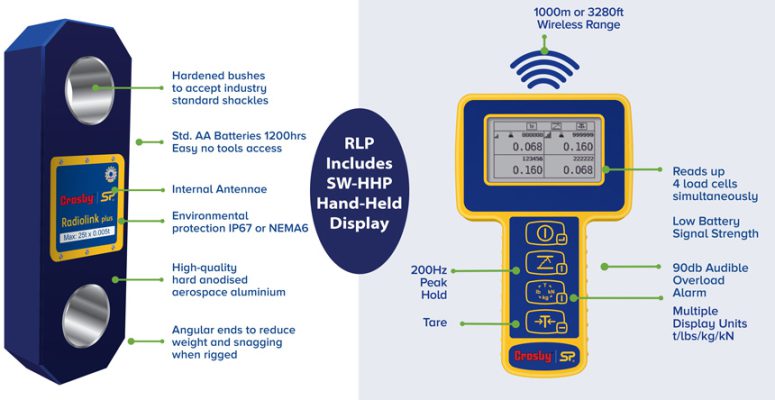

The Radiolink Plus wireless dynamometer is designed for weighing and dynamic load monitoring in a wide range of applications. All Straightpoint Radiolink Plus Dynamometers are supplied with the battery-powered SW-HHP Handheld Display. It is constructed of high-quality aircraft grade aluminum and features an advanced internal design structure. The design not only provides an unrivaled strength to weight ratio but also allows the use of a separate internal sealed enclosure providing the load cell’s electronic components with IP67 environmental protection even with the battery cover plate missing, making this industry leading dynamometer even more suitable for use in the harshest environments.
Featuring industry leading wireless technology and range, the versatile Radiolink plus has an update rate of 3Hz and can be easily configured to run at industry leading speeds of up to 200Hz. Data is transmitted wirelessly utilizing the latest in IEEE 802.15.4 (2.4 GHz) technology providing safe, high integrity, error free transmission of both static weight and dynamic load to a wireless handheld controller.
Designed for measurement of both Static and Dynamic Loads the Radiolink Plus can also be used in combination with our range of high speed wireless data logging software allowing for simultaneous control, display and real time data logging of up to 100 Straightpoint telemetry Load Cells. A .csv file format is used for data logging and opens in MS Excel allowing easy visual presentation of the logged data and simple test certificate generation.
The Radiolink Plus utilizes easily sourced AA alkaline batteries. Advanced circuitry extends battery life and the use of easily sourced alkaline batteries eliminates issues associated with rechargeable battery pack charging, failure and replacement.
A full array of wireless accessories are also available including signal boosters, LED wireless scoreboards and base stations with analogue (4-20mA, 0-10v, 0-5v) or digital (RS232/485, Modbus RTU, and ASCII serial communications protocol) outputs.
The Radiolink plus is the number one choice for weighing and dynamic load monitoring in critical lift planning and execution.
Models / Measuring Ranges
| Model | Capacıty | Resolutıon | Weıght | Safety Factor |
Load Pın Dıameter |
Overall Heıght |
|---|---|---|---|---|---|---|
| RLP1T-TS | 2000 lb 1000 kg |
1 lb 0.5 kg |
3.3 lb 1.5 kg |
12:1 | 3/4 In 19 mm |
8.03″ 204 mm |
| RLP2T5-TS | 5500 lb 2.5 te |
2 lb 0.001 te |
3.3 lb 1.5 kg |
7:1 | 3/4 In 19 mm |
8.03″ 204 mm |
| RLP6T5-TS | 14300 lb 6.5 te |
2 lb 0.001 te |
5. lb 2.4 kg |
7:1 | 1 In 25 mm |
9.80″ 249 mm |
| RLP12T-TS | 26000 lb 12 te |
5 lb 0.002 te |
8.2 lb 3.7 Kg |
7:1 | 1-3/8 In 35 mm |
12.01″ 305 mm |
| RLP25T-TS | 55000 lb 25 te |
10 lb 0.005 te |
11 lb 5 kg |
5:1 | 2 In 51 mm |
13.39″ 340 mm |
| RLP35T-TS | 77000 lb 35 te |
10 lb 0.005 te |
19 lb 8.6 kg |
5:1 | 2-1/4 In 57 mm |
15.47″ 393 mm |
| RLP55T-TS | 120000 lb 55 te |
20 lb 0.01 te |
28.7 lb 13 kg |
5:1 | 2-1/4 In 57 mm |
16.69″ 424 mm |
| RLP75T-TS | 165000 lb 75 te |
20 lb 0.01 te |
35.3 lb 16 kg |
5:1 | 2-3/4 In 70 mm |
18.50″ 470 mm |
| RLP100T-TS | 220000 lb 100 te |
100 lb 0.05 te |
75 lb 34 kg |
5:1 | 3-1/4 In 83 mm |
23.94″ 608 mm |
| RLP150T-TS | 330000 lb 150 te |
100 lb 0.05 te |
101.4 lb 46 kg |
4:1 | 3-3/4 In 95 mm |
26.38″ 670 mm |
| RLP200T-TS | 440000 lb 200 te |
200 lb 0.1 te |
180.8 lb 82 kg |
5:1 | 4-3/4 In 121 mm |
27.56″ 700 mm |
| RLP250T-TS | 550000 lb 250 te |
200 lb 0.1 te |
180.8 lb 82 kg |
4:1 | 5 In 127 mm |
27.56″ 700 mm |
| RLP300T-TS | 660000 lb 300 te |
200 lb 0.1 te |
260 lb 118 kg |
5:1 | 6 In 152 mm |
31.73″ 806 mm |
| RLP500T-TS | 1100000 lb 500 te |
200 lb 0.1 te |
427 Lb 194 Kg |
5:1 | 6 In 152 mm |
36.91″ 930 mm |
Complete Kit
The RadioLink Plus is supplied as a complete kit including the dynamometer, wireless display, 4x AA batteries, RFID tag, calibration certificate, and instruction manual. Models up to 35T/77,000lbs are supplied in foam fitted carrying cases. Larger capacities are supplied in an approved shipping crate.
