BCS

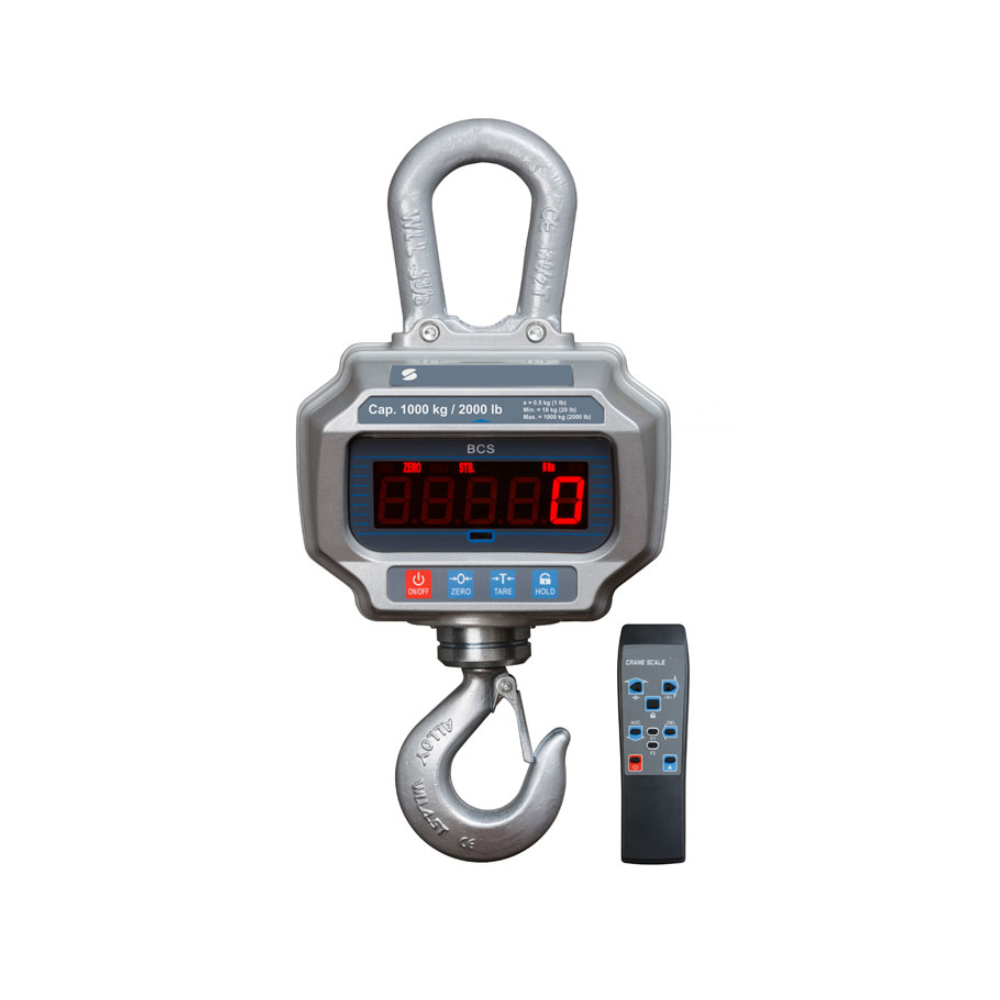

Electronic Crane Scale

The BCS electronic crane scale is a precision scale for a wide range of industrial weighing applications. The BCS is available in 2 ranges with capacities up to 10,000 lb / 5,000 kg. It features a swivel hook for easy and secure connections and an elongated upper shackle with space to accept large hooks. A large 1.4″ (35mm) ultra-bright LCD display makes the BCS easy to read from far away. An optional remote control allows the operator to reset and change operating modes adding convenience and safety.

The BCS electronic crane scale is a precision scale for a wide range of industrial weighing applications. The BCS is available in 2 ranges with capacities up to 10,000 lb / 5,000 kg. It features a swivel hook for easy and secure connections and an elongated upper shackle with space to accept large hooks. A large 1.4″ (35mm) ultra-bright LCD display makes the BCS easy to read from far away. An optional remote control allows the operator to reset and change operating modes adding convenience and safety.

Ranges

Model Capacıty Resolutıon
BCS-3000 (816965006625) 6,000 lb / 3,000 kg 2 lb / 1 kg
BCS-5000 (816965006632) 10,000 lb / 5,000 kg 4 lb / 2 kg



Item Descrıptıon
BCS-3000
Digital Crane Scale, 6,000 lb / 3,000 Kg Capacity with Remote – 816965006625
BCS-5000
Digital Crane Scale, 10,000 lb / 5,000 Kg Capacity with Remote – 816965006632

FEATURES

  • Real-Time and Peak Display Modes
  • Calibration Certificate NOT included
  • Rugged aluminium housing
  • Dual Power, Runs off Internal rechargeable battery or AC power (optional)
  • Large 1.4″ (35mm) ultra-bright LCD display
  • Built-in swivel hook with safety latch and elongated upper shackle
  • Auto-Off can be set from 0 to 60 minutes
  • Includes remote control

SPECIFICATIONS

Accuracy +/- 0.1% of full scale
Factory Calibration 39° latitude optimized
Dimensions 255 mm (L) x 210 mm (W) x 440 mm (D) 10″ L x 8″ W x 17″ H
Power Scale: 7.2VDC power adapter, 1000mA with central positive
6V/4.0Ah lead acid rechargeable battery (both included)
Typical Battery Life Depending on LED brightness and idle mode setting, battery works from 60 hrs to 200 hrs
Charging Time Approximately 12 hrs; red LED charging, green finished
Warranty 1 Year
Typical Battery Life 60 hrs to 200 hrs
Charging Time Approximately 12 hours
Display 35 mm / 1.4″ ultra-bright LED
Remote Distance Maximum 10 m / 32′
Tare Range 100% F.S.
Zero Range 4% F.S.
Stable Time ≤10 sec
Overload 100% F.S. + 9 divisions
Overload Indication Internal counter at +9 divisions F.S.
Ultimate Safety Factor 400% F.S.
Safety Load 150% F.S.
Operating Temperature -10° C to 40° C / 14° F to 104° F
Operating Humidity 20° C ≤90%
Shipping Weight 12.65 kg / 27.88 lb
Packaging Dimension 600 mm (L) x 270 mm (W) x 310 mm (H) / 23″ L x 10″ W x 12″ H
Accuracy Class GB/T 11883-2002 Class III
Agency Approvals CE, EC Machinery Directive
