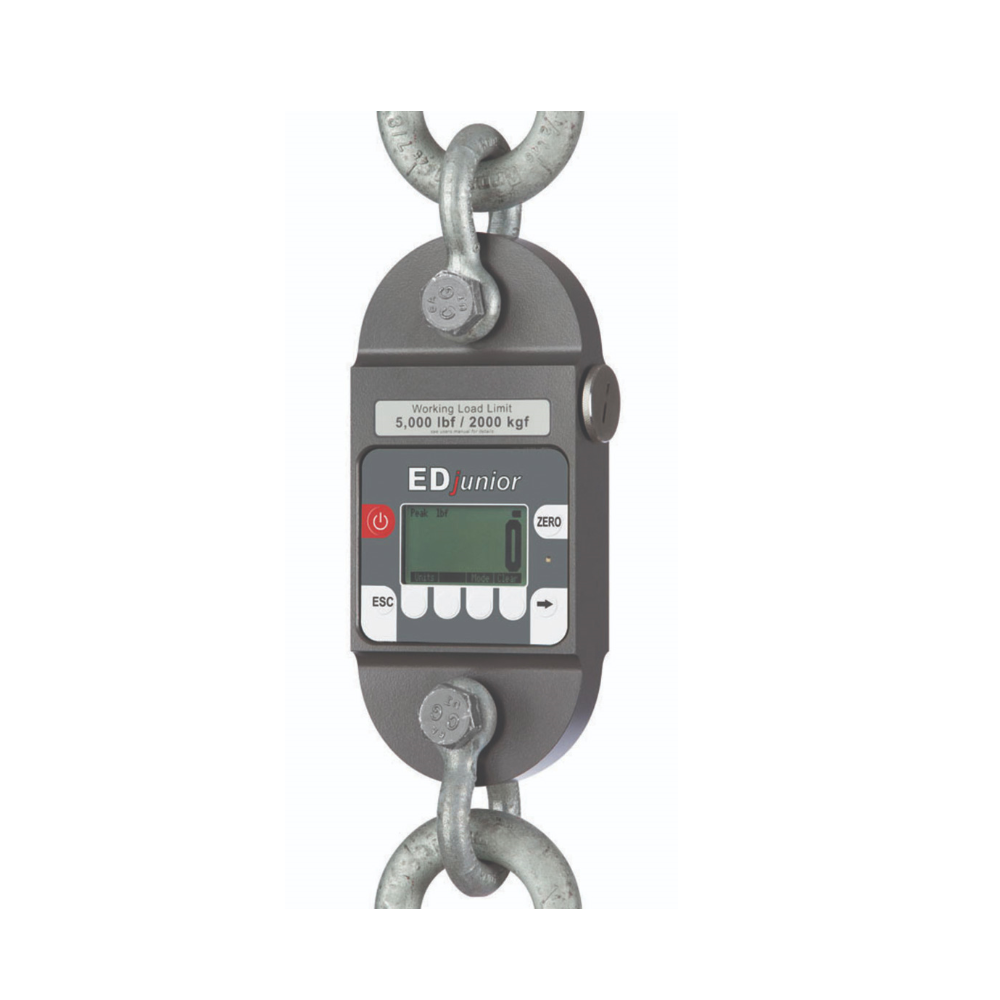

Our EDjunior dynamometer is designed to measure inline force / tension in a wide range of industrial applications. The backlit displays shows real-time and peak forces in lbf, kgf and Newtons measuring units.
Readings are displayed with a resolution of 1 part in 1000 to ensure the level of readability required for critical lifting applications.
Heavy cumbersome tools make tough jobs even harder. Through the use of aircraft quality materials, we have made the EDjunior an easy-to-position, highly mobile instrument with exceptional strength. It offer an impressive factor of safety at all capacities.
Power is supplied by two C-cell batteries that are easily accessible through a side loading port. Battery replacement, however, is a rare event. With the EDjunior’s low power consumption, typical battery life is over 400 hours.
With its NEMA4/IP55 design, the EDjunior is at home in virtually any environment and ideally-suited to exterior job-site applications as well as in-plant use.
NIST Traceable The EDjr comes with a NIST traceable calibration certificate.
Force Ranges
| Model | Capacıty | Resolutıon | Body Constructıon |
|---|---|---|---|
| EDjr-1T AWT05-506317 / 36190-0038 |
2,500 lbf 1,000 kgf 10,000 N |
2 1 10 |
Aircraft quality 2024 Aluminum 700% overload max. |
| EDjr-2T AWT05-506318 / 36190-0046 |
5,000 lbf 2,000 kgf 20,000 N |
5 2 20 |
Aircraft quality 2024 Aluminum 700% overload max. |
| EDjr-5T AWT05-506319 / 36190-0053 |
10,000 lbf 5,000 kgf 50,000 N |
10 5 50 |
Aircraft quality 2024 Aluminum 700% overload max. |
| EDjr-10T AWT05-506320 / 36190-0103 |
25,000 lbf 10,000 kgf 100,000 N |
20 10 100 |
Aircraft quality E4340 Alloy Steel 500% overload max. |
Complete Kit
The EDjunior Dynamometer is supplied as a complete kit with Carrying Case, Batteries, manual and calibration card
