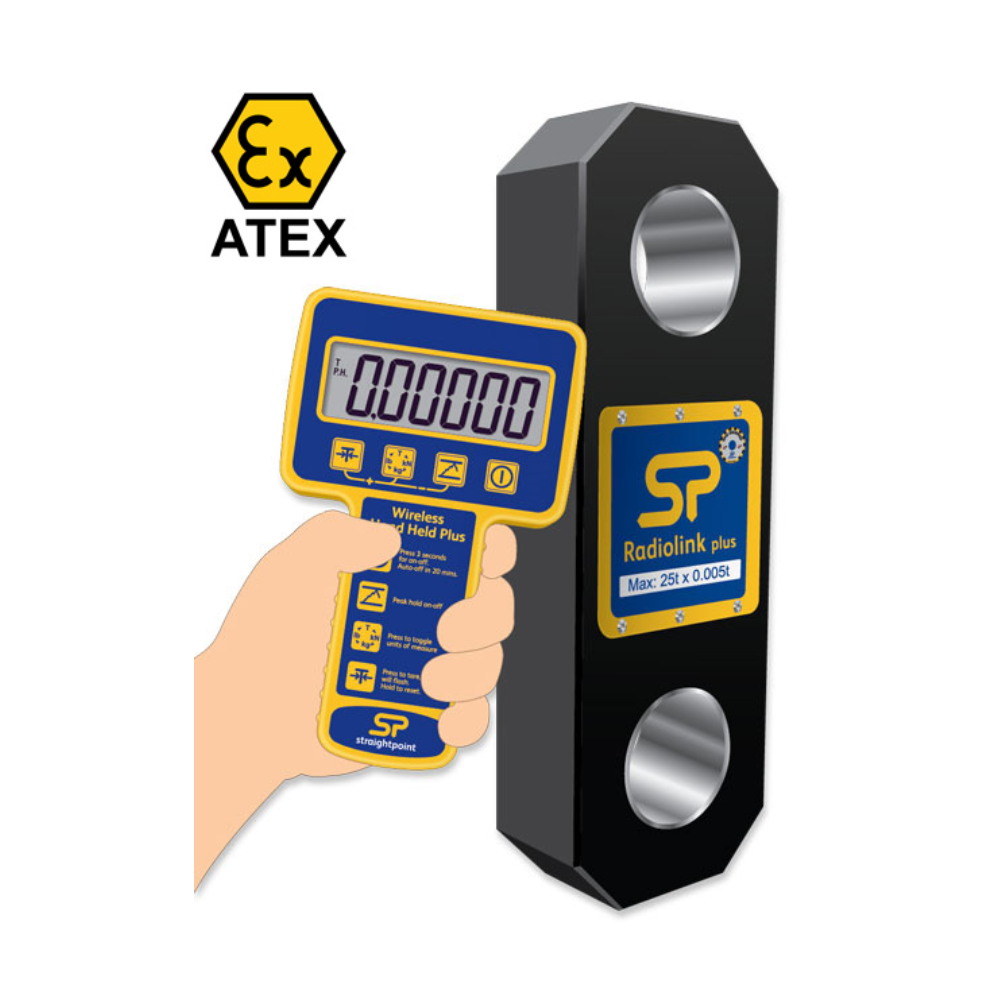

The Radiolink-Plus wireless ATEX IECEx dynamometer is approved to Ex ia II C T4 Ga for use in zone 0,1 & 2 hazardous environments (gas). This new version of the bestselling Radiolink plus is capable of both weighing and dynamic load monitoring in hazardous environments such as on and offshore oil, gas and chemical industries in zones classified 0,1 & 2. Ex-Proof construction. Available from stock in capacities from 1t to 300t, constructed from high-quality aircraft grade aluminum and featuring an advanced internal design structure.
This internal design structure not only provides the product with an unrivaled strength to weight ratio but also allows the use of a separate internal sealed enclosure providing the load cell’s electronic components with IP67/NEMA6 environmental protection even with the battery cover plate missing, making this industry leading dynamometer even more suitable for use in the harshest environments.
Featuring industry leading wireless technology and range, the versatile Radiolink plus ATEX is supplied with an update rate of 3Hz and can be easily configured to run at industry leading speeds of up to 200Hz. Data is transmitted wirelessly utilizing the latest in IEEE 802.15.4 (2.4 GHz) technology providing safe, high integrity, error free transmission of both static weight and dynamic load to an ATEX/IECEx approved wireless handheld controller, the SW-HHP-ATEX.
The Radiolink Plus ATEX utilizes easily sourced Energizer® Ultimate Lithium AA Batteries. Advanced circuitry extends battery life and the use of easily sourced alkaline batteries eliminates issues associated with rechargeable battery pack charging, failure and replacement.
The Radiolink plus-ATEX is the number one choice for weighing and dynamic load monitoring in hazardous applications.
Certificate references:
RLP- ATEX
IECEx SIR 15.0071X
Sira 15ATEX2195X
SW-HHP-ATEX
IECEx SIR 15.0072X
Sira 15ATEX2196X
Ranges – Kg / Tonne Models
| Model | Capacıty | Resolutıon | Safety Factor | Load Pın Dıa. |
|---|---|---|---|---|
| RLP1T-TS-ATEX | 2000 lb 1000 kg |
1 lb 0.5 kg |
12:1 | 3/4 In 19 mm |
| RLP2T5-TS-ATEX | 5500 lb 2.5 te |
2 lb 0.001 te |
5:1 | 3/4 In 19 mm |
| RLP5T-TS-ATEX | 11000 lb 5 te |
2 lb 0.001 te |
5:1 | 1 In 25 mm |
| RLP12T-TS-ATEX | 26000 lb 12 te |
5 lb 0.002 te |
5:1 | 1-3/8 In 35 mm |
| RLP25T-TS-ATEX | 55000 lb 25 te |
10 lb 0.005 te |
5:1 | 2 In 51 mm |
| RLP35T-TS-ATEX | 77000 lb 35 te |
10 lb 0.005 te |
5:1 | 2-1/4 In 57 mm |
| RLP75T-TS-ATEX | 165000 lb 75 te |
20 lb 0.01 te |
5:1 | 2-3/4 In 70 mm |
| RLP100T-TS-ATEX | 220000 lb 100 te |
100 lb 0.05 te |
5:1 | 3-1/4 In 83 mm |
| RLP150T-TS-ATEX | 330000 lb 150 te |
100 lb 0.05 te |
4:1 | 3-3/4 In 95 mm |
| RLP200T-TS-ATEX | 440000 lb 200 te |
200 lb 0.1 te |
5:1 | 4-3/4 In 121 mm |
| RLP250T-TS-ATEX | 550000 lb 250 te |
200 lb 0.1 te |
4:1 | 5 In 127 mm |
| RLP300T-TS-ATEX | 660000 lb 300 te |
200 lb 0.1 te |
5:1 | 6 In 152 mm |
