DVStor Compliance Recording

DVStor Compliance Recording Solution is a robust recording and playout engine for MPEG Transport Streams. It records the entire TS without encoding or modifying it. Stored content is fully fit for rebroadcast or repurpose.

DVStor Disaster Recovery

The versatility of the DVStor also makes it a perfect solution for disaster recovery playout, digital time shift, as well as remote clip extraction. Highly scalable, DVStor can support thousands of channels for months. Air-gapping DVStor at the transmitter provides multi-day reliable disaster recovery playout in the event of ransomware incidents. DVStor assures that broadcast stations remain on-air despite disruptions to the entire operations, and keep ad revenue flowing in.

 DVStor Incremental File Transfer

The post Torque DVStor Self-Contained Transport Stream Recording and Playout Solution first appeared on EgeRate Elektronik.

• High-speed transfer to the PC while converting the original compressed data recorded in the SSD pack as RAW data or audio file in BWF format.
• It is also possible to export from PC to SSD pack (with some restrictions)

The post HB-7517
Data Transfer Box first appeared on EgeRate Elektronik.

• This unit uses a dedicated application to transfer data (Astro original compressed data) stored on an SSD pack (FD-7516, MM-210, MM-210A-1, etc.) to a recording device (SSD, HDD, etc.) connected to your PC.
  The transferred data is then converted to either HQX AVI/DPX/TIFF and saved.
• Data can be transferred back from a PC connected recording device (SSD, HDD, etc.) to an SSD pack (FD-7516, MM-210, MM-210A-1, etc.) as well.
•  This is convenient for file transfer when on-location or in another place where access to your normal workstation is not available.

The post HB-7521
USB3.0 Data Transfer Box first appeared on EgeRate Elektronik.

• Simultaneous recording and playback of an 4-hour continuous loop of 8K 240p video
• Equipped with Grass Valley HQX Codec to achieve long-term recording with high image quality
• Recording media (dedicated SSD pack) can be replaced
• Variable speed slow playback with the attached remote controller
• Supports registering, editing, and deleting clips during recording, as well as playlist creation by combining multiple clips
• Supports simultaneous output of 4K and HD down-converted video, in addition to audio channel assignment
• 4K output: Possible switching of 12G-SDI × 1ch (4 lines) or 3G-SDI × 4ch (1 line each)
• HD output: HD-SDI × 4ch (EE / PB / LINE / AUX)

The post SR-8428
8K Video Server first appeared on EgeRate Elektronik.

• Simultaneous recording and playback of an 8-hour continuous loop of 8K 60p video
• Equipped with Grass Valley HQX Codec to achieve long-term recording with high image quality
• Recording media (dedicated SSD pack) can be replaced
• Variable speed slow playback with the attached remote controller
• Supports registering, editing, and deleting clips during recording, as well as playlist creation by combining multiple clips
• Supports simultaneous output of 4K and HD down-converted video, in addition to audio channel assignment
• 4K output:Possible switching of 12G-SDI × 1ch (4 lines) or 3G-SDI × 4ch (1 line each)
• HD output: HD-SDI × 4ch (EE / PB / LINE / AUX)

The post SR-8438
8K Video Server first appeared on EgeRate Elektronik.

• Possible selection of recording four 8K60p signals for a 4-hour continuous loop or two 8K60p signals for an 8-hour continuous loop
• Simultaneous playback of up to two 8K 60p signals
• Simultaneous output of 4K and HD down-converted video
• Equipped with Grass Valley HQX Codec to achieve long-term recording with high image quality
• Variable slow playback with remote controller
• Two remote controllers can be used to independently control the playback of the two outputs.

*Additional controller is a paid option

• Supports registering, editing, and deleting clips during recording as well as playlist creation by combining multiple clips
• Supports clip transmission between units using 10GbE
• Supports up to 32 channels of audio recording
• Embedded audio and MADI signal input can be switched for 4 inputs
• Supports audio channel assignment for 4K and HD output

The post SR-8450
8K Video Server first appeared on EgeRate Elektronik.

• Uncompressed recording of 8K 120p, 100p, 60p and 50p signals
• Uncompressed recording of 4K 120p, 100p, 60p and 50p signals
• 120p recording and playback by 12G-SDI Quad × 2 or U-SDI
• Synchronous multiple unit operation supporting high frame rates of 240p and higher
• Usage of the SSD pack “MM-212 (8TB)” as recording medium which utilizes NVMe SSD
• SSD pack is sold separately
• Ability to edit or delete recorded clips and create a playlist combining multiple clips
• Supports 10GbE backup
• Supports up to 32 channels of audio recording
• 4U rackmount size

 Recording Time

The post HR-7520
Full Specificatıon 8K Recorder first appeared on EgeRate Elektronik.

• 4K YCBCR 4:2:2 120p can be recorded on a stand-­alone basis
• A CFexpress TypeB card (sold separately) is used for recording media
• Compatible with fixed 1/6 compression recording
• Supports Apple ProRes 422 HQ/422/422 LT (Container format .MOV) (Optional function)
• Supports relay capturing with dual slots
• Equipped with a function to slowly playback recorded 4K YCBCR 4:2:2 120p video at 60p or less
• Multiple video recorders can be connected for arbi­trary extended resolutions in units of 4K (extended in the future)
• Multiple-unit connected operation enables video recording at an arbitrary extended frame rate with 60p/120p as one unit (future expansion)
• Supports 12G/6G/3G/HD-SDI, HDMl2.0 (OUTPUT)
• Supports 25G/100GbE (future extensions/options),25GbE/100GbE complies with SMPTE ST 2110-10/-20/-30/-40
• Equipped with TIMECODE input/output terminals(LTC only)
• Equipped with MADI, Analogue and Audinate Dante
• Genlock(BB/3 Synchronization Signal) input is equipped
• Supports up to 32-channel audio (uncompressed, 24-bit) recording
• Equipped with both DC power input and AC power input

 Recording Time

*Recording time is provisional.
*When PP001-00（CFexpress/640 GB）is used

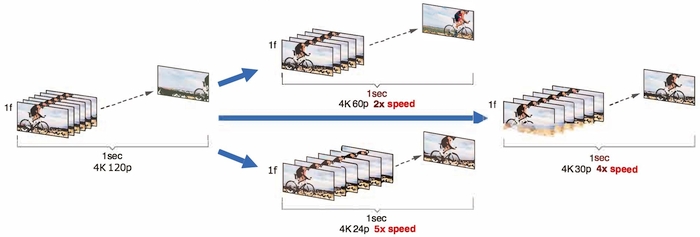

Use of Slow Playback 4K 120p

• Recording 4K 120p content to the main unit

•  Slow playback is possible by changing the frame rate during playback.

*Does not play back in the same recording.

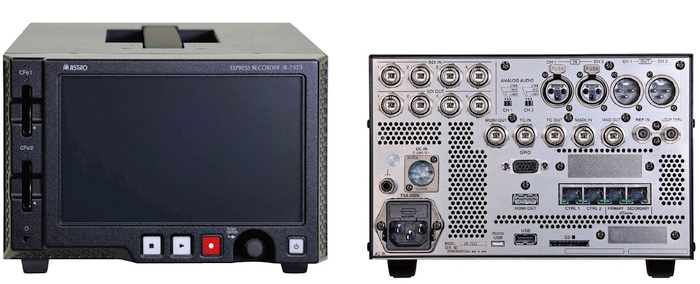

 Front, Rear Panel

The post IR-7523
Express Recorder first appeared on EgeRate Elektronik.

4 CH FULL HD VIDEO SWITCHER

ez-Pro VS4 is a 4 channels video switcher.
It has 3 x HDMI, 1 x SDI , and 1 x HDMI/SDI interchangeable ports for inputs.
You can monitor videos through 1 x HDMI Multiview,
and display Program output through either 1 x HDMI and/or 1 x SDI.
ez-Pro VS4 also receives TS type 6.35mm (1/4″) Balanced External Audio ports,
and sends out audio through 3.5mm Stereo port.

Switcher for Everyone !

ez-Pro VS4 is fit for houses of worship, educational activities, wedding, events, theater, and live concerts. With its user-friendly interface and comfortable keys, you can easily master its functions in no time.

Luma and Chroma Key

Use the Luma and Chroma Key to insert a transparent background video over another. With a simple push of a button, activate the Luma/Chroma feature of ez-Pro VS4. You can look like a pro with ez-Pro VS4.

Audio Input / Output

Audio embedding and de-embedding is possible with ez-Pro VS4. Contol the sound as you want with our audio mixer function on the menu.

Picture in Picture and Logos

Present a video input while displaying another with Picture in Picture (PIP). You can insert up to 2 logos in ez-Pro VS4. Use any images and upload into the video switcher.

Internal Scalers in All Inputs

ez-Pro VS4 has internal scalers in all input ports providing the easiest way to video switch with many videos of different resolutions. Do not worry about matching resolutions any longer. ez-Pro VS4 makes all “ez”!

TIP for Volume control!

You can setting a maximum / minimum volume at one time.

The post ez-Pro VS4
Full HD Video Switcher first appeared on EgeRate Elektronik.

10 INPUTS 1080P60 FULL HD VIDEO SWITCHER

More Switcher for Everyone!

Again, LUMANTEK gives you another switcher good for live events but with more ports than before. More screens to monitor in a single switcher with a larger touch screen to control.

Customizable video switcher for your preference.

You can choose from many layouts to show the multiview screen.
You can move them as you want and name as you want.
Configure your own layout through our utility (Win OS or Mac OS), save it on a USB disk,
and plug it into VS10 to load your layout.

Button Mapping

Assign video sources to console buttons of your preference.

Multiview Layout

Choose different multiview layouts and assign sources as you want!

Perfect harmony with ez-CGER mini for live titling and graphics!

All ez-Pro VS10 SDI inputs can take in Fill & Key signals. Connect LUMANTEK’s “ez-CGER mini” with ez-Pro VS10 and broadcast your video with Live Titling and Graphics!

Intuitive LCD Touchscreen and PTZ control through Joy-stick control

All key menu or functions can be adjusted with touchscreen smoothly and extremely easily operated with rotary switch or Joy stick.

All 10 inputs built in Scaler

ez-Pro VS10 comes with internal scalers in all input ports. Adjust freely using our touch screen menu.

Twice the Basic Features

ez-Pro VS10 has 2 Picture in Picture (PIP) capabilities, 2 Still Image which covers the whole screen, and Luma and Chroma Keyer. You can mix both features and key out the PIP and assimilate a hand language translator PIP.

Quiet Fan for your comfort

LUMANTEK carefully calibrated the fan noise to provide more comfort to its users while enabling the switcher to operate at its maximum performance.

Any ports are Fill & Key

VS10 allows to set any SDI & HDMI input ports as Fill or Key.

Transfer with USB disk

It is easy to transfer your settings to VS10. Use the VS10 Utility software to save settings into your USB disk. Then plug the USB into VS10 to transfer settings, media, and new firmware.

PROGRAM/ MULTIVIEW display at LCD screen

LCD screen is able to display Program and Multiview when you touch the screen.

Extended channels

After the development of ez-Pro VS4, user feedback has been gathered from around the world. Good things and bad things were thought to apply to our next product. ez-Pro VS10 is the result of such ideas.
