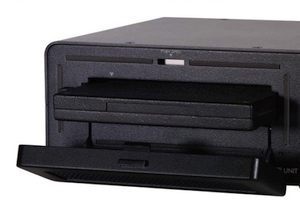

HB-7521
USB3.0 Data Transfer Box

HB-7521 is a device that transfers data recorded in the dedicated SSD pack of 8K recoder/8K camcorder to any PC.
Easy set up by inserting the main unit’s USB3.0 Type B connector into the USB3.0 slot mounted on your PC.
Freely operate using a dedicated GUI.

Features

  • This unit uses a dedicated application to transfer data (Astro original compressed data) stored on an SSD pack (FD-7516, MM-210, MM-210A-1, etc.) to a recording device (SSD, HDD, etc.) connected to your PC.
    The transferred data is then converted to either HQX AVI/DPX/TIFF and saved.
  • Data can be transferred back from a PC connected recording device (SSD, HDD, etc.) to an SSD pack (FD-7516, MM-210, MM-210A-1, etc.) as well.
  •  This is convenient for file transfer when on-location or in another place where access to your normal workstation is not available.

SPECIFICATIONS

Power Requirements 12V DC support, Canon connector
Power Consumption 30W MAX (when SSD pack is inserted)
Operating Temperature Range +5 to 40ºC
Operating Humidity Range 20 to 80% RH (No Condensation)
Dimensions 210（W）×96（H）×205（D）mm (Excluding Protrusions)
Weight 1.62kg (Excluding SSD pack)
Accessories Accessory CD (instruction manual, software), AC/DC adapter
