IR-7523
Express Recorder

A portable video recorder that uses CFexpress as a recording media. This unit supports the recording and playback of 4K 120p images on a stand-alone basis, and by connecting multiple units, you can record and play video with any extended resolution and frame rate.

Features

  • 4K YCBCR 4:2:2 120p can be recorded on a stand-­alone basis
  • A CFexpress TypeB card (sold separately) is used for recording media
  • Compatible with fixed 1/6 compression recording
  • Supports Apple ProRes 422 HQ/422/422 LT (Container format .MOV) (Optional function)
  • Supports relay capturing with dual slots
  • Equipped with a function to slowly playback recorded 4K YCBCR 4:2:2 120p video at 60p or less
  • Multiple video recorders can be connected for arbi­trary extended resolutions in units of 4K (extended in the future)
  • Multiple-unit connected operation enables video recording at an arbitrary extended frame rate with 60p/120p as one unit (future expansion)
  • Supports 12G/6G/3G/HD-SDI, HDMl2.0 (OUTPUT)
  • Supports 25G/100GbE (future extensions/options),25GbE/100GbE complies with SMPTE ST 2110-10/-20/-30/-40
  • Equipped with TIMECODE input/output terminals(LTC only)
  • Equipped with MADI, Analogue and Audinate Dante
  • Genlock(BB/3 Synchronization Signal) input is equipped
  • Supports up to 32-channel audio (uncompressed, 24-bit) recording
  • Equipped with both DC power input and AC power input

 Recording Time

4K 24p 25p 30p 50p 60p 100p 120p
Fixed 1/6 compress 100 min. 96 min. 80 min. 48 min. 40 min. 24 min. 20 min.
ProRes 422 HQ 80 min. 76 min. 64 min. 38 min. 32 min. 19 min. 16 min.
ProRes 422 114 min. 110 min. 91 min. 55 min. 45 min. 27 min. 22 min.
ProRes 422 LT 146 min. 140 min. 116 min. 70 min. 58 min. 35 min. 29 min.



HD 24p/PsF 25P/50i 30p/60i 50p 60p 100p 120p
Fixed 1/6 compress 292 min. 281 min. 234 min. 140 min. 117 min. 70 min. 58 min.
ProRes 422 HQ 246 min. 236 min. 197 min. 117 min. 98 min. 58 min. 48 min.
ProRes 422 320 min. 307 min. 256 min. 153 min. 128 min. 76 min. 64 min.
ProRes 422 LT 356 min. 342 min. 285 min. 171 min. 142 min. 85 min. 71 min.

*Recording time is provisional.
*When PP001-00（CFexpress/640 GB）is used

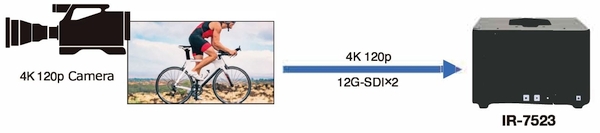

Use of Slow Playback 4K 120p

  • Recording 4K 120p content to the main unit

  •  Slow playback is possible by changing the frame rate during playback.

*Does not play back in the same recording.

 Front, Rear Panel

SPECIFICATIONS

Video Input/Output 4K 12G-SDI x 2 3840 x 2160 120p/119.88p/100p
12G-SDI ｘ 1 3840 x 2160 60p/59.94p/50p
6G-SDI x 1  3840 x 2160 30p/29.97p/25p/24p/23.98p
3G-SDI x 4  3840 x 2160 60p/59.94p/50p
Ancillary data (voice, TC) compatible
HD (※1) 3G-SDI x 1 1920 x 1080 60p/59.94p/50p
HD-SDI x 1 1920 x 1080 60i/59.94i/50i/30p/30PsF /29.97PsF/25p/25PsF/
24p/24PsF/23.98p/23.98PsF
Ancillary data (voice, TC) compatible
（Future extension） 25Gb/100Gb Ethernet(SMPTE ST 2110-10/-20/-30/-40)
2-system PTP (ST 2059) compatible
MONITOR OUT Same as ※1
HDMI OUT HDMI 2.0 One system
Sync Signal Input HD3/BB Signal 75Q BNC Passive Through (Auto Termination)
MADI Input/Output 75Ω BNC 1 system
TIMECODE Input/Output BNC 1 system LTCs only
ANALOG AUDIO Input/Output Connector XLR3-pin concave 1-pin: GND 2-pin: HOT 3-pin: COLD
AUDIO IN: LINE/MIC/MIC +48 switchable AUDIO OUT: balanced power level: max. +24dBu



GPIO Remote operation status output
LAN 1000Base-T Ethernet　NMOS compatible file-transfer
Dante 1000Base-T
PC I/F 32Gbps file-transfer
Headphones 3.5mm Stereo mini jack
SD SD2.0 Card slot
device maintenance (upgrade), log output
USB2.0 Extended capabilities
Record Mode  Video Fixed 1/6 codec YCBCR 4:2:2 10 bits
Apple ProRes 422 HQ/422/422/LT （Optional function）
Audio Linear PCM 48kHz 24-bit 32 audio channel
Container format Fixed 1/6 codec .RAW
Apple ProRes .MOV
Recordable Media CFexpress card

GENERAL SPECIFICATIONS

Power Requirements DC IN DC 12.0-17.0V
AC IN AC100-240V
Power Consumption 120W MAX
Operating Temperature Range 0 to 40℃
Operating Humidity Range  20 to 80%RH (No Condensation)
Dimensions 210(W)×133(H)×310(D)mm　(Excluding Protrusions)
Weight 3.0 kg　(Not including recording media)

*Apple is a trademark of Apple Inc., registered in the U.S. and other countries and regions.
*Apple ProRes is trademarks of Apple Inc.
