Single color display can be set, more suitable for outdoor use under strong light

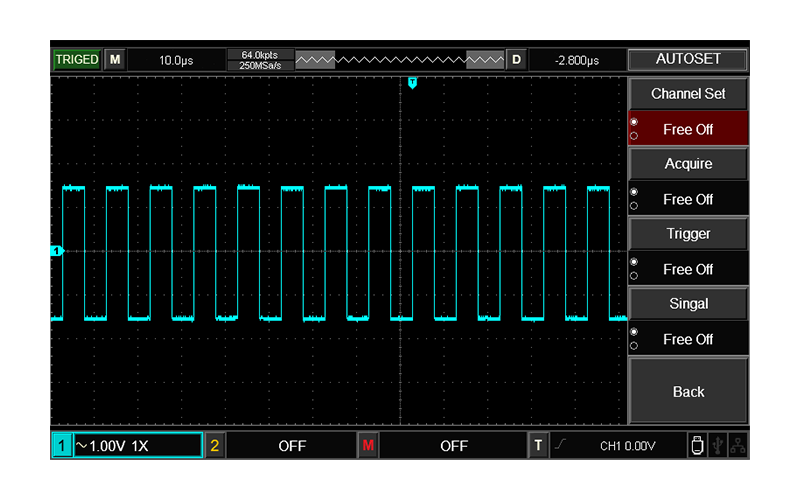

Automatic setting function (AUTO SCALE) The vertical and time base gears can be automatically adjusted with signal changes without manual intervention;

Peak to Peak, Amplitude, Maximum, Minimum, Top, Bottom, Mid, Average, RMS, Overshoot, Preshoot, Frequency, Period, Rise Time, Fall Time, Positive Pulse Width, Negative pulse width, positive duty cycle, negative duty cycle, rising delay, falling delay, phase, a total of 22 types of measurements.

Oscilloscope & Multimeter

Automatic setting function (AUTO SCALE) Vertical and time base gears can be automatically adjusted with signal changes without manual intervention

Single color display can be set, more suitable for outdoor use under strong light

Display cursor peak-to-peak value, amplitude, maximum value, minimum value, top value, bottom value, middle value, average value, rms value, overshoot, preshoot, frequency, period, rise time, fall time during automatic measurement , positive pulse width, negative pulse width, positive duty cycle, negative duty cycle, rise delay, fall delay measurement of a total of 27 kinds

Oscilloscope & Multimeter

You can observe the overall situation and details of the waveform

Can measure the phase difference between two signals of the same frequency

The state after AUTO can be set

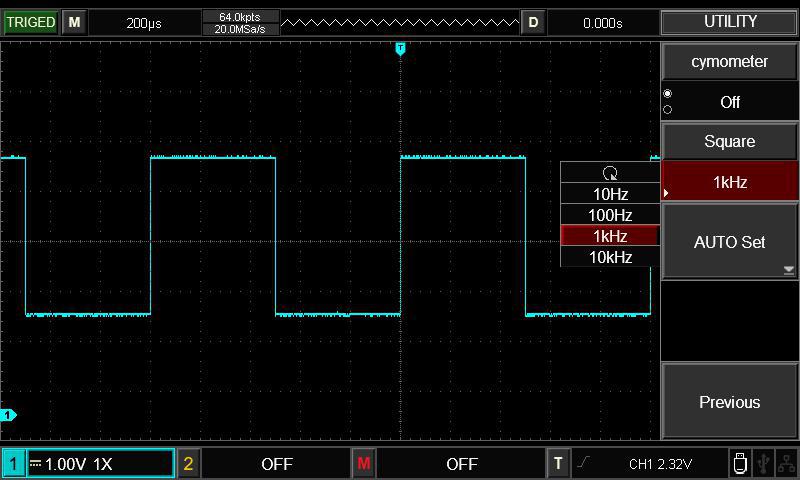

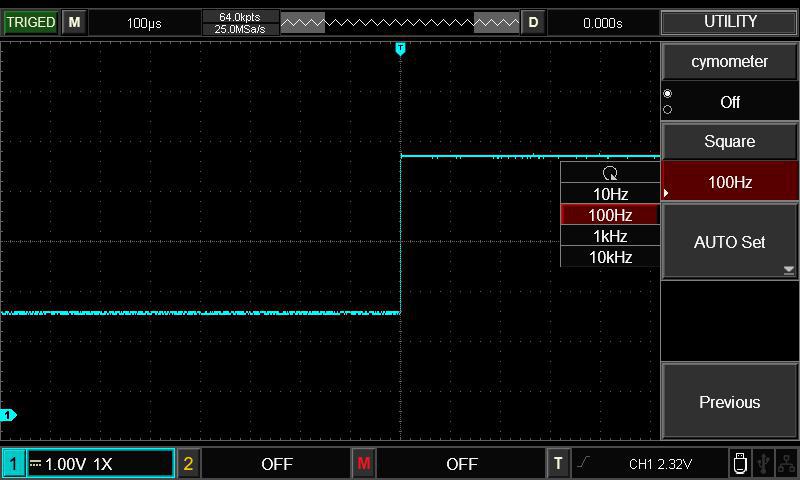

With 10hz, 100hz, 1Khz, 10Khz local signal standard square wave output

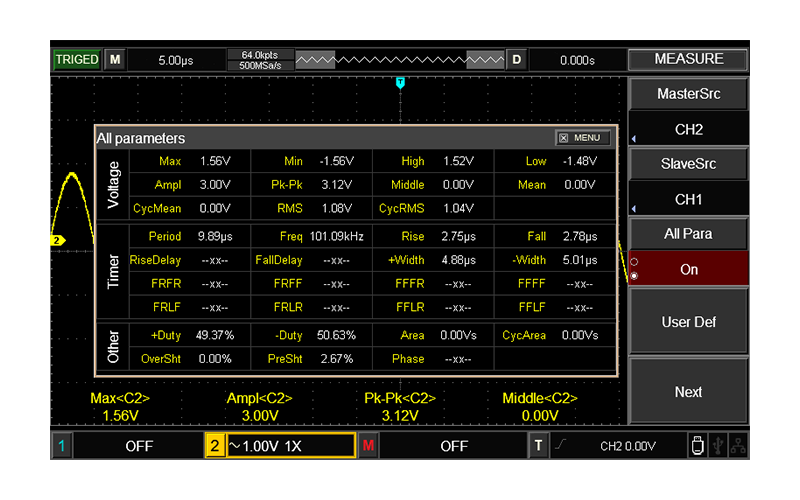

With 34 kinds of automatic parameter measurement, 5 groups of customizable parameter display

Grade display can view the worst case of changing waveforms, capture rare and abnormal signals

It can be effectively applied to trigger signals without frequency correlation.

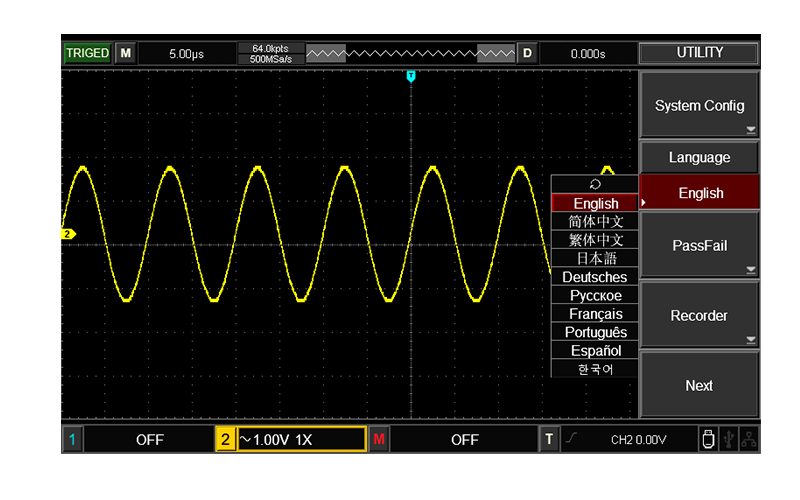

With 9 languages, it can meet the needs of users in more countries.

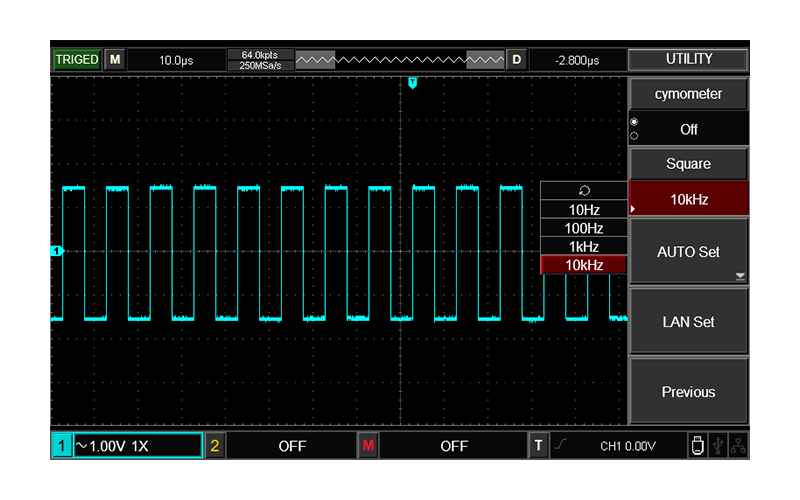

Output standard square wave 10Hz, 100Hz, 1kHz, 10kz optional.

The UTD2000CEX+ series supports 34 kinds of automatic measurement functions

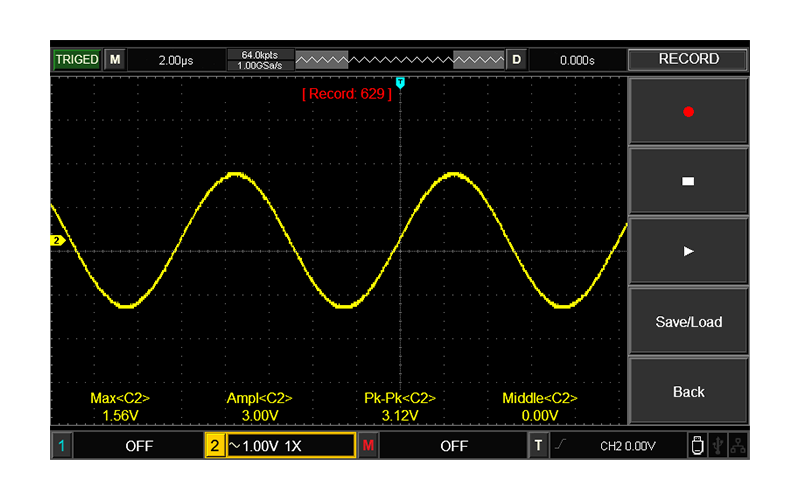

and waveform recording functions.which can record up to 1000 frames, and can

achieve better waveform analysis effects through playback and storage functions.

Up to 56Mpts storage depth, users can capture longer

Time signal without losing waveform details.

Up to 80,000wfms/s waveform capture rate,discover occasional problems

in time, greatly improve the ability to capture extremely low-probability events,

and observe signal jitter and glitches more intuitively

The time base of each channel is independently adjustable,

which is convenient for users to observe four channels of

frequencies at the same time Significantly different signals

Support 34 kinds of automatic measurement parameter functions,

Support Zoom, Math, statistics and advanced calculation functions.

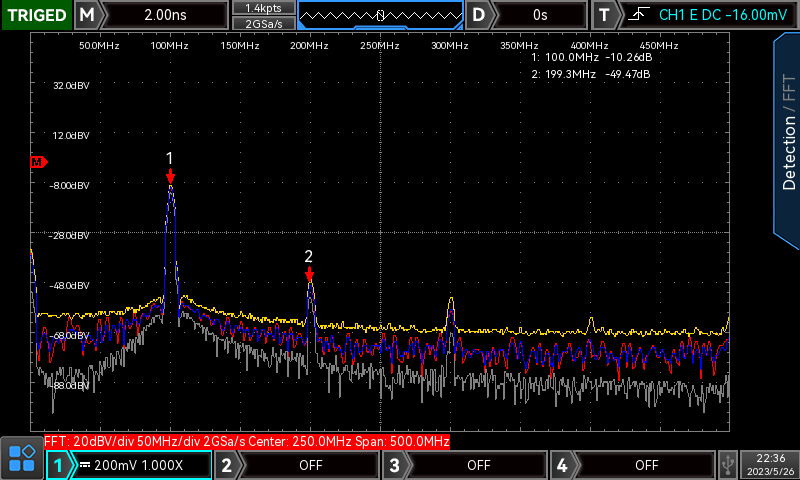

UPO1000CS series has 1Mpts FFT sampling points. It can also set the practical functions of spectrum analyzer such as frequency range, detection mode and spectrum marking. It is convenient for you to analyze the signal in frequency domain on oscilloscope.

Signals with different clock sources and large frequency difference can also display the waveform stably on the screen, which is convenient for customers to analyze the waveform parameters.

Innovative hardware decoding realizes real-time decoding. The decoding speed with deep storage 56Mpts realizes the millisecond level, which solves the problem of long-time waiting for viewing decoded data. The decoding will not affect the refresh speed of the waveform, and the waveform has the effect of digital fluorescence display. The event list can display the decoded data with deep storage and the time of the packet. These improved technologies will help you better test the serial bus.

UPO1000CS series 56M sampling points per channel. This enables the oscilloscope to maintain high sampling rate in a wider time base range, At the same time considering the whole and details of the waveform, which greatly improves the ability to capture abnormal waveforms.

UPO1000CS series adopts innovative digital signal parallel processing technology. It has a very high capture rate in its peer products. Effectively reduce signal loss and help you better capture abnormal signals.

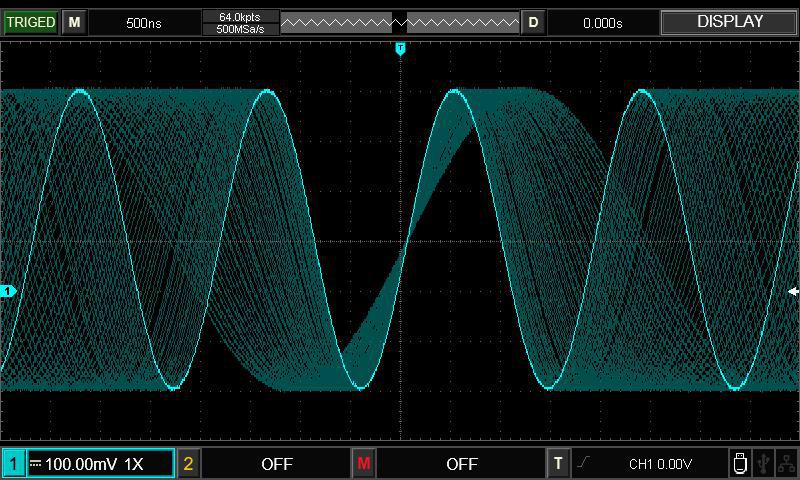

The original Ultra Phosphor display technology is easy to obtain more waveform information and detailed observation.

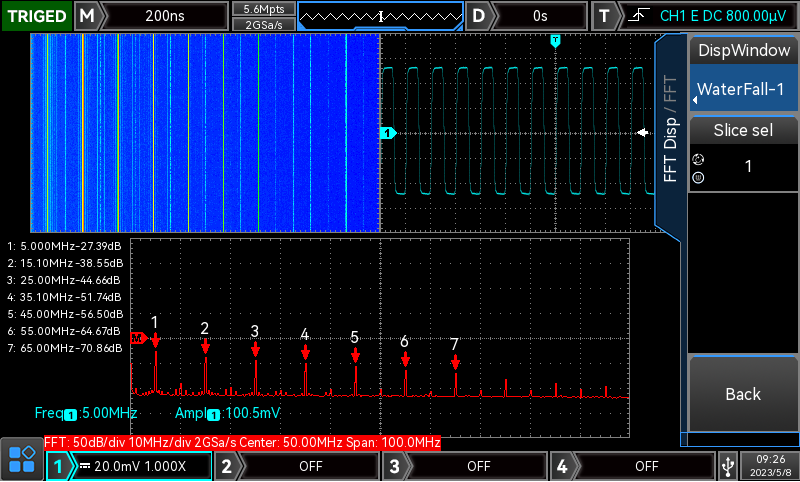

It supports full screen / split screen / waterfall chart and multiple detections. It can provide users with fast and rich frequency domain measurement information.

It supports full screen / split screen / waterfall chart and multiple detections. It can provide users with fast and rich frequency domain measurement information.

Can be used for loop analysis. It is a critical measurement often used to characterize the frequency response (gain, phase, and frequency) of today’s various electronic designs, including passive filters, amplifier circuits, and negative feedback networks for switch-mode power supplies.

The built-in dual-channel function arbitrary waveform generator can output sine wave, square wave, ramp wave, pulse wave, arbitrary wave, noise and DC. The maximum frequency output of sine wave is 50MHz.

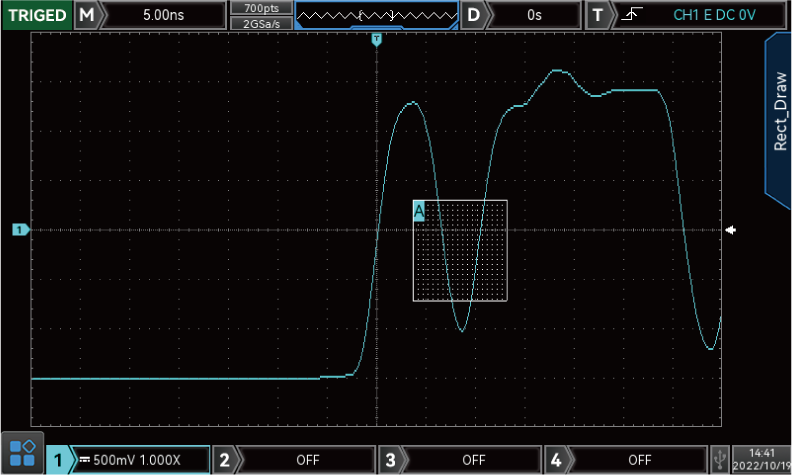

The area trigger can be used in combination with the existing basic trigger, advanced trigger and protocol trigger to complete the capture of various occasional and complex characteristic signals.

The decoding speed is greatly improved. The full-memory hardware decoding under the deep storage of 56Mpts, the decoding time is increased from more than ten seconds to milliseconds, which realizes real-time decoding and greatly improves the user’s problem diagnosis efficiency. The recorded waveform also supports full-memory hardware real-time decoding.

With a wealth of advanced trigger and bus trigger functions, it can help users accurately and quickly capture and display the signal of interest.

The oscilloscope can maintain a high sampling rate in a wider time base range, while taking into account the overall and details of the waveform, greatly improving the capture rate of abnormal waveforms.

Using the original Multi-Scopes technology, the waveform display is more user-friendly, which is convenient for users to experience and analyze waveform details

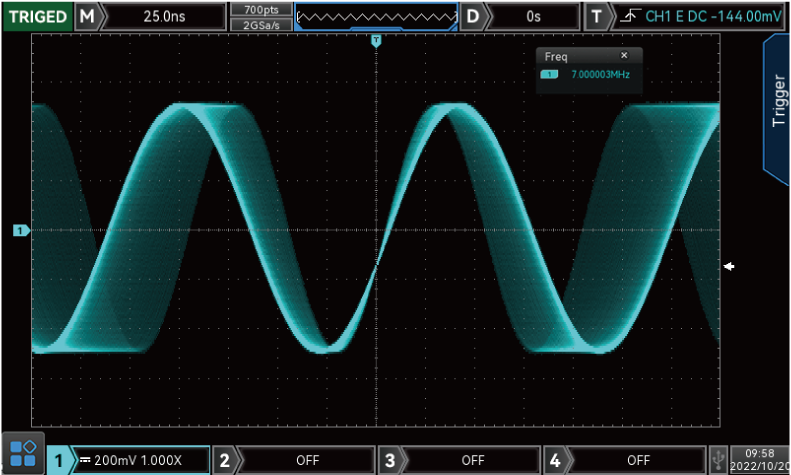

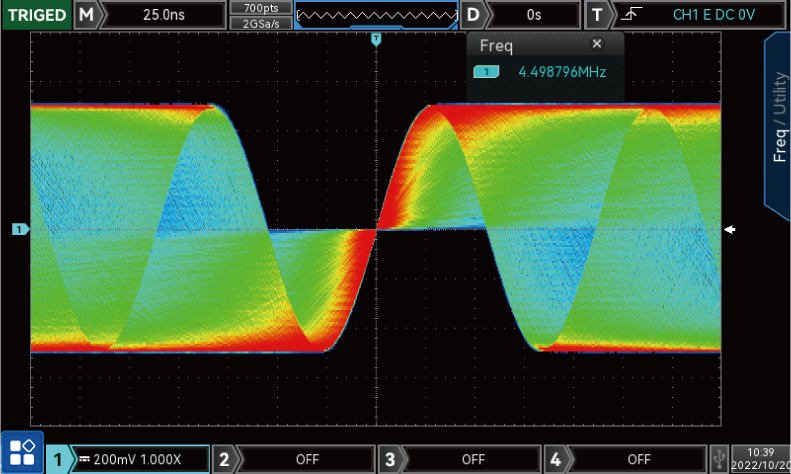

Using the original Ultra Phosphor display technology, you can observe the accumulated effect for a long time, which is convenient for displaying waveform details and occasional abnormalities.

Using innovative digital signal parallel processing technology, it can reach an ultra-high capture rate of 200,000wfms/s in normal sampling and 1,000,000 wfms/s in Fast Acquire mode. Efficient capture of occasional signals.

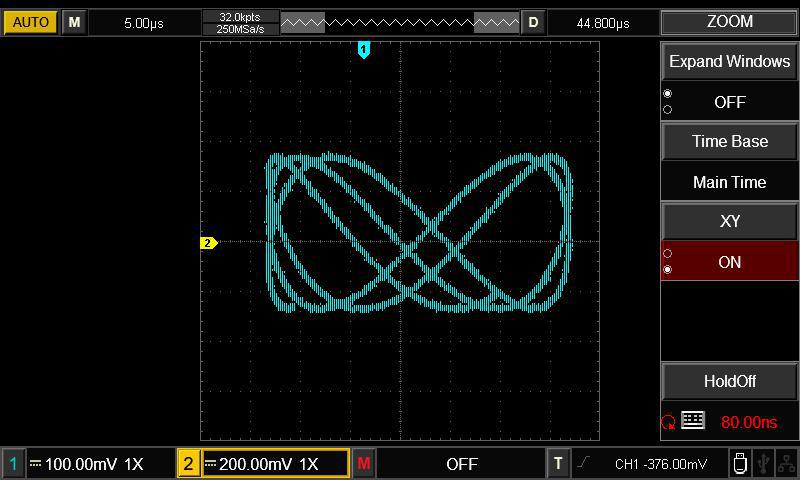

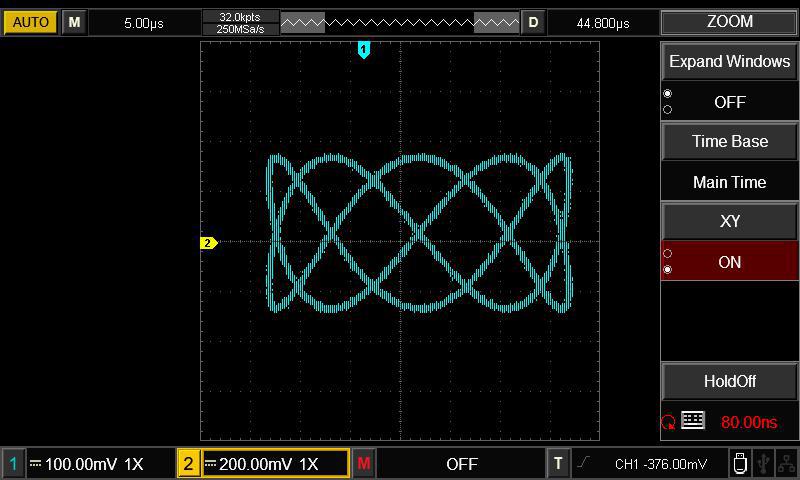

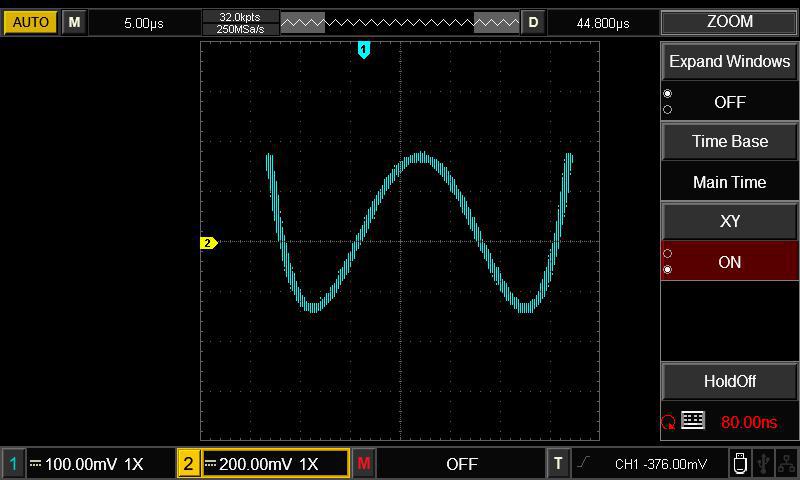

XY mode cursor measurement can quickly measure the phase difference between two signals.

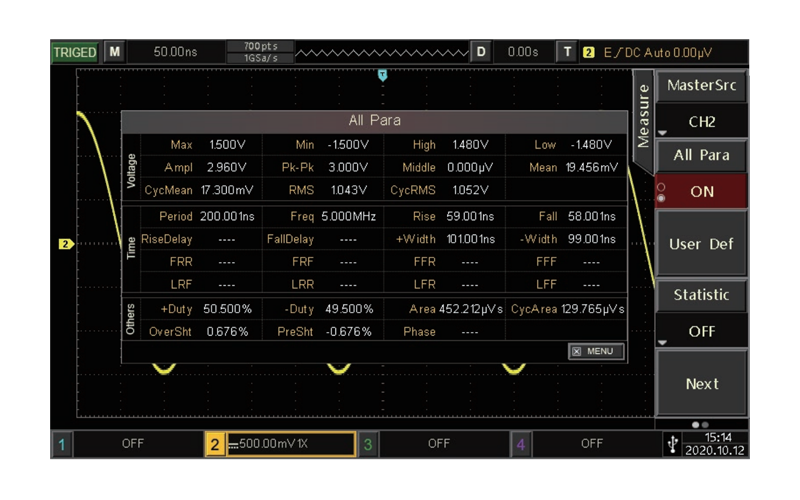

Automatic parameter measurement up to 36 kinds. Provides a variety of automatic measurement parameters while you measure waveforms, greatly improving your measurement efficiency.

The 8-inch touch screen design supports a variety of gesture operations, such as click, slide, zoom, edit, drag, etc. Make the measurement action smoother and more convenient, and users can master it more quickly. At the same time, the traditional button and knob operation is still retained, and the interactive experience is optimized to the greatest extent.

Automatic parameter measurement up to 36 kinds. Provides a variety of automatic measurement parameters while you measure waveforms, greatly improving your measurement efficiency.

XY mode cursor measurement can quickly measure the phase difference between two signals.

Using innovative digital signal parallel processing technology, it can reach an ultra-high capture rate of 200,000wfms/s in normal sampling and 1,000,000 wfms/s in Fast Acquire mode. Efficient capture of occasional signals.

The oscilloscope can maintain a high sampling rate in a wider time base range, while taking into account the overall and details of the waveform, greatly improving the capture rate of abnormal waveforms.

With a wealth of advanced trigger and bus trigger functions, it can help users accurately and quickly capture and display the signal of interest.

The decoding speed is greatly improved. The full-memory hardware decoding under the deep storage of 70Mpts, the decoding time is increased from more than ten seconds to milliseconds, which realizes real-time decoding and greatly improves the user’s problem diagnosis efficiency. The recorded waveform also supports full-memory hardware real-time decoding.

The area trigger can be used in combination with the existing basic trigger, advanced trigger and protocol trigger to complete the capture of various occasional and complex characteristic signals.

The built-in dual-channel function arbitrary waveform generator can output sine wave, square wave, ramp wave, pulse wave, arbitrary wave, noise and DC. The maximum frequency output of sine wave is 50MHz.

Can be used for loop analysis. It is a critical measurement often used to characterize the frequency response (gain, phase, and frequency) of today’s various electronic designs, including passive filters, amplifier circuits, and negative feedback networks for switch-mode power supplies.

Can be used for parallel bus, protocol decoding and timing measurements.

Provides two 8-channel splitters and simplifies connection to the device under test. When connecting with square pins, UT-M15 can be directly connected with 8X2 square pin headers with pins of 2.54mm. The UT-M15 offers excellent electrical characteristics with an input impedance of 101kΩ and a capacitive load of only 9.0pF.

Embedded with Web Server, you can remotely control the instrument, observe waveforms, and obtain measurement results through a browser, which can meet the application requirements of special environments such as high pressure and high temperature. Cross-platform control can be realized without installing driver software and host computer software. MSO/UPO3000E series supports PC and mobile phone two styles of web page layout and touch operation, making it easier and more convenient to use.
