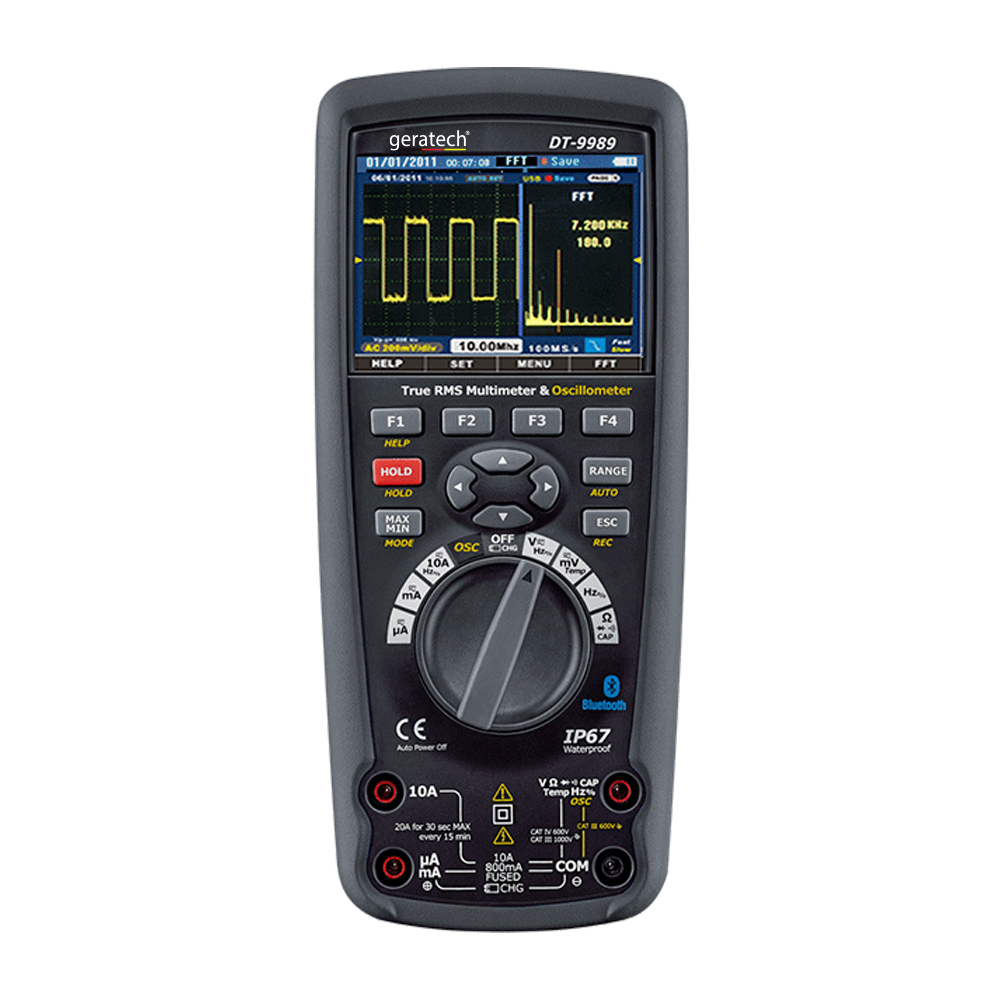

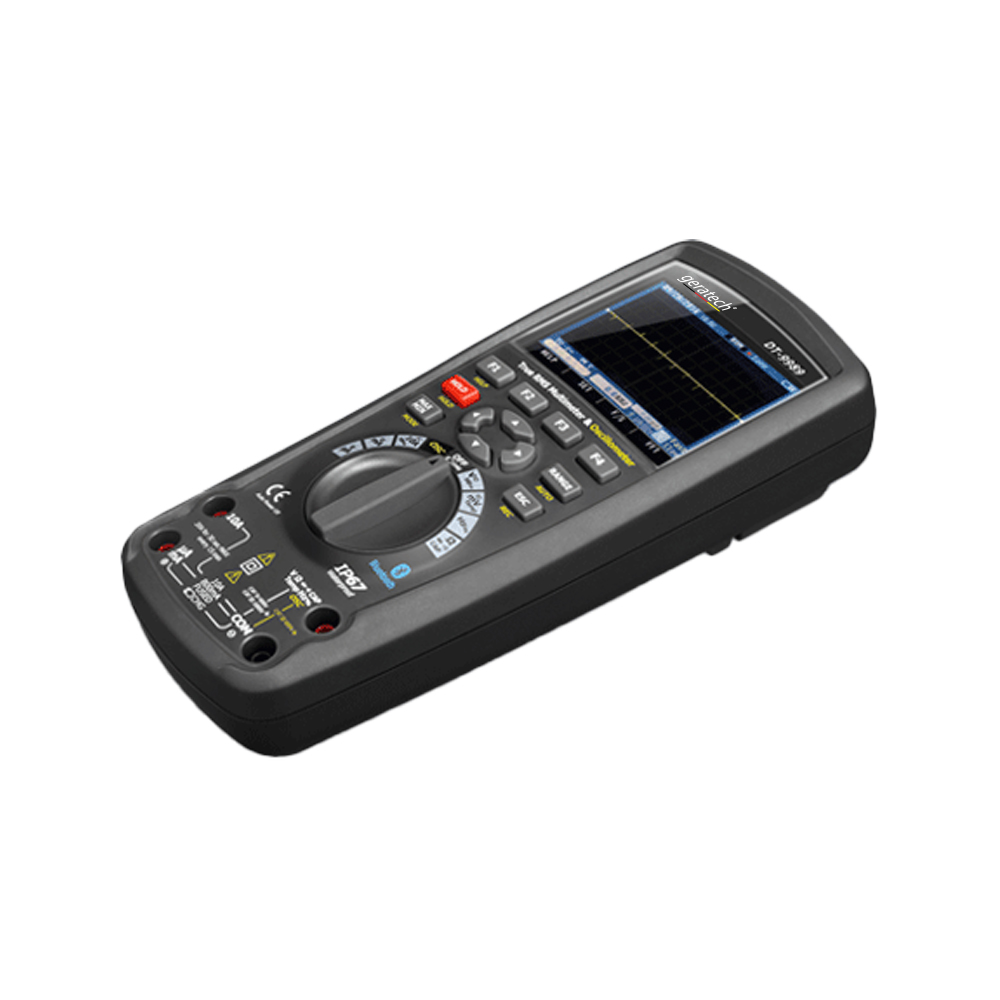

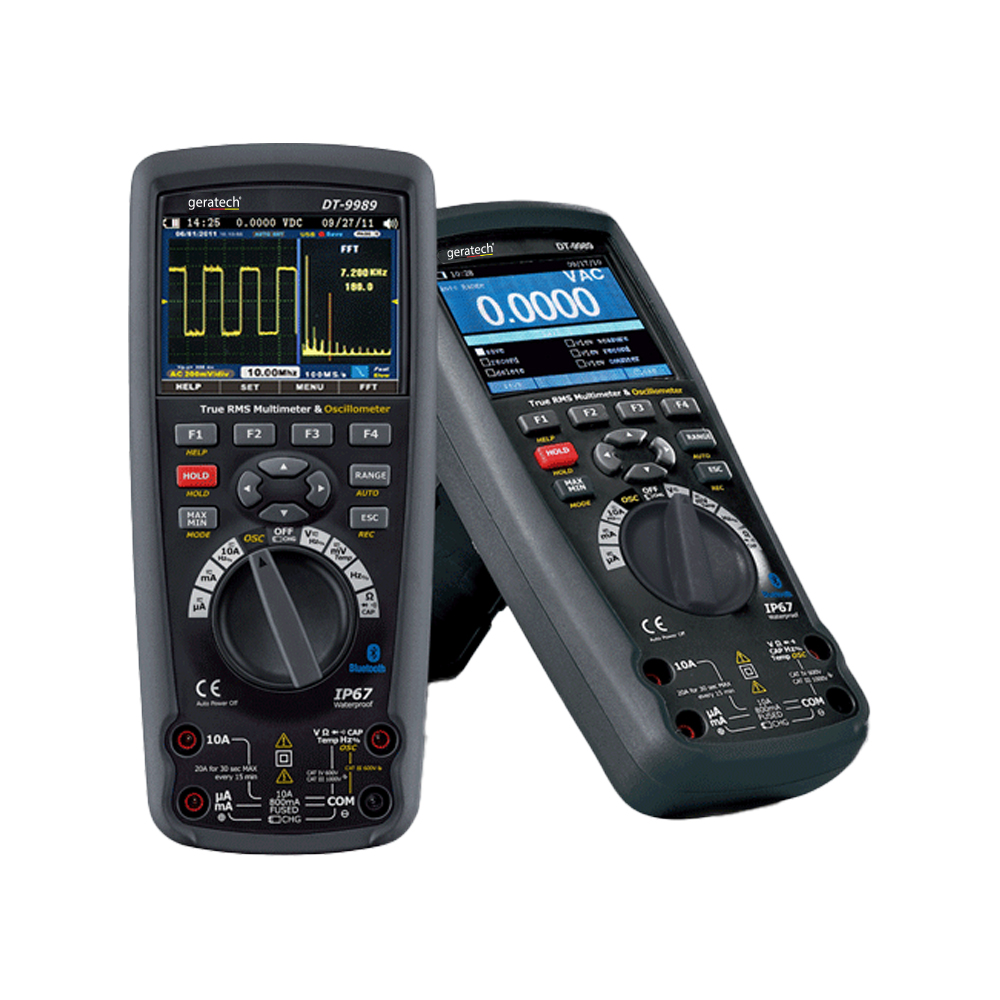

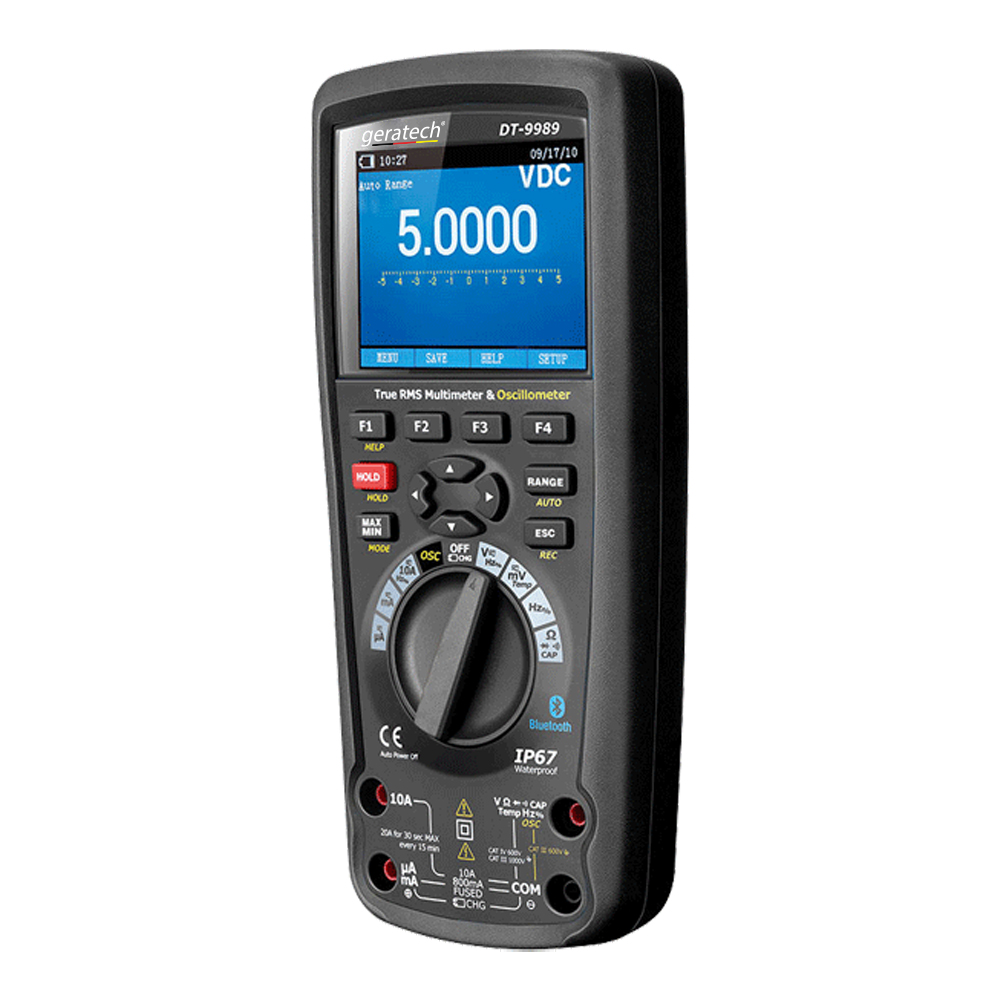

DT-9989
Professional True RMS Industrial Multimeter/Oscilloscope with TFT color LCD display

Professional True RMS Industrial Multimeter/Oscilloscope with TFT color LCD display
DT-9989 Professional True RMS Industrial Digital Multimeter with oscilloscope functions and TFT color LCD display, providing fast A/D converting sampling time, high accuracy, built-in datalogging and Trend Capture features. Meterbox iMM software & cloud server support to transfer the measured data to the customer’s smartphone for edit and storage.

Professional True RMS Industrial Multimeter/Oscilloscope with TFT color LCD display
DT-9989 Professional True RMS Industrial Digital Multimeter with oscilloscope functions and TFT color LCD display, providing fast A/D converting sampling time, high accuracy, built-in datalogging and Trend Capture features. Meterbox iMM software & cloud server support to transfer the measured data to the customer’s smartphone for edit and storage.
Safety Conformance
EN61010-1 CAT IV 600V, CAT III 1000V
1000V input protection on all ranges
10A/1000V & 0.8A/1000V fuses protection on current ranges

FEATURES

Large 50,000 count 320 x 240 TFT color LCD display
20MHz/50MS/s bandwidth/Real time sample rate
Logging function with Trend Capture for easy review of logged data
Bluetooth PC interface for easy data transfer & accuracy calibration
100kHz bandwidth (voltage/current)
AC, AC+DC true-RMS measurements
0.025% DCV accuracy with Fully PC Calibration
Saves measurements, records events and trends
20 Times/sec. A/D convert fast sampling time
Peak capture (records transients as fast as 250μs)
Min/Max/Average with Time stamp (records signal fluctuations)
Moto winding and low ohm (50Ω) measurement range
Low pass filter
IP Rating 67 & CATIII 1000V/CATIV 600V
Bluetooth interface to smartphone / PC.
Meterbox iMM & cloud service

Size (H x W x D): 220mm x 96mm x 60mm

Weight: 631g

SPECIFICATIONS

Specifications DT-9989
Oscilloscope Functions
Display Size 3.5″ color LCD; 320 x 240 pixels
Bandwidth 20MHz
Real time sample rate 50MS/s
Risetime 10ns
Channels 1
Vertical Sensitivity 50mV to 200V/div
Vertical Resolution 8 bits
Trigger Mode Free Run, falling edge, rising edge
Trigger Source Internal
Trigger Coupling AC/DC
Input impedance 1MΩ/200pF
Max Input Volatage 1000V(peak)
Cursor Measurement Voltage and time/ Frequency
True RMS Multimeter Functions
Function Maximum Max,resolution Accuracy
Voltage DC 1000V 1μV ±(0.025% + 5)
Voltage AC 1000V 1μV ±(0.4% + 40)
Current DC 10A 0.01μA ±(0.15% + 2)
Current AC 10A 0.01μA ±(0.6% + 5)
Temperature -50ºC to 1000ºC 0.1ºC ±(1.0% + 2.5ºC)
Resistance 50MΩ 0.01Ω ±(0.05% + 2)
Capacitance 10mF 0.001nF ±(1.0% + 5)
Frequency 10MHz 0.01Hz ±(0.005% + 1)
Diode and Continuity Yes
PC Interface Bluetooth
Power Supply 6 hours Li-ion rechargeable battery; AC daptor/charger

ACCESSORIES

Accessories: Test leads, Li-ion batteries, Type K temperature probe, Bluetooth and Software, gift box with carrying case.
