• Model: IT6045C-80-1350
• Maksimum Güç: 45kW
• Gerilim Aralığı: 0 – 80V
• Akım Kapasitesi: 0-1350A
• Çalışma Modları: CC / CV / CR / CP
• %95’e varan yüksek rejeneratif verimlilik ile yüksek enerji tasarrufu sağlar.
• Programlanabilir test senaryoları
• USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
• Koruma özellikleri: OVP, ±OCP, ±OPP, OTP, power down protection, anti-islanding protection

Kullanım Alanları

• Invertor testleri
• Batarya charge ve discharge testleri
• AR-GE laboratuvarları
• Endüstriyel üretim test sistemleri
• Solar panel ve güç elektroniği testleri

Ürün Avantajları

• Yüksek doğruluk ve stabilite
• Geniş uygulama yelpazesi
• Kolay kullanım ve uzaktan kontrol imkânı
• Endüstriyel dayanıklılık

The post ITECH 80V/1350A/45kW
IT6045C-80-1350 DC Güç ... first appeared on EgeRate Elektronik.

• Model: IT6030C-80-900
• Maksimum Güç: 30kW
• Gerilim Aralığı: 0 – 80V
• Akım Kapasitesi: 0-900A
• Çalışma Modları: CC / CV / CR / CP
• %95’e varan yüksek rejeneratif verimlilik ile yüksek enerji tasarrufu sağlar.
• Programlanabilir test senaryoları
• USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
• Koruma özellikleri: OVP, ±OCP, ±OPP, OTP, power down protection, anti-islanding protection

Kullanım Alanları

• Invertor testleri
• Batarya charge ve discharge testleri
• AR-GE laboratuvarları
• Endüstriyel üretim test sistemleri
• Solar panel ve güç elektroniği testleri

Ürün Avantajları

• Yüksek doğruluk ve stabilite
• Geniş uygulama yelpazesi
• Kolay kullanım ve uzaktan kontrol imkânı
• Endüstriyel dayanıklılık

The post ITECH 80V/900A/30kW
IT6030C-80-900 DC Güç Ka... first appeared on EgeRate Elektronik.

• Model: IT6015C-80-450
• Maksimum Güç: 15kW
• Gerilim Aralığı: 0 – 80V
• Akım Kapasitesi: 0-450A
• Çalışma Modları: CC / CV / CR / CP
• %95’e varan yüksek rejeneratif verimlilik ile yüksek enerji tasarrufu sağlar.
• Programlanabilir test senaryoları
• USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
• Koruma özellikleri: OVP, ±OCP, ±OPP, OTP, power down protection, anti-islanding protection

Kullanım Alanları

• Invertor testleri
• Batarya charge ve discharge testleri
• AR-GE laboratuvarları
• Endüstriyel üretim test sistemleri
• Solar panel ve güç elektroniği testleri

Ürün Avantajları

• Yüksek doğruluk ve stabilite
• Geniş uygulama yelpazesi
• Kolay kullanım ve uzaktan kontrol imkânı
• Endüstriyel dayanıklılık

The post ITECH 80V/450A/15kW
IT6015C-80-450 DC Güç Ka... first appeared on EgeRate Elektronik.

• Model: IT6015C-80-450
• Maksimum Güç: 15kW
• Gerilim Aralığı: 0 – 80V
• Akım Kapasitesi: 0-450A
• Çalışma Modları: CC / CV / CR / CP
• %95’e varan yüksek rejeneratif verimlilik ile yüksek enerji tasarrufu sağlar.
• Programlanabilir test senaryoları
• USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
• Koruma özellikleri: OVP, ±OCP, ±OPP, OTP, power down protection, anti-islanding protection

Kullanım Alanları

• Invertor testleri
• Batarya charge ve discharge testleri
• AR-GE laboratuvarları
• Endüstriyel üretim test sistemleri
• Solar panel ve güç elektroniği testleri

Ürün Avantajları

• Yüksek doğruluk ve stabilite
• Geniş uygulama yelpazesi
• Kolay kullanım ve uzaktan kontrol imkânı
• Endüstriyel dayanıklılık

The post ITECH 80V/450A/15kW
IT6015C-80-450 DC Güç Ka... first appeared on EgeRate Elektronik.

• Model: IT6010C-80-30
• Maksimum Güç: 10kW
• Gerilim Aralığı: 0 – 80V
• Akım Kapasitesi: 0-300A
• Çalışma Modları: CC / CV / CR / CP
• %95’e varan yüksek rejeneratif verimlilik ile yüksek enerji tasarrufu sağlar.
• Programlanabilir test senaryoları
• USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
• Koruma özellikleri: OVP, ±OCP, ±OPP, OTP, power down protection, anti-islanding protection

Kullanım Alanları

• Invertor testleri
• Batarya charge ve discharge testleri
• AR-GE laboratuvarları
• Endüstriyel üretim test sistemleri
• Solar panel ve güç elektroniği testleri

Ürün Avantajları

• Yüksek doğruluk ve stabilite
• Geniş uygulama yelpazesi
• Kolay kullanım ve uzaktan kontrol imkânı
• Endüstriyel dayanıklılık

The post ITECH 80V/300A/10kW
IT6010C-80-300 DC Güç Ka... first appeared on EgeRate Elektronik.

• Model: IT6005C-80-150
• Maksimum Güç: 5kW
• Gerilim Aralığı: 0 – 80V
• Akım Kapasitesi: 0-150A
• Çalışma Modları: CC / CV / CR / CP
• %95’e varan yüksek rejeneratif verimlilik ile yüksek enerji tasarrufu sağlar.
• Programlanabilir test senaryoları
• USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
• Koruma özellikleri: OVP, ±OCP, ±OPP, OTP, power down protection, anti-islanding protection

Kullanım Alanları

• Invertor testleri
• Batarya charge ve discharge testleri
• AR-GE laboratuvarları
• Endüstriyel üretim test sistemleri
• Solar panel ve güç elektroniği testleri

Ürün Avantajları

• Yüksek doğruluk ve stabilite
• Geniş uygulama yelpazesi
• Kolay kullanım ve uzaktan kontrol imkânı
• Endüstriyel dayanıklılık

The post ITECH 80V/150A/5kW
IT6005C-80-150 DC Güç Kay... first appeared on EgeRate Elektronik.

• Model: IT6018C-1500-40
• Maksimum Güç: 18kW
• Gerilim Aralığı: 0 – 1500V
• Akım Kapasitesi: 0-40A
• Çalışma Modları: CC / CV / CR / CP
• %95’e varan yüksek rejeneratif verimlilik ile yüksek enerji tasarrufu sağlar.
• Programlanabilir test senaryoları
• USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
• Koruma özellikleri: OVP, ±OCP, ±OPP, OTP, power down protection, anti-islanding protection

Kullanım Alanları

• Invertor testleri
• Batarya charge ve discharge testleri
• AR-GE laboratuvarları
• Endüstriyel üretim test sistemleri
• Solar panel ve güç elektroniği testleri

Ürün Avantajları

• Yüksek doğruluk ve stabilite
• Geniş uygulama yelpazesi
• Kolay kullanım ve uzaktan kontrol imkânı
• Endüstriyel dayanıklılık

The post ITECH 1500V/40A/18kW
IT6018C-1500-40 DC Güç ... first appeared on EgeRate Elektronik.

• Automatic wide range output, the voltage up to 2250V
• Power up to 1152kW
• solar array simulate I-V function (Built-in I-V curve mathematical formula)
• Simulate the output characteristics of various solar cell (monocrystalline silicon cell, polysilicon cell, thin film cell) (Fill Factor)
• Simulate I-V curve under different temperature and irradiation
• Simulate I-V curve for solar panel under shadow
• Static & dynamic MPPT efficiency test
• Built-in EN50530 / Sandia / NB/T32004 / CGC/GF004 / CGC/GF035 test program, and generate reports
• Graphical software interface, real-time test and display MPPT state of PV inverter
• Auto program control 100 I-V curves via Voc, Isc, FF, Pm and other parameter points
• 100 * 128 points curves and 4096 points precise programming control
• Support output impedance setting function
• Support various mode edge independent set, adjustable rising and falling time
• Two-way current seamless switching, suitable for fast cell charge and discharge
• Built-in DIN 40839 & ISO-16750-2
• Standard USB/RS232/GPIB/LAN (LXI compliant) interface
• Support up to 20 solar cell power supplies for multi-channel MPPT testing
  Applications
• Design & verify the MPPT circuit and algorithm of the PV inverter
• Verify the MPP voltage range and the full load MPP voltage range of the inverter
• Verify static maximum power tracking efficiency of the PV inverter
• Verify the MPPT performance of the inverter for dynamic curves (Built-in EN50530,Sandia,NB/T32004,CGC/GF004, CGC/GF035)
• Verify the inverter starting voltage and the maximum input voltage, the maximum input current and other electrical parameters
• Verify the MPPT mechanism of the inverter for the I-V curve when the solar cell is shaded by clouds or trees.
• Test inverter DC terminal OVP, OPP
• Verify micro-grid control center and control function of photovoltaic energy storage system
• Verify the MPPT performance of the inverter from early morning to night fall
• Verify the total efficiency and conversion efficiency of the inverter with IT9100 power analyzer

Functions and Advantages

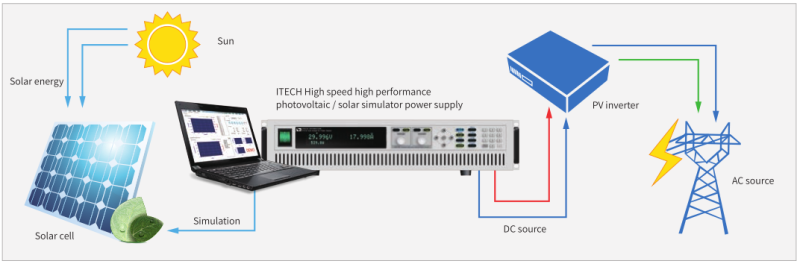

High speed high performance photovoltaic / solar simulation power supply

ITECH high speed high performance photovoltaic / solar simulation power supply, adopting high-speed high-performance high-power DC power supply equipped with SAS1000 solar array simulation software, involves more than 200 models with wide voltage and current range, the output up to 2250V, 2040A. A machine can cover a wide range of application requirements, easy to choose the required models for users. Photovoltaic / solar simulation power supply supports edge time independent set for each mode, has double quadrant current seamless switching function, and supports OVP, OCP, OPP, OTP, Vsense reverse and other protection functions.

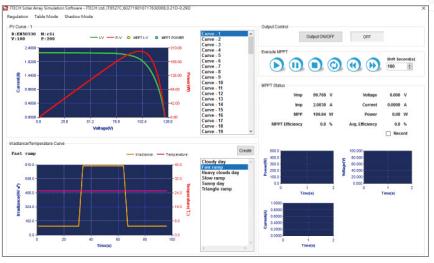

 Graphical software interface

ITECH high speed high performance photovoltaic / solar simulation power supply has graphical software interface, users can easily use the software to output, measure, display the maximum power tracking status of photovoltaic inverter in real time and record value. Built-in EN50530 / Sandia and other five kinds of regulatory testing procedures, it is convenient for users to test the static and dynamic MPPT performance of PV inverters and generate reports, so as to compare with competitors’ results. Solar simulation power supply also provides the shadow and table mode, the user can enter the 128 ~ 4096 points array to edit any shielded IV curve to achieve dynamic shadow effect and also can store 100 I-V curves under different irradiation and temperature to test the long-term maximum power tracking performance of photovoltaic inverters under different climatic conditions.

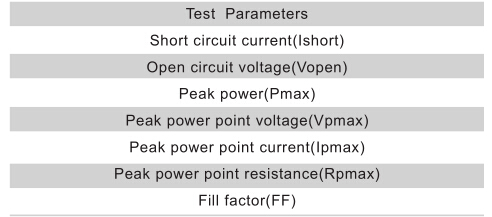

 Simulate the output characteristics of various solar cell (FILL FACTOR)

Since solar cell utilization is not only related to its internal characteristics, but also related to weather, season, temperature, irradiation, cloud cover, rain and snow and other factors, solar cell has different I-V characteristics in different periods. Therefore, PV inverter must have a strategy to adjust real-time working point of the solar cell to make it always work in the vicinity of the maximum power point, this process is called MPPT. ITECH high speed high performance photovoltaic / solar simulation power supply can be used to directly simulate various real-life solar cell arrays in a laboratory test environment to test the static & dynamic MPPT performance of photovoltaic inverters.

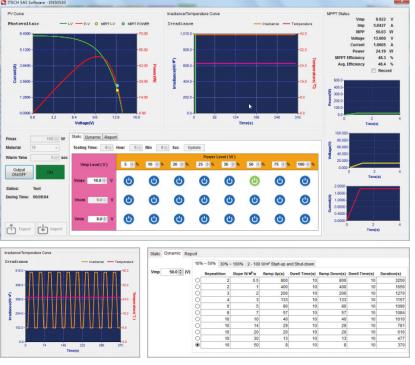

 Static & Dynamic MPPT performance test

MPPT tracking performance is a very important specification of PV inverter, PV inverter needs a built-in MPPT mechanism to track real-time maximum output power of solar cell. Therefore, some of the industry’s organizations have defined some “standard” test patterns to match all kinds of inverters, which allows inverter manufacturers to test and improve MPPT performance. Build-in MPPT test program of EN50530、SANDIA、NB/T32004、NB/T32004、CGC/GF004, users can set their own Vmp, Pmp, materials and other parameters, test run time and maximum run power percentage, the I-V curve and the real-time trace process are displayed on the screen to verify MPPT performance of the PV inverter, record the data during the whole test and generate report.

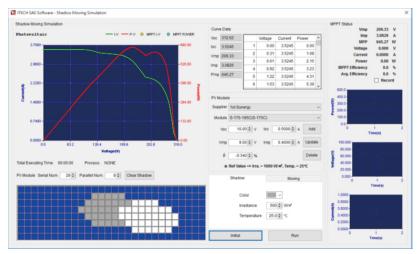

 Shield I-V curve simulation（Shadow Mode）

ITECH high speed high performance photovoltaic / solar simulation power supply can help users to complete the solar array output simulation under different shadow modes, test and track real-time maximum power and performance test of the PV array. Providing various Module for the user to choose according to different supplier, users can also build their own PV module. User can define irradiation and temperature parameters of shadow, cell string set, parallel quantity and dynamic shielding the moving direction of the cloud, initialization time, running time and the time interval of cloud moving

The post SAS1000
Solar Array Simulation Software first appeared on EgeRate Elektronik.

FEATURE

• Battery simulation range: 2250V / 1152kW
• Support multi-channel battery module status simulation
• Bidirectional regenerative battery simulator, regenerative efficiency up to 95%
• Seamless switching between battery charging and discharging mode
• Support user-defined battery characteristic curve import
• Support quick set up of battery characteristic curves by input common parameters
• Support .mat file import function *2
• BMS protocol self-defined function, realize CAN bus communication with the external control unit
• Built-in various battery types (include LAB,Li-on,LMO, LNMCO, LNMCO&LMO,LFP,LTO and NiMH .) *1
• Battery protection parameter setting function
• Battery output initial state of charge setting function
• Ideal data report function
• Battery curve preview and real-time curve display function
• Flexible expansion by parallel for larger current/power simulation request
• Support up to 20 channels battery simulation *3

*1 BSS2000 basic version software is used to simulate lead-acid and lithium-ion batteries.
*2 BSS2000 Pro version and BSS2000M Multi-channel version
*3 BSS2000M

Functions and Advantages

Applications

 Common battery parameters setting and function simulation

By combined various types of battery modelling and high-speed algorithms, BSS2000 Basic & BSS2000 Pro Battery Simulation Software provide the user with real-time battery curve simulation function. No need to know the specific internal characteristics of the battery, the user only needs to select the battery type and the battery characteristic curve can be generated easily by setting a few basic parameters, parameters including full voltage, empty voltage, rated capacity, serial qty, parallel qty and battery internal resistance, etc. Thanks to the strong support of ITECH hardware, the battery simulator can simulate up to 1152kW battery packs, covering the test requests of solar PV ,energy storage, EV and other high-power fields.

 User-defined battery characteristic curve

BSS2000 / BSS2000 Pro Battery Simulation Software provides the battery curve simulation function by Importing Data in ARB to meet the needs of various simulation requests. Users can import the measured battery charge and discharge data in a csv file to simulate the battery charge and discharge characteristic curve. This function is not only suitable for the simulation of conventional batteries, but also for the simulation of some special batteries or novel batteries.

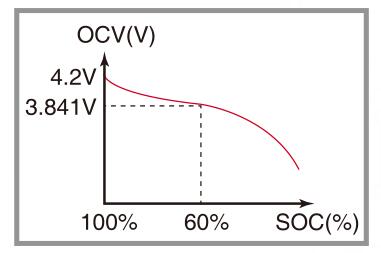

 Initial capacity setting function

The BSS2000/BSS2000 Pro battery simulator allows the user to set the initial capacity of the battery to study the startup characteristics or energy management characteristics of DUT when the battery is fully charged or depleted, without the need to perform real charging and discharging, and improve test efficiency.

The post BSS2000/BSS2000Pro
Battery Simulation Softwar... first appeared on EgeRate Elektronik.

Feature

• Automatic wide range output, voltage up to 2250V
• The power of the fuel cell simulator can be expanded to 1152kW
• User-defined FC polarization curve (4096 points can be edited)

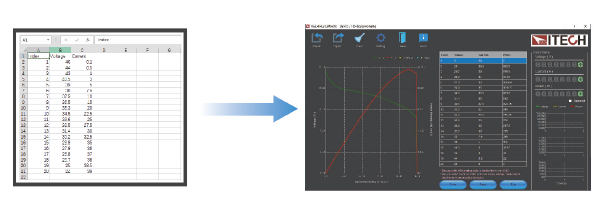

• Support .csv file import
• Data storage and export
• Graphical software operation interface, real-time display the output voltage, current and power

Functions and Advantages

Application

• Study the power performance and economic performance of FC propulsion systems
• Verify the input performance of the FC DC-DC module
• Study the parameter matching of the key components of the FC propulsion system
• Research on vehicle energy management strategies for FC propulsion systems
• Verify the control strategy of peak and valley adjustment in distributed energy applications

Flexible parallel connection, power extended to max. 1152kW
The power of ITECH high-performance DC power supply IT6000B and IT6000C can be expanded to 1152kW through a simple master-slave parallel configuration. Different from the traditional parallel connection, IT6000B and IT6000C use optical fiber parallel technology. After paralleling, the synchronization and performance of master and slave are almost the same as one single unit. And there is no need to calibrate again, which greatly simplifies the parallel connection.Meanwhile it’s helpful on cost control and high equipment utilization.

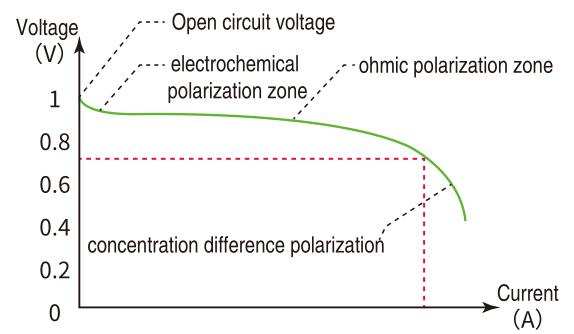

 Graphical design interface to simulate fuel cell output polarization curve

The output voltage of a real fuel cell stack is affected by driving conditions. When the working current changes, the output voltage of the FC stack is a three-stage curve due to the internal polarization reaction, including electrochemical polarization zone and ohmic polarization zone and the concentration difference polarization zone.

The FCS3000 software is based on the measured fuel cell polarization curve, and allows users to import the .csv file, download it to the device and realize the fuel cell output polarization characteristic curve simulation. In the experiment, the FCS3000 fuel cell simulation software changes the output voltage of the control system according to the polarization curve, and records the parameters such as voltage, current and power in real time, which helps to study fuel cell propulsion systems to provide important experimental data.

The post FCS3000
Fuel Cell Simulation Software first appeared on EgeRate Elektronik.
