Çift yönlü – güç kaynağı ve elektronik yük bir arada.

Tek çıkışta hem source hem de sink modunda çalışabilir. Böylelikle Batarya charge ve discharge testlerini profesyonel şekilde gerçekleştirebilir.

The post ITECH
IT6018C-1500-40 first appeared on EgeRate Elektronik.

AC Charging Station Test Solution

AC charging station outputs AC and is converted to DC by on-board charger to charge the electric vehicle battery.

 DC Charging Station Test Solution

As a fast-charging product, DC Charging station has high output power and voltage, so only high power and high
voltage DC load can satisfy its testing demand.

 Test Items

 Functions and Advantages

Advantages

• Modular design, customized auto-test system
• High-power electronic load can reach up to 600kW, fully meet test requirements of high-power DC charging station
• Built-in standard test items
• Compatible with multiple protocols for charging station, applicable to chargers with different communication protocol
• Fill-in-blank user interface, no need programming ability
• Customized test report

The post Charging Station / Car Charger Test Solution first appeared on EgeRate Elektronik.

Test items

Functions and Advantages

Feature

• Modular design, it can be built according to different needs, convenient, easy to maintain, and full-featured, suitable for electric car and home charger test platform
• Achieve editorial, operational testing and data analysis functions mentioned in the national standard test items
• High test accuracy, perfect test items
• Multi-level management authority setting function, to ensure system stability
• Statistical report output and editing capabilities
• Simulate CC and CP abnormalities of interface part, achieve logic protection action mechanism test
• Fill in the blank interface, without editing capabilities
• Provide more than 20 test functions, a number of security testing, security and stability, high test accuracy

Hardware part

Integration of AC power, AC loads, power analyzers, oscilloscopes and interface cards and other test equipment.

Software part

For national standards

GB/T 18487.1-2015 Electric vehicles conductive charging systems – Part 1: General requirements
GB/T 18487.2-2001 Electric vehicles conductive charging systems Electric vehicles and AC / DC power connection requirements
GB/T 18487.3-2001 Electric vehicles conductive charging systems Electric vehicles and AC / DC charger (station)
GB/T 20234.1-2015 Electric vehicles conductive charging connecting devices Part 1: General requirements
GB/T 20234.2-2015 Electric vehicles conductive charging connecting devices Part 2: AC charging interface
Provide standard test items, the user can also use this open platform to write their own test projects on their own according to different test requirements.

The post Portable AC Charging Device Test System first appeared on EgeRate Elektronik.

System test items

♦ Long time working stability
♦ Relay life test
♦ Fuse test
♦ Temperature monitor and fault alarm
♦ Other performance index

Functions and Advantages

Test solution advantage

• Structure: Modular design, easy to move and disassemble. When one channel fails, will not affect the operation of the system
• Heat dissipation: Intelligent fan, good heat dissipation and low noise
• Function: High level automation
• Communication: Remote control via the computer, easy to show test results,reduce labor cost

System test items

• Long time working stability
• Relay life test
• Fuse test
• Temperature monitor and fault alarm
• Other performance index

In addition to these test items, this test solution also provides powerful software
features:
Editable relay on-off timing
Editable load current and run timing. Such as editing a cycle (load 5A on 5s off 10s), and then set the running time of such cycles
When failure occurs for one channel, fault alarm will be shown on software interface.
The failured channel stops running, and other channels continue running
Each channel name can be edited, such as channel DUT is wiper, channel name is wiper
Software operation interface displays voltage, current,temperature,run time,running status,load status,I/O status,and so on

The post Automotive Junction Box Test System first appeared on EgeRate Elektronik.

Features

• Balance charging and discharging capacity, designed for battery module / cell test.
  • Charge mode: CC / CV / pulse charge
  • Discharge mode: CC / CR / CP / pulse discharge
  • Voltage range: 0 – 1000V
  • Current range: 0 – 1200A
  • Power range: 0 – 600 kW
• Fast response and high-speed sampling rate, sampling rate and data storage time down to 1ms.
• High reliability and high precision guarantee absolute measurement accuracy within the broad voltage/current range, making the test system more efficient in use.
  • Voltage: 0.05% +30 mV
  • Current: 0.2% +120 mA
• Standard modular design not only makes it easy for hardware extension and follow-up maintenance but also expand its applications.
• Real-time online monitoring on single module resistance, voltage and temperature.
  • Support cell battery AC internal resistance analysis and battery pack
  • DC internal resistance analysis. Measured temperature depends on the type of thermocouple user selected.
• A complete alarm and protection setup for effectively preventing overcharge, over-discharge and other unexpected faults.
• Adopt GPIB communication, support multi-system extension.
• Multi-channel independent control.

Functions and Advantages

Professional System Software

ITS5300 Test System is equipped with a battery charge/discharge testing software developed on the basis of user specifications. By editing test steps, the user may perform constant current charge, constant pressure charge and constant current/power/resistance discharge tests on multi-channel cells or battery packs. Furthermore, the software will help the user monitor cell voltage, temperature and IR, produce charge/discharge curves and monitor and store relevant data.

 Real-time Charging & Discharging Monitor of Each Channel

A battery pack is typically a set of cells connected in series which exhibit different characteristics during charge and discharge. For this reason, monitoring of cells is of great importance. Apart from key parameters of each channel, ITS5300 test system may install a thermograph and IR tester to realize real-time monitoring of cell voltage, IR and temperature. During the test, user can clearly observe the test information of each channel through the software. The software has intuitive colored block charts to symbolize normality or abnormality of cell characteristics and give early warning where necessary, including channel configuration, cell voltage, current, discharge capacity and other parameters. That is not only easy for observation and record, but also improves the testing
reliability.

 Power-off Memory Protection

ITS5300 Test System is superior over traditional integrated charge & discharge device in that it has a power-off memory feature while the latter has single protection configuration only. Power-off memory feature is the most cutting-edge and perfect protection function developed by ITECH and designed for time-consuming aging tests. With the protection function, previously acquired data can be effectively stored intact in case of unexpected power failure or computer crash during a time-consuming aging test and the user may proceed with the test program from the faulty link after the system is back to normal. In this way, repeated tests are avoided for higher efficiency. Likewise, if the power-off state continues for long, the system will automatically cut off the active charge/discharge circuit so as to prevent overcharge and over-discharge and guarantee the safety and reliability of battery testing.

Modular design

ITS5300 Battery charge-discharge testing system is comprised of power supply, electronic load,internal resistance tester, temperature data acquisition instrument and IT9320 software. It breaks through the traditional testing system limitation,providing professional testing steps toimprove testing efficiency. User can choose the most suitable equipments for their own test requirements to build automotive test platform.

The post ITS5300
Battery Charge and Discharge Test Sys... first appeared on EgeRate Elektronik.

Features

• Standard 5U unit integrates DSO, electronic loads,programmable AC power supplies, programmable DC power supplies,noise analyzers,timeing analyzers, digital electric meters,oscilloscope,I/O card and other instruments, ITS9500 can be installed on the counter top or inside a standard cabinet.
• Best cost-effective unit
• Modular design for easy maintenance
• Over 80 test items
• Simultaneous operation of 8 systems at maximum
• A power supply unit which can test several single outputs at one time
• Test program management/editing function
• Statistic report output/editing function
• Multi-level authority setting function
• User authority setting
• System accesses record
• Bar Code Reader supported by the software
• Optional external fixture for improving test speed
• Meet the ENERGY STAR measurement specification

Functions and Advantages

Modular design for easy maintenance

ITS9500 power supply test system adopts traditional modular design,forming an easy,and multi-functional power supply test platform. This facilitates future inspection and maintenance,and reduces the influence on the production line.

 Easy operation and clear result display

ITS9500 test system, working together with teh test system, can realize such functions as editing, operation,test, and data analysis of power test items.

• The operation interface od thesoftware is simple and clean with five distinctive modules, and even users without programming ability can master the operation easily
• The status of final test results, which is PASS or FAULT, will be highlighted on the interface to ensure a fast and accurate view for operators.

The post ITS9500
Power Supply Test System first appeared on EgeRate Elektronik.

Built-in 7 test modes

7 working modes: CC/CV/CR/CP/dynamic/list/battery

Independent short circuit test function

Multi-mode battery discharge test

Multiple protection functions

Various protections such as over voltage, low voltage, over current, over power, over heat, anti-reverse connection, etc.

RS-232C communication interface, intelligent temperature control fan, power-off memory function

Standard RS-232C interface: supporting PC software to realize remote operation

Intelligent temperature control fan: Effectively reduce noise and help prevent the instrument from overheating

Power-off memory: power on again to restore the last saved setting value

The post UTL8200 SERIES
DC Electronic Loads first appeared on EgeRate Elektronik.

Four basic test modes

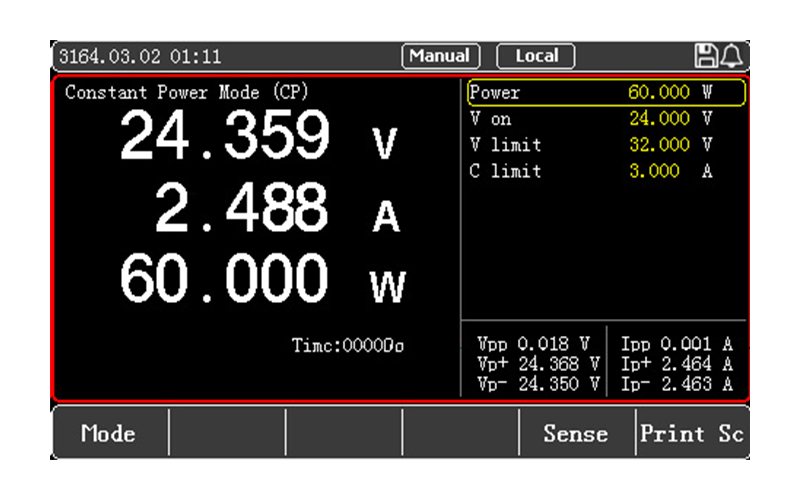

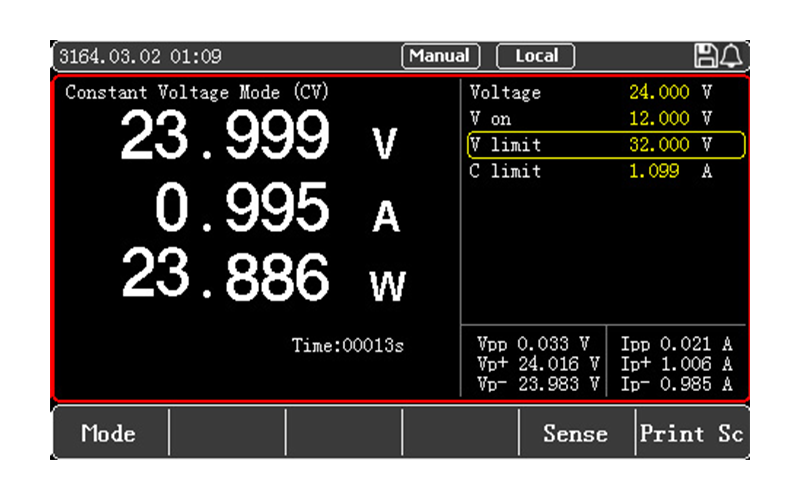

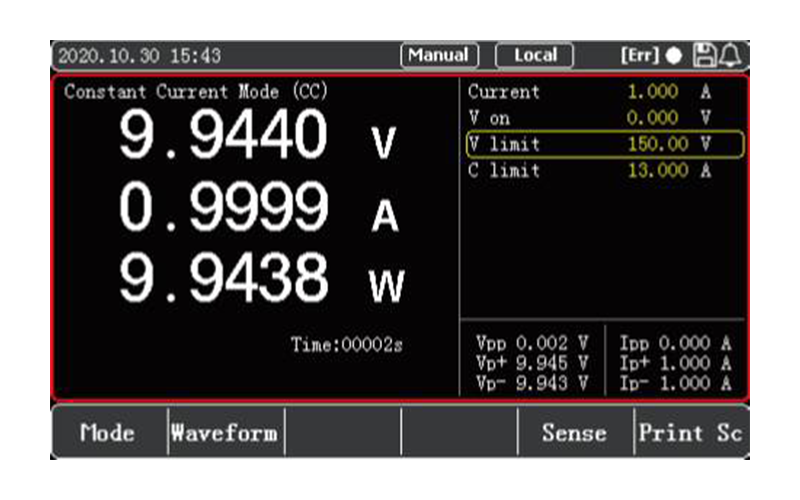

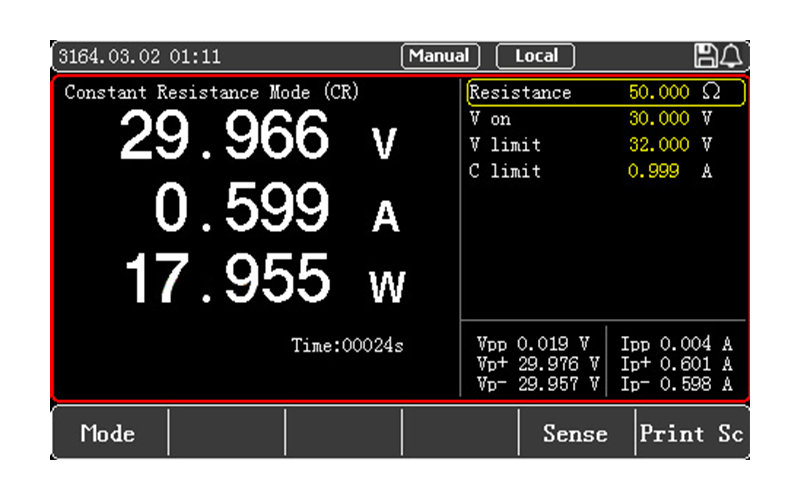

Four basic working modes: CC/CV/CR/CP

Rich test mode

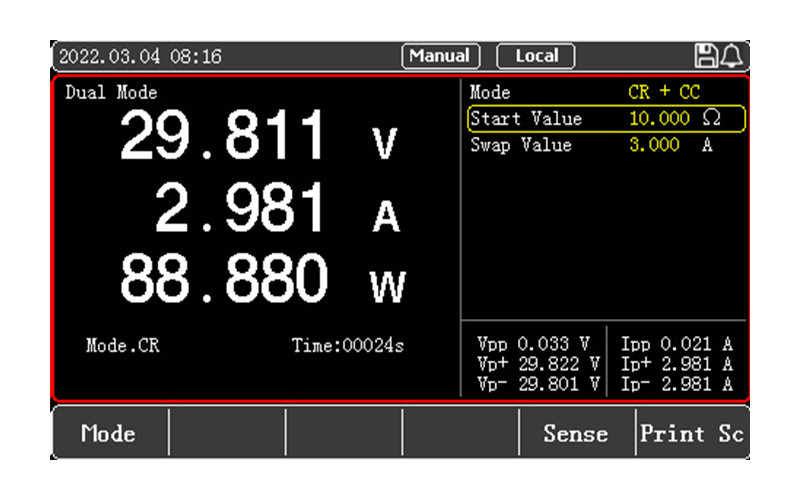

In order to meet diversified test requirements,

UTL8500 series electronic loads provide more test modes for users to choose,

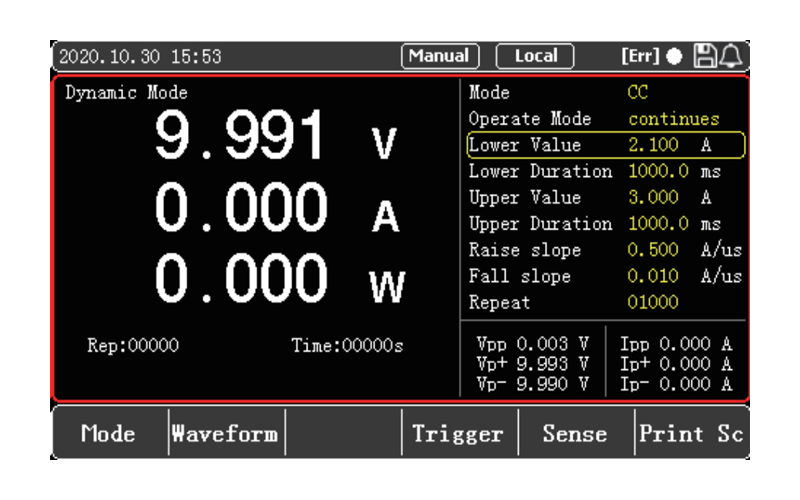

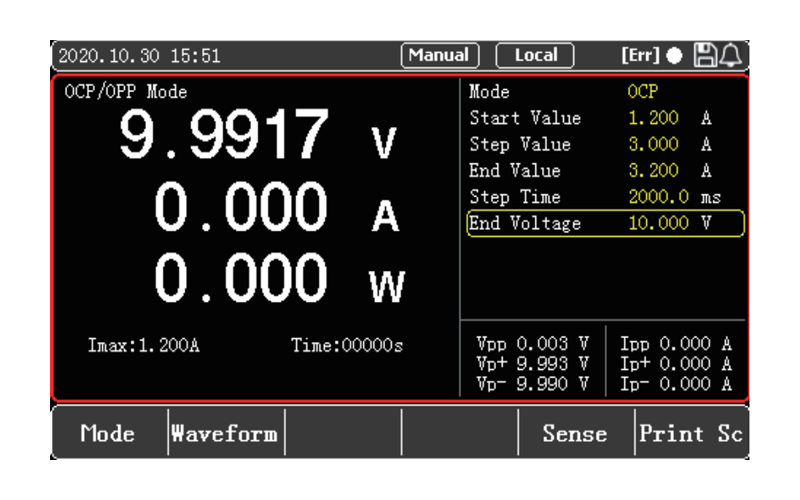

including dynamic test, list test, combination test, OCP/OPP test, CR-LED test,

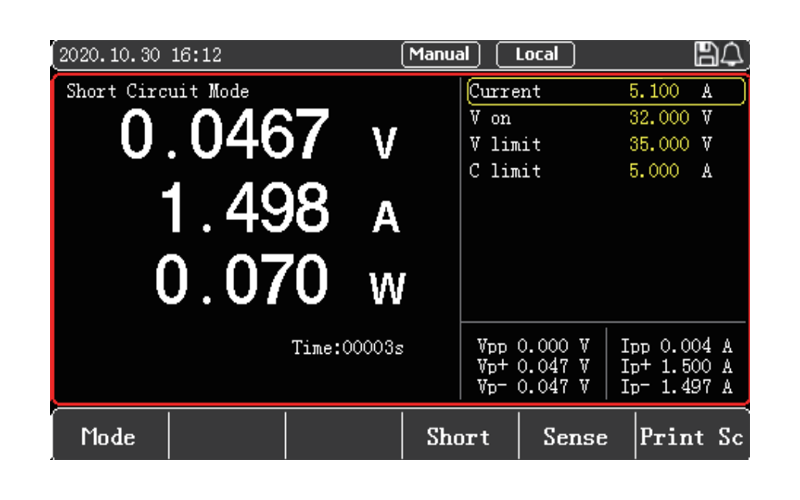

battery test, load effect, OVP test , Short circuit, time test and other modes.

Screenshot function, list call and system upgrade

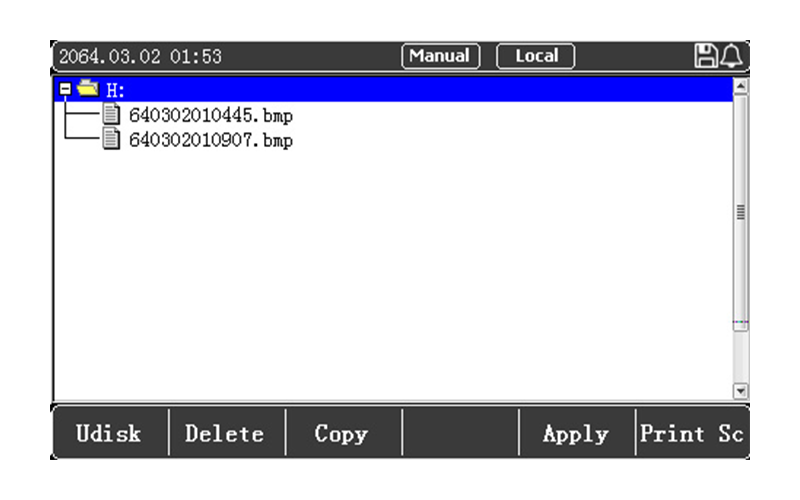

Press the [Screenshot] button to save the current screen image to the

USB flash drive,or save the frequently used list test files in Flash or USB flash drive,

so that they can be called when needed next time,

 and the system can be upgraded quickly through the USB flash drive.

Multiple protection functions

Various protections such as over voltage, low voltage, over current,

over power, over heat, anti-reverse connection, etc.

The post UTL8500 SERIES
DC Electronic Loads first appeared on EgeRate Elektronik.

Four basic test modes

Four basic working modes: CC/CV/CR/CP

Rich test mode

In order to meet diversified test requirements,

UTL8500X series electronic loads provide more test modes for users to choose,

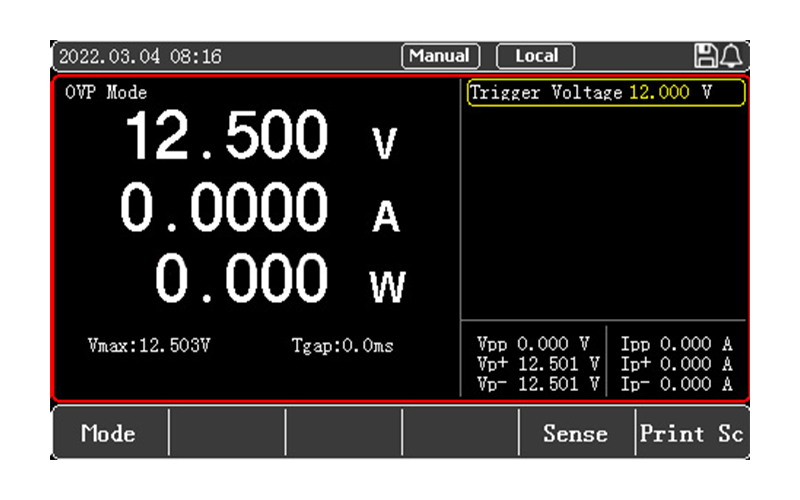

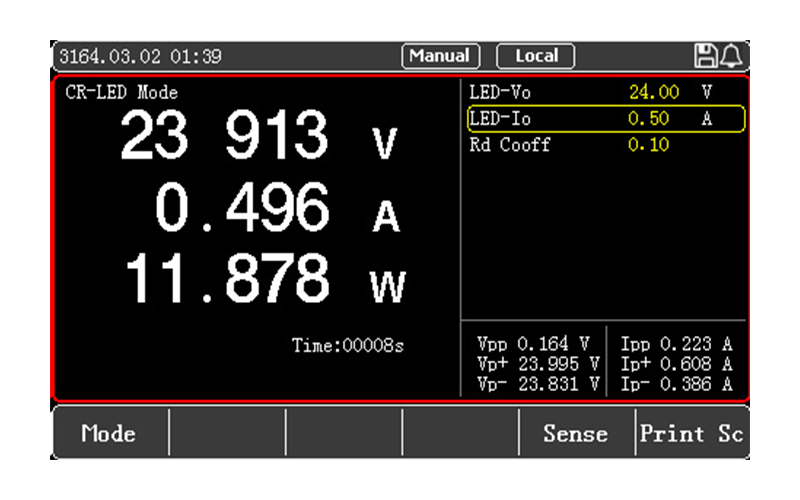

dynamic test, list test, combination test, OCP/OVP/OPP test, CR-LED test,

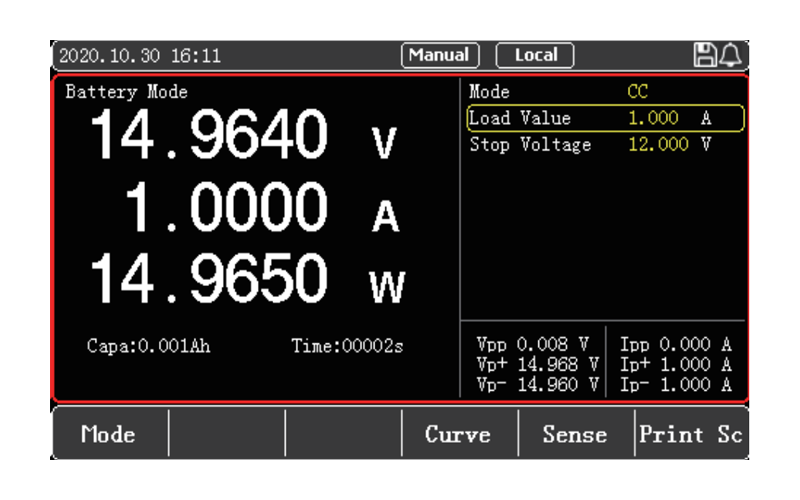

battery test, load effect, short circuit , Time test and other modes.

Screenshot and list save and call function

The list test can have a more comprehensive understanding of the

comprehensive working characteristics of the tested product in actual applications.

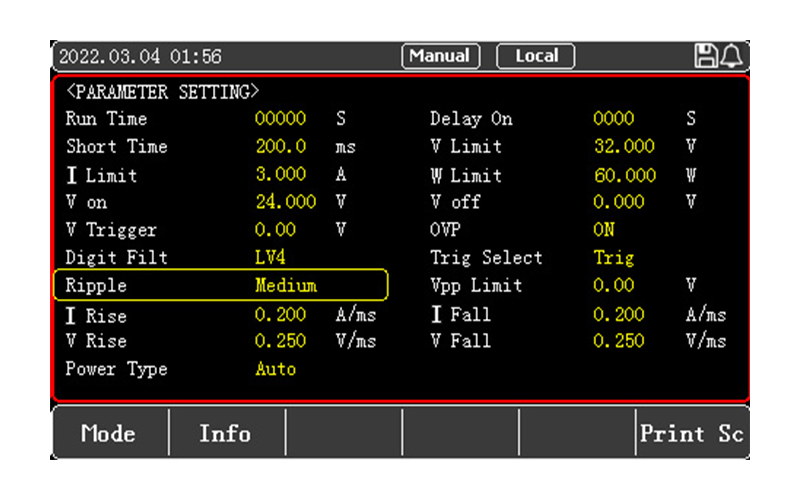

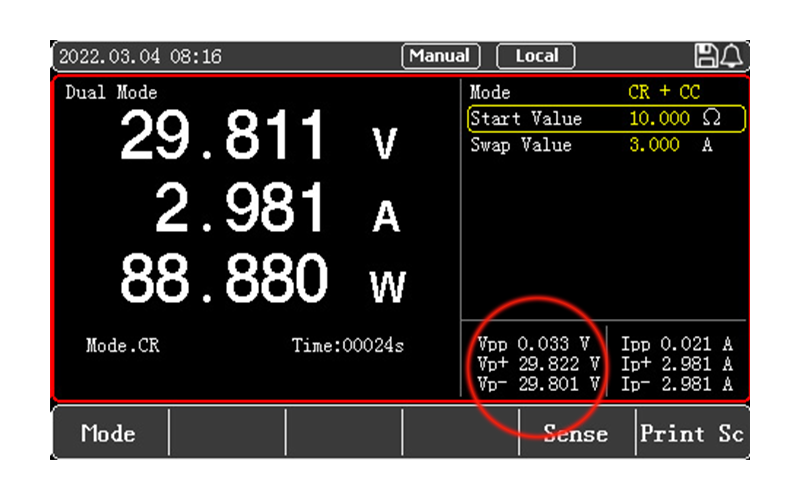

Real-time waveform display function and ripple measurement function

With ripple measurement and real-time waveform display function,

you can refer to the waveform changes of voltage and current

The post UTL8500X SERIES
DC Electronic Loads first appeared on EgeRate Elektronik.

Standard 232 ports, optional 485 ports. Support SCPI protocol, providing a more convenient choice for remote control

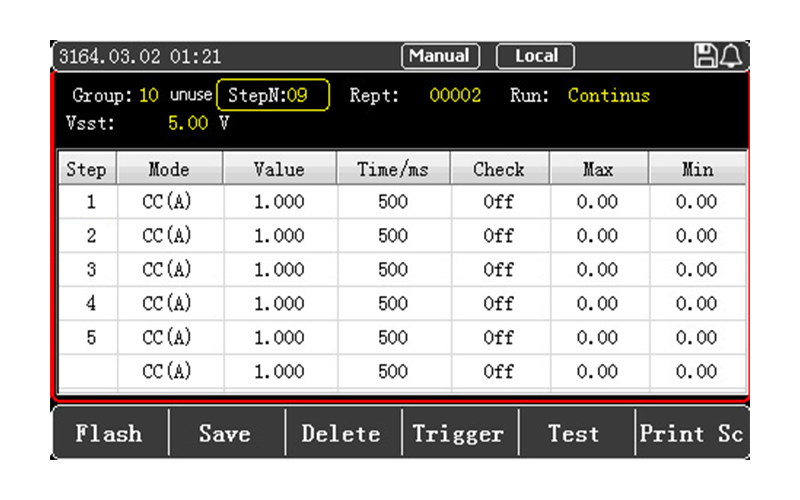

List mode to help you automate

Combining automatic unloading and self-starting voltage to effectively improve test efficiency

CC,CR,CP Multi-mode battery discharge test

2.8inch LCD display, clearly displaying more information

Multiple protection functions and flexible adjustment

7 test modes to help you complete the test work better

The post UTL8200+ SERIES
DC Electronic Loads first appeared on EgeRate Elektronik.
