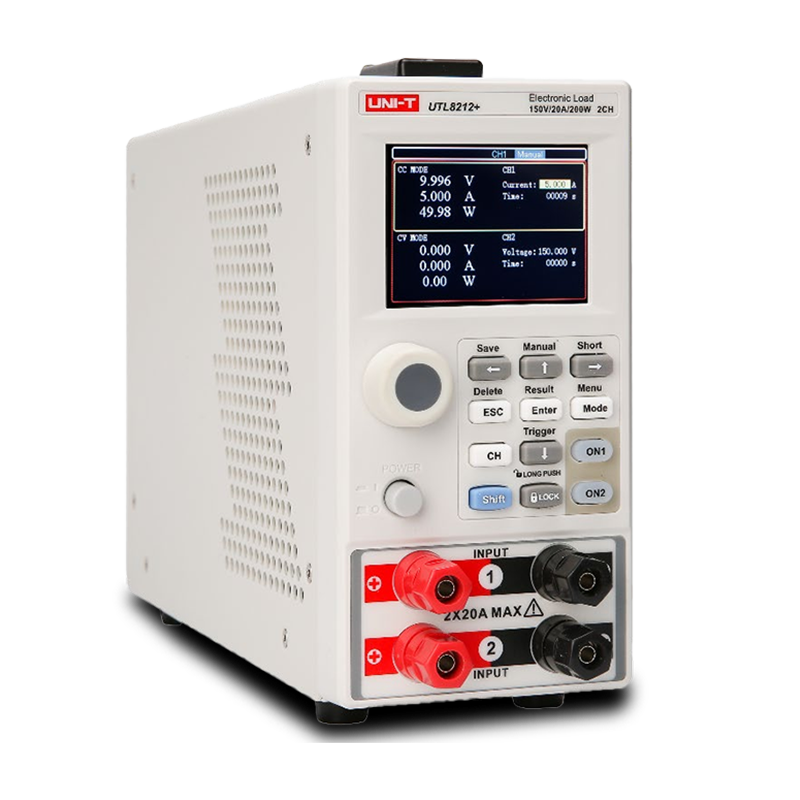

UTL8200+ SERIES
DC Electronic Loads

UTL8200+ series electronic load is equipped with a 2.8-inch LCD display, which is easy to operate and stylish in appearance. Its test resolution is up to 1mV/1mA. Equipped with rich test functions and modes for you to choose. The equipment is equipped with RS232 communication module, which can flexibly meet various on-site test conditions, and is convenient for seamless connection with automated production lines and automatic test systems. The electronic load operates stably and has a wide range of applications, adapting to various testing requirements.



VOLTAGE
CURRENT
150V
20A/40A



TOTAL POWER
RESOLUTION
400W
1mV/1mA



SIZE
CONNECTIVITY
¼ 4U
RS232,optional RS485

Dynamic load is up to 5kHz

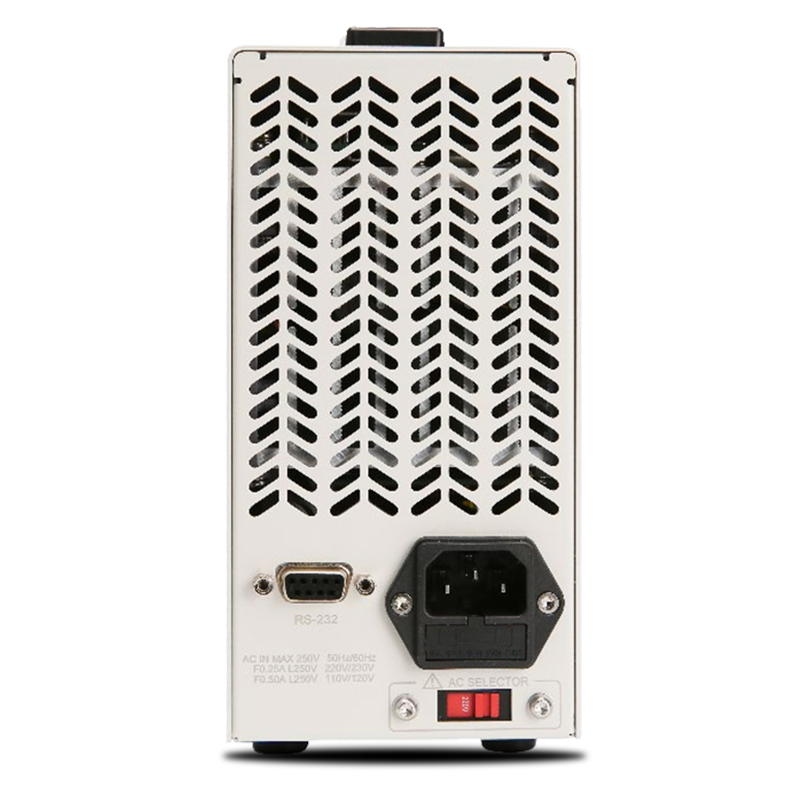

Standard 232 ports, optional 485 ports. Support SCPI protocol, providing a more convenient choice for remote control

List mode to help you automate

Combining automatic unloading and self-starting voltage to effectively improve test efficiency

CC,CR,CP Multi-mode battery discharge test

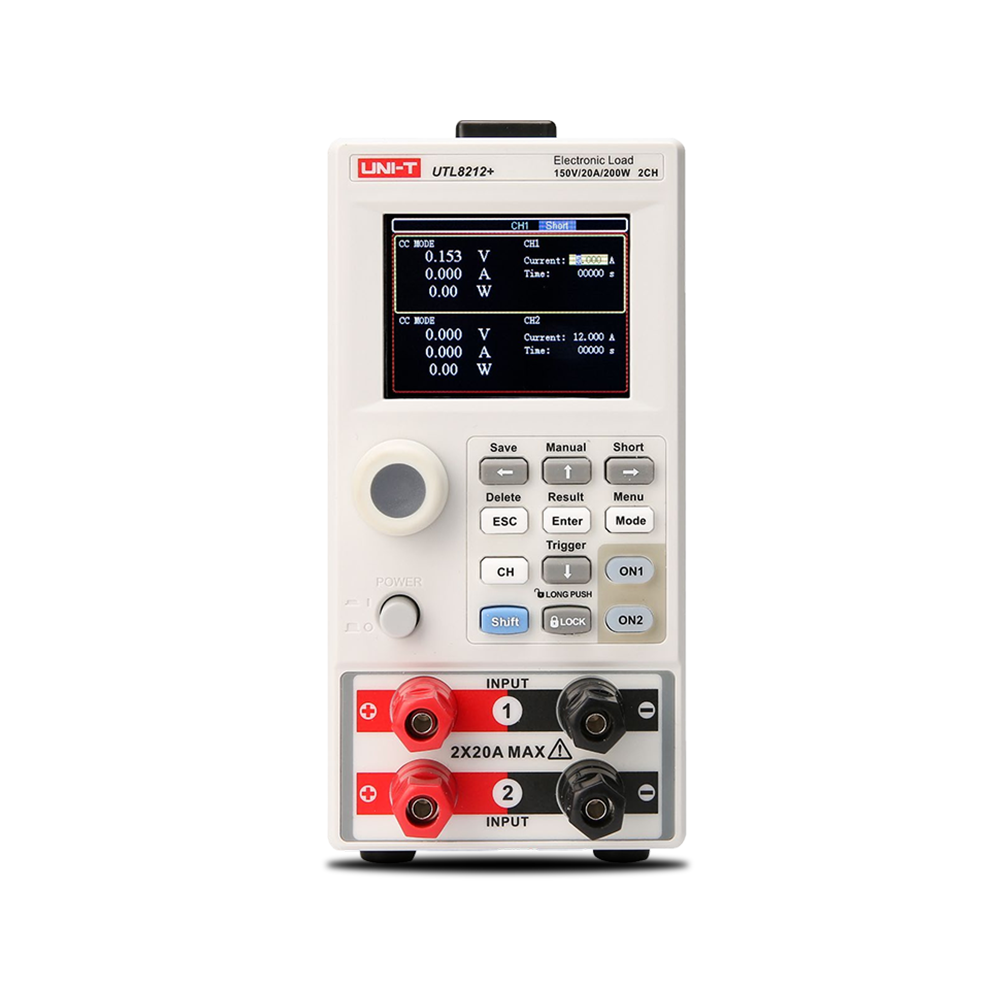

2.8inch LCD display, clearly displaying more information

Multiple protection functions and flexible adjustment

7 test modes to help you complete the test work better

Model Voltage Current Total Power Resolutıon Max. Dynamıc Frequency Current Slew Rate Sıze Connectıvıty
UTL8212+ 150V 20A 2X200W 1mV/1mA 5kHz 0.04A/mS~0.2A/μS ¼ 4U RS232, optional RS485
UTL8211+ 150V 40A 400W 1mV/1mA 5kHz 0.08A/mS~0.4A/μS ¼ 4U RS232, optional RS485
