Features

The post OT-5902/OR-5903
Optical transmission device f... first appeared on EgeRate Elektronik.

HDMI 1.3a based
Tests HDMI sources: DVD/Blu-ray players, set-top boxes, AV amplifiers, notebook PCs and digital cameras.

[R&D and Quality Assurance]

Users use it as a simple HDMI protocol analyzer.

• Video, Audio and InfoFrame can be checked.

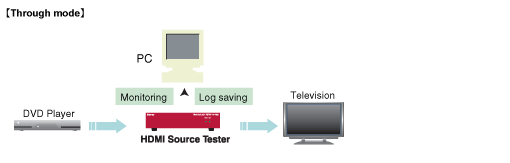

• DDC and CEC line monitoring by “Through mode”

[Test Items]

• 36-bit video data
• Audio data (L-PCM level and frequency)
• DDC (HDCP) and CEC line – VA-1830 is controlled by PC only. ASTRODESIGN provides terminal commands as standard option.

[Option]

Utility software to monitor DDC line (included with the VA-1830-A).

The post VA-1830
HDMI Source Tester first appeared on EgeRate Elektronik.

The post HDMI Analyzer
Comparison Table first appeared on EgeRate Elektronik.

• Analysis functions, such as video timing, video level, audio level and frequency, Packet, HDCP(1.4, 2.2), DDC, SCDC, CEC, etc.

• 1 OUT and 3 IN HDMI connectors (Note : If more OUT connectors are required, please contact us)
• Maximum 4K/60p RGB/YCbCr 444, 422 EIA Timing with 8,10,12bit color depth
• Generator function, selectable CEA-861-F Video Code timings, test patterns and InfoFrame setting
• USB memory for saving analysis data and test log files. Test results can also be sent to host PC by Ethernet.
• Automation can be operated by optional application software or user’s original control program.
• Loading EDID from downstream or programmable by the software.

Optional Software Image

Front Image

The post VA-1845
HDMI Source Tester first appeared on EgeRate Elektronik.

• Small size: 269 (W) x 182 (H) x 41 (D) mm (10.6 in x 7.2 in x 1.6 in)
• Lightweight: Approx. 1.25 kg (2.76 lbs)
• Synchronization of two units for “Through Mode 2” test environment (see below)
• Protocol analysis of 4K/60p 4:4:4 (Max pixel clock 600MHz) able to analyze and display image
• Capable of HDMI 2.0b signal generation

Front Image / Side Image

The post VA-1844A
HDMI Tester first appeared on EgeRate Elektronik.

•  Suitable for testing HDMI 2.0 6G and HDCP 2.2 supported Source devices
•  (Pixel Clock: Max.600MHz, 4K/60p RGB 4:4:4 and 4:2:0)
•  Supports HDMI CTS MOI and HDCP test item as an option (Test items will be updated accordingly.)
•  VA-1842 analyzes video timing, audio timing, InfoFrame/Packet, HDCP status, DDC line monitoring, CEC line monitoring,
  and video data (including BT-2020 colorimetry) measurement.
•  Similar functions as previous generation HDMI analyzers *VA-1831/VA-1838.
•  *Lipsync measurment function (NEW)
•  *Oen frame capture function (NEW)
•  SCDC (Status and Control Data Channel) register display and line monitoring function
•  EIA CEA-861-F* and partial DMT r1 v12 timing input
•  *Except VIC91, 92 (2560 x 1080). Fixed timings input (timing table)
•  EE-EDID1.4 and CEA-861-F of HDMI 2.0 are pre-installed.
•  “Through Mode” supported with optional adaptor
•  *3G Through Box : VA-1841-1
•  *6G Through Box : IA-1563
•  *By placing VA-1842 between Source and Sink device, it can monitor communication of DDC/CEC
•  lines and save log data.  Source signal is passed through to sink and video data is not regenerated.
•  EDID Editor and Log Viewer function supported with standard application software
•  Portable size

Front / Side Image

The post VA-1842
HDMI 2.0/HDCP 2.2 Protocol Analyzer first appeared on EgeRate Elektronik.

• Supports signal analysis and generation of FRL (Fixed Rate Link) with 4 lanes of up to 12Gbps signals and TMDS with 3 lanes of up to 6 Gbps signals. [CTA-861-G VIC (Video Identification Code)]
• Supports maximum of 4K/120p YCBCR 4:2:2 and 8K/60p YCBCR 4:2:0 timings. (10K timings are not supported.
• Video, Audio, InfoFrame, HDCP (1.4, and 2.3), and SCDC analysis functions
• Supports repeater function. HDMI protocol analysis of HDMI output devices is possible
• Supports through fuction. DDC/CEC line analysis is possible without reciving video signal using a dedicated through cable.(Option)
• Logging InfoFrame (like Dynamic Range) at each individual frame with time stamps
• eARC receive/generate function,ARC receive fuction
• EDID emulation and DDC/CEC monitoring function
• New 12-inch touch panel LCD display (external mouse control also supported)
• HDMI 2.1 CTS function
• Three test modes for testing source, sync and repeater devices are available as seen below:

* When receiving YCbCr4:2:2 signal, the bit depth is displayed as “8-bit” which is a value in GCP Packet.
* Specifications and appearance are subject to change without prior notice.

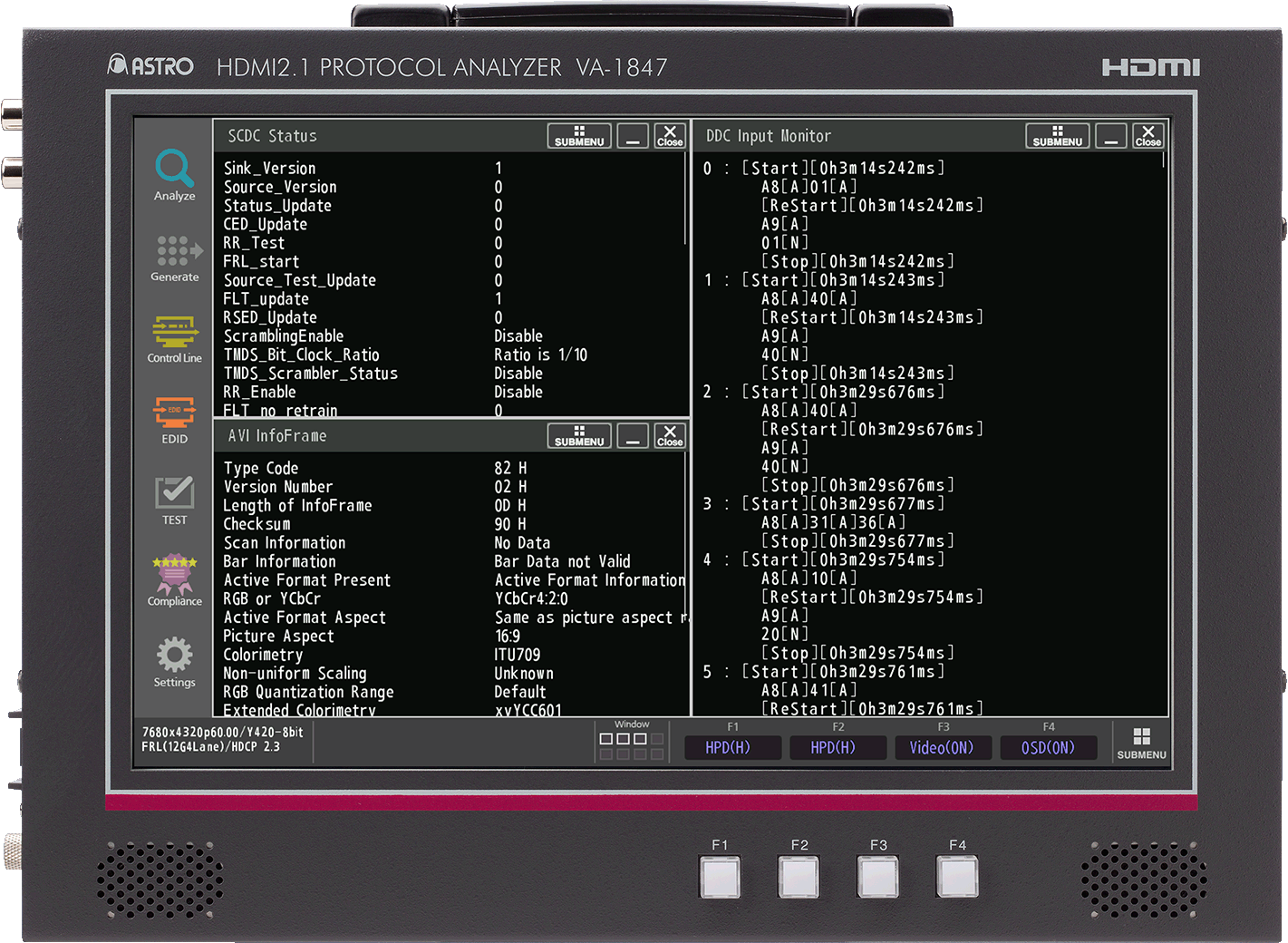

Front Panel / Side Panel

The post VA-1847
HDMI 2.1 Protocol Analyzer first appeared on EgeRate Elektronik.

• Sink function
  Video/audio timing, InfoFrame measurement, HDCP 1.4/2.3 authentication, and EDID/SCDC communication analysis.
  It supports up to 8K/60p YCBCR 4:2:0 and 4K/120p YCBCR 4:4:4 video signals in uncompressed mode.
  It supports up to 8K/60p YCBCR 4:4:4 video signals in compression (DSC) mode.
  It supports eARC output.
• Testing function
  By comparing the internal pattern with the input pattern, it is capable of measuring the protocol details such as bit drop and color defects, as well as automatic inspection for FRL link training (comparison inspection is supported up to 4K/120p).
  It is possible to confirm whether the packet data of the input signal matches the expected value.
  It is possible to confirm whether the input audio signal is within the allowable value.
• Source function
  Compatible with CTA-861-G and VESA Display Monitor Timing (DMT) compliant video signal output.
  Each parameter of the InfoFrame can be set.
  It supports eARC/ARC input.
• External control
  Supports sending and receiving commands such as measurement results and parameter settings via LAN, USB-TypeB and RS-232C.
  Original control software can be developed by the combination of commands.
• Saving results and logs
  Analysis data and test logs can be saved in a USB flash drive.

The post VA-1849
HDMI 2.1 Source Tester first appeared on EgeRate Elektronik.

DVI DL Boosters can also be daisy chained to create extensions longer than 200 feet, and can also be used to link two shorter cables together to create a longer extension.

Video Support
Resolutions up to 3840 x 2400 are supported.

The post EXT-DVI-141DLBP
DVI DL Booster Plus (Dual Lin... first appeared on EgeRate Elektronik.

The EXT-DVI-EDIDN does not support HDCP. Please use the Gefen EXT-DVI-EDIDP for applications requiring HDCP support. Also, please note t(more…)

The post EXT-DVI-EDIDN
DVI Detective N first appeared on EgeRate Elektronik.
