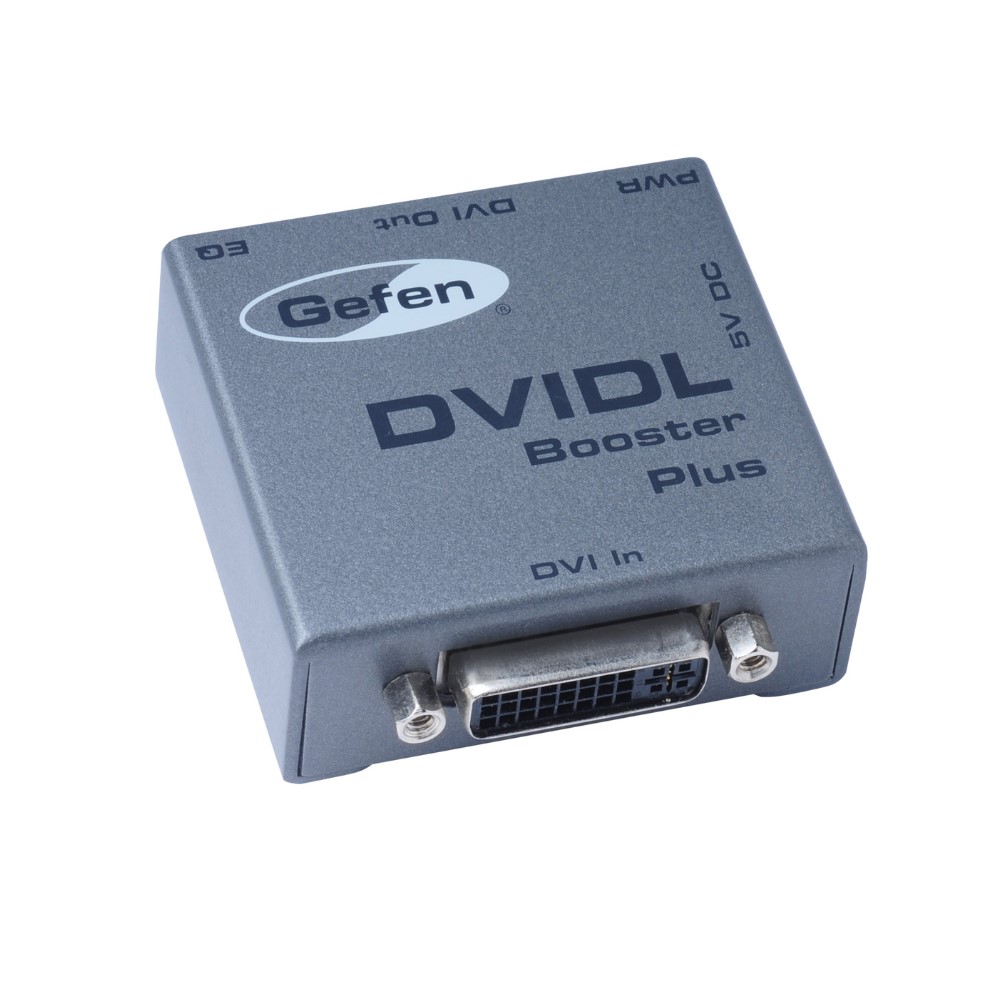

EXT-DVI-141DLBP
DVI DL Booster Plus (Dual Link)

Extends a dual-link DVI source with HDCP up to 200 feet away at resolutions up to 2560 x 1600, 60 Hz

DESCRIPTION

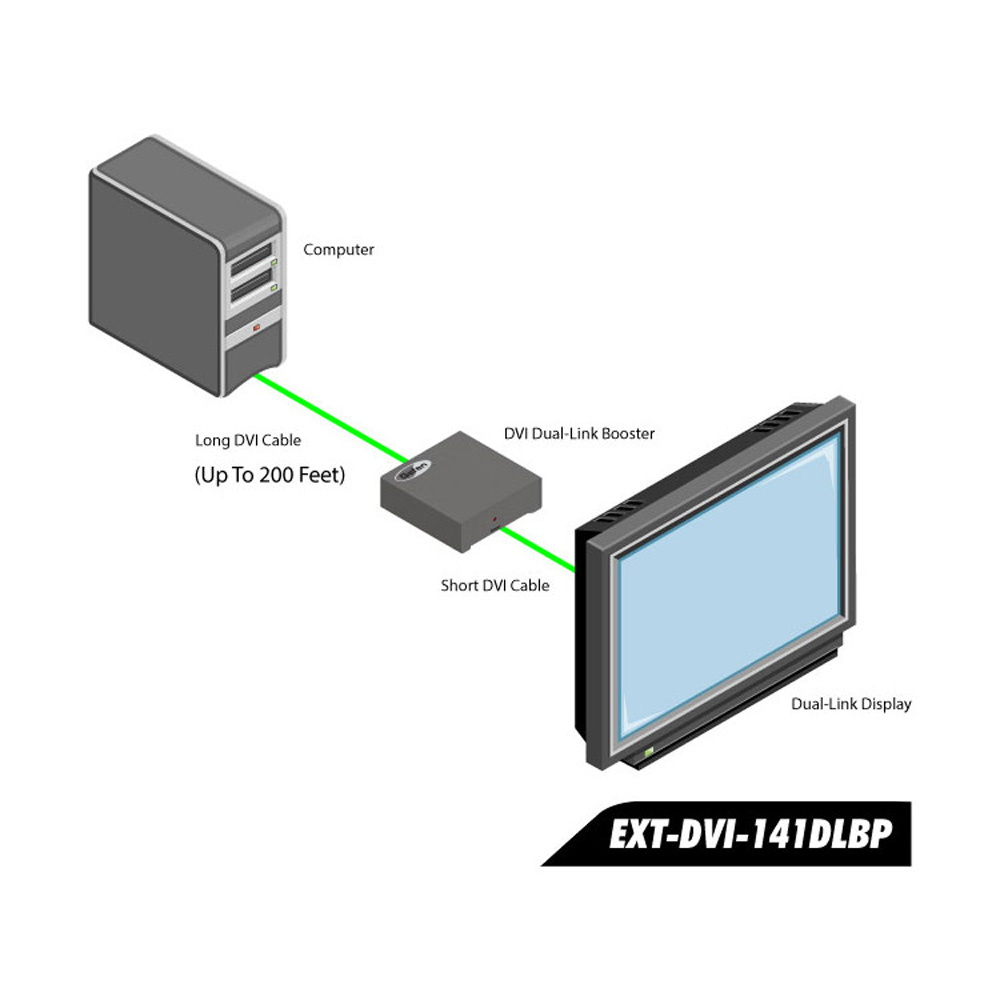

The Gefen EXT-DVI-141DLBP Dual-Link DVI Booster Plus can extend DVI signals with maximum resolutions of 3840 x 2400 up to 200 feet over standard copper dual-link DVI cables. In addition to far exceeding the typical 15 foot limitation imposed by copper cables, the Booster ensures that the video signal is free of distracting artifacts such as sparkles, static and lines. DDC signals are also strengthened to ensure that the communication channel between the display and the DVI source is robust and uninterrupted. The DVI DL Booster Plus is an excellent solution for those looking for a cost-effective way to extend dual-link DVI video.

DVI DL Boosters can also be daisy chained to create extensions longer than 200 feet, and can also be used to link two shorter cables together to create a longer extension.

Video Support
Resolutions up to 3840 x 2400 are supported.

FEATURES

  • Extends Dual-link DVI displays up to 200 feet (60 meters) away from computers
  • Supports 1080p Full HD at 120Hz and Dual-link resolutions up to 3840 x 2400 at 30 Hz
  • Boosts and equalizes digital video (TMDS) signal to ensure bright, sharp, and clear video
  • Supports DDWG standards for DVI compliant monitors
  • Boosts DDC levels to ensure stable performance
  • HDCP-compliant

SPECIFICATIONS

Data Transmission Rate: 12.8 Mb/s

S/PDIF: : 96 kHz performance

TOSLINK: 192 kHz performance

Input/Output: S/PDIF, optical TOSLINK

Link Connector: RJ-45 Shielded

Power Supply: 5V DC

Power Consumption: 5W (max) per power supply

Dimensions (W x H x D): : 3.8″ x 1.2″ x 1.4″ (96mm x 30mm x 35mm)

Shipping Weight: 5 lbs. (2.3 kg)

OTHER SPECIFICATIONS

Shipping Info

  • Length9 (Inches)
  • Width3.75 (Inches)
  • Height2.55 (Inches)
  • Weight0.7 (Lbs)
  • UPC845344050706

Other Specifications

  • Data Transmission Rate: 12.8 Mb/s
  • Â Â Â S/PDIF: 96 kHz performance
  • Â Â Â Â TOSLINK: 192 kHz performance
  • Â Â Â Â Input/Output: S/PDIF, optical TOSLINK
  • Â Â Â Â Link Connector: RJ-45 Shielded
  • Â Â Â Â Power Supply: 5V DC
  • Â Â Â Â Power Consumption: 5W (max) per power supply
  • Â Â Â Â Dimensions (W x H x D): 3.8″ x 1.2″ x 1.4″ (96mm x 30mm x 35mm)
  • Â Â Â Â Shipping Weight: 5 lbs. (2.3 kg)

In The Box

  • Gefen DVI DL Booster Plus (EXT-DVI-141DLBP(1)
  • 5V DC power supply (EXT-PS51AIP or EXT-PS51AIP-6)(1)
  • Quick-Start Guide (QSG-DVI-141DLBP)(1)
