The TST Torque Measurement Test Stand is ideal for a wide variety of torque testing applications up to 100 lbin, including closure torque testing, fastener torque testing, and more. The TST’s versatile modular design allows it to be configured for a variety of torque sensors and gripping fixtures. Ultra-smooth hand wheel operation ensures ease of use and a lever-operated slider with travel stops makes engaging and disengaging samples quick and efficient. The stand includes a torque loading plate with tapped holes for grip and custom fixture mounting and a resetable angle indicator.
Images show TST with Optional Equipment.

The TST is a test stand only. In order to measure torque you will need to add a torque sensor, display and appropriate test fixtures.

 Dimensions

The post TST
Manual Torque Test Stand first appeared on EgeRate Elektronik.

The TSTM-DC is a motorized test stand only. In order to measure torque you will need to add a torque sensor, display and appropriate test fixtures.

 Dimensions

 TSTM-DC, What’s in the box

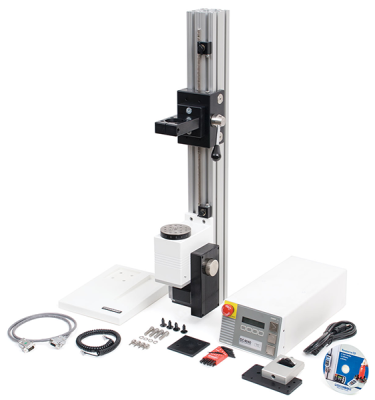

The TSTM-DC and TSTMH-DC test stands are shipped as shown at left, and include the following accessories:
(1) DC controller
(1) Controller connection cable
(1) Indicator mounting kit
(1) Encoder cable
(1) Column cap with hardware
(1) Allen wrench set
(4) Thumb screw for mounting indicator
(1) Power cord
(1) Resource CD
(1) Base with hardware (TSTM-DC)
(2) Mounting leg with hardware (TSTMH-DC)
(1) Additional column cap with hardware (TSTMH-DC)

The post TSTM-DC
Advanced Motorized Torque Test Stand first appeared on EgeRate Elektronik.
