TST – Vertical Stand
TSTH – Horizontal Stand
The TST Torque Measurement Test Stand is ideal for a wide variety of torque testing applications up to 100 lbin, including closure torque testing, fastener torque testing, and more. The TST’s versatile modular design allows it to be configured for a variety of torque sensors and gripping fixtures. Ultra-smooth hand wheel operation ensures ease of use and a lever-operated slider with travel stops makes engaging and disengaging samples quick and efficient. The stand includes a torque loading plate with tapped holes for grip and custom fixture mounting and a resetable angle indicator.

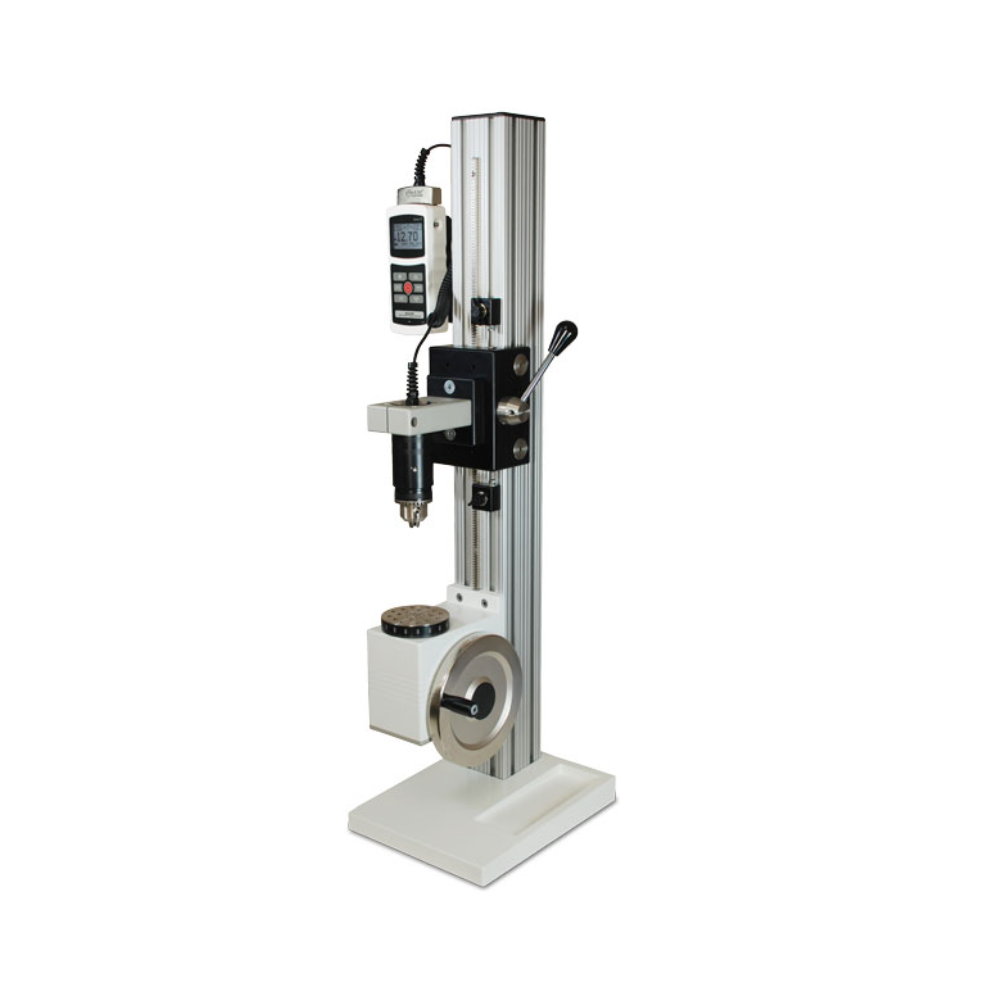

Images show TST with Optional Equipment.
The TST is a test stand only. In order to measure torque you will need to add a torque sensor, display and appropriate test fixtures.

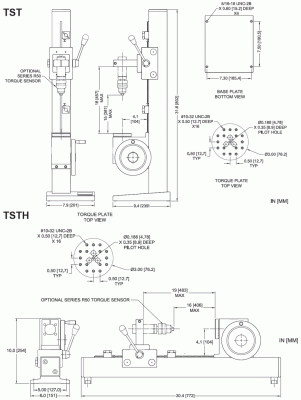

Dimensions
| Item | Descrıptıon | |||
|---|---|---|---|---|
|
TST
|
Manual Torque Test Stand – Vertical
|
|||
|
TSTH
|
Manual Torque Test Stand – Horizontal
|
|||
| Accessorıes | ||||
|
TST001
|
Digital angle indicator for TST-Series stands
|
|||
|
TSF002
|
Horizontal/wall mounting kit for Series TSF and TST stands
|
|||
|
SP-2736-12
|
Column extension, 12 in. / 305 mm, TSTM-DC / TSTMH-DC
|
|||
|
SP-2736-24
|
Column extension, 24 in. / 610 mm, TSTM-DC / TSTMH-DC
|
|||
|
SP-2736-42
|
Column extension, 42 in. / 1065 mm, TSTM-DC / TSTMH-DC
|
|||
