DD-100 Digital Durometer Tester

egerate — Tue, 29 Aug 2023 12:20:20 +0000

Available Scales: A, B, C, D, DO, O, OO & Asker C
Conforms to: ASTM D-2240, DIN 53505, ISO 868, JIS K 7215 & ISO 7619. Asker C model conforms to JIS K-7312.The Check-Line DD-100 digital durometer tester is the genesis of years of experience offering high quality Durometers to discriminating users. Featuring an 18mm footer that offers high stability and conforms to all international standards, the DD-100 is the ideal durometer for a wide range of shore hardness measuring applications.The DD-100 is supplied with a reference test block and NIST traceable calibration certificate in foam-fitted carrying case.

Easy To Operate

Portable Battery-Powered Printer for Hardcopy Documentation

Need a hard copy printout of your measurement results?Our P-190 Printer with the G03-0086 Cable will allow you to print each reading as it’s shown on the display. The user simply depresses the thumb switch each time they want a value transferred to the printer. Simple yet effective!

The battery-powered P-190 Printer uses standard rolls of adding machine paper, unlike thermal printers the printout will not fade over time. It is supplied with a battery charger for operation on all power worldwide.

Order the following items as shown in the accessories section of the BUY NOW section at the bottom of this page.
P-190 Printer
G03-0086 Data Transfer Cable and Thumb Switch

Durometer Test Stands

We offer a complete line of durometer test stands. The stand, when used in conjunction with a Durometer, eliminates operator error sometimes associated with hand-held durometer testing. Our stands feature a load weight for the proper testing pressure as noted in ASTM D2240, and a quick-lock column for easy adjustment.

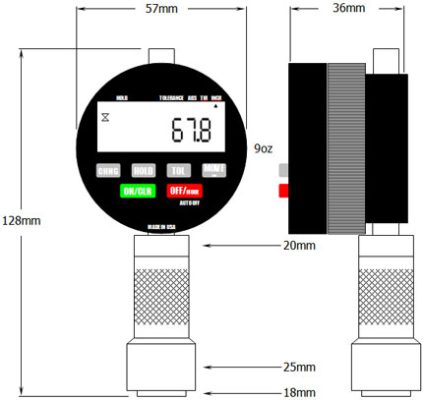

Dimensions

Complete Kit

The DD-100 is supplied as a complete kit including the durometer, test block, instruction manual and calibration certificate in a foam-fitted metal carrying case.

DD-DB1 – Smart USB Cable

The DD-DB1 Smart USB cable connects the durometer to a computer. The output of the SmartCable Keyboard is a standard USB 2.0 keyboard signal. Connecting the SmartCable Keyboard with its built-in keyboard wedge to a computer will allow the SmartCable to be identified as a keyboard device that can send data to any Microsoft Windows application – no software wedge required. The SmartCable Keyboard will make the gauge readings appear as if they were typed in using a standard keyboard – eliminates data collection errors. If you want to collect data into a Microsoft Excel spreadsheet, simply select the cell where you want the data to appear.

Conformance to InternatIonal Standards
Model	ASTM D2240	DIN 53505	ISO 868	ISO 7619
DD-100-A	X	X	X	X
DD-100-B	X
DD-100-C	X
DD-100-D	X	X	X	X
DD-100-DO	X
DD-100-O	X
DD-100-OO	X

The post DD-100
Digital Durometer Tester first appeared on EgeRate Elektronik.

AD-100 Durometer Tester

egerate — Tue, 29 Aug 2023 10:33:07 +0000

Available Scales: A, B, C, D, DO, O, OO & Asker C
Conforms to: ASTM D-2240, DIN 53505, ISO 868, JIS K 7215 & ISO 7619. Asker C model conforms to JIS K-7312.

The Check-Line AD-100 durometer tester is the genesis of years of experience offering high quality Durometers to discriminating users. Featuring an 18mm footer that offers high stability and conforms to all international standards, the AD-100 is the ideal durometer for a wide range of shore hardness measuring applications.

Seven models are available each calibrated for a different Shore scale including; Shore A, Shore B, Shore C, Shore D, Shore DO, Shore O, Shore OO and Asker C.

AD-100-D has been assigned NSN# 6635-01-672-7759

The AD-100 displays hardness readings on an easy-to-read analog scale calibrated in 0 to 100 Shore units. An optional MEMORY POINTER holds reading until manually reset, allowing operator to concentrate on measurement task. Also valuable if used in a position where dial is obstructed.
Note: Optional Memory Pointer is unable to be used with Type OO durometers.

All AD-100 models are supplied in a foam-fitted protective carrying case along with reference test block and NIST traceable calibration certificate.

Easy To Operate

Durometer Test Stands

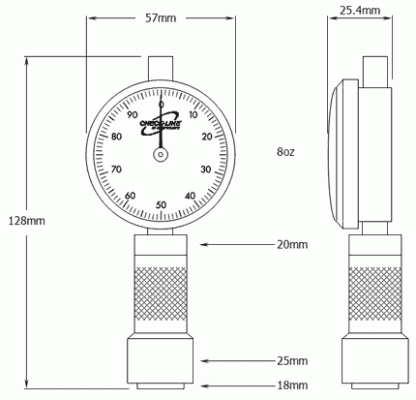

Dimensions

Complete Kit

All AD-100 models are supplied in a foam-fitted protective carrying case along with reference test block and NIST traceable calibration certificate.

Conformance to International Standards
Model	ASTM D2240	DIN 53505	ISO 868	ISO 7619	JIS K-7312
AD-100-A	X	X	X	X	X
AD-100-B	X
AD-100-C	X
AD-100-D	X	X	X	X	X
AD-100-DO	X
AD-100-O	X
AD-100-OO	X
AD-100-ASK-C	X				X

The post AD-100
Durometer Tester first appeared on EgeRate Elektronik.

UT347A Leeb Hardness Tester

egerate — Tue, 11 Jul 2023 15:18:23 +0000

Features of UT347A Leeb Hardness Tester

Certificates: CE (In processing), UKCA

6 kinds of hardness values (HL, HB, HRC, HRB, HV, HS) is a real-time measurement
One hardness tester can be equipped with 7 different impact devices
Automatic identification without calibration when replacing impact device
Statistical, multi-unit, line chart, histogram 4 measurement modes
Camera: 640×480 pixels (900 BMP format pictures could be stored)
Automatic alarm when the upper and lower limits are exceeded
Adjustable backlight brightness
Mobile phone Bluetooth APP and PC software analysis data
Support thermal printing
Tri-color LED indication and LED flashlight

The post UT347A
Leeb Hardness Tester first appeared on EgeRate Elektronik.

UT255E Wireless High Low Voltage Hook Ammeter

egerate — Tue, 11 Jul 2023 15:11:45 +0000

UT255E is designed with a hook detector, wireless receiver, and telescopic insulating rod. With telescopic insulating rods connected, it can test leakage current, current, frequency, load, and others for bare conductors, bus bars below 35kV, or cables with safety insulation sheaths below 110kV.

The hook detector is equipped with the built-in double-layer flexible coil, featuring lightweight, high precision, wide range, and good linearity, it can be hung onto the line for testing, especially suitable for detecting transformer load and inspecting leakage current of multi-core thick cables underground or outdoors.

The post UT255E
Wireless High Low Voltage Hook Ammeter first appeared on EgeRate Elektronik.

PSHP Test Stand

egerate — Thu, 15 Jun 2023 09:39:35 +0000

Special Features

Quick, series measurements with hardness testers of HPS, HPS-R, HP and HP-F series
Simple lever-operation with release-spring
Adjustable height: 0 – 200 mm
Stroke of the lever is 40 mm
Test stand PSHP is not convenient for conical shaped probes.

The post PSHP
Test Stand first appeared on EgeRate Elektronik.

HP-10-F Yarn Package Hardness Tester

egerate — Thu, 15 Jun 2023 09:31:40 +0000

Special Features

The spring loaded outer ring assures a constant measuring pressure and eliminates false readings due to difference between operators
Ball shaped indentor prevents damage to bobbins
Flat bottom prevent tilting and improves the measuring accuracy
Adjustable Min. / Max. indicator marks to highlight working range of the yarn package hardness tester HP-10-F
For bobbins with diameters smaller than 400 mm use textile durometer HP-10 with curved working face
Optionally available: Calibration certificate with calibration report

Standard Features

High repeatability
Easy to use
Display range 0 – 100 hardness graduation marks
Certificate of Compliance with the order 2.1 according EN 10204 is included

Available Models

Model	Ball Ø	Application
HP-10-F	10 mm	for very loosely wound bobbins of thick yarns with more than 400 mm diameter, such as carpet yarns
		alternative
HP-2.5-F	2.5 mm	for closely wound bobbins of synthetic, finished fibers and filaments with more than 400 mm diameter
HP-5-F	5 mm	for loosely wound bobbins of synthetic fibers and closely wound natural fibers, yarns and threads with more than 400 mm diameter

The post HP-10-F
Yarn Package Hardness Tester first appeared on EgeRate Elektronik.

HP-5-F Yarn Package Hardness Tester

egerate — Thu, 15 Jun 2023 09:25:39 +0000

Special Features

The spring loaded outer ring assures a constant measuring pressure and eliminates false readings due to difference between operators
Ball shaped indentor prevents damage to bobbins
Flat bottom prevent tilting and improves the measuring accuracy
Adjustable Min. / Max. indicator marks to highlight working range of the yarn package hardness tester HP-5-F
For bobbins with diameters smaller than 400 mm use textile durometer HP-5 with curved working face
Optionally available: Calibration certificate with calibration report

Standard Features

High repeatability
Easy to use
Display range 0 – 100 hardness graduation marks
Certificate of Compliance with the order 2.1 according EN 10204 is included

Available Models

Model	Ball Ø	Application
HP-5-F	5 mm	for loosely wound bobbins of synthetic fibers and closely wound natural fibers, yarns and threads with more than 400 mm diameter
		alternative
HP-2.5-F	2.5 mm	for closely wound bobbins of synthetic, finished fibers and filaments with more than 400 mm diameter
HP-10-F	10 mm	for very loosely wound bobbins of thick yarns with more than 400 mm diameter, such as carpet yarns

The post HP-5-F
Yarn Package Hardness Tester first appeared on EgeRate Elektronik.

HP-2.5-F Yarn Package Hardness Tester

egerate — Thu, 15 Jun 2023 09:15:44 +0000

Special Features

The spring loaded outer ring assures a constant measuring pressure and eliminates false readings due to difference between operators
Ball shaped indentor prevents damage to bobbins
Flat bottom prevent tilting and improves the measuring accuracy
Adjustable Min. / Max. indicator marks to highlight working range of the yarn package hardness tester HP-2.5-F
For bobbins with diameters smaller than 400 mm use textile durometer HP-2.5 with curved working face
Optionally available: Calibration certificate with calibration report

Standard Features

High repeatability
Easy to use
Display range 0 – 100 hardness graduation marks
Certificate of Compliance with the order 2.1 according EN 10204 is included

Available Models

Model	Ball Ø	Application
HP-2.5-F	2.5 mm	for closely wound bobbins of synthetic, finished fibers and filaments with more than 400 mm diameter
		alternative
HP-5-F	5 mm	for loosely wound bobbins of synthetic fibers and closely wound natural fibers, yarns and threads with more than 400 mm diameter
HP-10-F	10 mm	for very loosely wound bobbins of thick yarns with more than 400 mm diameter, such as carpet yarns

The post HP-2.5-F
Yarn Package Hardness Tester first appeared on EgeRate Elektronik.

HP-10 Yarn Package Hardness Tester

egerate — Thu, 15 Jun 2023 09:07:49 +0000

Special Features

The spring loaded outer ring assures a constant measuring pressure and eliminates false readings due to difference between operators
Ball shaped indentor prevents damage to bobbins
Working face slightly curved to fit on small bobbins, working face radius 55 mm
Adjustable Min./Max. indicator marks to highlight working range of the yarn package hardness tester HP-10
For bobbins with diameters over 400 mm use yarn package hardness tester HP-10-F with flat working face e.g warping beams
Optionally available: Calibration certificate with calibration report

Standard Features

High repeatability
Easy to use
Display range 0 – 100 hardness graduation marks
Certificate of Compliance with the order 2.1 according EN 10204 is included

Available Models

Model	Ball Ø	Application
HP-10	10 mm	for very loosely wound bobbins of thick yarns, such as carpet yarns
		alternative
HP-2.5	2.5 mm	for closely wound bobbins of synthetic, finished fibers and filaments
HP-5	5 mm	for loosely wound bobbins of synthetic fibers and closely wound natural fibers, yarns and threads

The post HP-10
Yarn Package Hardness Tester first appeared on EgeRate Elektronik.

HP-5 Yarn Package Hardness Tester

egerate — Thu, 15 Jun 2023 09:00:23 +0000

Special Features

The spring loaded outer ring assures a constant measuring pressure and eliminates false readings due to difference between operators
Ball shaped indentor prevents damage to bobbins
Working face slightly curved to fit on small bobbins, working face radius 55 mm
Adjustable Min./Max. indicator marks to highlight working range of the yarn package hardness tester HP-5
For bobbins with diameters over 400 mm use yarn package hardness tester HP-5-F with flat working face e.g. warping beams
Optionally available: Calibration certificate with calibration report

Standard Features

High repeatability
Easy to use
Display range 0 – 100 hardness graduation marks
Certificate of Compliance with the order 2.1 according EN 10204 is included

Available Models

Model	Ball Ø	Application
HP-5	5 mm	for loosely wound bobbins of synthetic fibers and closely wound natural fibers, yarns and threads
		alternative
HP-2.5	2.5 mm	for closely wound bobbins of synthetic, finished fibers and filaments
HP-10	10 mm	for very loosely wound bobbins of thick yarns, such as carpet yarns

The post HP-5
Yarn Package Hardness Tester first appeared on EgeRate Elektronik.
