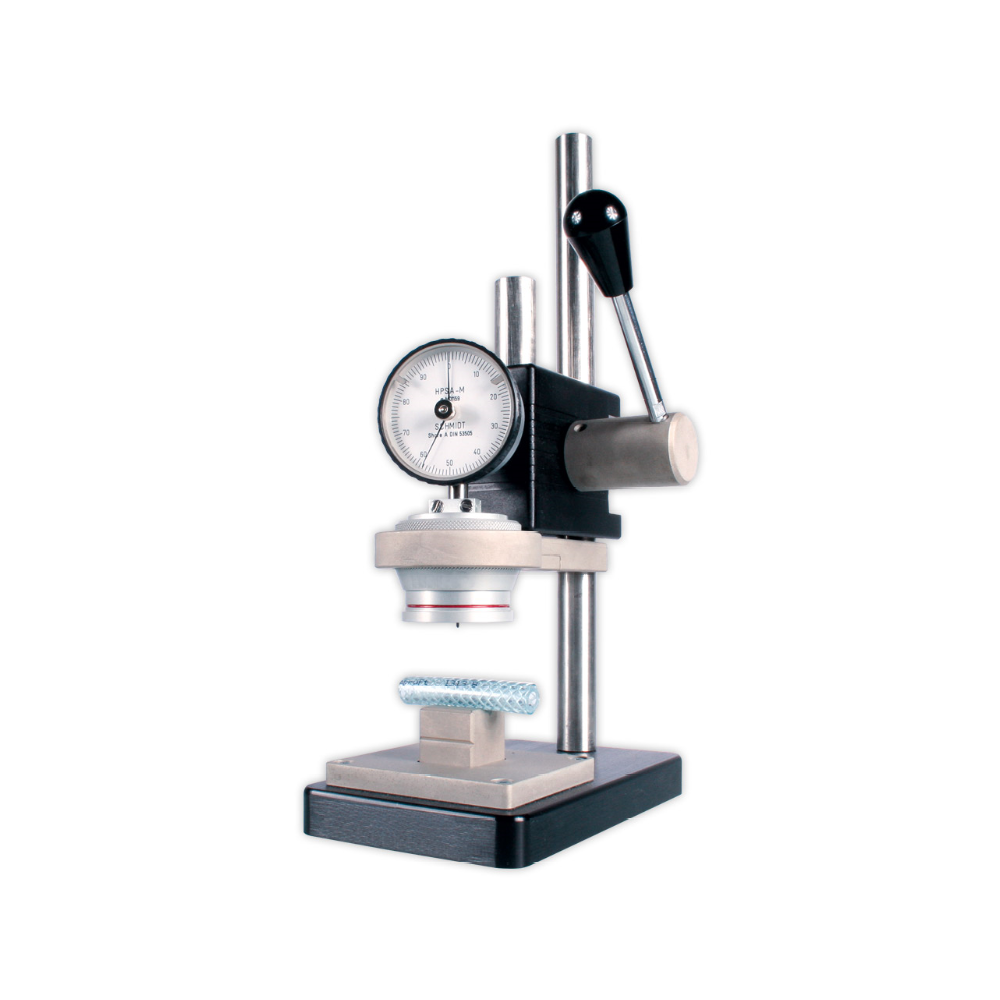

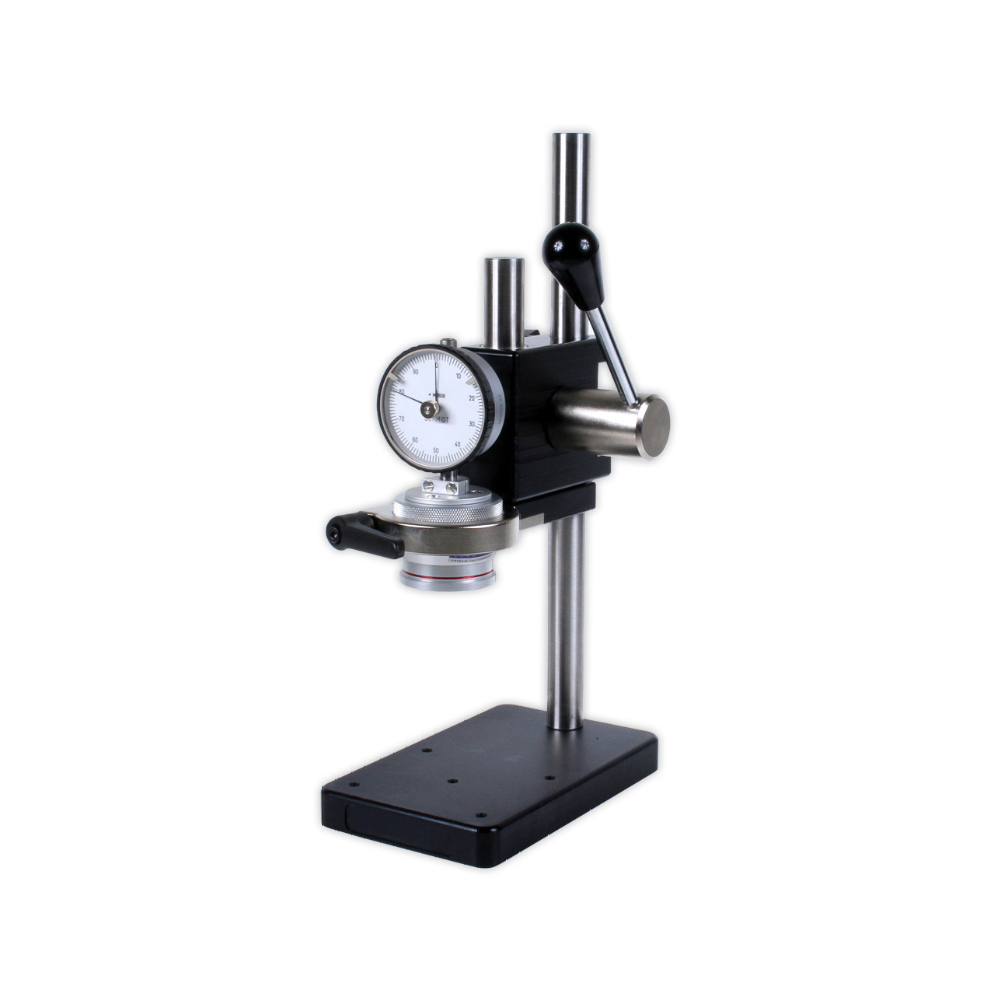

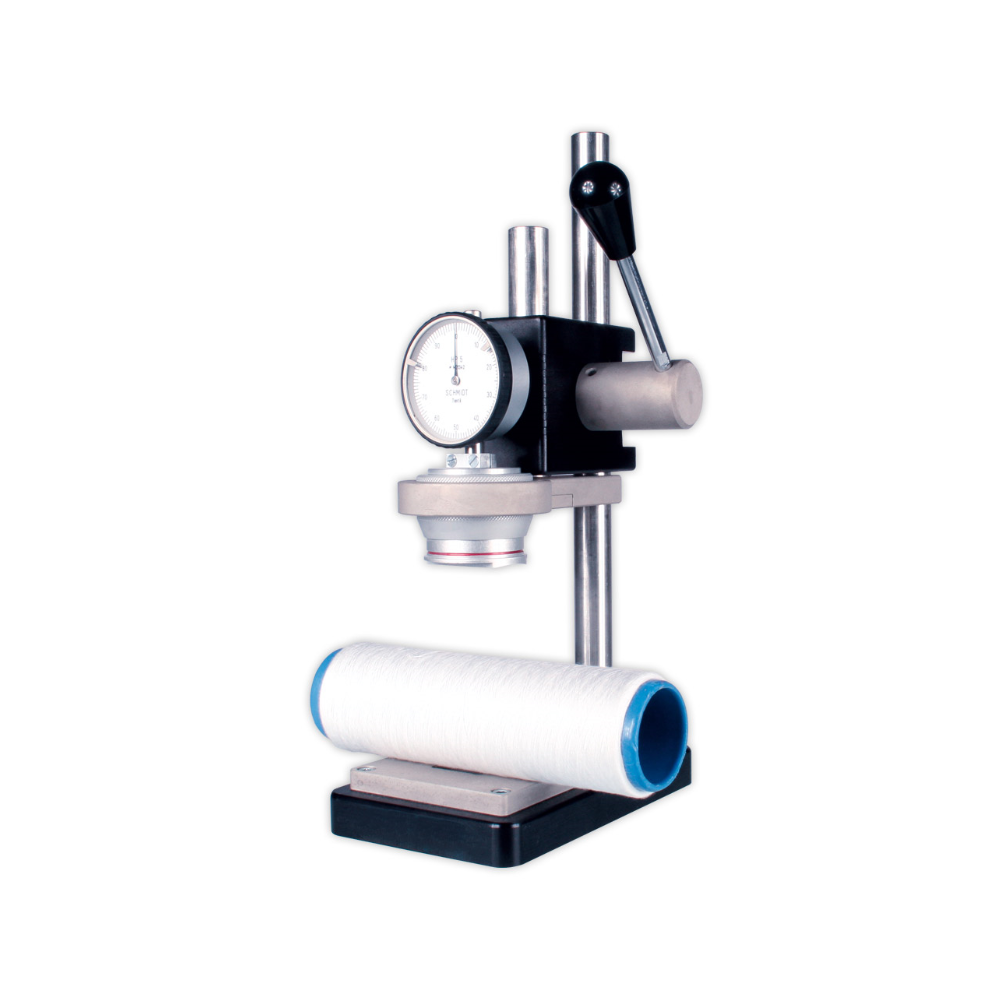

PSHP
Test Stand

Test stand for series measurements with hardness testers of HPS, HPS-R, HP and HP-F series

For quick series measurements

Special Features

  • Quick, series measurements with hardness testers of HPS, HPS-R, HP and HP-F series
  • Simple lever-operation with release-spring
  • Adjustable height: 0 – 200 mm
  • Stroke of the lever is 40 mm
  • Test stand PSHP is not convenient for conical shaped probes.

SPECIFICATIONS

Height adjustment: 0 – 200 mm
Stroke: 40 mm
Weight, net: Approx. 2300 g
Dimension: 162 x 100 x 320 (LxWxH)

Specifications subject to change without notice!

ACCESSORIES

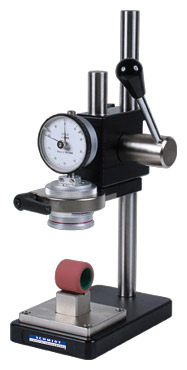

PSHS-V1 – Block

with different V-grooves and flat surface, basement with mounting screws.
Order number: PSHS-V1

DELIVERY INCLUDES

Test stand in transport case
