Digital torque value readout

CW and CCW operation

Peak hold mode

Engineering units ( Nm , ft-lb , in-lb, kg-cm) selectable

Auto power off after about 5 minutes idle

Rechargeable batteries are compatible

The post Geratech
DTWB Series first appeared on EgeRate Elektronik.

Users can program 99 target torque presets for fast and accurate torque application on repetitive tasks. The ETW provides visual and audible alerts as you approach and hit the target value.

 Torque Ranges

 Open End Spanner Heads

Open end spanner heads are available as options in sizes 1/4 inch to 1 inch / 7-41mm

*The ETW-XX-1000 and ETW-XX-2000 have fixed heads and are not compatible with the open end spanners.

ETW models up to 100 Nm use heads with 9x12mm tangs, 200 Nm and above use 14x18mm tangs.

The post ETW
Digital Torque Wrench with USB Data Outpu... first appeared on EgeRate Elektronik.

The TT-41000 Series impact torque testers are designed to check tool operation and consistency. The measured torque value does not precisely indicate the effective clamp load of the bolt. It is common for tool manufacturer’s specified torque output to vary by +/-20% versus what the TT-41000 will indicate however the critical value is repeatability, not measured output.

The TT-IMP is designed for use with impact and impulse tools only. It is not compatible with hand torque wrenches or reaction tools. The display included with the TT-IMP can be used with our IT Transducers to extend its capabilities.

 Torque Ranges

TT-IMP Options

The test stand can be connected to the MTM or TT-3000 torque testers with external port option. They can also be configured with digital output for connection to a tablet or direct to your PC with our Tools software application. Inquire for details.

Notes for Impact Testing

Set filter on AWS-4050 Torque Display to 1000 Hz
Back off run-down between each test
Be aware of heat build-up, it breaks down the lubricant in the run-down fixture, increasing friction. Let the run-down cool after a few minutes of use (this will vary by torque range)

The post TT-IMP
Impact Torque Wrench Tester first appeared on EgeRate Elektronik.

The all-new HTGS gauge includes the USB device driver and ZT Logger data acquisition software for windows. ZT Logger can download data from the gauge memory or capture a continuous stream of data at 10 data/second. Zero the gauge or capture data while at the computer. All gauge programming can be set and saved from the software.

Optional Force Recorder Data Acquisition Software is designed to capture up to 2,000 data per second. No other gauges come close to this speed! Other functions include; gauge programming, graph overlay feature, automatic statistics generation.

 Force Ranges

 Chuck Sizes & Min / Max Sample Diameters

Complete Kit

Kit includes display, sensing chuck, ZT Logger data acquisition software, USB cable, Allen wrench, AC adapter/charger, calibration cert traceable to NIST and carrying case. “85” ranges also include handle.

The post HTGS
Hand-held Digital Torque Gauge first appeared on EgeRate Elektronik.

Setpoint indicators are provided for pass-fail testing. The gauges are overload protected to 150% of capacity, and an analog load bar is shown on the display for graphical representation of the applied force.

The gauges include MESURTM Lite data acquisition software. MESURTM Lite tabulates single point data. One-click export to Excel allows for further data manipulation.

 Torque Ranges – capacity/resolution

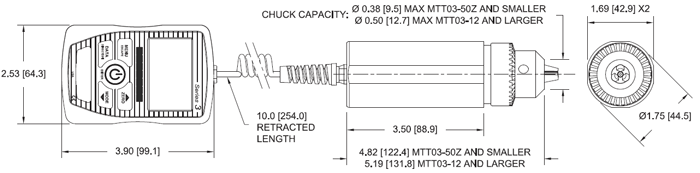

 Dimensions

 Complete Kit

The TT03 is supplied as a complete kit including the force display with torque sensor, universal AC adapter, battery, chuck key, quick-start guide, USB cable, basic data xfer software and NIST traceable calibration cert if a fitted carrying case.

The post TT03
Hand-Held Digital Torque Meter first appeared on EgeRate Elektronik.

• Displaying the opening or closing torque (clockwise and counterclockwise torque)
• 2 selectable modes:
  – Real Time: to display load transients
  – Peak: to capture the peak torque achieved during a test
• Table for containers with Ø from 20 to 160 mm (small table for diameters from Ø 7 up to 50 mm is available) – standard unit
• Programmable high/low setpoints for go/no-go testing with colour-coded indicators (orange, green, red) in the LED display and relay outputs
• Torque meter with high internal sampling rate of 2000 times/sec
• Display update time 16 times/sec
• Torque meter with easy to read display (OLED)
• Selectable units: Nm, kgfm, Lbf.in or Ncm, kgfcm, ozf.in
• Storage of 1000 values for recall:
  – on the display
  – for data transfer to a PC
  – for printing with report
• 3 output signals: USB, RS-232 and analog
• Special features of model DTXA in comparison to standard unit DTXS
• Readings can be transferred from the internal memory to an USB flash drive or directly saved on it (sampling rate 100 times/sec).
• 2 high/low output values can be set; If the reading reaches one of the output values, data will be sent to external devices (e.g. PC, printer) for data recording
• Indication of two peak values per measurement, e. g. closure with rated break point

Standard Features

• Torque meter for fast, accurate measuring
• High repeatability
• Easy to use
• Inclusive 30 days trial version of Software »Force Recorder Professional«
• Manufacturer`s certificate with measured values is included

 Available Models – Standard Unit

 * includes table DT-STL
** includes table DT-TB

 Available Models – Self Configurated

The post DTXS and DTXA
Torque Meter first appeared on EgeRate Elektronik.

• 2 selectable modes:
  – Real Time: to display torque transition
  – Peak Mode: to capture the peak torque achieved during a test
• Display of opening or closing torque (clockwise and counterclockwise torque)
• Torque meter with high internal sampling rate of 2000 times/sec
• Display update time 16 times/sec
• Easy to read Display (OLED)
• Selectable units: Nm, Ncm, kgfm, kgfcm, Lbf.in or ozf.in
• Multi language set up menu: English, German, Spanish, French, Italian, Chinese, Japanese, Korean
• Programmable high/low setpoints for go/no-go testing with color-coded indicators (orange, green, red) in the LED display and relay outputs
• Storage of 1000 values for recall:
  – on the display
  – for data transfer to PC
  – for printing with report
• 4 output signals: USB, RS-232 and analog
• 6 different sensor attachments are available
• The torque sensors of torque meter HTGS-10N and HTGA-10N includes an additional supporting handle for better operation

Special features of model HTGA in comparison to standard unit HTGS:

• Readings can be transferred from the internal memory to an USB flash drive or directly saved on it (sampling rate 100 times/sec)
• 2 high/low output values can be set; If the reading reaches one of the output values, data will be sent to external devices (e.g. PC, printer) for data recording
• Indication of two peak values per measurement.

Standard Features

• Inclusive 30 days trial version of Software »Force Recorder Professional«
• Torque measuring unit for fast, accurate measuring
• High repeatability
• Easy to use
• Manufacturer`s certificate with measured values is included

 Available Models

 Delivery includes no sensor attachment!

The post HTGS and HTGA
Torque Meter first appeared on EgeRate Elektronik.

The post DTWR Serisi
Dijital Tork Anahtarı first appeared on EgeRate Elektronik.

CW and CCW operation

Programmable Target Set-point with audible and LED indicators

Peak or Real-Time (track) mode (User Selectable)

At 90% of Target, Green LED illuminates with slow audible beep

At 100% of Target, Green & Red LEDs illuminate with continuous beep

Ratcheting Head

The post DTWM Serisi
Dijital Tork Anahtarı first appeared on EgeRate Elektronik.
