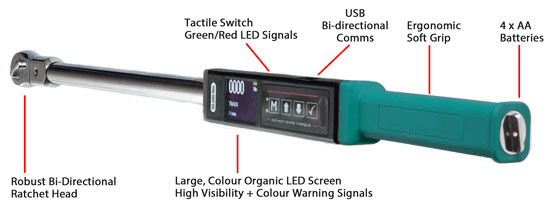

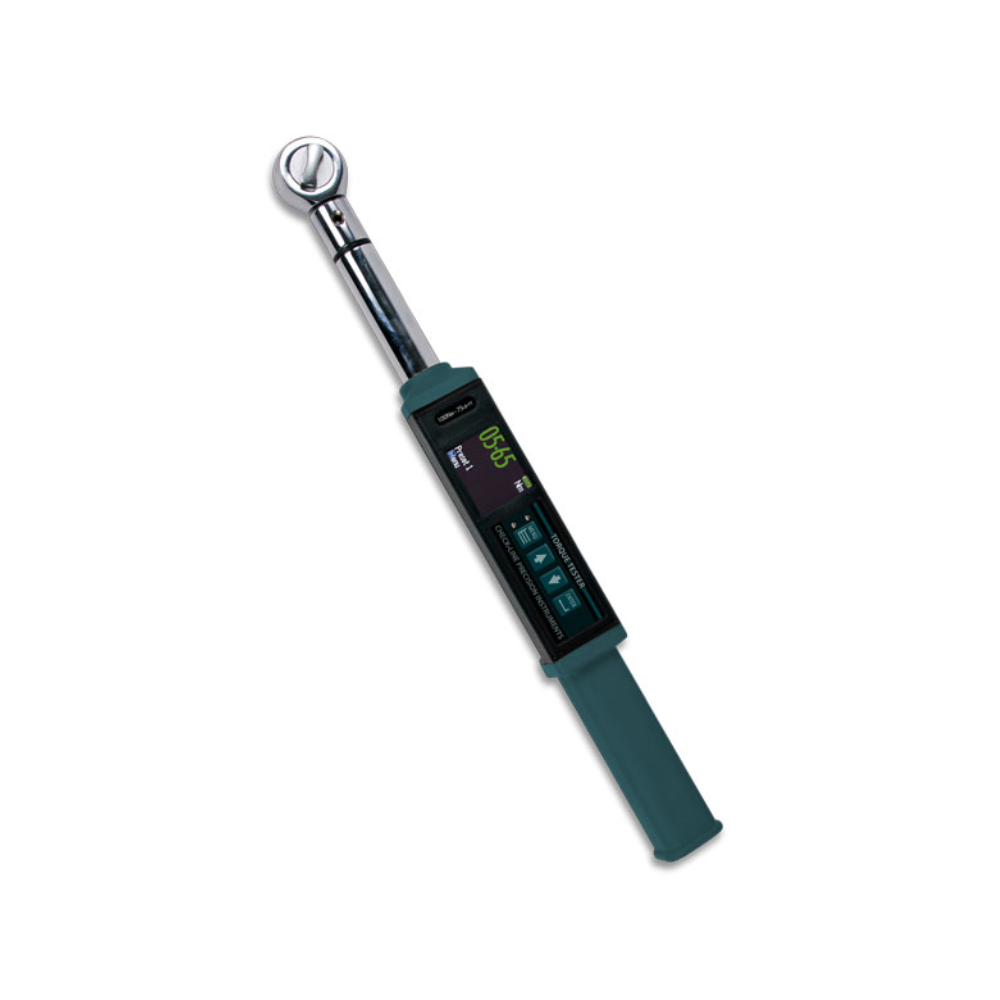

The Checkline ETW advanced Torque Wrenches are designed for high precision measurement of industrial, automotive, aerospace and many other applications.
The ETW displays Real-Time and Peak torque on a large Color OLED screen in user-selectable measuring units (lb-in, lb-ft, oz-in, N-m, cN-m, kgf-m, kfg-cm)
Users can program 99 target torque presets for fast and accurate torque application on repetitive tasks. The ETW provides visual and audible alerts as you approach and hit the target value.
Torque Ranges
| Model | Range | Drive Size |
|---|---|---|
| ETW-SP-10 |
8.8 – 88 lbf-in
|
1/4″ or 3/8″, 9×12 |
| ETW-SP-20 |
17.7 – 177 lbf-in
|
1/4″ or 3/8″, 9×12 |
| ETW-SP-50 |
44.2 – 442 lbf-in
|
1/4″ or 3/8″, 9×12 |
| ETW-SP-100 |
7.4 – 74 lbf-ft
|
1/4″ or 3/8″, 9×12 |
| ETW-SP-200 |
15 – 150 lbf-ft
|
1/2″, 14×18 |
| ETW-SP-340 |
25 – 250 lbf-ft
|
1/2″, 14×18 |
| ETW-SP-600 |
44.3 – 443 lbf-ft
|
3/4″, 24×32 |
| ETW-SP-800 |
59 – 590 lbf-ft
|
3/4″, 24×32 |
| ETW-SP-1000 |
74 – 740 lbf-ft
|
3/4″, 24×32 |
| ETW-SP-1500 |
110 – 1100 lbf-ft
|
1″, 27×36 |
| ETW-SP-2000 |
147 – 1475 lbf-ft
|
1″, 27×36 |
Open End Spanner Heads
Open end spanner heads are available as options in sizes 1/4 inch to 1 inch / 7-41mm
*The ETW-XX-1000 and ETW-XX-2000 have fixed heads and are not compatible with the open end spanners.
ETW models up to 100 Nm use heads with 9x12mm tangs, 200 Nm and above use 14x18mm tangs.
