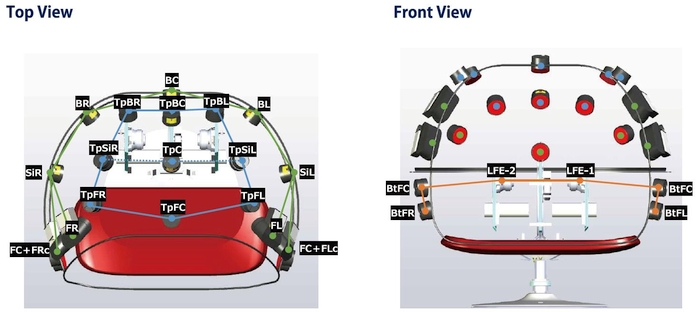

22.2ch Speaker Layout

The post SA-1852
22.2ch Audio Chair Speaker first appeared on EgeRate Elektronik.

• Can decode MPEG-4 AAC 22.2ch/5.1ch/2ch
• Automatically tracks the input audio mode
• Supports ARC/eARC input
• Supports HDMI(8ch)×3 output and MADI (24ch)×1 output
• Audio output delay function
• Displays input status and an audio level meter

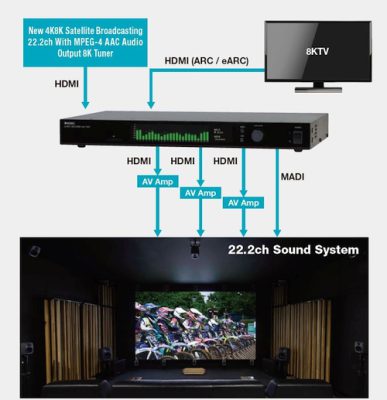

 Connection Example

The post MA-1851
22.2ch Audio Decoder first appeared on EgeRate Elektronik.

The audio loudness meter, model AM-3807 is a high-functional audio loudness measurement monitor that supports SDI embedded audio and AES audio. The loudness measurement is compliant to the ITU-R BS.1770 (ARIB TR-B32) loudness algorithm. Measurement modes cover integrated (average), short-term and momentary with continuous measurement for up to 6 hours. Display layouts include history, loudness level bar, and picture. You can select TC (Time Code) or audio level for auto measurement trigger as well as the START/PAUSE button on the front panel. Start and pause triggers can be set respectively such that TC is the trigger for start and audio level is the trigger for pause. Audio level triggers consist of not only level but also period for flexible application. AM-3807 includes various unique and useful features such as overwrite measurement chasing TC

Audio loudness meter, AM-3807

Features

Equipped with a 7-inch LCD and various display layouts

AM-3807 has three display layout modes of history, loudness level bar, and picture. Each mode has graphics and various number values. Loudness of integrated, momentary/short-term and true peak are displayed. The display color is green when measurement result is within target level, red when beyond target level, and blue when below target level. It is quite simple.

History

If you want to see time-elapsed data, history mode shows it to you. The screen displays max./min. values of loudness level of integrated, momentary/short-term and true peak on a TC based horizontal line. Use position and zoom adjustment to see the specific position with a wider image.

Loudness level bar

Momentary and short-term measurement results are displayed in the loudness level bar mode. If the audio mode is 2ES, AM-3807 shows it on the screen simultaneously. The level bar is refreshed by 25msec step.

Surround Lissajous display

Surround display makes it possible to see adjacent channel correlation, each channel level including LFE, and sound expanse.
Detecting audio mode, display changes to Lissajous on stereo mode. At 5.1ch or 5.1ch+S mode, internal down mixed Lissajous can be displayed.

Surround display

Lissajous display

Surround, Lissajous and Down Mix

Overwrite loudness measurement

When measurement result fails over the target level, users don’t need to measure whole period again. After the failed period is modified, users simply play back that period only. AM-3807 measures that period by TC, overwrites the previously measured data, and provides loudness value for the whole period.

1.		Determine failed period
2.		Modify source audio level.
3.		Set AM-3807 start TC and pause TC of the failed period
4.		Play back failed period of modified audio source and AM-3807 starts and stops measurement with the previously set TC.
5.		AM-3807 overwrites the previously measured data and provides loudness value for the whole period

Supporting various audio mode

AM-3807 supports various audio mode such as Mono, 2Mono, ST, 2ST, 5.1 and 5.1+S. Each audio channel is assignable respectively per audio mode. 5.1 downmix can be assigned to ST. ES mode is supported as well.

ES1 display

ES2 display

HD/SD-SDI and AES/EBU input

AM-3807 supports HD/SD-SDI(compliant to SMPTE292M/259M) embedded audio and AES/EBU. Connector of AES/EBU is D-sub 25pin TASCAM compatible. Throughout of SDI and AES/EBU are equipped as well.

The post AM-3807
Audio Loudness Meter first appeared on EgeRate Elektronik.

• Wide variety of supported video formats
• Wide variety of audio input/output interfaces
• Loudness measurement function
• Free remapping of input audio to output audio (excluding main unit speakers and SDI output)
• Simultaneous monitoring of up to 32 channels of audio
• L/R speakers as standard feature
• LCD display with superior visibility
• Preset function
• User button function
• Downmix function
• GPIO remote control function
• Alarm output function to external devices
• Space-saving housing
• AC power supply compatible

 Front

 Rear

 Display

The post AM-3825
12G-SDI Audio Monitor first appeared on EgeRate Elektronik.

• Recording time: 12 minutes (at 4TB 8K 60p YCBCR 4:2:2 10-bit)
  Capable of recording and playing back uncompressed video at 8K 60p.
  You can utilize uncompressed video at a reasonable cost for various purposes such as shooting and screening 8K materials, as well as research and development of 8K equipment.

4K Uncompressed Multi-channel Player

• Maximum 8-channel output
  Supporting to play uncompressed 4K 60p video with up to 8 channels.
  Helping centralized management of materials in systems such as exhibitions, art galleries, and commercial facilities at a reasonable cost.

 8K Uncompressed Cropping Device

• Maximum 4-channel output
  Supporting to capture the entire scene in an 8K video from sports broadcasts, live events, and more, and extract specific areas in up to 4 channels of HD video, making streamlining of broadcasting and recording process effective.

 SMPTE ST 2110 Transmitter

Serving as an IP transmitter that supports the international standard SMPTE ST 2110 and AMWA NMOS.

The post AV-8802A/AW-8803
Tamazone Station first appeared on EgeRate Elektronik.

Save time of installation and adjusting

• Input source can be previewed by front LCD before connecting output monitors.
• Internal test patterns are useful to check transmission problem.
• Another display’s EDID is saved and simulated for pre-check.
• By Plug-and-Play function, users do not have to set output timing individually.

Save installation space and power

• By supporting various interfaces and scan conversion technology in one single unit, users can save
  space of installation and power consumption.

Save time of maintenance

• Time code is embedded.
• Operation environment can be saved in a file.

Transmission interfaces are widely supported

• LAN, RS-232C-422, Parallel remote terminal
• External lock terminal to input master sync (BB, 1080i/59.94, 60Hz) to control output

Connection

 Main Features

 Application

The post MI-2100
Media Integrator first appeared on EgeRate Elektronik.

MC-2085 / MC-2086 are multi-video processors that can process 8K2K high resolution size in real-time. They serve as the core processors in the construction of various image display systems as they can be selectively used as enlargement/reduction devices, dividers, and multi-information batch display devices. Employing a slot type input / output interface boards, MC-2085 / MC-2086 will always function with the latest connectors. By connecting LAN, RS-232C, or a remote, it is also possible to control from various external control devices.
Original zoom algorithm (TERA) / motion adaptive IP conversion algorithm (astro snap) and adopted 10-bit arithmetic processing

Interface Board

Input

MC-1561-A　：VGA（Component）

Output

MC-1562-A：VGA（Component）

MC-1561-C　：Composite

MC-1561-D ：DVI-Single Link (DVI/HDMI Mode)

MC-1562-D　：DVI-Single Link (DVI/HDMI Mode)

MC-1561-S　：3G/HD/SD-SDI

MC-1562-S　：3G/HD/SD-SDI

MC-1561-H : DIGITAL 4K
* 1ch per one I/F board. (it needs 2 slots).

MC-1562-H : DIGITAL 4K
* 1ch per one I/F board. (it needs 2 slots).

Display Port I/F Board

MC-1561-P　：　DP1.2a Input

MC-1562-P　：　DP1.2a Output

 Features

[General]

• HDCP ON/OFF setting (MC-1561-D / MC-1562-D DVI only)
• Bus color setting
  By setting the color of the campus (bus), users can check if there are any mistakes in the display image settings.
• By selecting ON/OFF of Color bar/OSD all output display, users can easily check the connection of the output.
• ON/OFF setting of all input OSD display.
• Easy to check the input signal connection and layout.

[Output Signal Adjusting]

• Signal mode setting
  DVI mode and AUTO (HDMI) mode can be selected, according to the sink device.
• Scaling filter setting
  Use the appropriate mode according to the relationship between input and output resolution to use the best performance of display.
• Video level setting
  RGB individual output video level can be set.
• Output window test pattern display
  Display the test pattern in the selected display area instead of the whole signal area. Users can easily display window patterns in the four corners on the LED even if resolution is irregular..
• Freeze function
  By freezing at the output, the image of 4K (SQD) or multi-screen can be displayed as still image without frame shift.
• Monitoring mode
  Apart from the main output, users can set a different resolution for monitor out.

[Input Signal Adjusting]

• Signal mode setting
  It supports DVI mode and HDMI mode. Users can input the signal according to the source device.
• Input follow- setting
  Users can select “Auto” for switcher switching and “FIX” for fixed input.
• EDID setting
  In addition to the built-in EDID, users can copy the EDID of the sink device, or emulate or specify the EDID you want to use like an emulator.
• Scaling filter setting
  Use the appropriate mode according to the relationship between input and output resolution to use the best performance of content and display.
• Colorimetry setting
  Even if the input signal does not have color metadata, it can make appropriate settings.
• Key composition
  Supports key composition using self-keys and external keys. It can set see-through of telop and animations.
• OSD display
  Alphabet and number characters are displayed in the upper left of the window. Users can set the font color and background color.
• Other setting items
  Gamma (RGB each) / Video level (RGB each) / Contrast / Color / Brightness / Enhance / HUE / Analog filter, etc.

[Layout setting : Output]

• Position setting
  a) Users can set the position to take out from the campus (bus) in 1Dot units.
  b) Users can set the position to put the output destination in 1Dot units.
• Frame setting
  Users can set a color of a frame of each output window so that they can confirm the area.

[Layout setting : Input]

• Position setting
  a) Users can set the position to cut out from the input video in 1Dot units.
  b) Users can set the position to place the campus (bus) in 1Dot units.
• Frame setting
  Users can set a color of a frame of each input window so that they can confirm the area.
• Priority setting
  Users can set the priority of overlapping windows to make display layout easier.
• Aspect setting
  3 types: anamorphic, panel, and crop. Users can choose to keep the aspect.
• 4K input mode
  4K signals input by SQD can be treated as one 4K signal.

[Audio]

• Volume setting
  The audio volume for each input can be set. The output volume can be uniform within the setting range.

[System Control]

• User data
  8 data including startup data can be saved.
• Data management
  8 user data can be saved outside the main unit and used as a backup file.
  Two types of file formats: PC (WebUI) files and USB flash.
• Log
  Log is saved in a USB flash. It saves the history of input / output DDC, HDCP, external control commands, etc.

The post MC-2085/MC-2086
Multimedia Scan Converter first appeared on EgeRate Elektronik.

• Supports internal BUS video area【 8K × 2 screens】and can process 8K signal with Dot by Dot
• Utilizes original zoom algorithm / motion adaptive IP conversion algorithm (10-bit arithmetic processing)
• EOTF / OETF compatible
  SDR⇔HDR conversion for each input channel
  (Plan to support 3D LUT in the future) / ITU-R BT.709⇔ITU-R BT.2020 conversion
• Supports high frame rate signals such as 4K120p
• Input signal distribution function
• KEY composition / fade composition function
• Video rotation function (optional)
• Web browser setting (can be set independently without the MC itself)
• Simple monitoring image can be displayed on the front display
• Multiple connection control
• Case size: 4U / IF board: Up to 8 can be mounted
• Replaceable fan unite / power unit

Interface boards

• MC-2087-1S：12G/3G/HD-SDI Input board
• MC-2087-2S：12G/3G/HD-SDI Output board
• MC-2087-1H：HDMI2.1/2.0 Input board
• MC-2087-2H：HDMI2.1/2.0 Input board

The post MC-2087
Multimedia Scan Converter first appeared on EgeRate Elektronik.

• Free layout
• Dual Link and 3G-SDI(Level A/B) supported
• Supports Square Division, Dual Link 2-sample interleave division and Quad Link 2-sample interleave division
• Automatic format detection (resolution, frame rate and division)
• Supports ITU-R BT.2020
• DVI output for displayed image
• Focus assist functions, maginify (Dot-by-Dot or x 2) and peaking with selectable color
• Image capture function

Display Items

The following items are on pallets for which the position and size are freely adjustable.

• Picture
• Audio level meter
• Waveform
• Phase between input signals
• Vector scope
• Audio phase
• Histogram
• Input signal infomation
• xy/uv Color space
• Time code
• Status (Digital value from an arbitrary line sample)
• Tally

HDR FUNCTION

Features

• Various HDR formats can be chosen.
  The RGB level of each scale is displayed.
• Hybrid Log-Gamma (ITU-R BT.2020),
  Dolby PQ Curve (SMAPTE ST 2084),
  S-Log(1, 2, 3), Canon Log(2),
  V-Log(L) are supported.
• IRE 100% position is displayed clearly so that
  the HDR area can be checked easily and intuitively.
• Any section of a waveform can be magnified,
  in order to check details more precisely.

The post WM-3206/WM-3206B-A
4K Waveform Monitor first appeared on EgeRate Elektronik.

• 12.5 inch LCD panel
• Display Resolution: 3840 (H) × 2160 (V)
• Supports 4096 × 2160 resolution input
• 12G-SDI 2 line input * or 3G-SDI 1 line input

* Line switching is possible

• HDR compatible (HLG: Rec. ITU-R BT. 2100, PQ: SMPTE ST 2084)
• In HLG, switching of Y gamma (1.07, 1.20, 1.33) is possible
• Rec.ITU-R BT.2020, Rec.ITU-R BT.709 compatible
• Active through output of input signal
• MAG function x2,x4
• Tally control by contact control
• Marker display
• Image quality adjustment function (contrast, brightness, peaking)
• Built-in test pattern display
• Focus assist function
• Battery compatible (DC 10.5 V – 17.0 V)
• Rack mount, VESA attachable

The post DM-3417
