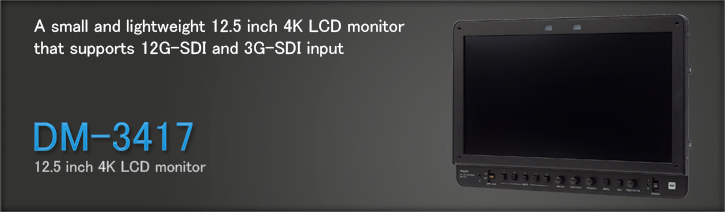

DM-3417
12.5inch 4K LCD Monitor

DM-3417 is small and lightweight 12.5 inch 4K LCD monitor that supports 12G-SDI and 3G-SDI input.

Features

  • 12.5 inch LCD panel
  • Display Resolution: 3840 (H) × 2160 (V)
  • Supports 4096 × 2160 resolution input
  • 12G-SDI 2 line input * or 3G-SDI 1 line input

* Line switching is possible

  • HDR compatible (HLG: Rec. ITU-R BT. 2100, PQ: SMPTE ST 2084)
  • In HLG, switching of Y gamma (1.07, 1.20, 1.33) is possible
  • Rec.ITU-R BT.2020, Rec.ITU-R BT.709 compatible
  • Active through output of input signal
  • MAG function x2,x4
  • Tally control by contact control
  • Marker display
  • Image quality adjustment function (contrast, brightness, peaking)
  • Built-in test pattern display
  • Focus assist function
  • Battery compatible (DC 10.5 V – 17.0 V)
  • Rack mount, VESA attachable

SPECIFICATIONS

SDI I/O
Format BNC Resolution Frame rate Color Space/
Bit depth		 SDI Format Standard
4K 1 3840×2160
or
4096×2160		 50p/59.94p/60p YCbCr 4:2:2
10bit		 12G-SDI Type 1 SMPTE
ST 2082-1/10
4 3840×2160
or
4096×2160		 50p/59.94p/60p YCbCr 4:2:2
10bit		 3G-SDI Level A
Spuare Division		 SMPTE
ST 424-1/425-5
3G-SDI Level B
Spuare Division
3G-SDI Level A
2-Sample Interleave Division
3G-SDI Level B
2-Sample Interleave Division
HD 1 1920×1080
or
2048×1080		 50i/59.94i/60i YCbCr 4:2:2
10bit		 HD-SDI SMPTE ST 292M



Dısplay
Type TFT
Display Mode Normally Black
Display Color 16,777,216 colors
Contrast 1500:1 (typ)
Viewing Angle 170°（U/D）178°（L/R）
Response Speed Black→White+White→Black　30ms (typ)
Brightness 400cd/㎡ (typ)
Size 12.5inch
Pixel Pitch 0.072(H)×0.072(V)
Brightness Life 15,000 hours(LCD backlight luminance half time)
*estimated value (not guaranteed)



General Specıfıcatıon
Power Consumption 30W
Supply Voltage DC 10.5 – 17.0V
Operating Temperature Range 5 ～ 35℃ (no condensation)
Operating Humidity Range 20 ～ 80%RH (no condensation)
Static Temperature Range -10 ～ 60℃
Dimensions 310(W)×222(H)×60(D)mm
Weight Approx. 2.0 kg
