Digital torque value readout

CW and CCW operation

Peak hold mode

Engineering units ( Nm , ft-lb , in-lb, kg-cm) selectable

Auto power off after about 5 minutes idle

Rechargeable batteries are compatible

The post Ürünler first appeared on EgeRate Elektronik.

For Analog Dynamometer series and Digital Dynamometer series

** Dynamometer tests for all kinds of commercial applications
** Force gauge test for your research and development
** Tension / Compression tests
** Insertion /Withdrawal tests
** Fracture test
** T-screw transfer
** Vertical and Horizontal Use

Dynamometer Test Stand Features:

The post Ürünler first appeared on EgeRate Elektronik.

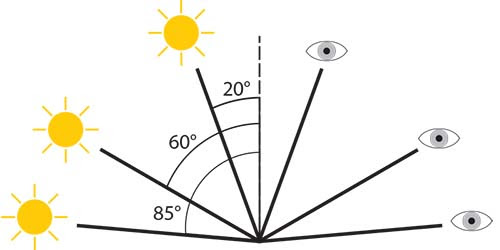

Conforms to ASTM C584/D523/D4039, ISO 2813/7668, JIS Z 8741, AS/NZS 1580.602.2

The post Ürünler first appeared on EgeRate Elektronik.

Bresle Method Patches

PosiPatch

Reusable flexible patch with magnetic ring

For measuring salt contamination in accordance with ISO 8502-6,9

• Magnetic ring attaches to steel with no residue to clean
  Standard magnetic ring for flat surfaces and diameters > 1m (40 in.)
  Flexible magnetic ring for ID/OD diameters > 10 cm (4 in.)*
• Automatic air removal through a watertight, air permeable membrane
• No sharps, no needles! Safe, flexible dispensing tip mates with PosiPatch
• Comparable price to latex patches
• Reusable patent-pending PosiPatch saves time and money
• Easy-to-use in any orientation

Test Area	1250 mm2
Test Volume	2.5 – 3 ml
Patch Diameter	44.4 mm (1.75 in)
Magnetic Ring Diameter	66.9 mm (2.60 in)
Background Contamination	< 3 mg/m2

*Flexible magnetic ring minimum ID is 12 cm (4.5 in.)

Polyurethane Adhesive Patch

Self-adhesive, polyurethane patches

For measuring salt contamination in accordance with ISO 8502-6,9

• Low-tack adhesive for easy patch removal with no residue to clean
• Works on nearly any material or surface geometry
• Latex-free
• Lower cost than latex patch
• Easy-to-use in any orientation

Test Area	1250 mm2
Test Volume	2 – 3 ml
Dimensions	50 mm x 50 mm (1.97 in x 1.97 in)
Background Contamination	< 5 mg/m2

Latex Adhesive Patch

ISO 8502-6 conforming latex patch with easy-open tab and low-tack adhesive with TearGuard™ technology.

Test Area	1250 mm2
Test Volume	2 – 15 ml
Dimensions	52 mm x 52 mm (2.05 in x 2.05 in)
Background Contamination	< 5 mg/m2

Ordering Guide

The post Ürünler first appeared on EgeRate Elektronik.

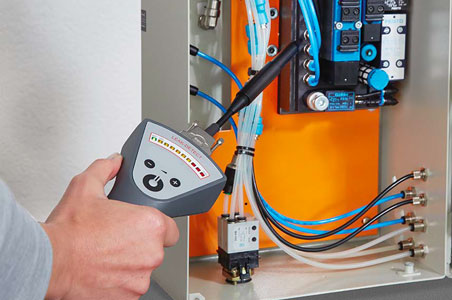

The LDT can be used to locate leaks in

• pneumatic systems
• vacuum equipment
• valves and fittings
• steam pipes
• oxygen sockets in hospitals
• air conditioning systems in automotive vehicles
• Door and window seals of cars, pressurized containers, ships, trucks, buses, trains, airplanes etc.

For difficult to reach locations we offer a longer goose neck probe as well as a parabolic dish with integrated ultrasonic sensor and laser pointer. The integrated laser pointer makes it easy to trace leaks over distances from 20m to more than 100m for bigger leaks. The parabolic dish is made of transparent plastic, so that the leaks are easily visible. All incoming ultrasonic waves are reflected from the dish and focused at the ultrasonic receiver. Noise is ignored.

Complete Kit

The LDT is supplied as a complete kit with 110mm probe, pin-point detection probe, headphones and calibration certificate in a fitted carrying case.

The post Ürünler first appeared on EgeRate Elektronik.

5 Models Available:
SPG: Integrated Probe, 500 micron / 20 mil range, 60° angle
SPG-S: Cabled Probe, 500 micron / 20 mil range, 60° angle
SPG-OS: Cabled Probe, for Convex Surfaces, 500 micron / 20 mil range, 60° angle
SPG-CS: Cabled Probe, for Textured Coatings, 1500 micron / 60 mil range, 60° angle
SPG-TS: Cabled Probe, for Concrete, 6 mm / 250 mill range, 60° angle

Conforms to ASTMD4417-B, ASTM D8271 (SPG TS only), AS 3894.5-C (with optional 30° tip), U.S.Navy NSI 009-32, Navy NAVSEA 009-32, US Navy NAVSEA PPI 63101-000, SSPC PA 17, SANS 5772, and others. Conforms to ASTM D4417-B, AS 3894.5-C (with optional 30° tip angle), U.S. Navy NSI 009-32, SANS 5772 and others.

The post Ürünler first appeared on EgeRate Elektronik.

Not for designed for use in pressurized systems.

Model Comparison

Step 1: Select a body

Feature Comparıson Chart	Basıc (1)	Memory (3)
Hi Contrast LCD Display	Color	Color
Reading Storage Capacity	Storage of 2,500 datasets	Storage of 100,000 datasets in up to 1,000 batches
Auto Log Mode automatically records environmental parameters at user selected time intervals. Runs unattended on batteries for up to 50 hours or continuously via USB
Enhanced Auto Log mode turns the gage off between readings for up to 8 months of battery life. Each reading can be uploaded to PosiSoft.net or an FTP server using WiFi. Automatically group readings into batches at daily, weekly, or monthly interval	–
User defined limits for all parameters – visible and audible warnings. Send email alerts when connected to WiFi	–
Onscreen Batch Annotation – add notes, change batch names and more with built-in QWERTY keyboard	–
Store thickness, profile, environmental, hardness, salt contamination and wall thickness measurements in individual batches	–
Wet bulb temperature can be displayed and recorded	–
Trend charts graph readings in real-time	–
WiFi technology wirelessly synchronizes with PosiSoft.net, downloads software updates and more	–
Bluetooth® technology for data transfer to a mobile device running the PosiTector App or optional portable printer	–
Mobile app connects PosiTector Advanced instruments to your iOS or Android smart device	–

Step 2: Select from 4 DPM probes

• Includes built-in air temperature/humidity sensor and thermocouple surface temperature sensor

Integral Probe with Infrared Surface Temperature Sensor (DPMIR)

• Measures and records environmental conditions including relative humidity, air temperature, surface temperature, dew point temperature, the difference between surface and dew point temperatures.
• Non-contact surface temperature sensor
• Measures hard to reach areas and moving parts
• 4:1 Distance to spot ratio (D:S), optimized for measuring large surfaces
• Pre-programmed and user adjustable emissivity options

Integral Probe with Cabled Surface Temperature Sensor (DPMS)

• Includes built-in air temperature/humidity sensor and K-type connector
• Magnetic surface temperature sensor with armored cable and locking device to prevent accidental disconnection from the instrument during unattended operation
• Includes magnetic tab to attach the PosiTector body onto steel structures
• Easily converts to accept other optional K-type thermocouple sensors including (a) hand-held surface temperature sensor, (b) self-adhering surface temperature sensor and (c) liquid temperature sensor.

Integral Probe with Wind Speed Sensor (DPMA)

• Includes the ambient temperature, surface temperature, and humidity sensors from PosiTector DPM Integral Probe plus a hot wire anemometer
• Anemometer mode measures air temperature, relative humidity and wind speed
• Auto-rotating display for inverted use
• Wind Speed Range: 0-20 m/s, 0-44 mph, 0-65 ft/s, 0-3900 ft/m, 0-72 km/h, 0-38 knots
• Wind Speed Accuracy: ± 3% Full Scale

Anemometer mode shown includes wind speed (v)

Cabled Probe with 1/2″ NPT Threads (DPMD)

• Measures dew point, relative humidity and air temperature (shown)
• Sintered aluminum housing protects sensors
• Includes magnetic tab to attach the PosiTector body onto steel structures
• ½” NPT threads for insertion into tanks and pipes (max 200 psi/ 1.3 MPa)

The post Ürünler first appeared on EgeRate Elektronik.

The cross cut testers of the SecoTest series consist of a sturdy holder for the six-edge multi cutting blade and a rotatable non-slip grip, which prevents the multi cutting blade from canting.

To ensure that this procedure is repeatable, put the test object through a suitable conditioning process (see DIN EN ISO 2409, section 6); while testing at construction sites make a note of the ambient conditions in the test report.

The procedure defined by ISO 4642 can be employed to measure adhesiveness.

Complete Kit

The SecoTest includes:

• SecoTest
• Allen key for changing the multi cutting blade
• Magnifier
• Brush
• Short operating instructions
• Works Certificate
• Plastic carrying case

Blades are sold separately

The post Ürünler first appeared on EgeRate Elektronik.

The AT-A is features an environmentally sealed enclosure. It is weatherproof, dustproof and shockproof. Meeting or exceeding IP65 rating.

Touch Screen Display

Use the touch screen to interact with menu options. Swipe horizontally to navigate between views or vertically to move between batch readings. Alternatively, the keypad can be used for navigation and selection.

User adjustable dolly size, pull rate, pull limit and hold time.

Batch summary provides an at-a-glance review of test results.

View test parameters and reading results. Reading is recorded as pass or fail based on set test parameters. The pass/fail results can be revised.

Notes can be added for each reading.

Include a note for a batch (group) of readings.

Record the nature of failure – cohesive, adhesive and glue failures.

Recording the Nature of the Fracture

Upon completion of a pull-off test, the dolly and coated surface should be examined. In addition to pull-off force, many National and International standards such as ASTM D4541 and ISO 4624 require the nature of the fracture to be recorded.

• Cohesive fracture: fracture occurs within a coating layer (same coating on dolly face and coated surface).
• Adhesive fracture: fracture occurs at the interface between layers (coating on dolly face differs from surface).
• Glue failure: visible separation of the glue from itself, the coating or dolly (no coating visible on the dolly face).

The cohesive and adhesive fracture visual analysis can be recorded using the PosiTest AT-A’s keypad or touch screen display. Alternatively, the information can be reported using the PosiTector App.

Fractures are visually estimated and recorded as a percent of each. The two layer example below illustrates a cohesive fracture within coating layer 1 and layer 2 (visually estimated at 50% each). Recorded results are included in reports.

Examples

(based on above five layer illustration)

100% cohesive fracture at D/E coating interface (layer 3/layer 4)

100% cohesive fracture at D/E coating interface (layer 3/layer 4)

70% cohesive failure within layer 1; 30% cohesive within layer 2

70% cohesive failure within layer 1; 30% cohesive within layer 2

Complete Kit

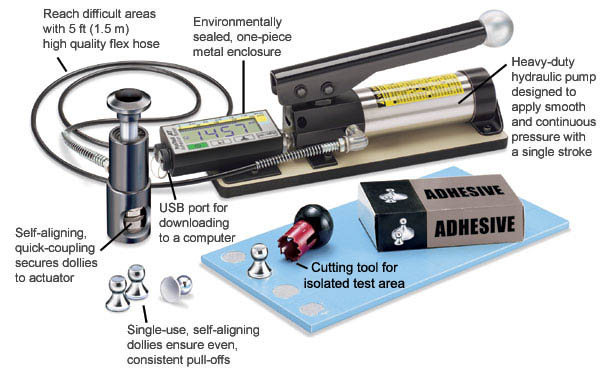

The PosiTest AT kits come complete with Automatic Adhesion Tester, built-in rechargeable NiMH battery with charger, dollies, abrasive pad, cutting tool, glue with mixing sticks and palettes, cotton swabs, USB cable, PosiSoft Software, instruction booklet and video, shoulder strap, Certificate of Calibration traceable to NIST, two-year warranty, and a sturdy, lightweight carrying case.

The post Ürünler first appeared on EgeRate Elektronik.

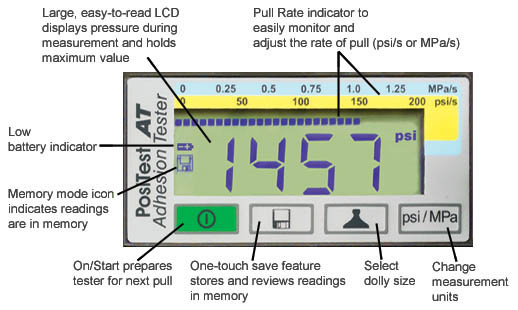

The AT-M features an environmentally sealed enclosure. It is weatherproof, dustproof and shockproof. Meeting or exceeding IP65 rating.

Complete Kit

The PosiTest AT kits come complete with Manual Adhesion Tester, built-in rechargeable NiMH battery with charger, dollies, abrasive pad, cutting tool, glue with mixing sticks and palettes, cotton swabs, USB cable, PosiSoft Software, instruction booklet and video, shoulder strap, Certificate of Calibration traceable to NIST, two-year warranty, and a sturdy, lightweight carrying case.
