SPECTRAN® V6 MIL PRO
Outdoor Real-Time Monitoring Receiver

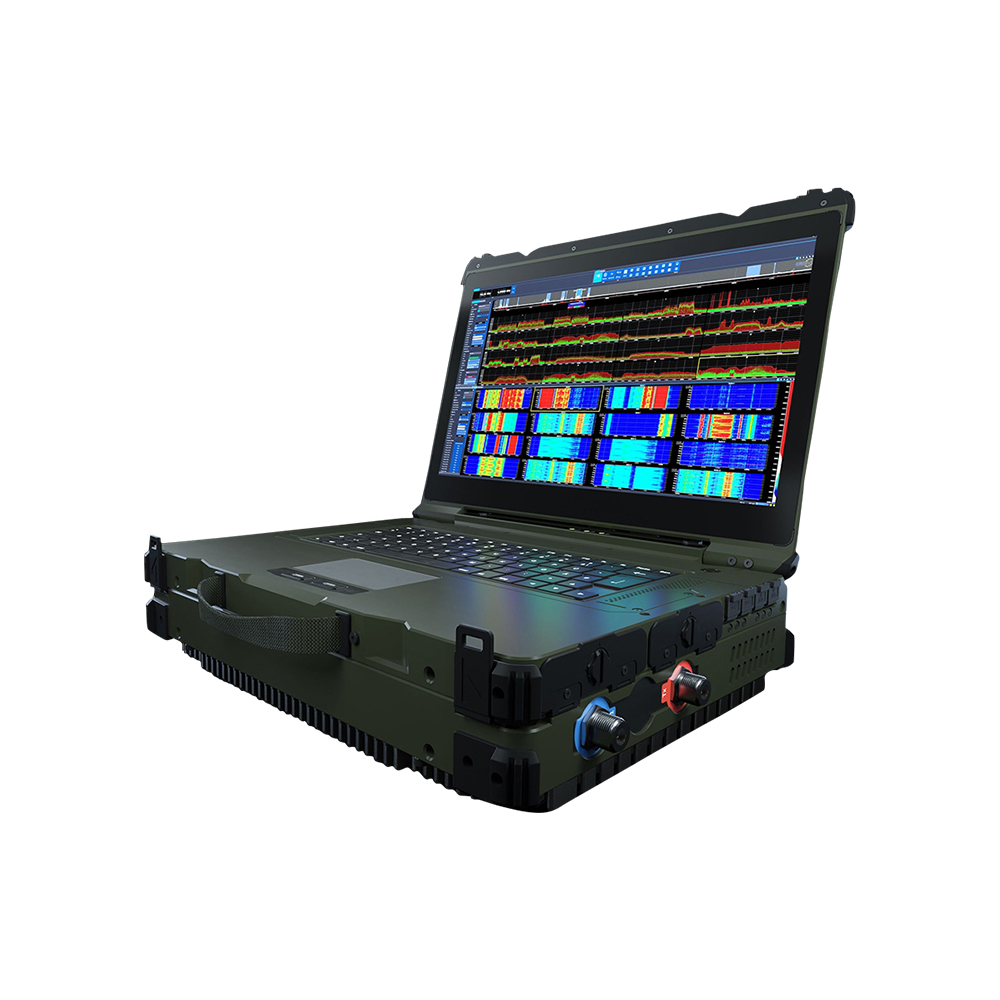

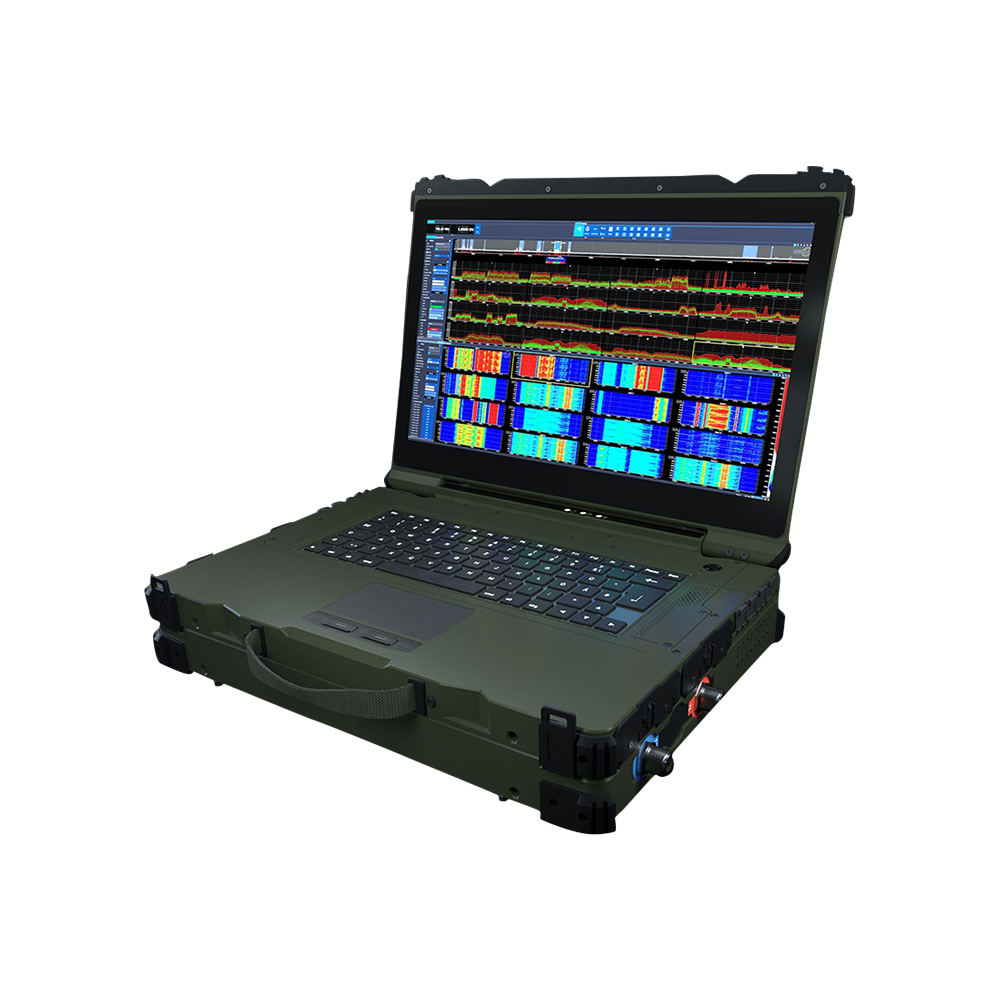

The new SPECTRAN® V6 MIL PRO consists of a powerful and extremely shock-resistant outdoor laptop with a built-in real-time spectrum analyzer. It is capable of capturing and displaying a wide variety of signals in a variety of ways, enabling analysis on an unprecedented scale. For capturing ultra-short signal bursts, we recommend the SPECTRAN® V6 EE with a POI of up to 10ns.
Certified to MIL-STD-810G and IP65 standards, the laptop with the latest processor technology features 64GB RAM and 4TB and? a high-quality NVIDIA® graphics card that displays real-time measurement results on the sunlight-readable 15.6″ full-HD display. In addition, the Windows® operating system makes it possible to install all the usual programs, such as Office applications. This speeds up the work in the field, as all steps from measurement to report generation can be done immediately and with only one device.
The integrated SPECTRAN® V6 spectrum analyzer is up to any challenge. Whether simple frequency monitoring outdoors or indoors, measuring high-frequency signals or locating interfering pulses, the SPECTRAN® V6 is the ideal spectrum analyzer for fast and reliable measurements, as well as detailed analysis.
Due to the integrated vector signal generator, even verification of shielding measures or mobile real-time EMC tests are done in no time.
Storing and replaying IQ raw data or alternatively Spectra data is also part of the scope of services: with a recording duration limited only by the storage medium (4 TB, expandable up to 16 TB), the SPECTRAN® V6 MIL PRO enables the recording of real-time measurement data over a period of several hours. The “Smart Buffering” feature allows the oldest data to be automatically overwritten, guaranteeing a virtually unlimited recording time. The recorded data can be reloaded at will and replayed for deeper analysis, such as 3D spectrogram.
The modular RTSA-Suite PRO software is pre-installed and pre-configured. It has been specially developed to detect unknown signals in a wide frequency range, to display them intuitively, to analyze them in detail and thus to detect unauthorized signal transmissions if necessary.
Recommended software extension:
Spectral Background Mask – removes all existing signals and creates an extremely clean spectrum view for subsequent measurement. This eliminates the need for a separate measurement chamber.
Incl. RTSA-Suite PRO Software
Powerful Real-Time Spectrum Analysis Software
