SPECTRAN® V6 MIL ENTERPRISE
High-End Outdoor Real-Time Monitoring Receiver

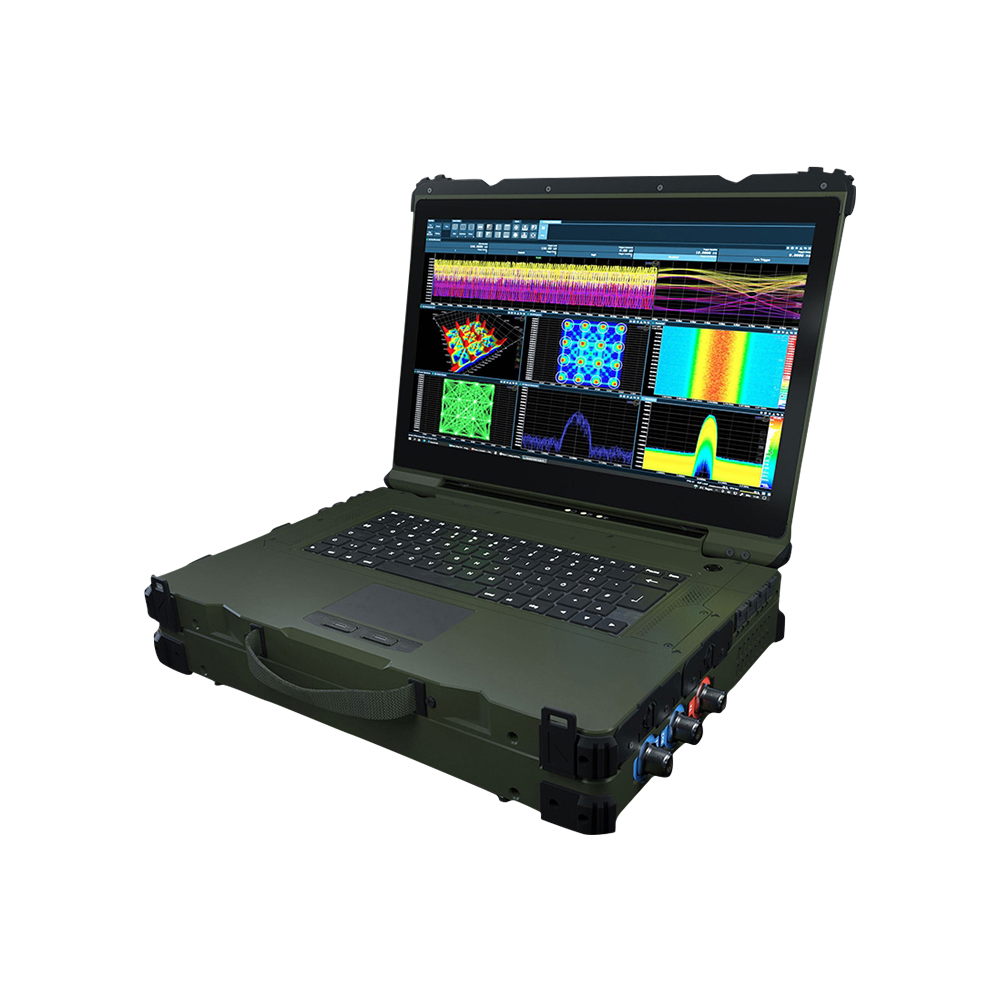

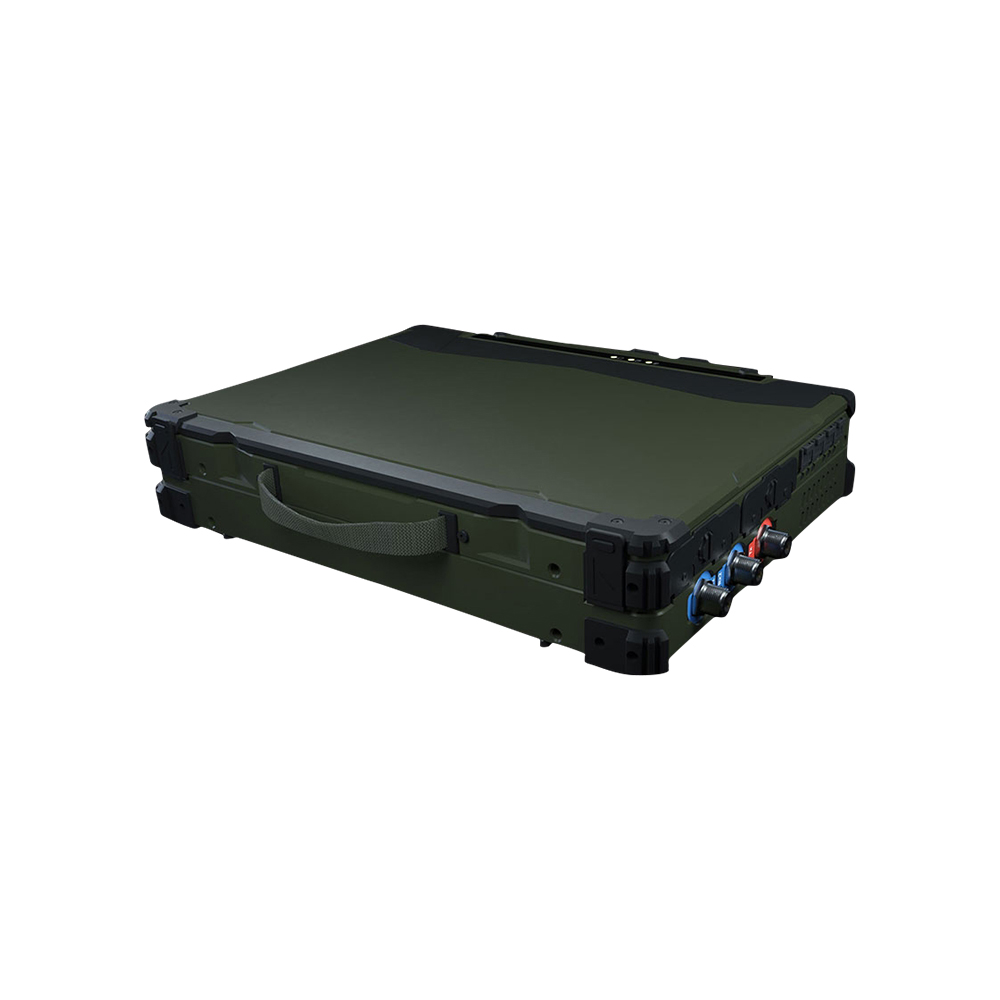

The high-end SPECTRAN® V6 EE spectrum analyzer is an outdoor measurement device equipped with 160MHz (optional 245MHz) real-time bandwidth in an ultra-rugged laptop case certified to MIL-STD-810G and IP65 standards. It is ideal for all mobile applications in the field as it is capable of capturing and displaying signal transmissions in every conceivable way. Saving and replaying IQ data is also part of the scope of performance, which enables detailed analysis on an unprecedented scale at any conceivable time. Here, the recording duration is limited only by the storage medium (8TB, expandable up to 16TB).
Virtually unlimited recording time is achieved by the “Smart Buffering” function, a configurable software function that automatically overwrites the oldest data.

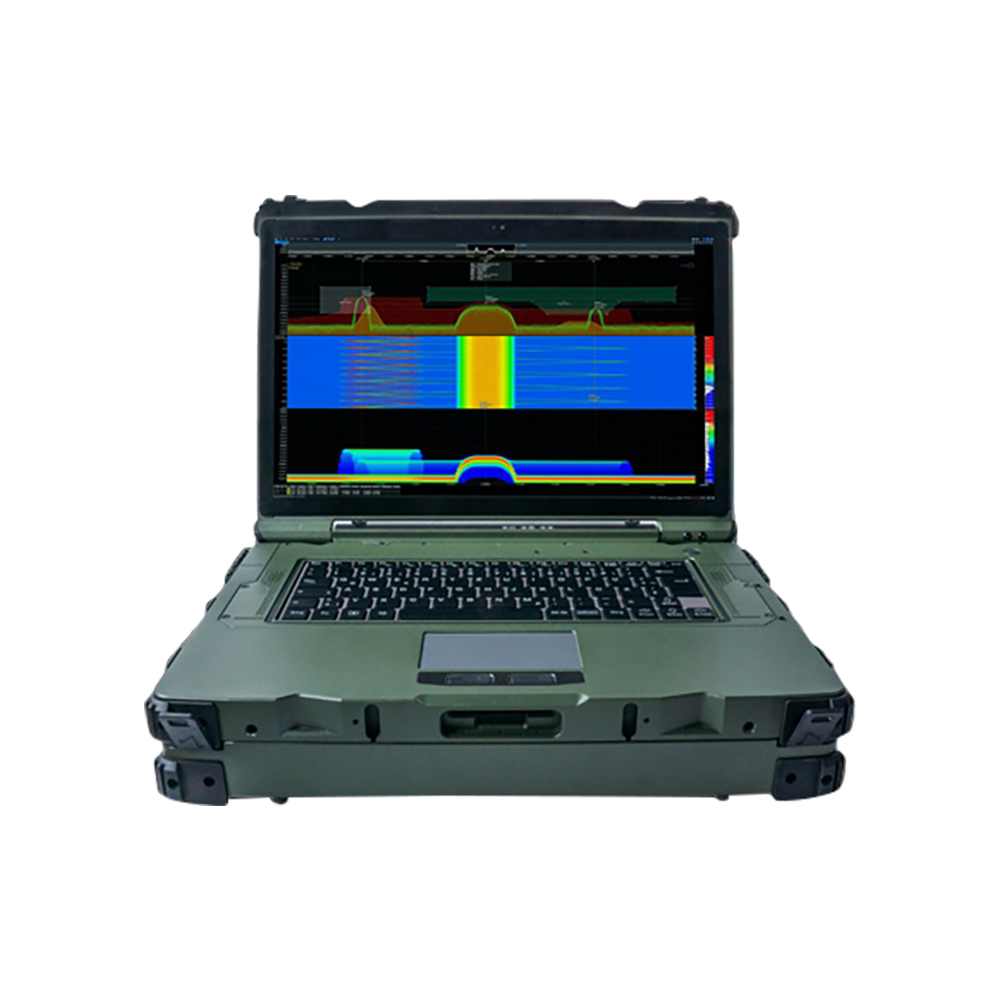

The PC hardware used is state-of-the-art and features 64GB RAM and a 15.6″ sunlight-readable full HD display, driven by a current NVIDIA® graphics card, which displays all measurement results without glare.
With the fully integrated SPECTRAN® V6 spectrum analyzer, this instrument is up to any challenge. Whether broadband frequency monitoring or interferer location, on-site radio frequency measurements or Wi-Fi and wireless network measurements, the SPECTRAN® V6 is the ideal spectrum analyzer for reliable and fast measurements and detailed analysis. With the integrated vector signal generator, even verification of shielding measures or mobile real-time EMC tests are done in no time.
In addition, the Windows® operating system means that all the usual programs, such as Office applications, can be installed. This accelerates the work in the field, because from the measurement to the report generation all work steps can be done immediately and with only one device.
The modular RTSA-Suite PRO software is pre-installed and pre-configured. It was specially developed to find unknown signals in a wide frequency range, to visualize them intuitively and thus to analyze them in detail. This makes it possible to detect unauthorized signal transmissions or ultra-short interference pulses and eliminate their cause.
Recommended software extension:
RF Drive Test – allows, in combination with the OmniLOG PRO antenna, the creation of RF heatmaps over any frequencies as well as the display on a corresponding map (for example OpenStreetMap).
