SPECTRAN® V6 CC PRO
Mobile Dual Screen Real-Time Spectrum Analyzer
One of the fastest real-time spectrum analysis solutions in the world, the SPECTRAN® V6 Command Center delivers the RF performance you need, right where you need it.
With up to 490 MHz RTBW or more than 2 THz/s sweep (6 GHz in less than 1 millisecond), this high-end customizable spectrum analyzer offers outstanding performance in a dual-screen mobile system, surpassed only by the SPECTRAN® CC EE.

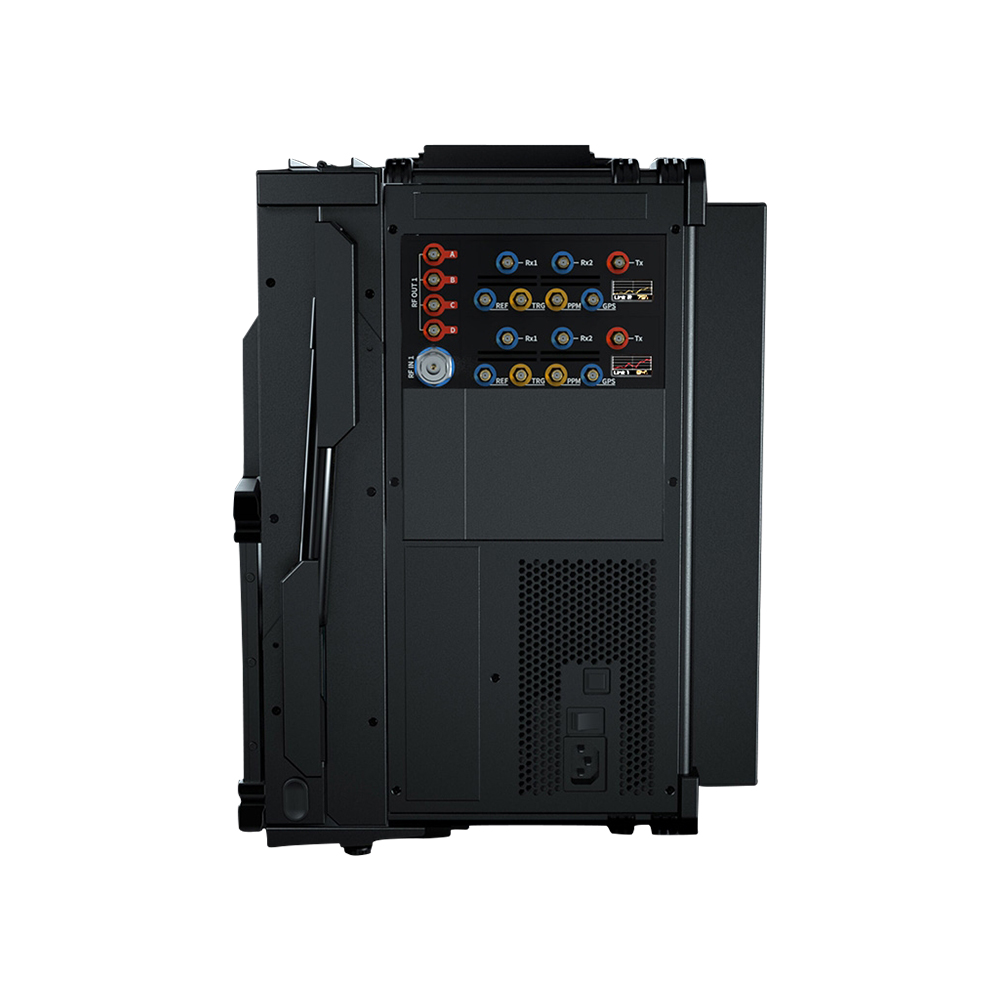

The SPECTRAN® V6 Command Center PRO samples the configured frequency range of up to 6 GHz (optionally 8 GHz) at over five million samples per second. It also includes two independent analyzers (4x 2GSPS 16-bit I/Q data) and two vector signal generators (2x 2GSPS 14-bit I/Q). Hereby 2x 160MHz real-time bandwidth are already available ex works, which can be optionally extended and thus adapted to your needs. A built-in RF switch can be used to distribute the input signal to the integrated receivers if required. In addition, the system can be further adapted to the respective requirements, for example, by means of a built-in RF-over-Fiber back converter.

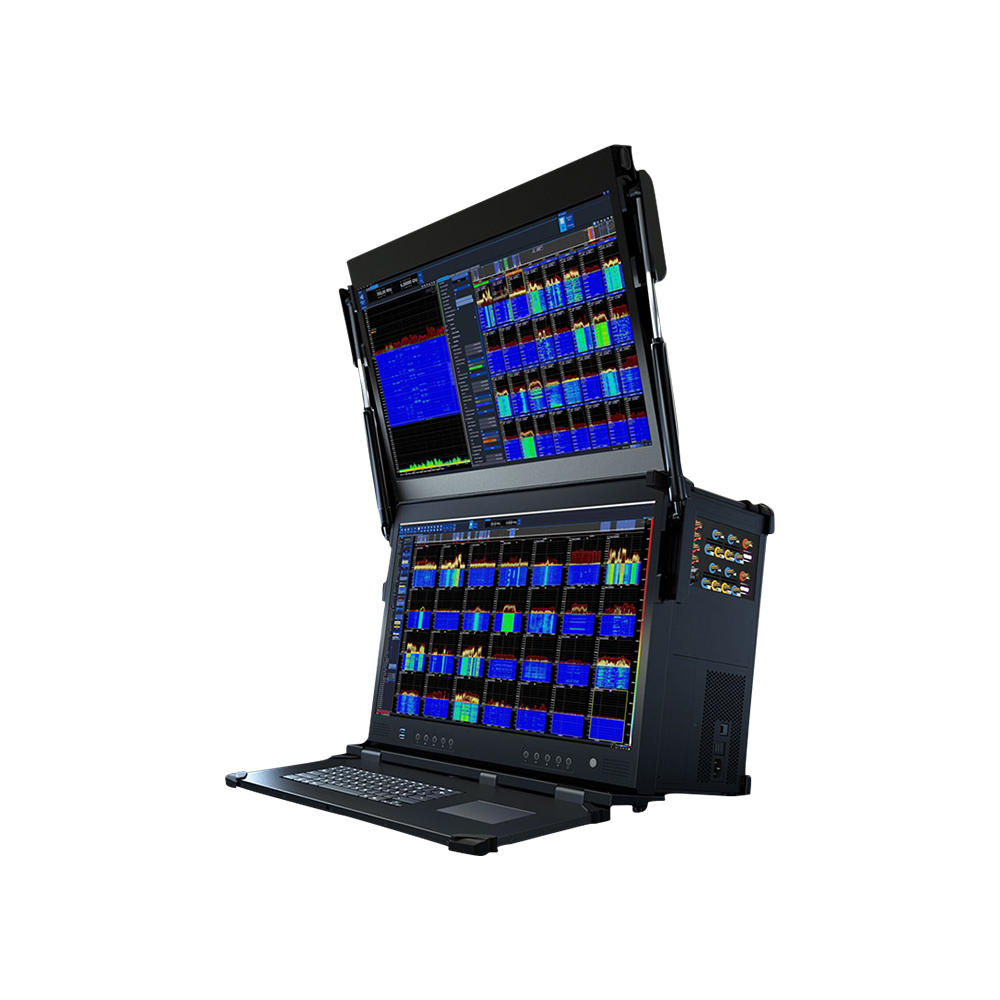

The two 4K widescreen monitors (combined resolution of 3840 x 4320 pixels) are predestined for displaying the complete frequency range or monitoring multiple frequency bands simultaneously in real time. This enables detailed analysis of even the very shortest signals, which are reliably captured thanks to a POI of less than 10ns (I/Q-based) or 97ns (FFT-based).
The factory-installed 4 TB data memory – also expandable – offers a wide range of storage options (I/Q raw data or SPECTRA data). An innovative Smart Buffering solution allows overwriting of the oldest data in each case, which enables virtually “unlimited” recording time.
The modular and extremely efficient real-time spectrum monitoring software “RTSA-Suite PRO”, which is already equipped with a record and playback function and includes all necessary basic functions, is supplied free of charge.
Last but not least, the SPECTRAN® V6 Command Center is manufactured in Germany, which guarantees quality at the highest level.
Incl. RTSA-Suite PRO Software
Powerful Real-Time Spectrum Analysis Software
