SPECTRAN® V6 CC ENTERPRISE
Mobile Dual Screen Real-Time Spectrum Analyzer
Probably the fastest real-time spectrum analysis solution in the world, the SPECTRAN® V6 Command Center delivers the RF performance you need, right where you need it.
With up to 980 MHz RTBW or more than 4 THz/s sweep (6 GHz in less than 1 millisecond), this customizable high-end spectrum analyzer offers unmatched performance in a dual-screen mobile system.

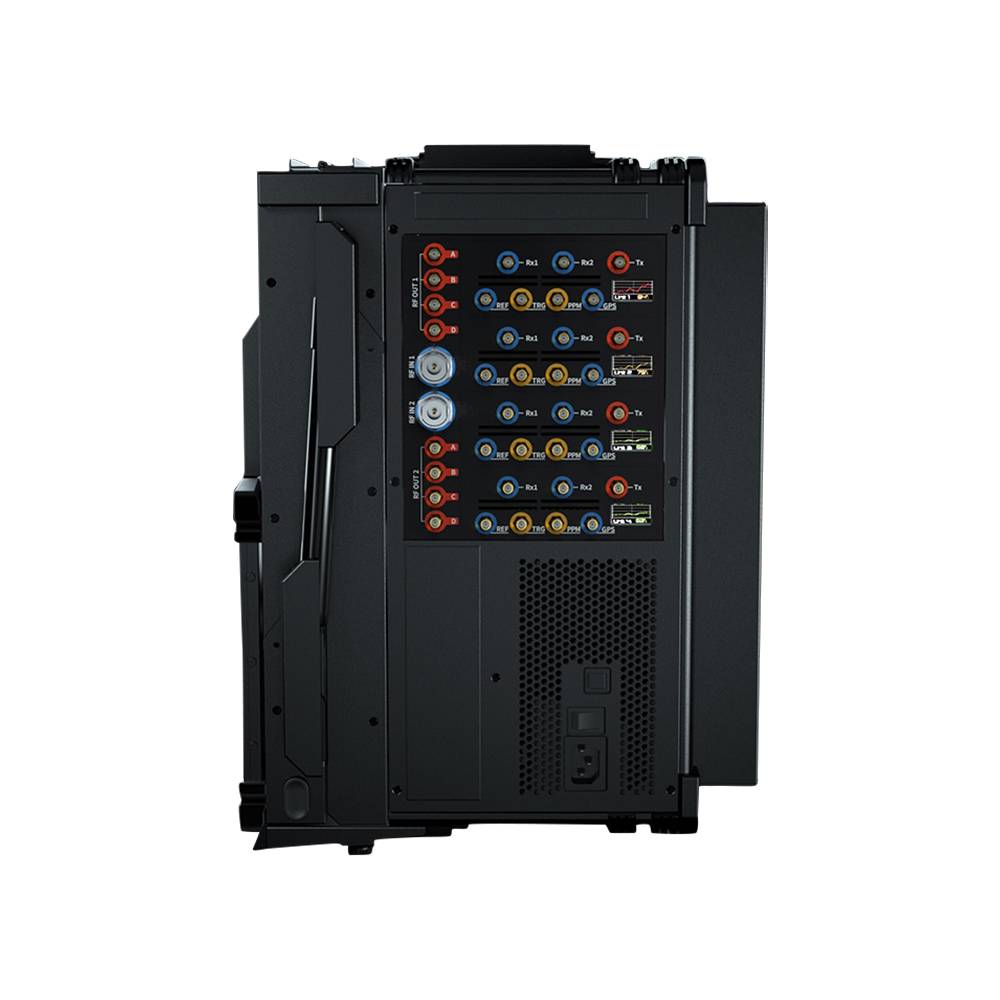

The SPECTRAN® V6 Command Center samples the configured frequency range of up to 6 GHz (optionally 8 GHz) at over five million samples per second. It also includes four independent analyzers (8x 2GSPS 16-bit I/Q data) and four vector signal generators (4x 2GSPS 14-bit I/Q). Hereby 4x 160MHz real-time bandwidth are already available ex works, which can be optionally extended and thus adapted to your needs. A built-in RF switch can be used to distribute the input signal to the integrated receivers. In addition, it can be further adapted, for example, via built-in RF-over-Fiber back converter.

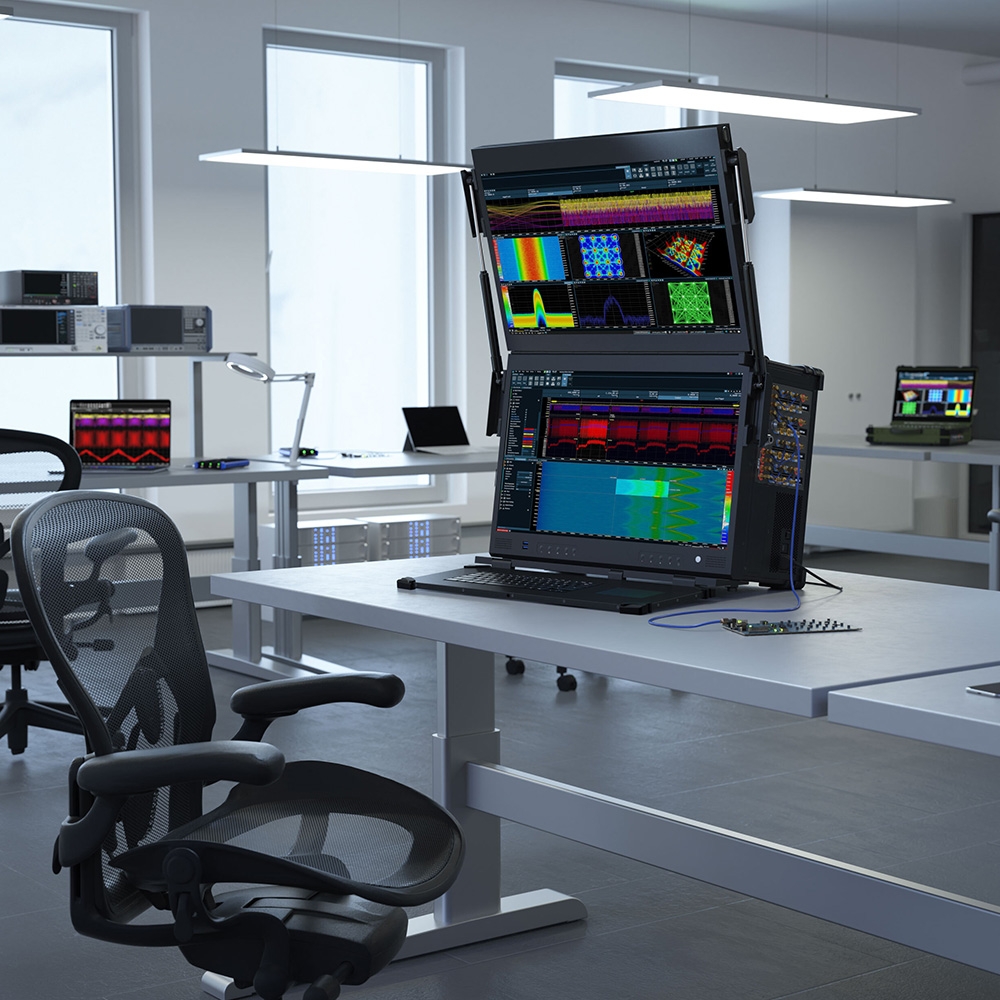

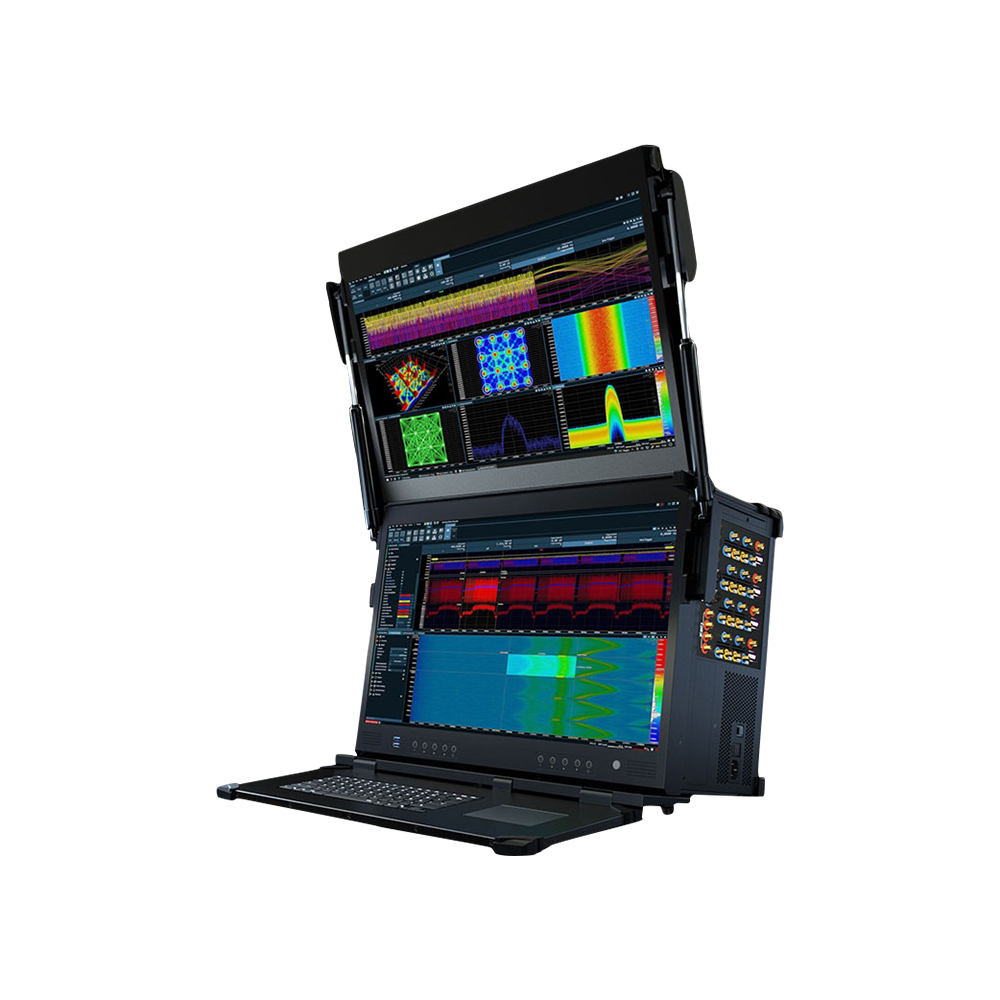

The two 4K widescreen monitors (combined resolution of 3840 x 4320 pixels) are predestined for displaying the complete frequency range or monitoring multiple frequency bands simultaneously in real time. This allows a detailed analysis of even the very shortest signals, which are reliably captured thanks to a POI of less than 10ns (I/Q-based) and 97ns (FFT-based). Thus, the CC EE rightly bears the title “Fastest Counter Surveillance Receiver in the World”.
The already factory-installed 8 TB data memory – also expandable – offers a variety of storage options (I/Q raw data or SPECTRA data). Furthermore, the highly regarded Smart Buffering solution allows overwriting of the oldest data in each case, which practically enables an “unlimited” recording time.
The modular and highly efficient real-time spectrum monitoring software “RTSA-Suite PRO”, which already comes with a record and playback function, is included free of charge.
Last but not least, the SPECTRAN® V6 Command Center is manufactured in Germany, which guarantees quality at the highest level.
Incl. RTSA-Suite PRO Software
Powerful Real-Time Spectrum Analysis Software
