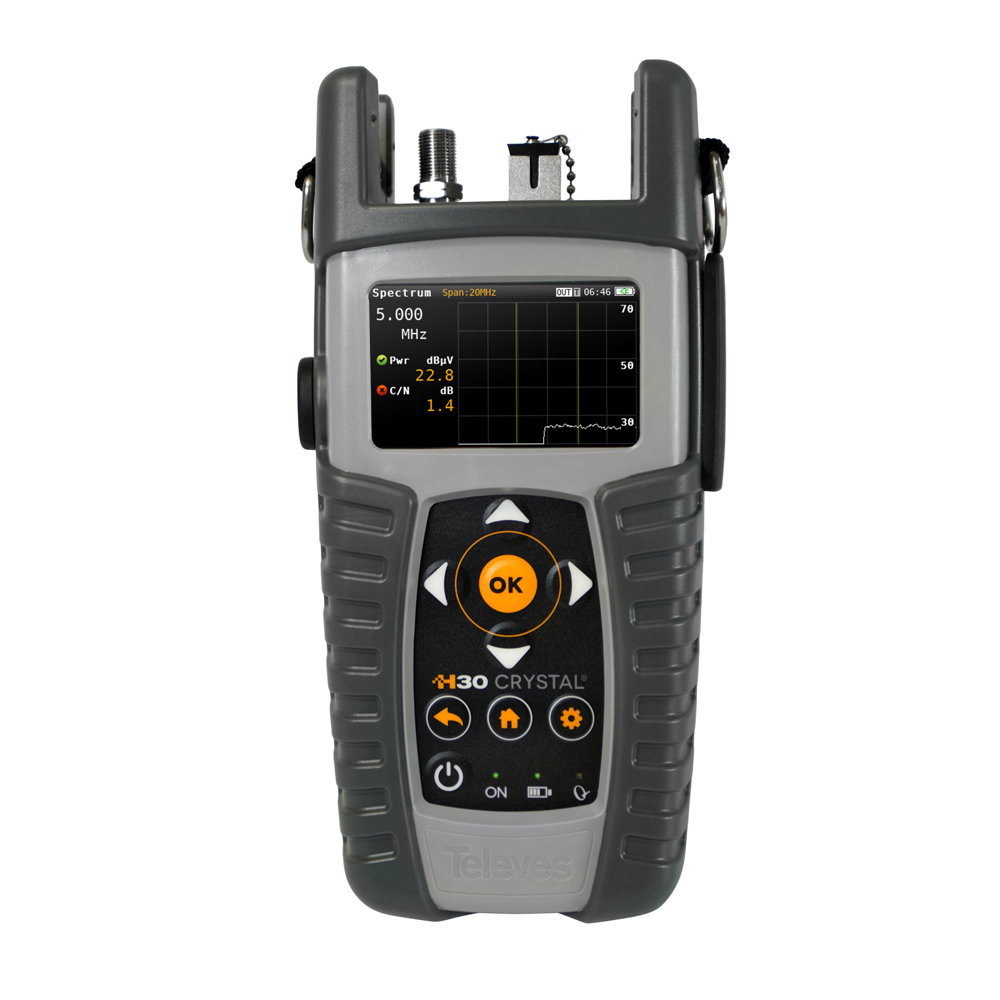

H30Crystal Spectrum Analyzer
All the functions you need, also in fiber optics / Ref. 593625

The H30Crystal expands H30 series of portable and compact meters by bringing strong efficiency in optic measurements. Its ability to analyse fiber-optic networks, along with all the features of previous models, makes this equipment a versatile and comprehensive tool for today’s professional technicians, who are used to working with several telecommunication network technologies.
H30Crystal is also a scalable and multi-standard equipment designed to measure DVB-S/S2, DVB-T/T2, DVB-C, analogue channels and the return path. Easily-downloadable software licences will let you update your meter with new options. These features, together with its wide range of tools and functionalities, make the meter a multifunctional equipment ideal for installations, maintenance and troubleshooting of coaxial and fiber-optic networks. All of this in just one device!

Operating the meter is more flexible thanks to its multiscreen system: the user can manage it remotely and display its contents on their own mobile device (Android, iOS or PC). Wi-Fi and Bluetooth connectivity will let you work with all the conveniences of a wireless connection. In addition, a universal armband for mobile devices up to 6” is included, so that using a smartphone is even more comfortable.

Just as the rest of the meters fully designed and manufactured in Televes Corporation, H30Crystal takes advantage of the digital processing technology, and provides the user with a speed and mathematical accuracy equivalent to that of laboratory equipment.


Ref. 593601 DVB-S/S2 + DVB-T + F.O.
Ref. 593602 DVB-S/S2 + DVB-T/T2 + F.O.
Ref. 593603 DVB-S/S2 + DVB-C + F.O.
Ref. 593604 DVB-S/S2 + DVB-T/T2 + DVB-C + F.O.
Ref. 593621 DVB-S/S2 + DVB-T + Selective F.O.
Ref. 593622 DVB-S/S2 + DVB-T/T2 + Selective F.O.
Ref. 593624 DVB-S/S2 + DVB-T/T2 + DVB-C + Selective F.O.
Ref. 593661 DVB-S/S2 + ISDB-T/Tb + F.O.
Ref. 593605 Full model: DVB-S/S2 + DVB-T/T2 + DVB-C + F.O. + WiFi and IPTV Analysers + HEVC display + Coaxial Cable Lead + Carrying Case
Ref. 593625 Full model: DVB-S/S2 + DVB-T/T2 + DVB-C + Selective F.O. + WiFi and IPTV Analysers + HEVC display + Coaxial Cable Lead + Carrying Case

Gesture commands

An actual touch screen

This new interface was designed and programmed to take full advantage of the touch gestures (tap, double-tap, long press, swipe, drag, pinch or spread). The only means to work as easily with a very high-performance meter.

Custom display

User customizable widgets

MOSAIQ6 provides full flexibility when it comes to configuring the screen format to the dimensions you require. It is the core of the meter: “The Power of User Experience” means the configuration of the equipment is driven by your tastes and preferences.

Autonomy

  • Long-lasting battery: The high-quality Li-Ion battery provides an average range up to 4 hours.
  • Always ready: For the meter to run out of battery is no longer a problem; it will always be ready thanks to the field replaceable battery. Furthermore, with just two batteries the meter will have enough autonomy during long working hours.
  • Stand-alone charging: Thanks to its stand-alone charger, the battery can be charged without being connected to the meter. Work can thus proceed anywhere while the backup battery is charging.

Convenience

  • Ergonomy: With a sleek design and adequate dimensions (220 mm x 260 mm x 65mm), the meter provides an optimum way to maximize movement efficiency by allowing menu and button access with a single hand.

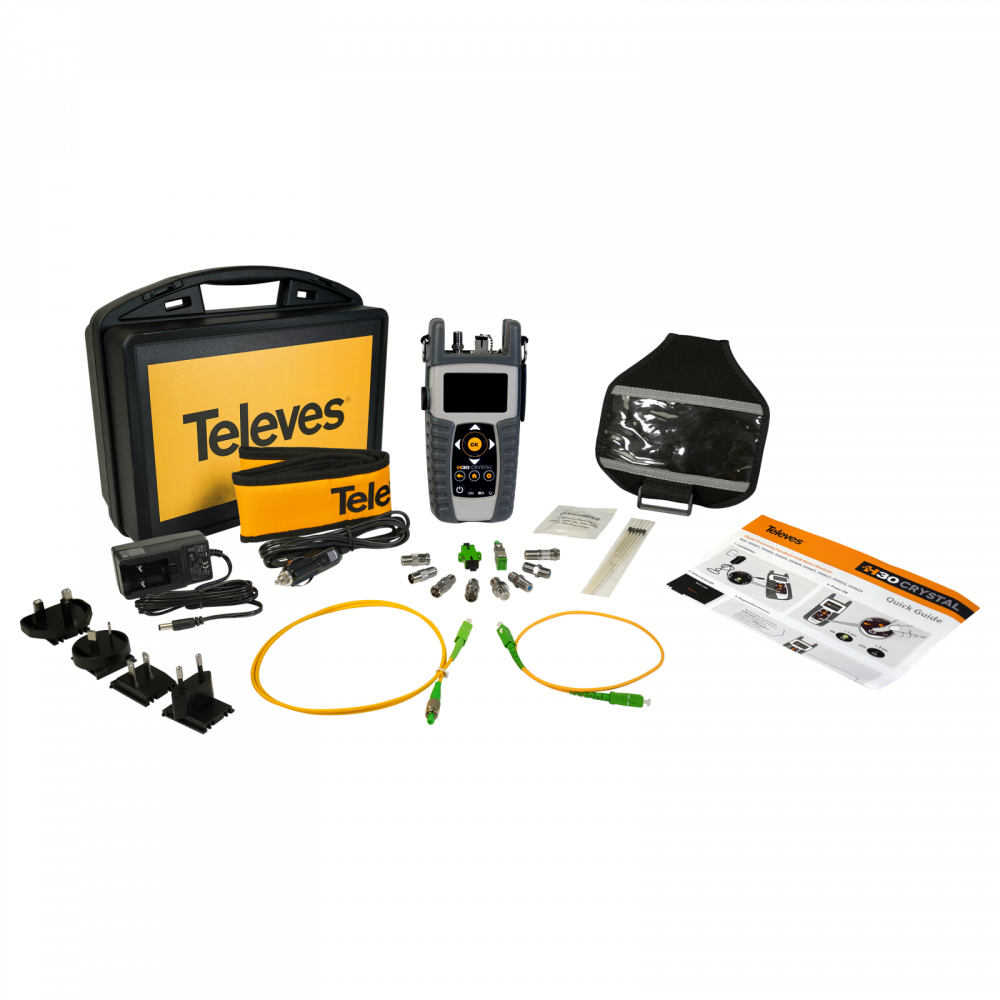

  • Easy to carry: Thanks to its carrying bag or case, the meter can be easily carried around. It is equipped with several internal compartments to store a replaceable battery, for example.
  • Self-supporting: To make fieldwork easier, the meter is compatible with a standard tripod: it is equipped with a universal 1/4” threaded port on the back side.

Maximum protection

  • Robustness: Its double-injection polycarbonate plastic rubber casing provides an outstanding impact resistance, while minimizing the falling risks.
  • Weather resistant: Thanks to the high-quality materials and the water-proof screen, the meter is prepared to withstand adverse weather conditions.
  • Protected termination: Signal inputs are equipped with a cap, while the other central connectors and the power supply are protected with a cover, also used as a support when the meter is used on a flat surface.

Efficient and centralized management

thanks to MyCloud web portal

It is possible to centralize the management of all meters registered in the cloud in a single web interface accessible from any device. Thanks to this portal, the installer can be connected in real time, either to configure the equipment or to consult and to capture the last measurements made.
MyCloud provides the necessary flexibility, mobility and comfort so that any single detail of the installation to be measured is missed.

SPECIFICATIONS

H30Crystal
Mechanical Specifications
Screen 2.8” TFT 400 x 240 full color
Weight 550 g.
Dimensions 175x100x52 mm / 6,9×3,9×2 (HxWxD)
AC Adaptor Input: 100-240V~ 50-60Hz Output: 12VDC, 2A
Battery Li-ion (7,2VDC, 2300mAh)
Baterry range >4hours without LNB powering
Interfaces Bluetooth, Wi-Fi 2.4GHz / 5 GHz, Ethernet 1Gb
USB 2.0 for Data log download and software upgrades
Resilience It withstands drops From 1 m (3.2 ft) onto concrete on all sides
Storage capacity 400 MB (internal) for measurements
Impedance F-type connector – 75 Ohm



Technical Specifications
593603 593601 593602 593604 593605 593621 593622 593624 593625 593661
Frecuency
Range Return path: 5-50 MHz / Terrestrial: 50 – 880 MHz / Satellite: 950 – 2400 MHz / Wideband: 250 – 2350 MHz
Resolution 125 kHz
Tunning Frequency or channel
Spectrum analyser
Span 5, 10, 20, 50, 100, 200, 500 MHz and Full
Scale 5 and 10 dB/div
Reference level (automatic and manual) ✓
Optical fibre
Not Selective -40dBm to +7dBm ✓ ✓ ✓ ✓ ✓ – – – – ✓
Selective -40dBm to +7dBm – – – – – ✓ ✓ ✓ ✓ –
RF Overlay -10dBm to +5dBm ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
Optical Attenuation ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
DVB-S digital measurements [Modulation: QPSK]
Image ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
Power From 45 to 110 dBμV ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
From 45 to 120 dBμV Upgrade 593235** Upgrade 593235** Upgrade 593235** Upgrade 593235** Upgrade 593235** Upgrade 593235** Upgrade 593235** Upgrade 593235** Upgrade 593235** Upgrade 593235**
CBER 9.9E-2 – 1.0E-6 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
VBER 1.0E-4 – 1.0E-8 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
MER Up to 20dB ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
C/N Up to 20dB ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
Constelation ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
DiSEqC ✓
SCR EN 50494 ✓
dCSS EN 50607 Upgrade 593234**
DVB-S2 digital measurements [Modulations: QPSK, 8PSK]
Image ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
Power From 45 to 110 dBμV ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
From 45 to 120 dBμV Upgrade 593235** Upgrade 593235** Upgrade 593235** Upgrade 593235** Upgrade 593235** Upgrade 593235** Upgrade 593235** Upgrade 593235** Upgrade 593235** Upgrade 593235**
Link Margin Up to 10 dB ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
MER Up to 20 dB ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
LDPCBER* 9.9E-2 – 1.0E-6 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
BCHBER* 9.9E-2 – 1.0E-8 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
Constelation ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
DiSEqC ✓
SCR EN 50494 ✓
dCSS EN 50607 Upgrade 593234**
DVB-T digital measurements [Modulations: COFDM (QPSK, 16QAM, 64QAM)]
Image Upgrade 593231 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ Upgrade 593231
Power From 45 to 110 dBμV Upgrade 593231 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ Upgrade 593231
From 45 to 120 dBμV Upgrade 593231 + Upgrade 593235** Upgrade 593235** Upgrade 593235** Upgrade 593235** Upgrade 593235** Upgrade 593235** Upgrade 593235** Upgrade 593235** Upgrade 593235** Upgrade 593231 + Upgrade 593235**
CBER 9.9E-2 – 1.0E-6 Upgrade 593231 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ Upgrade 593231
VBER 1.0E-3 – 1.0E-8 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
MER Up to 35 dB ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
C/N Up to 40dB ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
Echoes ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
Constelation ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
DVB-T2 digital measurements [Modulations: COFDM ( QPSK, 16QAM, 64QAM and 256 QAM)]
Image Upgrade 593231 + Upgrade 593232 Upgrade 593232 ✓ ✓ ✓ Upgrade 593232 ✓ ✓ ✓ Upgrade 593232
Power From 45 to 110 dBμV Upgrade 593231 + Upgrade 593232 Upgrade 593232 ✓ ✓ ✓ Upgrade 593232 ✓ ✓ ✓ Upgrade 593232
From 45 to 120 dBμV Upgrade 593231 + Upgrade 593232 + Upgrade 593235** Upgrade 593232 + Upgrade 593235** Upgrade 593235** Upgrade 593235** Upgrade 593235** Upgrade 593232 + Upgrade 593235** Upgrade 593235** Upgrade 593235** Upgrade 593235** Upgrade 593232 + Upgrade 593235**
LDPCBER* 9.9E-2 – 1.0E-6 Upgrade 593231 + Upgrade 593232 Upgrade 593232 ✓ ✓ ✓ Upgrade 593232 ✓ ✓ ✓ Upgrade 593232
BCHBER* 1.0E-3 – 1.0E-8 ✓ ✓ ✓ ✓ ✓ ✓
Link Margin Up to 30 dB ✓ ✓ ✓ ✓ ✓ ✓
MER Up to 35 dB ✓ ✓ ✓ ✓ ✓ ✓
C/N Up to 40dB ✓ ✓ ✓ ✓ ✓ ✓
Echoes ✓ ✓ ✓ ✓ ✓ ✓
Constelation ✓ ✓ ✓ ✓ ✓ ✓
DVB-C digital measurements [Modulations: 16QAM, 32QAM, 64QAM, 128QAM and 256 QAM]
Image ✓ Upgrade 593233 Upgrade 593233 ✓ ✓ Upgrade 593233 Upgrade 593233 ✓ ✓ Upgrade 593233
Power From 45 to 110 dBμV ✓ Upgrade 593233 Upgrade 593233 ✓ ✓ Upgrade 593233 Upgrade 593233 ✓ ✓ Upgrade 593233
From 45 to120 dBμV Upgrade 593235** Upgrade 593233 + Upgrade 593235** Upgrade 593233 + Upgrade 593235** Upgrade 593235** Upgrade 593235** Upgrade 593233 + Upgrade 593235** Upgrade 593233 + Upgrade 593235** Upgrade 593235** Upgrade 593235** Upgrade 593233 + Upgrade 593235**
CBER 1.E-2 – 1.0E-8 ✓ Upgrade 593233 Upgrade 593233 ✓ ✓ Upgrade 593233 Upgrade 593233 ✓ ✓ Upgrade 593233
MER Up to 38 ✓ ✓ ✓ ✓ ✓
C/N Up to 40dB ✓ ✓ ✓ ✓ ✓
Digital measurements ISBT-T/Tb
Image – – – – – – – – – ✓
Power From 45 to 110 dBμV – – – – – – – – – ✓
From 25 to 120 dBμV – – – – – – – – – Upgrade 593235
Pre-VER (by layer) 9.9E-2 – 1.0E-6 – – – – – – – – – ✓
Post-VER (by layer) 1.0E-3 – 1.0E-8 – – – – – – – – – ✓
MER Up to 35 dB – – – – – – – – – ✓
C/N Up to 40dB – – – – – – – – – ✓
Echoes – – – – – – – – – ✓
Constelation – – – – – – – – – ✓
Analogue measurements
Level 25 and 125 dBμV ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
V/A ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
C/N Up to 45dB ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
Measurements and functions
Wifi analyzer Upgrade 593250 Upgrade 593250 Upgrade 593250 Upgrade 593250 ✓ Upgrade 593250 Upgrade 593250 Upgrade 593250 ✓ Upgrade 593250
IPTV analyser Upgrade 593251 Upgrade 593251 Upgrade 593251 Upgrade 593251 ✓ Upgrade 593251 Upgrade 593251 Upgrade 593251 ✓ Upgrade 593251
HEVC display (up to 1080p) Upgrade 593252 Upgrade 593252 Upgrade 593252 Upgrade 593252 ✓ Upgrade 593252 Upgrade 593252 Upgrade 593252 ✓ Upgrade 593252
Analog A/V display Upgrade 593236 Upgrade 593236 Upgrade 593236 Upgrade 593236 Upgrade 593236 Upgrade 593236 Upgrade 593236 Upgrade 593236 Upgrade 593236 Upgrade 593236
Terrestrial plans Channel plans from different regions of the world
Satellite plans Channel plans from different regions of the world
Units dBμV, dBmV, dBm
Powering 24 Vdc / 140 mA max.
LNB: 13, 18 Vdc / 475, 370 mA max.
LNB tono 22 kHz

* Notes:
LDPCBER is the BER measurement before LDPC correction.
BCHBER is the BER measurement after LDPC corrector and before BCH correction.

** Ref. 593234 & 593235: Free upgrade when registering the equipment

DOWNLOADS

FAQs

Do terrestrial antennas have to be oriented so as to provide a maximum output level?

This affirmation is not always true. Antennas should always be oriented using a field strength meter, and based on either the CBER or MER levels for digital channels, or the C/N for analogue channels.

FEATURES

FUNCTIONALITIES

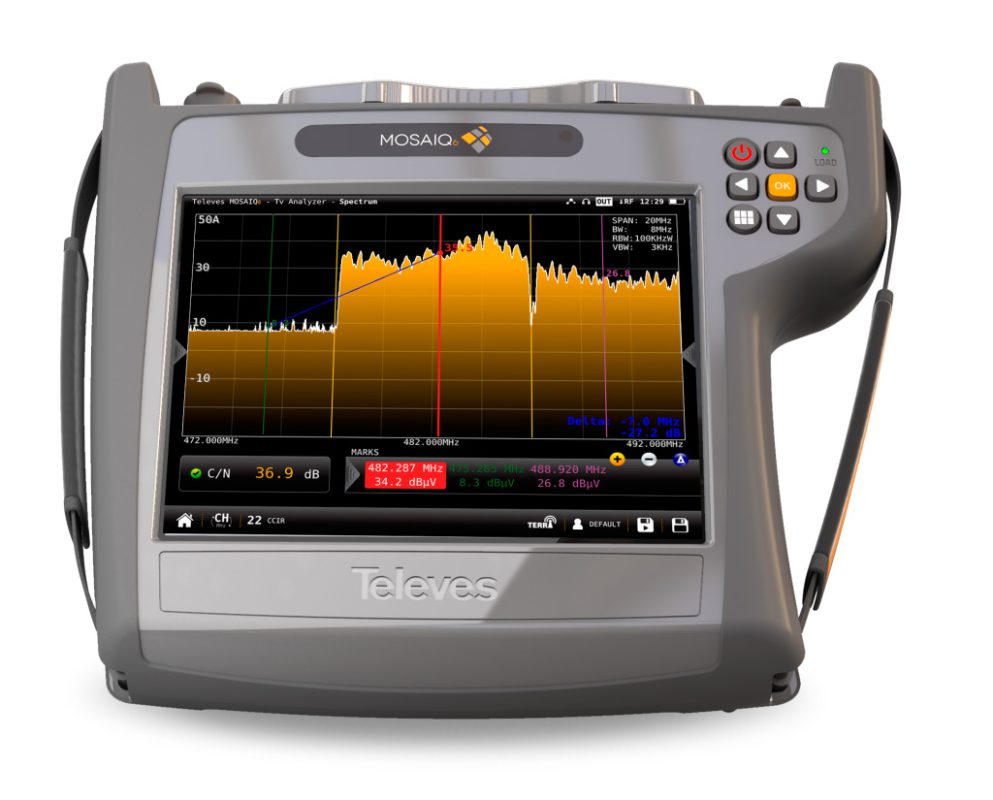

ULTRA-FAST SPECTRUM ANALYSER

MOSAIQ6 makes it possible to capture interfering signals, as fast as they may be

Professional spectrum analyser with ultra-fast digital processing (sweep time < 10 ms) and high dynamic range (> 50 dB). Equipped with advanced functions for the detection and analysis of signals in the 5 MHz to 3,300 MHz (waterfall, event triggers, markers, user configurable RBW and VBW, etc.).

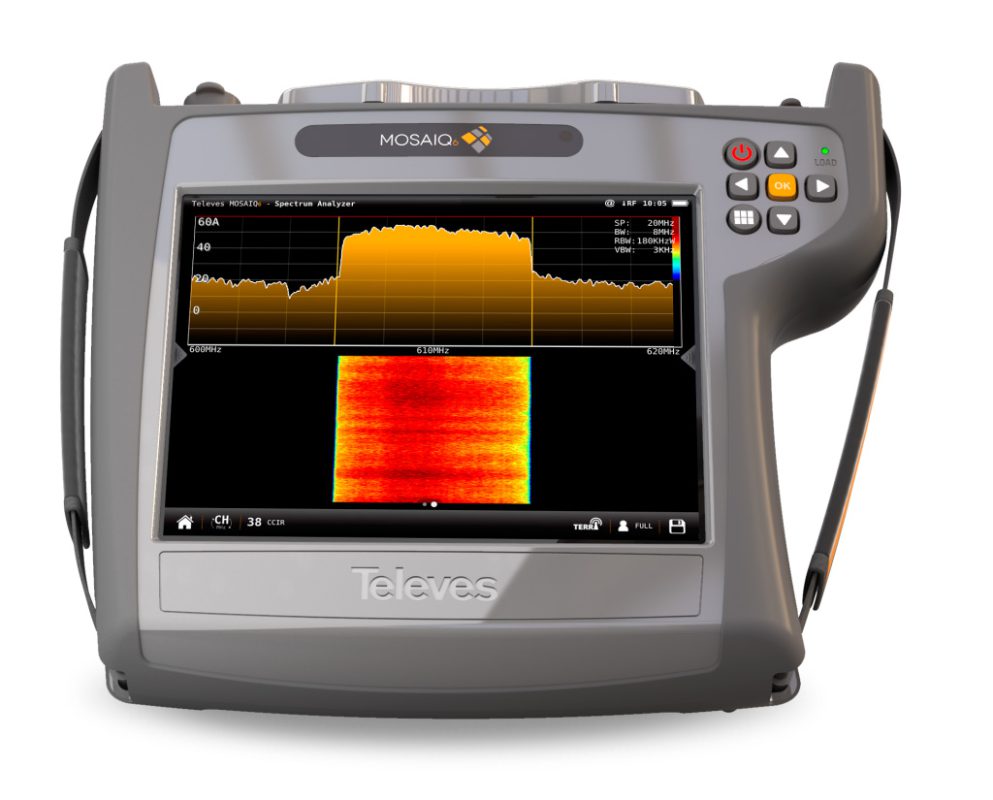

WATERFALL

Signal graphic display in both time and frequency

Signal levels turn into colours and are represented on the time axis (see figure). The perfect tool for short signal interference or fading analysis, which observation would be difficult by only resorting to the spectrum.

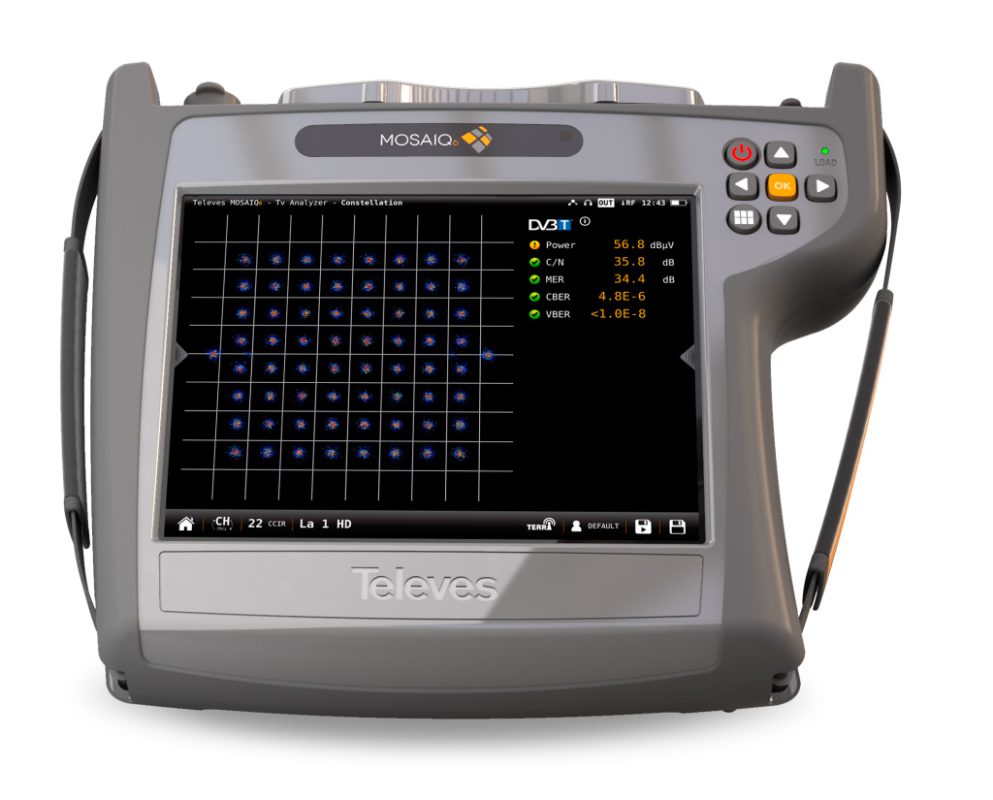

CONSTELLATION AND ECHOES

Knowing the impact on MER is essential

The constellation diagram is essential to help detect the presence of noise, phase jitter, interference and other potential problems that could impact the signal quality by reducing MER.
The echo graphic display allows echo detection in DVB-T/T2 terrestrial signal reception, which could severely degrade BER measurement.

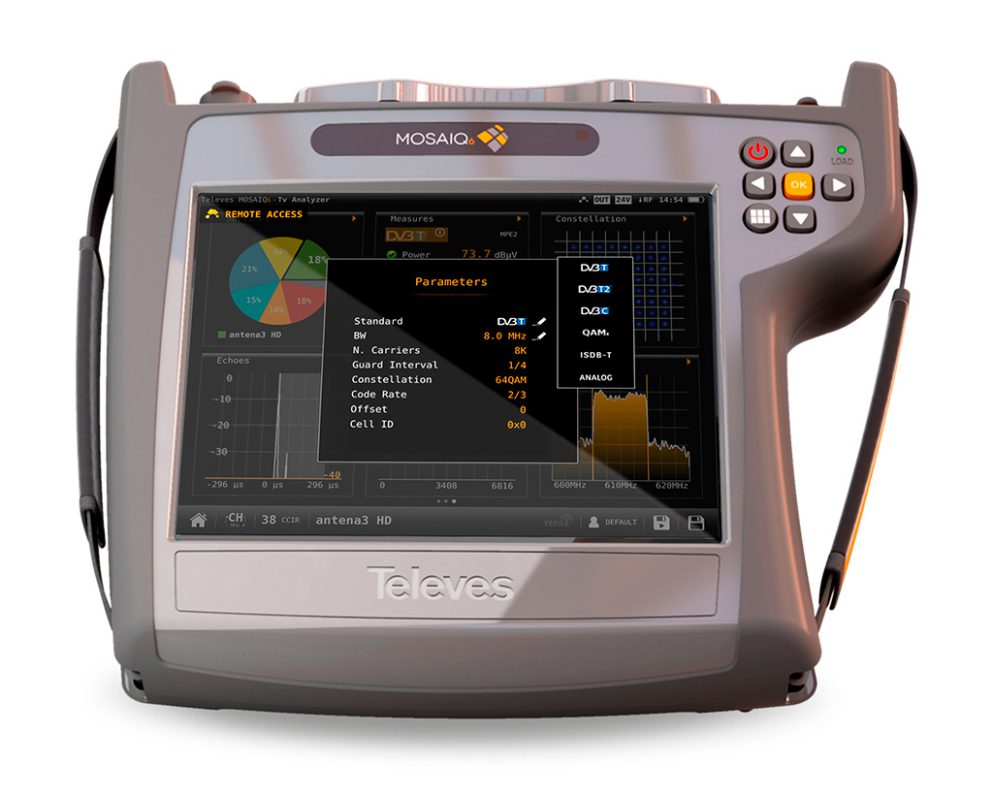

MULTISTANDARD

All in one

A single meter is capable of analysing and measuring analogue and digital signals, both on the terrestrial and the satellite bands (FM, IPTV, optical fibre, Wi-Fi, DVB-T/T2, DVB-C Annex A, B, and C, and DVB-S/S2/S2X). Furthermore, the DAB and DAB+ analysis can be included as an option.

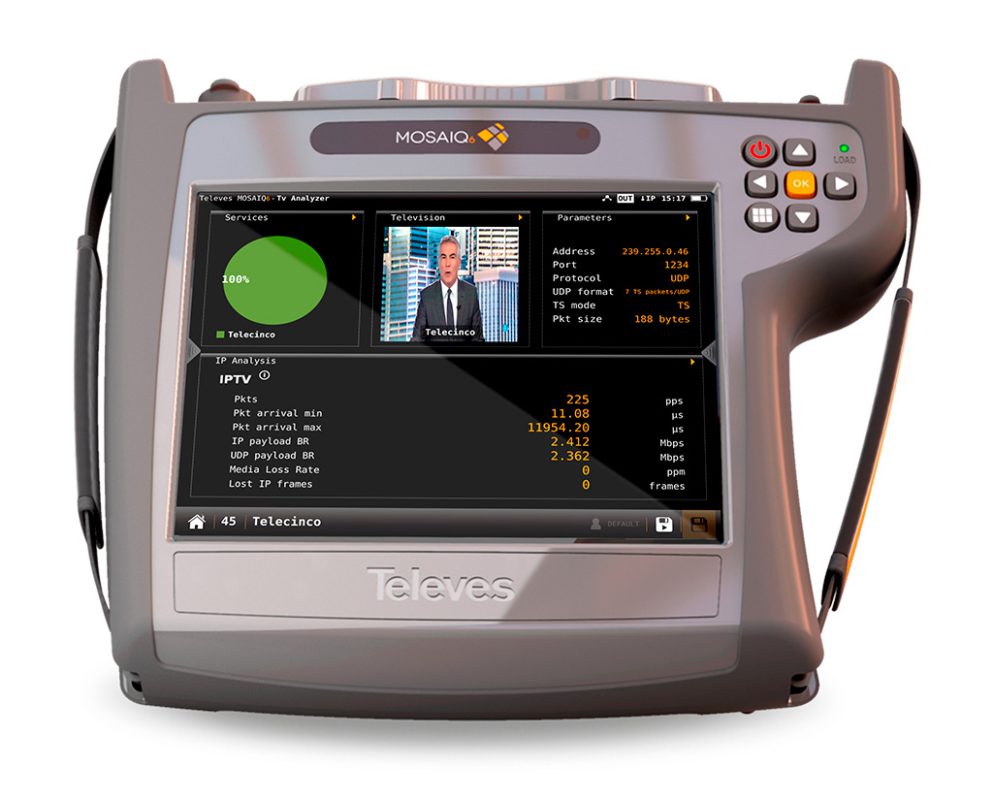

IPTV

Beyond radio frequency

Allows the demodulation and analysis of IPTV streams (both Unicast and Multicast), not only through video display but also by displaying the total bit rate and the relevant information for each service: SID, VPID, AID, video profile, bit rate for both audio and video.
In addition, specific protocol measurements are also analysed, such as UDP Payload Bitrate, IP payload bitrate, and Packet arrival minimum.

NETWORK TOOLS

Connectivity and network monitoring, in a single interface

This functionality offers several control utilities and network monitoring, which can be displayed in mosaic mode. All network information at the same time, on a single screen (IP, DNS, gateway, connection mode…).
These tools allow you to recognize a network by auditing the response time (latency or ping) and the connection speed (speed test, upload/download).
In addition, they also make easier the detection of connectivity problems by scanning connected equipment (ARP scan) and mapping their ports, whether open or closed, to determine their accessibility (NMAP).

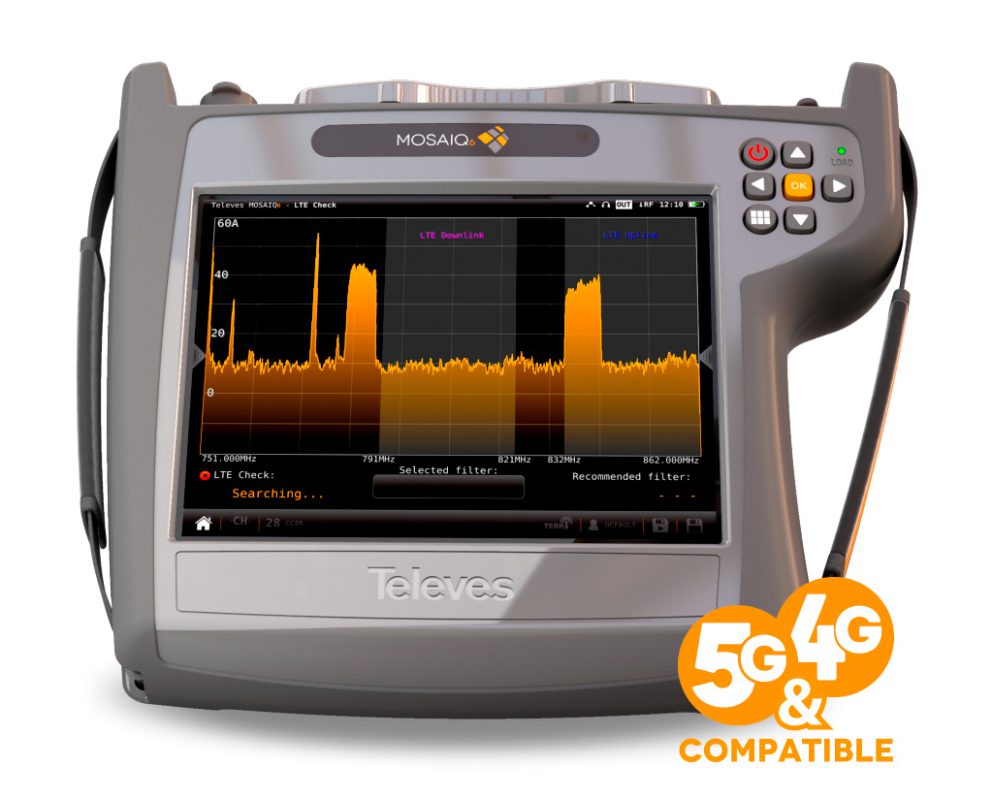

LTE CHECK

An interference-free installation

It analyses the impact of the LTE signal on the DTT channels, and detects whether the use of filters is required. Furthermore, it allows spectrum simulation upon the introduction of the LTE filter recommended by the meter itself.
A list of filters is displayed for the user to choose the one that best fits his/her requirements.
Ready for LTE700 (5G) and LTE790 (4G) scenarios.

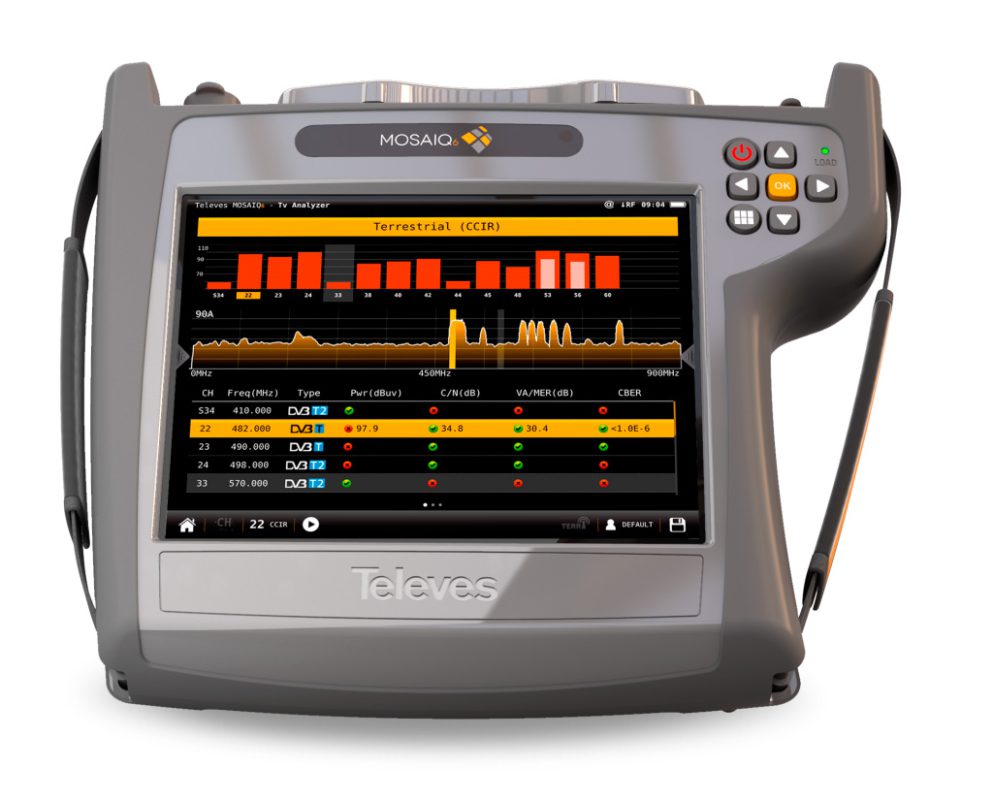

PASS/FAIL INDICATORS

Easy decision-making

Reduce installation mistakes with the on-screen Pass/Fail indicators, a graphical tool that helps and speeds up the interpretation of measurement results. Different thresholds are available depending on the network area to be analysed: headend, multi-band amplifiers, bridging connection, connection records, user home, etc. Besides the pre-set values, you will be able to customize your own threshold values.

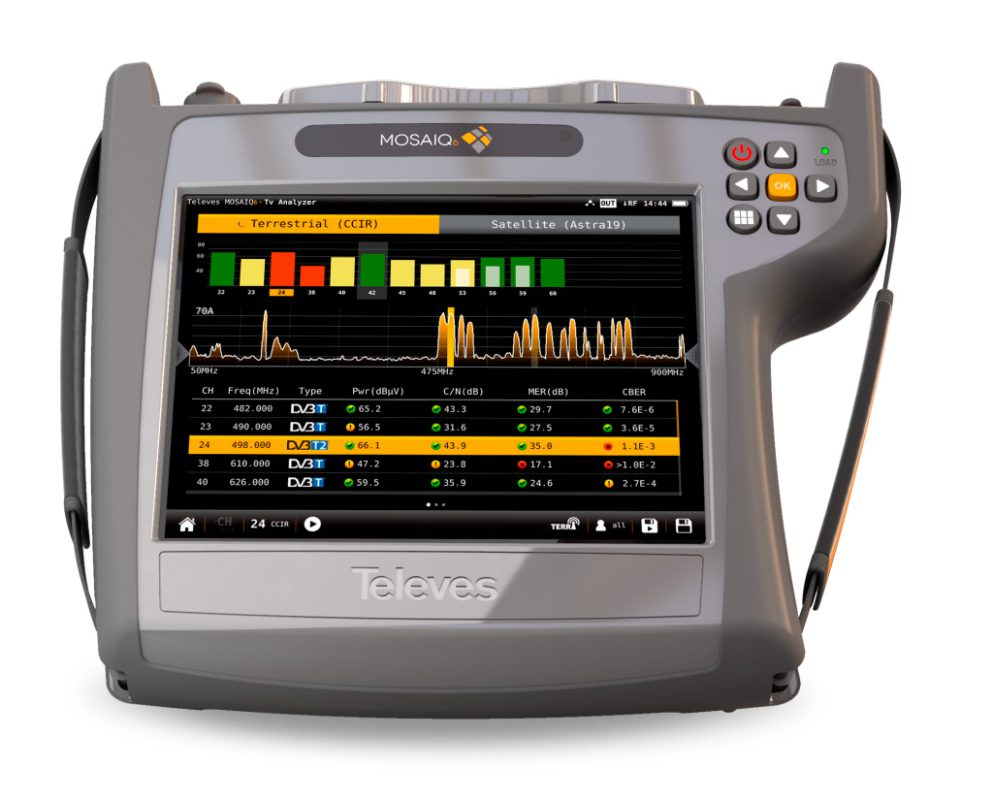

100% AUTOMATIC

Automatic detection of all the input signal’s parameters

Connect the input signal to your MOSAIQ6 and within a few seconds the meter will automatically capture the signal. The device first searches for the standard and then for all the standard’s parameters.
Showing the standard associated to the signal and the signal’s parameters to the meter is no longer required. With MOSAIQ6 it is all as easy as connecting the RF cable; the meter automatically detects the standard (DVB-T/T2, DVB-C, QAM-B, ISDB-T for the terrestrial band, and DVB-S/S2/S2X for the satellite band, IPTV, etc. ) and all the parameters associated to that specific standard.

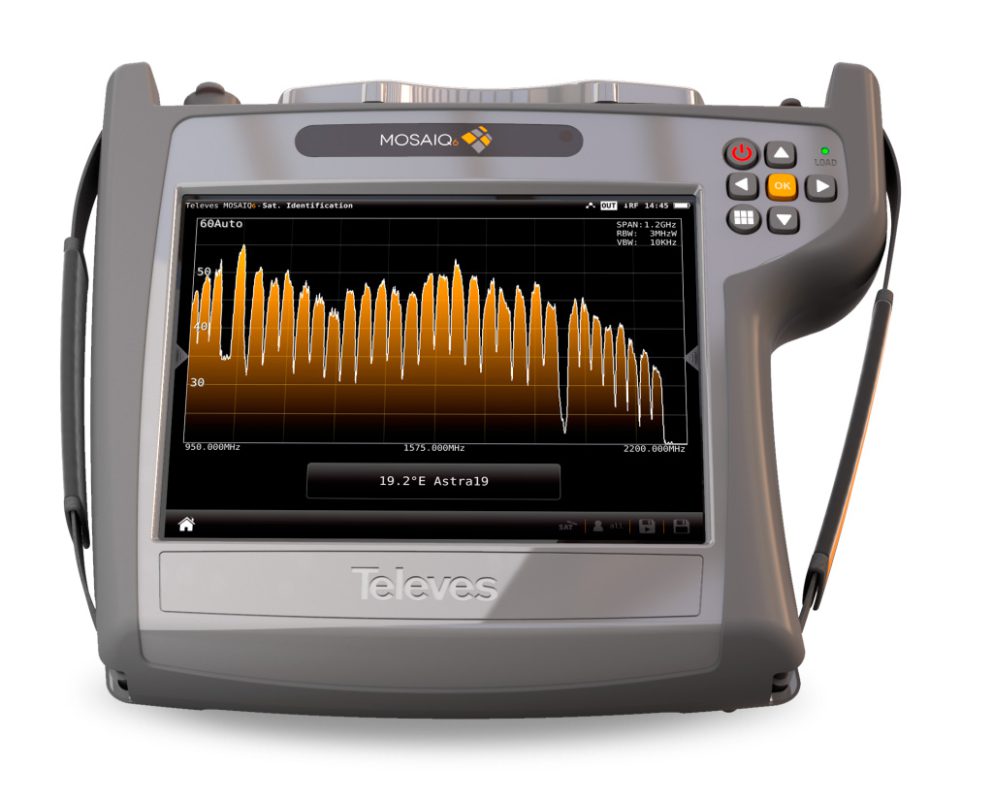

SATELLITE IDENTIFICATION

By just connecting the RF cable to your MOSAIQ6 you will find out which satellite your antenna is pointing to. Without the need for previous checks or configurations.

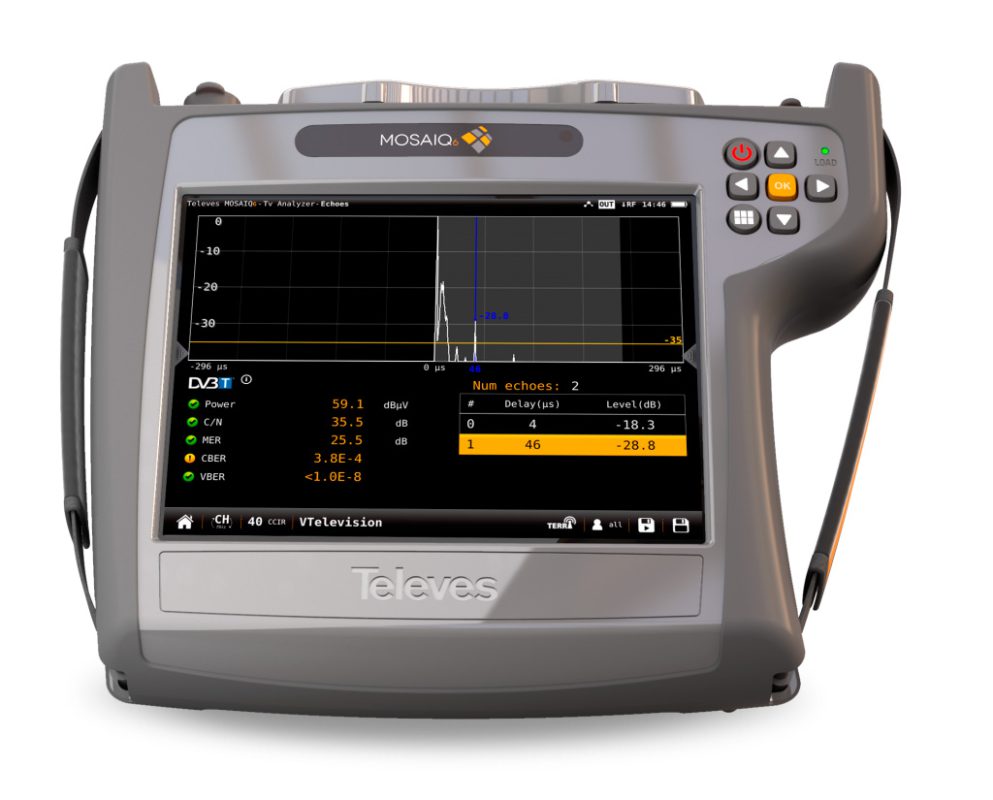

ECHOS

Optimal signal reception

In terms of DVB-T and DVB-T2 signal reception, controlling the absence of any echoes that could jeopardize reception is crucial. MOSAIQ6 displays the echoes of the received signal, allowing the installer to minimize them for optimal signal reception.

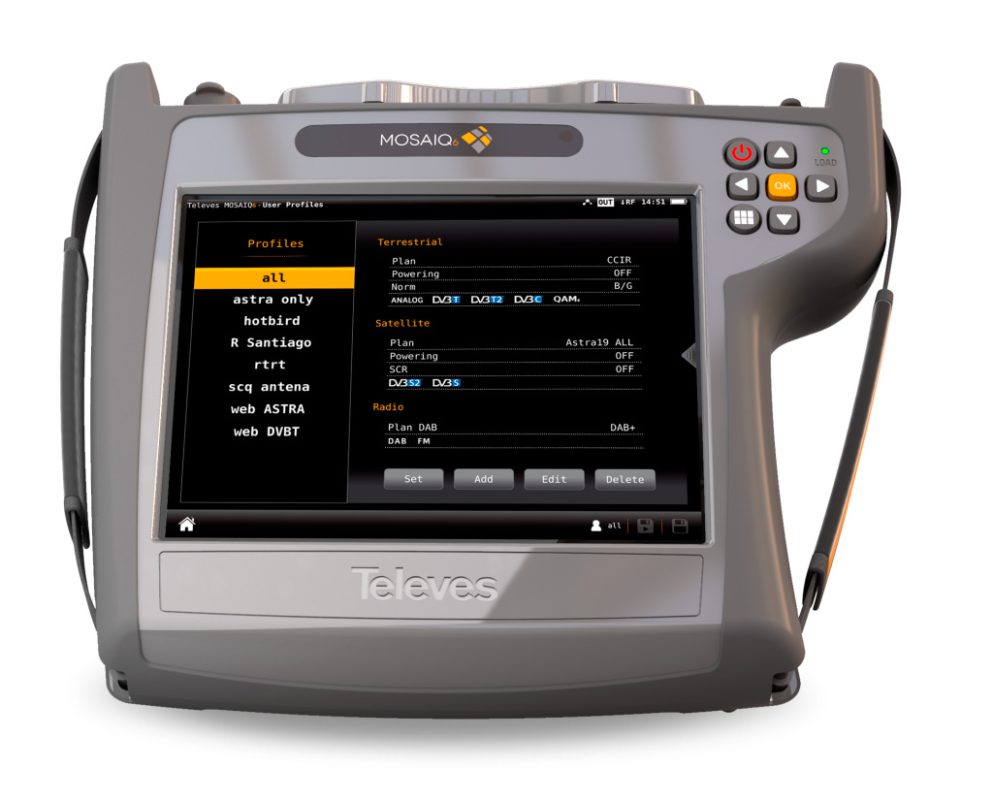

USER PROFILES

The easiest way to configure your MOSAIQ6

MOSAIQ6 allows you to save multiple profiles according to the type of installation you will be working with. Therefore, you will not need to select the parameters required each time you need to perform a measurement. You will just need to select the profile you wish to work with and all the parameters will be automatically configured in the meter.

MEASUREMENT STORAGE: MACROLOGS AND DATALOGS

Save all signal details in the 32-GB internal memory

While you are taking measurements or looking for any potential problems, you can save sample signal parameters for further in-depth analysis or just for the record and for use in your reports.
Not only the measurements will be saved, but also the screen captures just as they were recorded. Furthermore, you will be able to program a Macrolog, so that you can repeat and save measurements by just specifying the time interval between two consecutive measurements.

For convenience, take the information with you without transporting the meter. Simply export the data to an external USB memory.

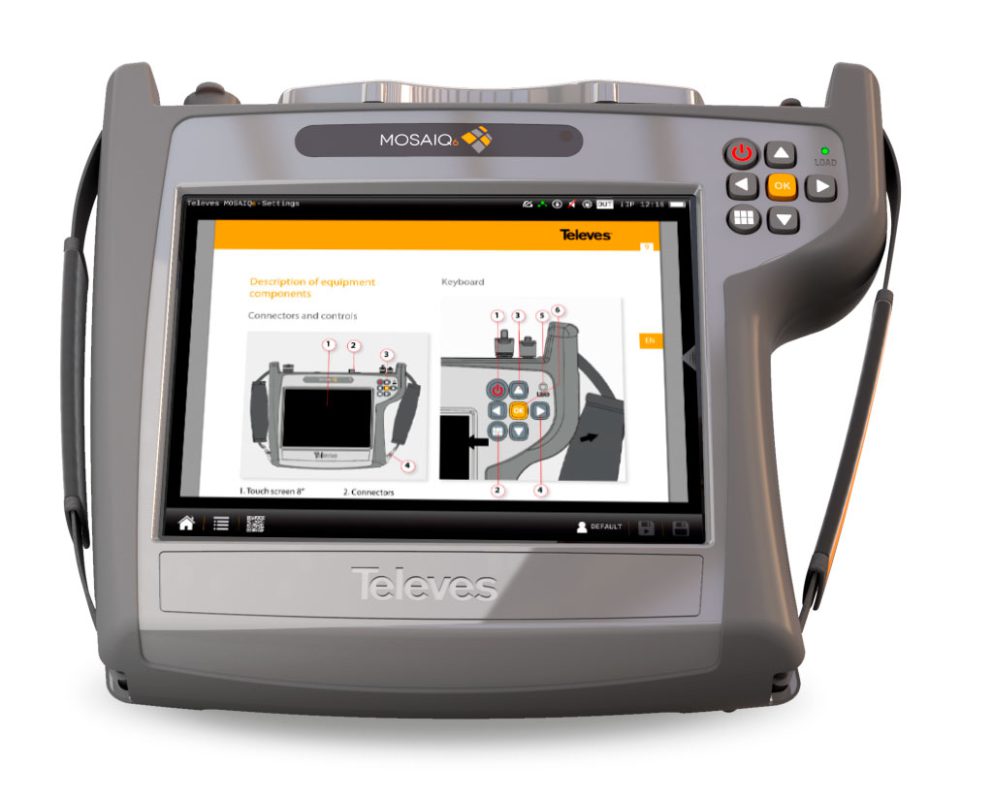

User manual on display

Solve your doubts in real time

MOSAIQ6 includes the function to check the user manual directly on the meter. It allows to solve doubts or to follow instructions in real time, without the need to have the printed version of the document.

(*)Requirements:
SW v1.38 or higher
HW v2019 onwards

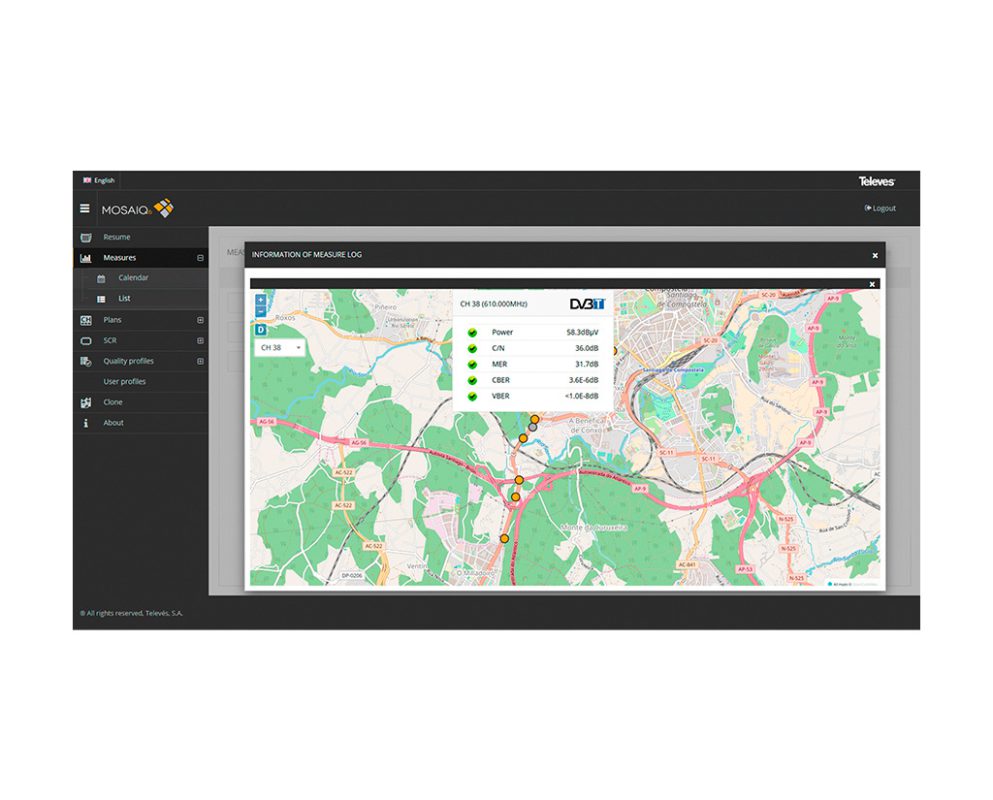

GPS OPTION FOR COVERAGE ANALYSIS (*)

A location-based installation inventory

With the GPS option, measurements can be displayed on a map at the very same spot where they were actually taken, thus facilitating coverage analysis. Accessing the details is as easy as doubleclicking on each image.

(*) Optional function: Ref. 596201

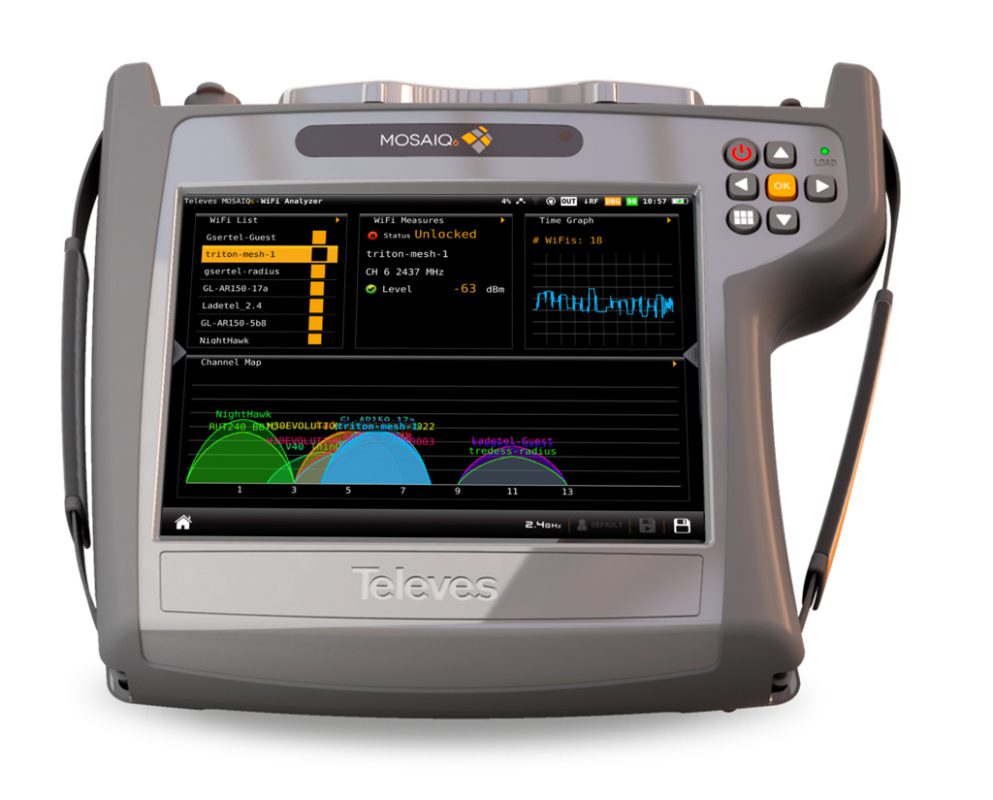

Wi-Fi Analyzer 2.4/5 GHz (*)

All the communication interfaces at your disposal

This functionality performs a comprehensive analysis of the entire Wi-Fi band (2.4 and 5 GHz), to find, identify and measure all available Wi-Fi networks. For this, MOSAIQ6 offers 4 different analysis functions:

  • Wi-Fi List: shows a list of all detected networks and for each one identifies: SSID, BSSID, channel, frequency, encryption mode and power of the access point.
  • Wi-Fi measures: for a specific network, shows the current power value of the access point and a graph of its variation during a selectable time interval.
  • Time graph: offers a time graph with the history of power measurements of all detected Wi-Fi networks.
  • Channel map: shows a graph with the channel distribution of the detected Wi-Fi networks.

(*) Optional function: Ref. 596202

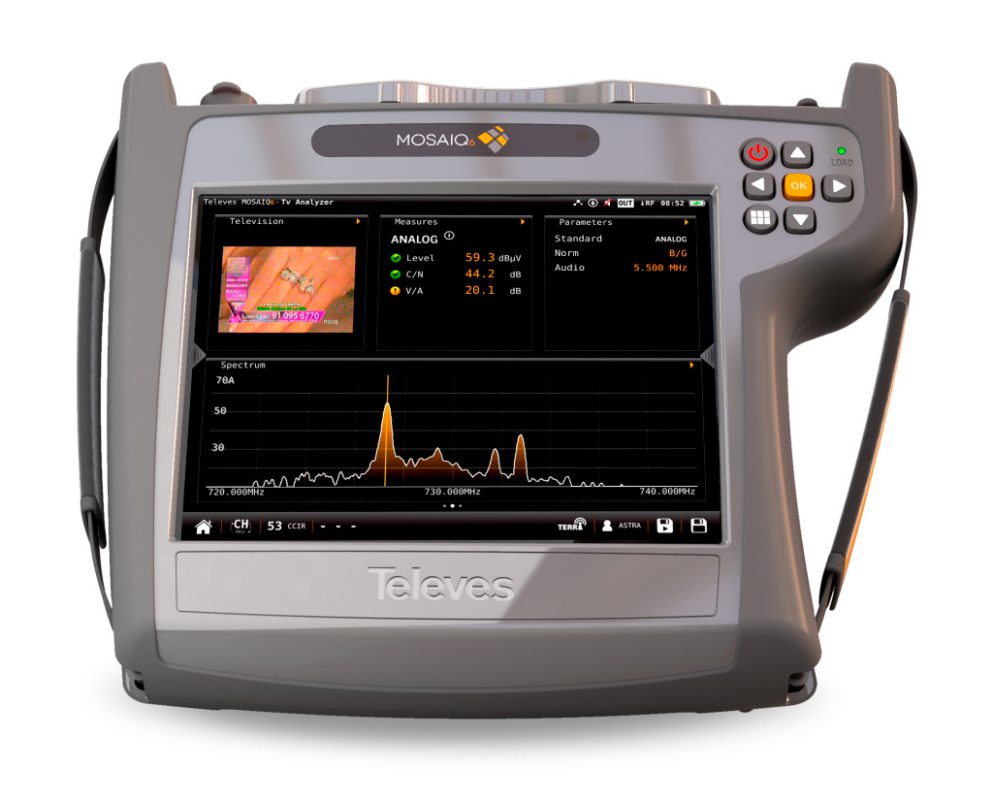

ANALOGUE TV (*)

Analogue channel generation

This function allows you to display and measure the analogue TV channels still used in transmodulator-based TV systems. It allows the measuring of signal levels between 20 dBµV and 128 dBµV, C/N up to 52 dB, and V/A up to 30 dB.

(*) Optional function: Ref. 596203

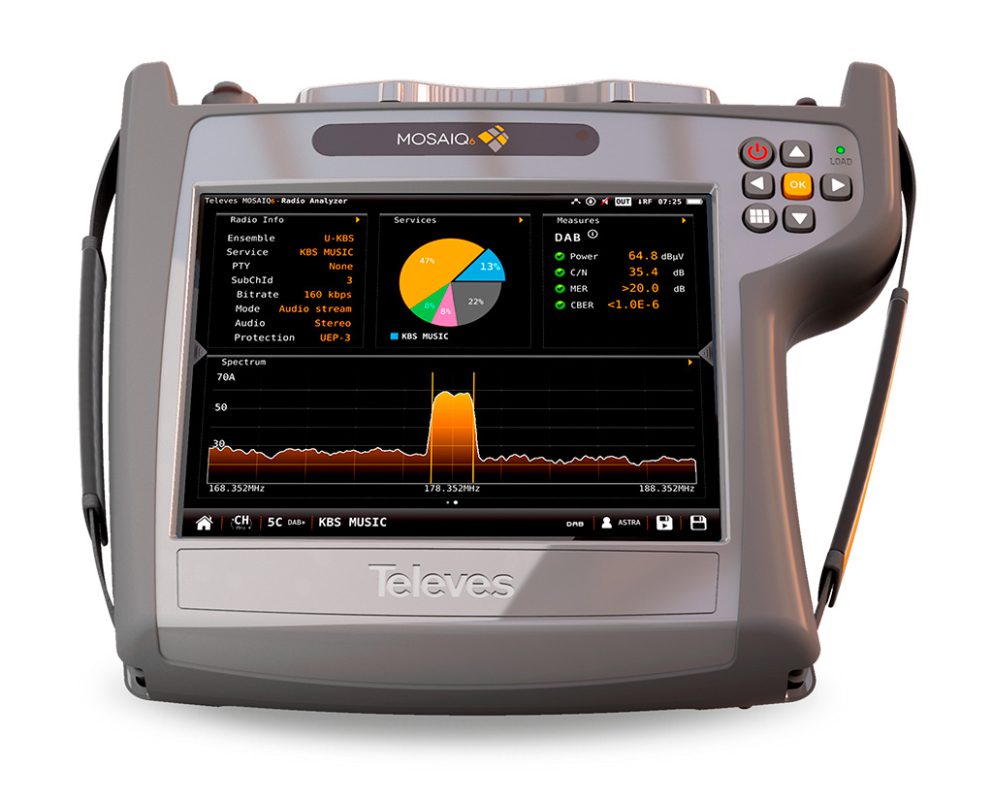

DAB/DAB+ (*)

Digital radio at your fingertips

This function allows you to demodulate a DAB channel, providing signal quality measurements such as MER and CBER, and comprehensive information about the services delivered: Radio info: (Ensemble, PTY, Service, Mode, Audio- , bit rate audio). It allows power measuring between 20 dBµV and 128 dBµV, C/N and MER for this type of signals.

(*) Optional function: Ref. 596204

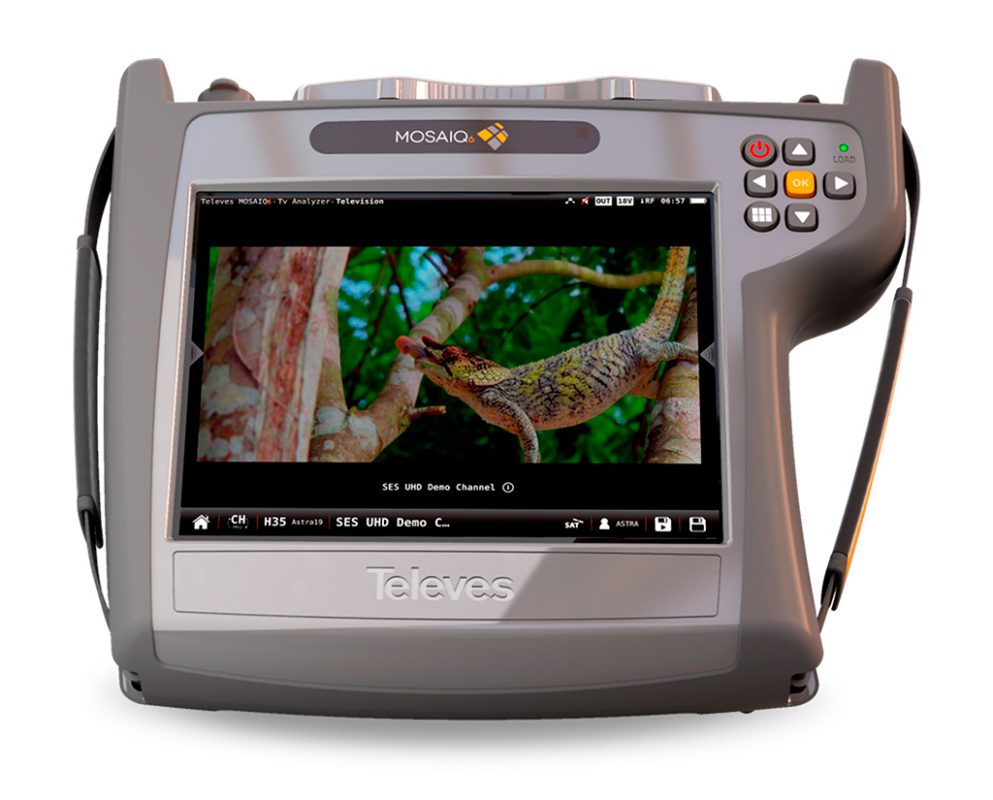

4K UHD (*)

Ultra high definition in the palm of your hand

The MOSAIQ6 supports the new HVEC H.265 video compression format with a maximum resolution of 4K (3840×2160) as well as the HDR colour coding standards.

(*) Optional function: Ref. 596205

VIDEOS

H30Crystal – All the functions you need, also in fiber optics

X

Highlights

  • Accurate power and optical attenuation measurement
  • Multistandard: DVB-S/S2, DVB-T/T2, DVB-C, analogue channels and return path
  • Multiscreen system with touch control: display the meter screen on a mobil device, and control the meter by touch gestures and buttons
  • WiFi and Bluetooth connectivity
  • Wideband LNB supported
  • Guided satellite pointing
  • Real-time digital processing
  • Light-weight handheld meter
  • User friendly interface
  • Option to expand through Wi-Fi analyser, IPTV and HEVC display both on the meter and on the mobile device
  • All measurements are carried out by pressing a single button equipped with Pass/Fail indicators to reduce installation errors



Discover

Meter from H30 series: How to choose the most convenient model?

The H30 series consists of different customizable multistandard meters, all of them designed to carry out installation, maintenance and monitoring of telecommunications networks. Each model stands out for offering new functionalities, while preserving all the advantages of the previous model.
Through the following comparative table, it is possible to choose the most suitable meter model for each professional:

H30FLEX H30EVOLUTION H30CRYSTAL
Multi-standard customizable OK OK OK
Frequency range Return P.: 5-50 MHz X X OK
Terrestrial: 50-880 MHz OK OK OK
Satellite: 250-2400 MHz OK (up to 2200MHz) OK OK
Screen 2.8” TFT 400 x 240 full color 2.8” TFT 400 x 240 full color 2.8” TFT 400 x 240 full color
Multi-screen with touch control on mobile device X OK OK
Smartphone armband X OK OK
2,4 / 5GHz WiFi connectivity X OK OK
WiFi analyzator X OK(*) OK(*)
Bluetooth connectivity X OK OK
Ethernet interface OK OK OK
USB interface USB (A-type) USB (A-type) USB (A-type)
Optical measures X X OK
Guided satellite pointing X OK OK
IPTV analyzator X OK(*) OK(*)
LNB Wideband compatible X OK OK
HEVC displaying on the meter X X OK(*)
on the mobile device X OK(*) OK(*)
Terrestrial input level to 120dBμV OK(**) OK(**) OK(**)
dCSS compatible OK(**) OK(**) OK(**)
Management interface access (datalogs, channel plan…) Cable Ethernet Wireless (WiFi/Bluetooth) Ethernet cable Wireless (WiFi/Bluetooth) Ethernet cable
Dimensions 175x100x52 mm 175x100x52 mm 175x100x52 mm
Weight 510 g. 510 g. 550 g.
Color Black & White Black & Grey Light & dark grey

* According to reference
** Free activation of the options with the meter registration
