EMC Bundle 1
Near-Field

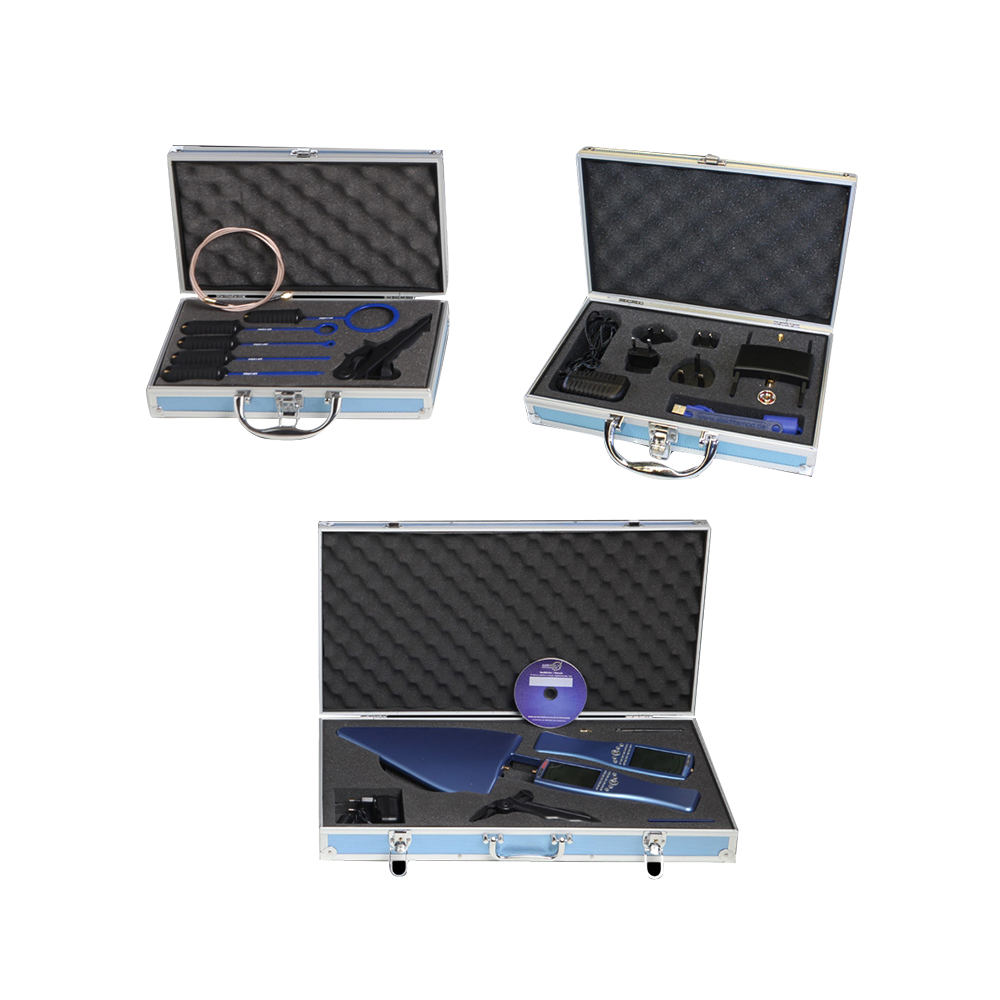

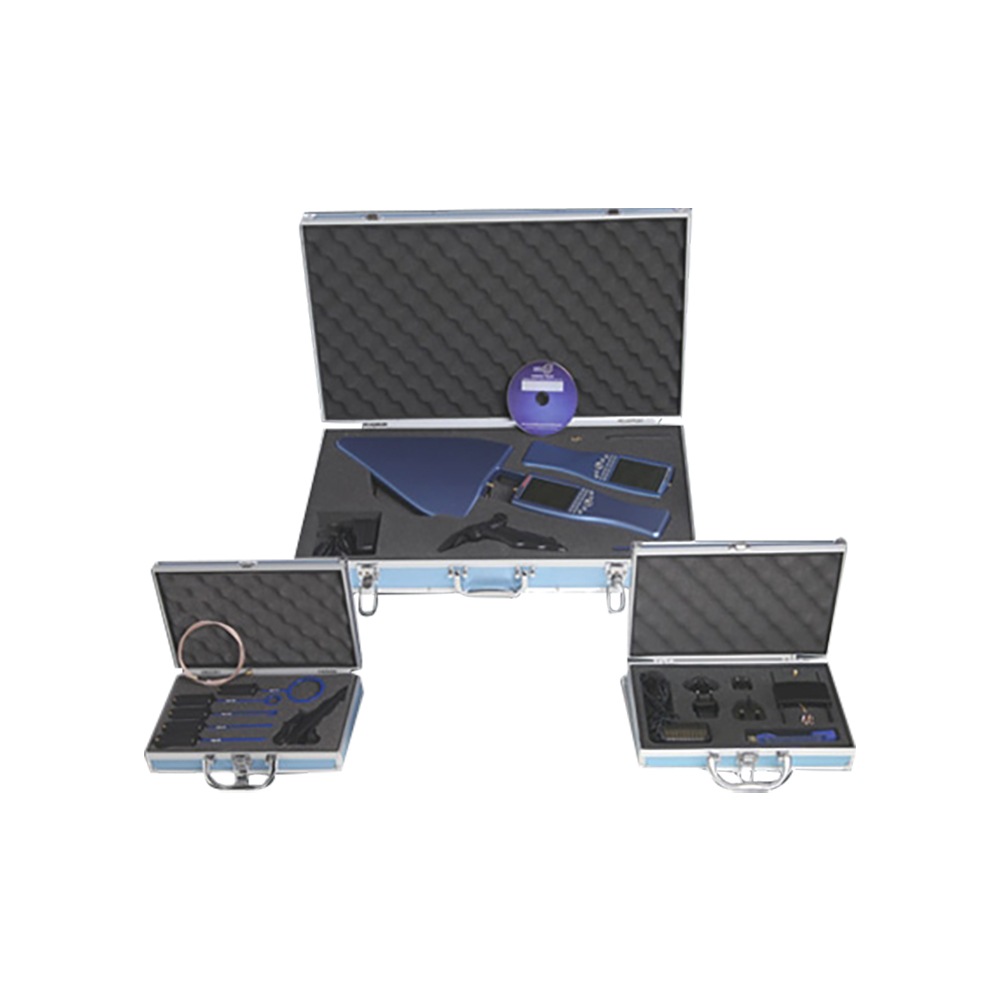

The EMC Bundle 1 includes:

  • SPECTRAN NF-5030

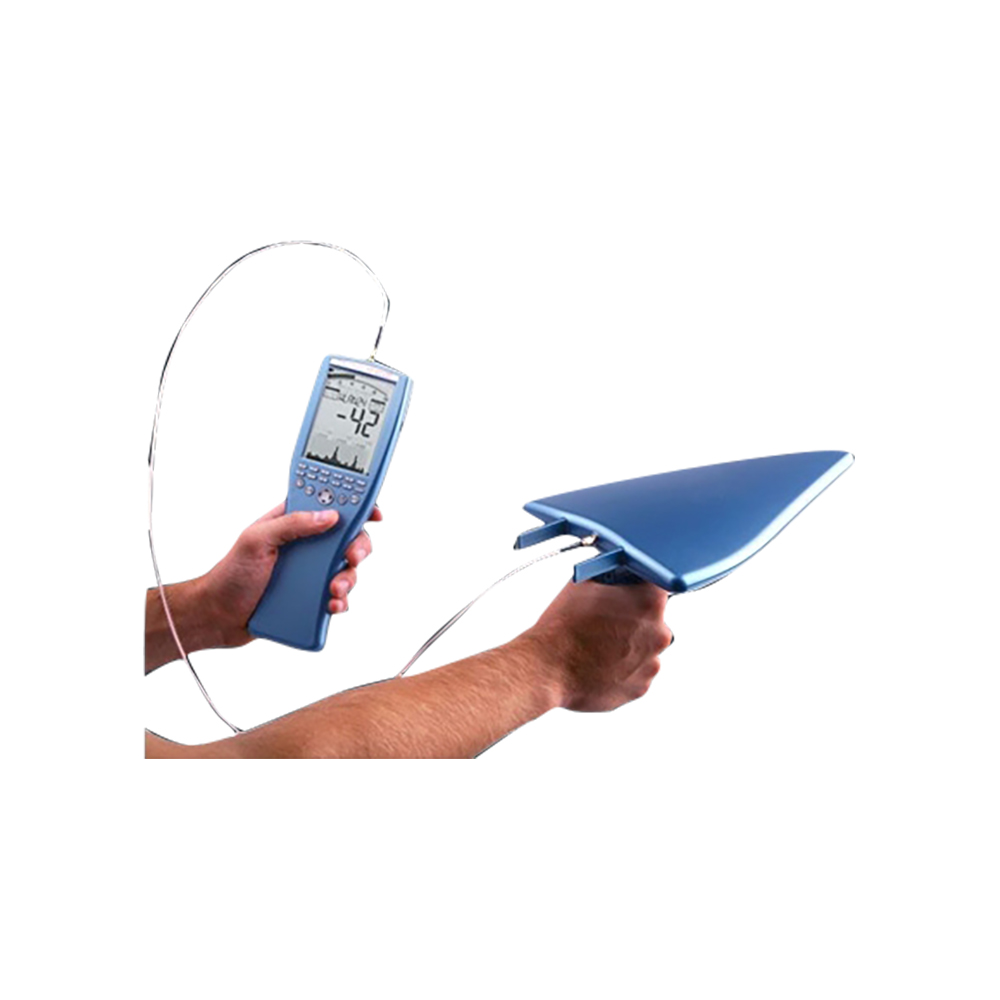

  • SPECTRAN HF-60100 V4
  • HyperLOG 60100

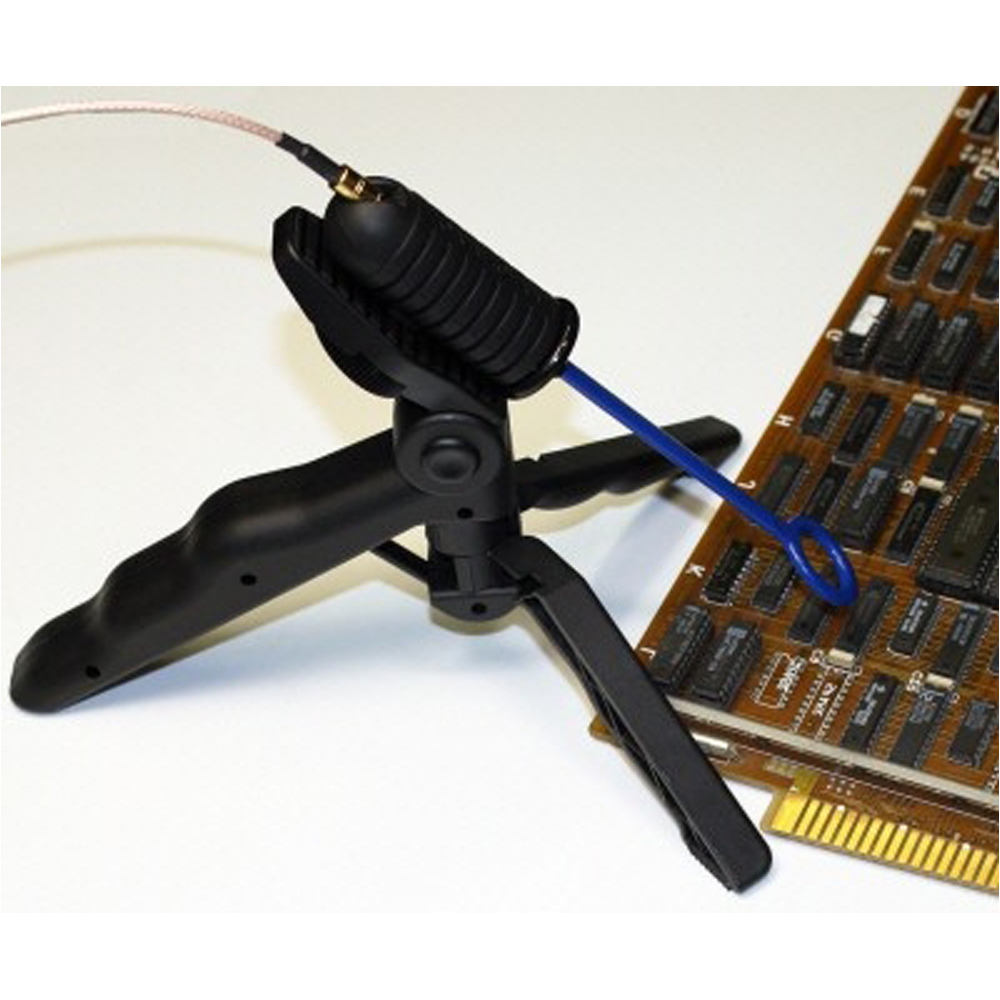

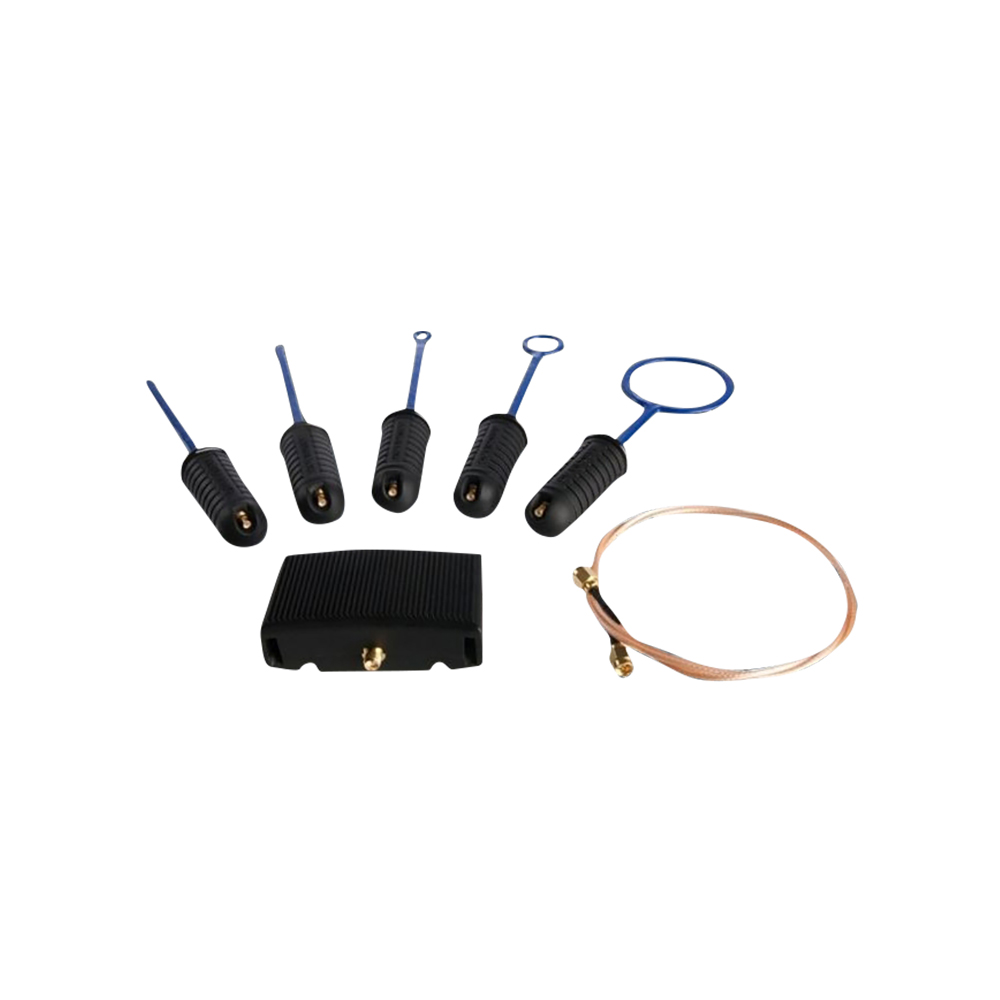

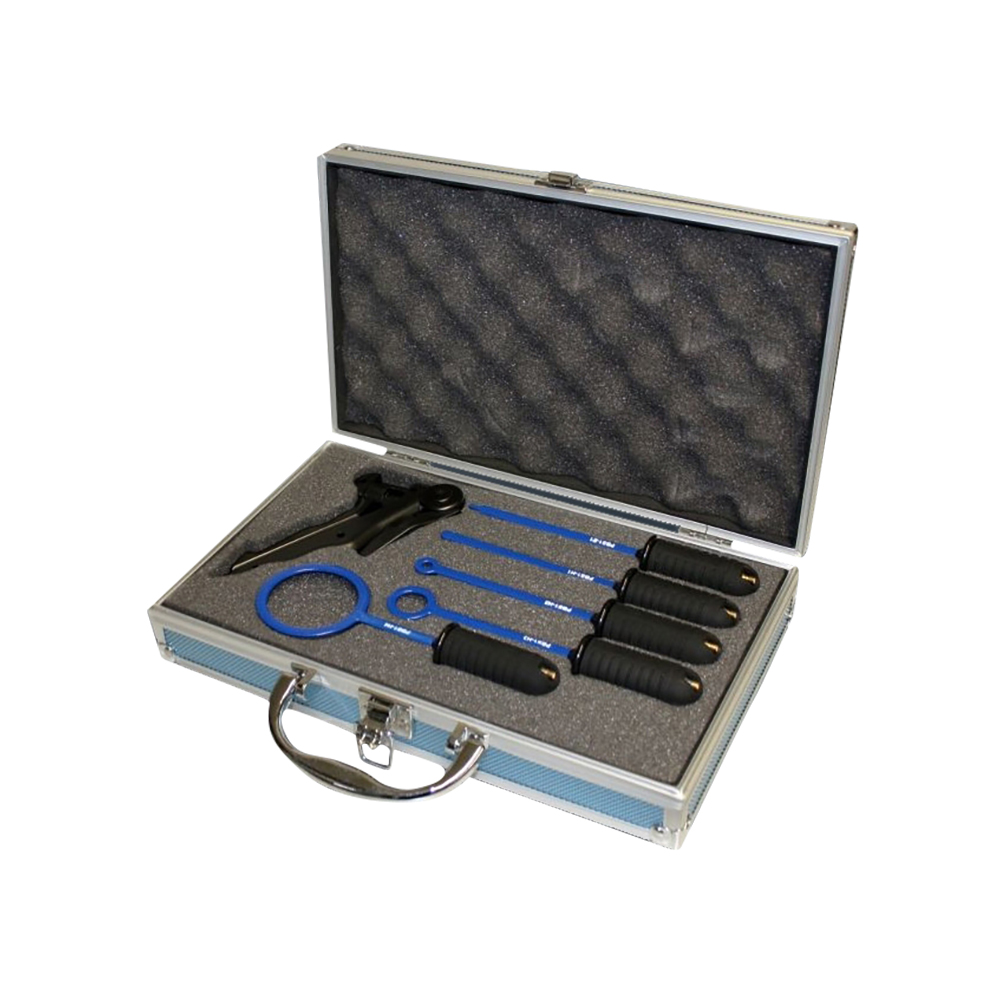

  • PBS2 active probe set with 5 probes
  • 3 m SMA/SMB Kabel
  • Accessories

Typical applications:

  • Performance of EMC measurements

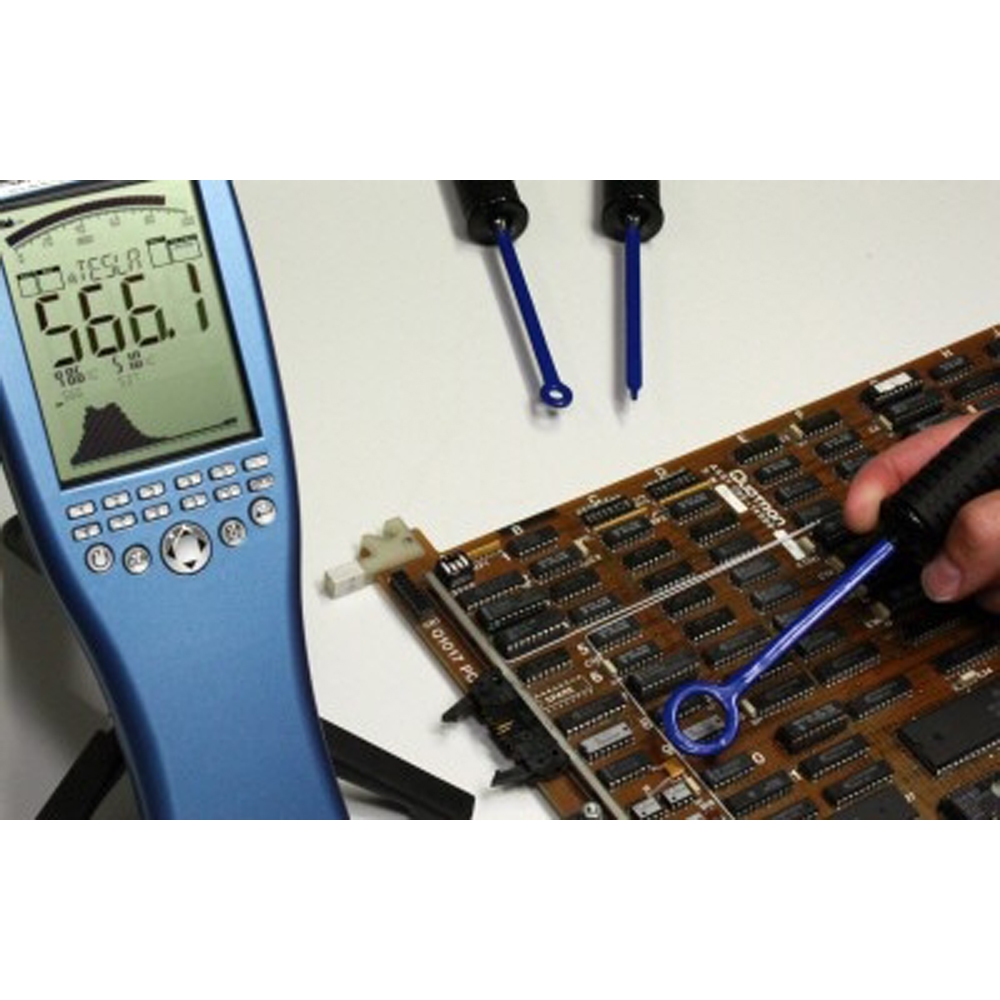

  • Localization of interference radiation sources
  • Estimation of interference field strengths
  • Verification of shielding and filtering measures
  • Identification of faulty components
  • Determining interference radiation sensitivities

DESCRIPTION

Measurements in the EMC laboratory are time-consuming and expensive.
With this EMC package you can easily locate sources of interference on assemblies or perform or accompany EMC or EMCU measurements (e.g. EN55011, EN55022, EN50371 etc.).
Our EMC package 1 includes the two sweep analyzers NF-5030 and HF-60100 V4 (with internal preamplifier (option 020)) as well as the popular EMC sniffer probe set PBS2 (active with external preamplifier), and all necessary cables and adapters. The purchase price can be amortized after only 1-2 “saved” laboratory measurements.

MORE INFORMATION

Country of Manufacture: Germany
Frequency range: 1Hz – 9,4GHz
Typ. level range: -170dBm (Hz) up to +20dBm (HF-60100 V4)
Typ. precision base unit: +/- 1dB (HF 60100 V4), 3% (NF-5030)
