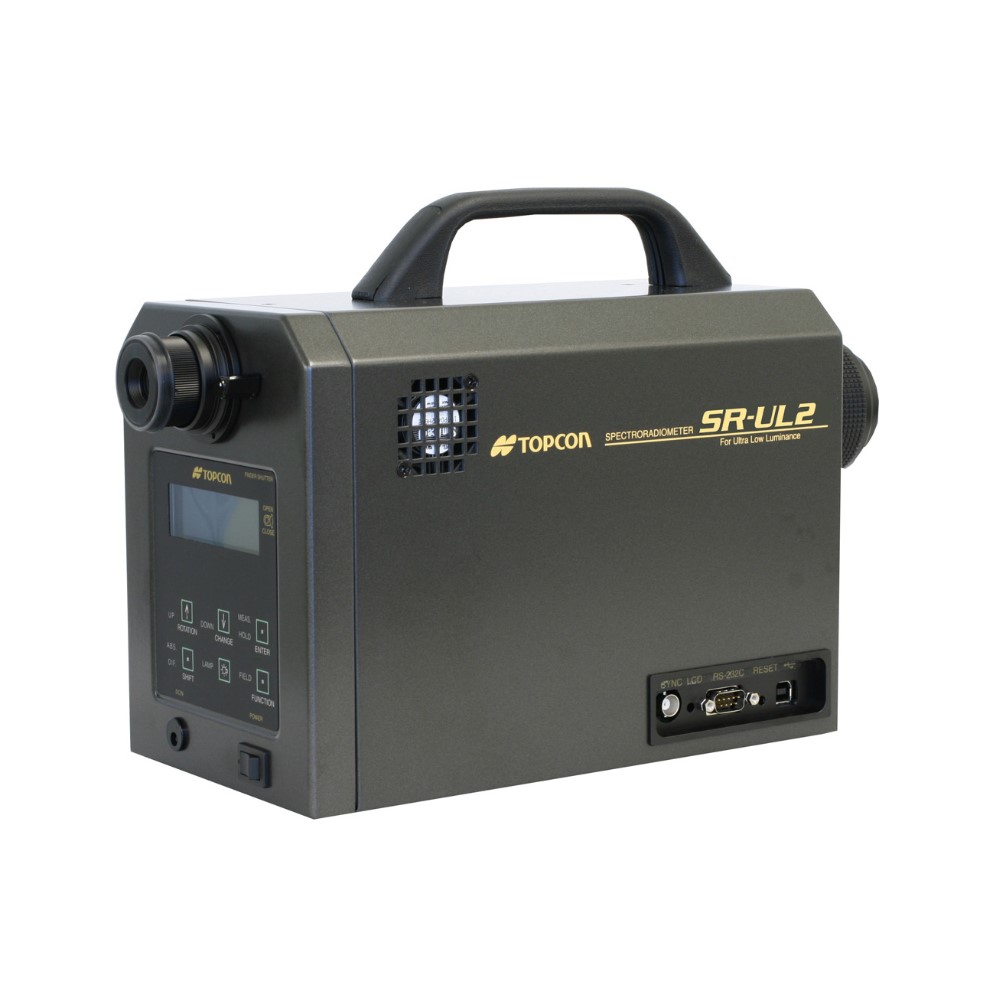

This product moves up sensitivity and measuring speed compared with current model SR-UL1R.
This SR-UL2 is the measuring instrument suitable for measuring Mega-contrast FPD, whose measuring range from 0.0005 to 300,000 cd/m² and lowest measurable luminance up to 0.0005cd/m².
The measuring time is about 17sec at 0.005cd/m², which is the fastest level in the measuring instrument field.
This product can be used for not only design and development department but also quality control in the production line.
FEATURES
- Ultra-low luminance measurement.(0.0005 cd/m² or more)
- High sensitivity and wide dynamic range.(0.0005 – 300,000cd/m²)
- Luminance and chromaticity in small area can be measured without attachment lens.
- The stable measured value are obtained even when measuring frequency light source.
- Communication between the SR-UL2 and PC is accelerated with USB and STB command.
- Application soft CS-900A is standard accessories.
PRINCIPAL USE
- A various of flat panel display, FPD related materials.
- Outdoor billboard, Digital signage.
- Automobile instrument panel, audio, lamp and operating panel.
- Traffic sign, Traffic light.
- Generic illumination, Special illumination.
SPECIFICATIONS
| Photo detector | Electronically cooled linear CCD |
|---|---|
| Dispersion element | Diffraction grating |
| Optical system | Object lens : f= 82mm F2.5, Eyepiece lens : 5° view field |
| Measuring angle | 2°/1°/0.2°/0.1° Selectable (Electric motor drive) |
| Minimum measuring area | 2°: 10.0 mmφ 1°: 4.99 mmφ 0.2°: 1.0 mmφ 0.1°: 0.5 mmφ |
| Measuring distance | 350mm – ∞ (Distance from metallic tip of objective lens) |
| Spectral bandwidth | 5 – 8nm *Half bandwidth |
| Spectral accuracy | ±0.3nm *Hg emission lamp |
| Wavelength range | 380 – 780nm |
| Wavelength resolution | 1nm |
| Measurement mode | Auto/Manual (Integral time/Frequency) External vertical sync signal input |
| Measurement object | Spectral radiance : W･sr-1･m-2･nm-1 |
| Measuring function | Radiance Le : W･sr-1･m-2, Luminance Lv : cd･m-2, CIE1931 chromaticity coordinates xy, CIE1976 chromaticity coordinates u’ v’, Tristimulus value XYZ, Correlated color temperature and Deviation, CIE standard observer 2°/ 10° |
| Measuring luminance range(*1) (*2) | 2°：0.0005 – 3,000 cd/m2 1°：0.0015 – 9,000 cd/m2 0.2°：0.0375 – 70,000 cd/m2 0.1°： 0.15 – 300,000 cd/m2 |
| Accuracy : luminance(*1) | ±2% or less |
| Accuracy : chromaticity (*1) | ±0.002 |
| Repeat accuracy : luminance(*3) | 1.5% : 0.0005 – 0.005 cd/m² 0.4% : 0.005 – 0.1 cd/m² 0.3% : 0.1 cd/m² or more |
| Repeat accuracy : chromaticity(*4) | 0.005 : 0.0005 – 0.005 cd/m² 0.0015 : 0.005 – 0.1 cd/m² 0.0005 : 0.1 cd/m² or more |
| Polarization characteristics | Luminance 1％ or less Spectral radiance 2％ ore less (400 – 780nm) |
| Measurement time(*5) | NORMAL Mode : Approx. 1 – 248sec HIGH SPEED Mode: Approx. 1 – 17sec |
| Interface | USB2.0 / RS-232C selectable |
| Power supply | Dedicated AC adapter AC100V-240V, 50/60Hz, DC12V |
| Power consumption | Approx. 36W |
| Operating conditions | Temperature: 5 – 30℃, Humidity: 80%RH or less (No condensation) |
| External dimensions (W×D×H) | 150×406×239mm |
| Weight | Approx. 5.5kg |
*1 For standard illuminance A.
*2 Measurable range in Normal and High speed mode.
*3 2σ from 10 times continuous measurement at measuring angle 2° in normal speed mode.
*4 (Max – Min) value from 10 times continuous measurement at measuring angle 2°in normal mode.
*5 Except communication time with PC.
MEASUREMENT AREA
| Measurement angle |
Measurement distance [mm] * | ||||
|---|---|---|---|---|---|
| 350 | 500 | 800 | 1000 | 2000 | |
| 2° | 10.0 | 15.1 | 25.4 | 32.2 | 66.4 |
| 1° | 4.99 | 7.55 | 12.7 | 16.1 | 33.2 |
| 0.2° | 1.00 | 1.51 | 2.54 | 3.22 | 6.64 |
| 0.1° | 0.50 | 0.76 | 1.27 | 1.61 | 3.32 |
* The measurement distance is the distance from the tip of the metal fixture on the instrument of the objective lens.
ACCESSORIES
- Attachment Lens : AL-6
- Attachment Lens : AL-11
- Attachment Lens : AL-12
- Reference White Board : WS-3
- CCD Adapter : IA-2
- Fiber probe : FP-3P
- Tripod 5N : Tripod 5N
- Tripod : Tripod-SR
- Fine Control Table : S-4
- Neutral Density Filter : ND-10/100
- Illuminance Adapter : ZV-30
