Recently, demands for measuring near-infrared spectral region have increased, however, especially in
FPD and lighting market, there is not handy and high accuracy measuring instrument.

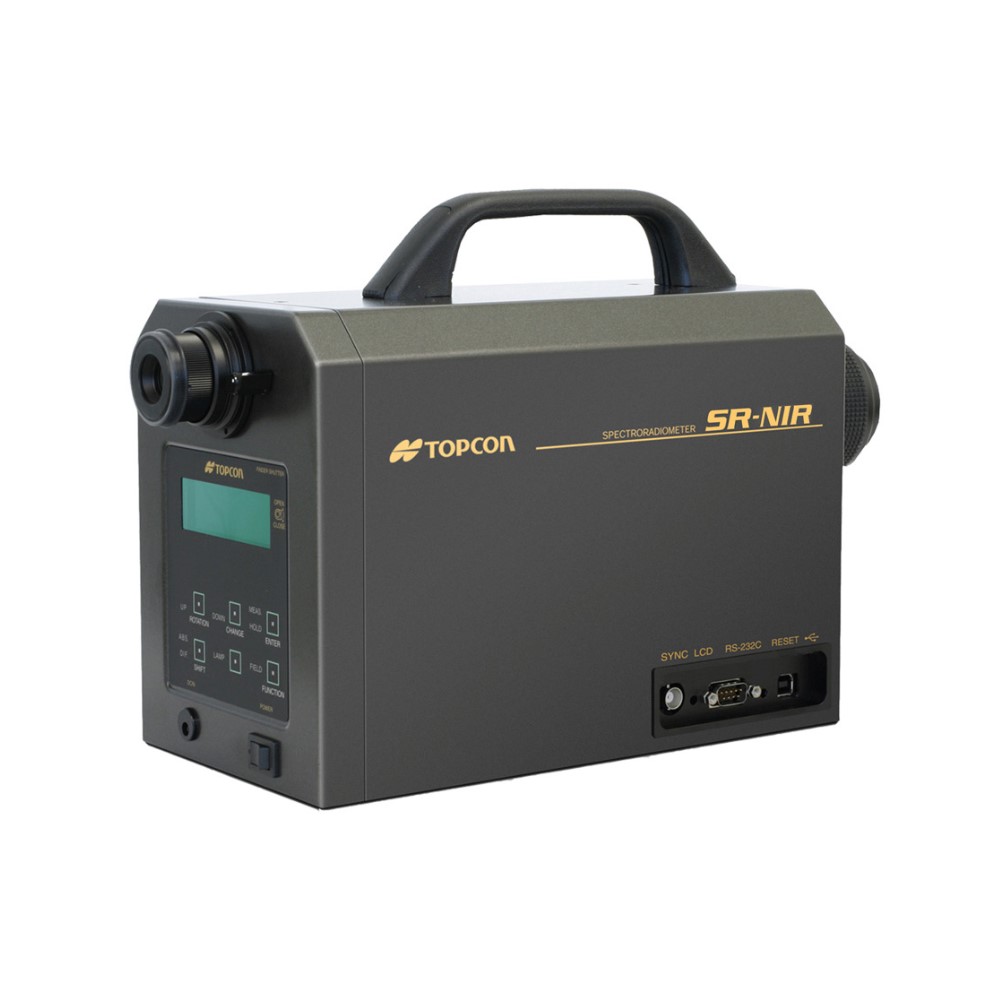

Under these circumstances, we have developed NIR Spectroradiometer SR-NIR based on technology of
our famous SR-3AR.
And, you can measure Spectral radiance from 380nm to 1030nm using by both other SR series and SR-NIR.
FEATURES
- Measurable ultra weak optical signal of near-infrared spectral region from flat panel display
- High accuracy measuring of near-infrared spectral region.
- Measurable near-infrared spectral form 380nm to 1030nm using by both other SR series and SR-NIR.
PRINCIPAL USE
- For measuring near infra-infrared spectral region from FPD such as LCD and OLED.
- For measuring Ne, Ar line spectra.
- For measuring transmission characteristics of film sheet in near-infrared spectral region.
- Near-infrared spectral region from other light source.
SPECIFICATIONS
| Photo detector | Electronically cooled linear CCD |
|---|---|
| Dispersing element | Diffraction grating |
| Optical system | Object lens : f= 82mm F2.5, Eyepiece lens : 5° view field |
| Measurement angle | 2°/1°/0.2°/0.1° Selectable (Electric motor drive) |
| Minimum measurement area | 2°: 10.0 mmφ 1°: 4.99 mmφ 0.2°: 1.0 mmφ 0.1°: 0.5 mmφ |
| Measurement distance | 350mm – ∞ (Distance from metallic tip of objective lens) |
| Wavelength range | 600 – 1030nm |
| Spectral bandwidth | 6 – 8nm (Half bandwidth) |
| Wavelength resolution | 1nm |
| Measurement mode | Auto/Manual (Integral time/frequency) |
| Measurement object | Spectral radiance : W･sr-1･m-2･nm-1 |
| Calculation function | Spectral radiance : 600 – 1030nm |
| Measurement range(*1) | 2° : 0.5 – 3,000 cd/m2 1° : 1 – 9,000 cd/m2 0.2° : 20 – 70,000 cd/m2 0.1° : 100 – 300,000 cd/m2 |
| Repeatability(*2) | ±2% or less |
| Polarization error | Spectral radiance 5％ or less |
| Calibration standard | Topcon standard lamp (Standard illuminant A, 23℃±3℃, 65%RH or less) |
| Measurement time(*3) | Approx. 1 – 31 sec |
| Interface | RS-232C, USB 2.0 |
| Power supply | Dedicated AC adapter AC100V-240V, 50/60Hz, |
| Power consumption | Approx. 34W |
| Use conditions | Temperature: 5 – 35℃, Humidity: 80%RH or less (No condensation) |
| Outer dimensions (W×D×H) | 150×406×239mm |
| Weight | Approx. 5.5kg |
*1 This product is no brightness measurement, so this is the reference data for standard illuminant A.
*2 Wavelength is from 600 to 1030nm, For TOPCON standard illuminant.
*3 Except communication time with PC.
Measurement area
| Measurement angle |
Measurement distance [mm] * | ||||
|---|---|---|---|---|---|
| 350 | 500 | 800 | 1000 | 2000 | |
| 2° | 10.0 | 15.1 | 25.4 | 32.2 | 66.4 |
| 1° | 4.99 | 7.55 | 12.7 | 16.1 | 33.2 |
| 0.2° | 1.00 | 1.51 | 2.54 | 3.22 | 6.64 |
| 0.1° | 0.50 | 0.76 | 1.27 | 1.61 | 3.32 |
* The measurement distance is the distance from the tip of the metal fixture on the instrument of the objective lens.
ACCESSORIES
- Attachment Lens : AL-6
- Attachment Lens : AL-11
- Attachment Lens : AL-12
- CCD Adapter : IA-2
- Fiber probe : FP-3P
- Tripod 5N : Tripod5N
- Tripod : Tripod-SR
- Fine Control Table : S-4
