Recently, a quality and functional of display has been increased, the needs for more sophisticated instrument is growing.
This product features highly accurate and high-speed measurement, so it can be used to complete a wide variety of needs.

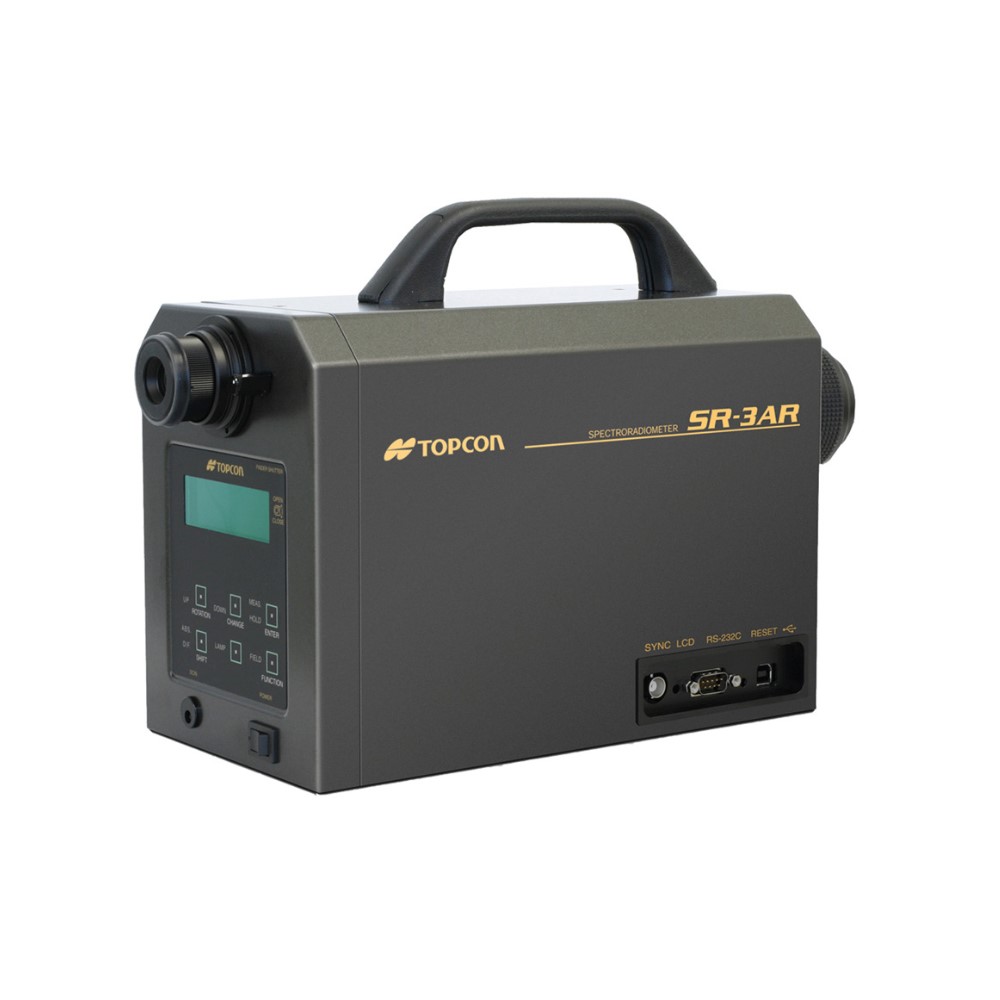

The SR-3AR replaces SR-3A/SR-3A-L1 with enhancement of measurement range and stability.
FEATURES
High accuracy with spectrophotometry and high-speed measurement.
Luminance and chromaticity in small area can be measured without attachment lens.
Measurement angle are selectable from 2°/ 1°/ 0.2°/ 0.1°)
The stable measured value are obtained even when measuring frequency light source.
Communication between the SR-3AR and PC is accelerated with USB and STB command.
Application soft CS-900A is standard accessories.
PRINCIPAL USE
A various of flat panel display, FPD related materials.
Outdoor billboard, Digital signage.
Automobile instrument panel, audio, lamp, operating panel.
Traffic sign, Traffic light.
Generic illumination, Special illumination.
SPECIFICATIONS
| Photo detector | Electronically cooled linear CCD |
|---|---|
| Dispersion element | Diffraction grating |
| Optical system | Object lens : f= 82mm F2.5, Eyepiece lens : 5° view field |
| Measuring angle | 2°/1°/0.2°/0.1° Selectable (Electric motor drive) |
| Minimum measuring area | 2°: 10.0 mmφ 1°: 4.99 mmφ 0.2°: 1.0 mmφ 0.1°: 0.5 mmφ |
| Measuring distance | 350mm – ∞ (Distance from metallic tip of objective lens) |
| Spectral bandwidth | 5 – 8nm *Half bandwidth |
| Spectral accuracy | ±0.3nm *Hg emission lamp |
| Wavelength range | 380 – 780nm |
| Wavelength resolution | 1nm |
| Measurement mode | Auto/Manual (Integral time/Frequency) External vertical sync signal input |
| Measurement object | Spectral radiance : W･sr-1･m-2･nm-1 |
| Measuring function | Radiance Le : W･sr-1･m-2, Luminance Lv : cd･m-2, CIE1931 chromaticity coordinates xy, CIE1976 chromaticity coordinates u’ v’, Tristimulus value XYZ, Correlated color temperature and Deviation, CIE standard observer 2°/ 10° |
| Measuring luminance range(*1) (*2) | 2°：0.1 – 3,000 cd/m2 1°：0.3 – 9,000 cd/m2 0.2°：7.5 – 70,000 cd/m2 0.1°： 30 – 300,000 cd/m2 |
| Accuracy : luminance(*1) | ±2% or less |
| Accuracy : chromaticity(x,y) (*1) | ±0.002 |
| Repeat accuracy : luminance(*3) | 0.3% (0.1cd/m² or more) |
| Repeat accuracy : chromaticity(*4) | 0.0005 (0.1cd/m² or more) |
| Polarization characteristics | Luminance 1％ or less Spectral radiance 2％ or less (400 – 780nm) |
| Measurement time(*5) | NORMAL Mode : Approx. 1 – 31sec HIGH SPEED Mode: Approx. 1 – 17sec |
| Interface | USB2.0 / RS-232C selectable |
| Power supply | Dedicated AC adapter AC100V-240V, 50/60Hz, DC12V 36W |
| Power consumption | Approx. 34W |
| Operating conditions | Temperature: 5 – 35℃, Humidity: 80%RH or less (No condensation) |
| External dimensions (W×D×H) | 150×406×239mm |
| Weight | Approx. 5.5kg |
*1 For standard illuminance A.
*2 Measurable range in Normal and High speed mode.
*3 2σ from 10 times continuous measurement at measuring angle 2° in normal speed mode.
*4 (Max – Min) value from 10 times continuous measurement at measuring angle 2° in normal mode.
*5 Except communication time with PC.
MEASUREMENT AREA
| Measuring angle |
Measuring distance [mm]* | ||||
|---|---|---|---|---|---|
| 350 | 500 | 800 | 1000 | 2000 | |
| 2° | 10.0 | 15.1 | 25.4 | 32.2 | 66.4 |
| 1° | 4.99 | 7.55 | 12.7 | 16.1 | 33.2 |
| 0.2° | 1.00 | 1.51 | 2.54 | 3.22 | 6.64 |
| 0.1° | 0.50 | 0.76 | 1.27 | 1.61 | 3.32 |
* The measurement distance is the distance from the tip of the metal fixture on the instrument of the objective lens.
ACCESSORIES
Attachment Lens : AL-6
Attachment Lens : AL-11
Attachment Lens : AL-12
Reference White Board : WS-3
CCD Adapter : IA-2
Fiber probe : FP-3P
Tripod 5N : Tripod5N
Tripod : Tripod-SR
Fine Control Table : S-4
Neutral Density Filter : ND-10/100
Illuminance Adapter : ZV-30
