VA-1830
HDMI Source Tester

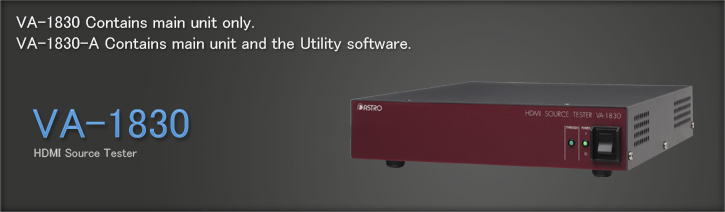

VA-1830 Contains main unit only.
VA-1830-A Contains main unit and the Utility software

Key Features

HDMI 1.3a based
Tests HDMI sources: DVD/Blu-ray players, set-top boxes, AV amplifiers, notebook PCs and digital cameras.



[R&D and Quality Assurance]

Users use it as a simple HDMI protocol analyzer.

  • Video, Audio and InfoFrame can be checked.
  • DDC and CEC line monitoring by “Through mode”





[Test Items]

  • 36-bit video data
  • Audio data (L-PCM level and frequency)
  • DDC (HDCP) and CEC line – VA-1830 is controlled by PC only. ASTRODESIGN provides terminal commands as standard option.

[Option]

Utility software to monitor DDC line (included with the VA-1830-A).



SPECIFICATIONS

VA-1830
HDMI Dot Clock 25 to 165MHz
Input/Output Transfer Rate 25MHz to 225MHz (in case of 12-bit/150MHz)
Deep Color 8, 10 and 12-bit
Color Space RGB/YCbCr 4:4:4/YCbCr 4:2:2
In/Output signal TMDS
HDCP Acceptable (Ver.1.3)
I2S/SPDIF 8-ch
DSD 8-ch		 Max.192kHz
Receiving only
HBR Receiving only
DDC DDC2B supported
E-EDID Ver.1.3
CEA EDID Timing Extension CEA-861-E
External Controls
RS-232C Baud rate 9600bps
LAN 10/100BASE-T
USB Host, Device
General Specıfıcatıon
Voltage AC100～AC240V (50/60Hz)
Power Consumption 10Ｗ (MAX)
Operating Temperature
Range		 +5 to 40℃ (no condensation)
Operating Humidity
Range		 30 to 85％RH (no condensation)
Dimensions 210(Ｗ) x 44(Ｈ) x 240(Ｄ) mm
(excluding protusions)
Weight Approx.2 ㎏
