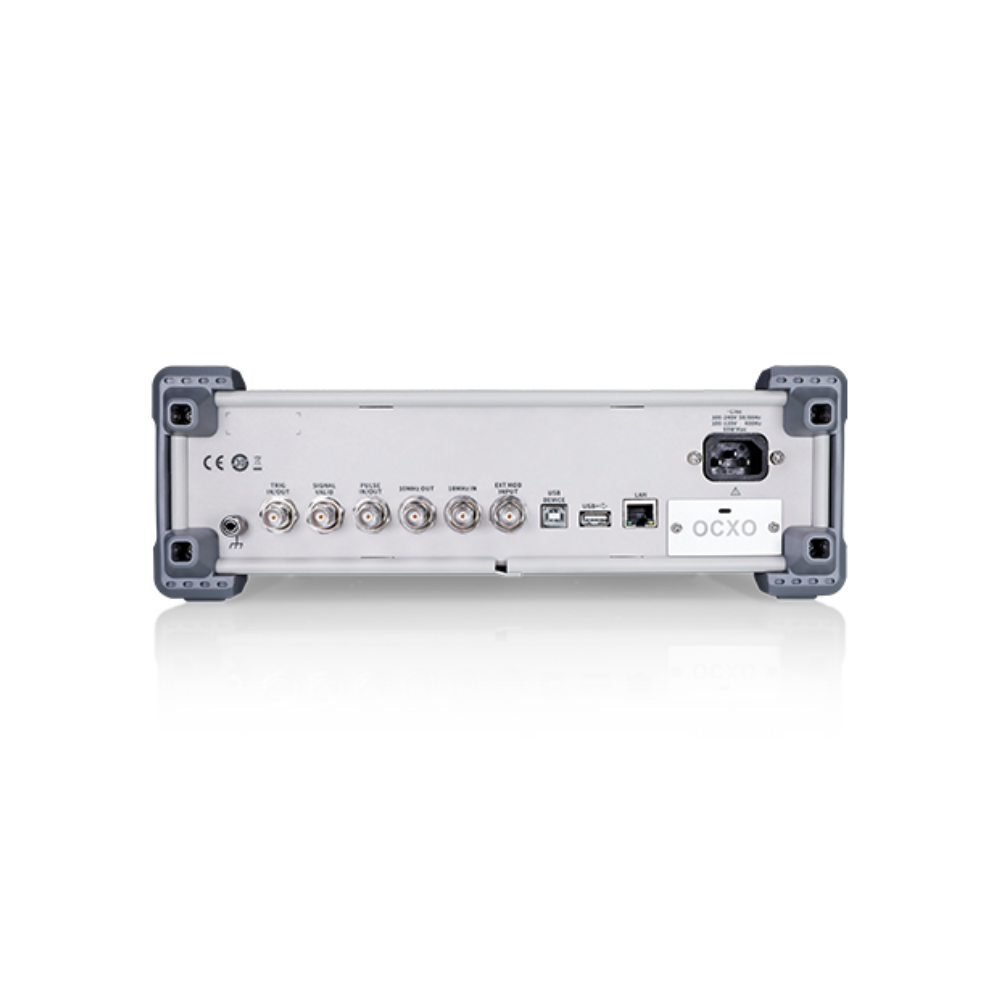

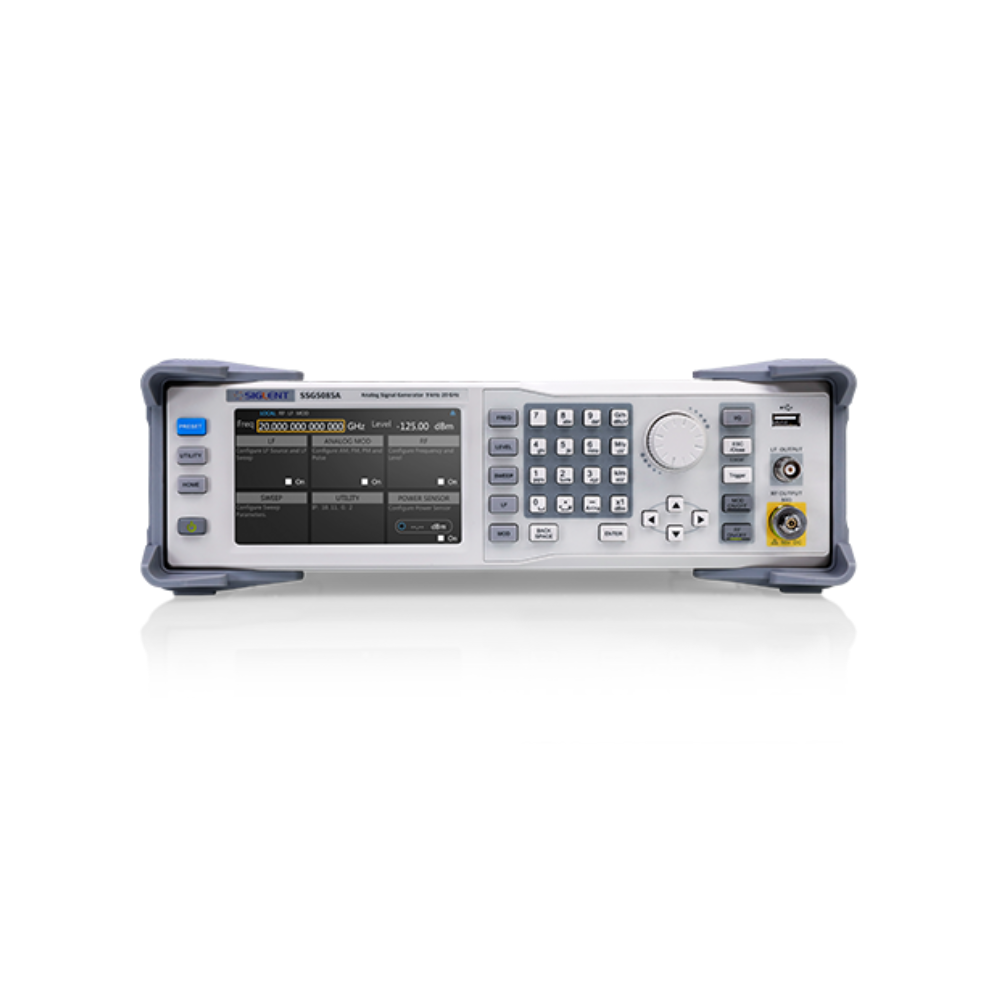

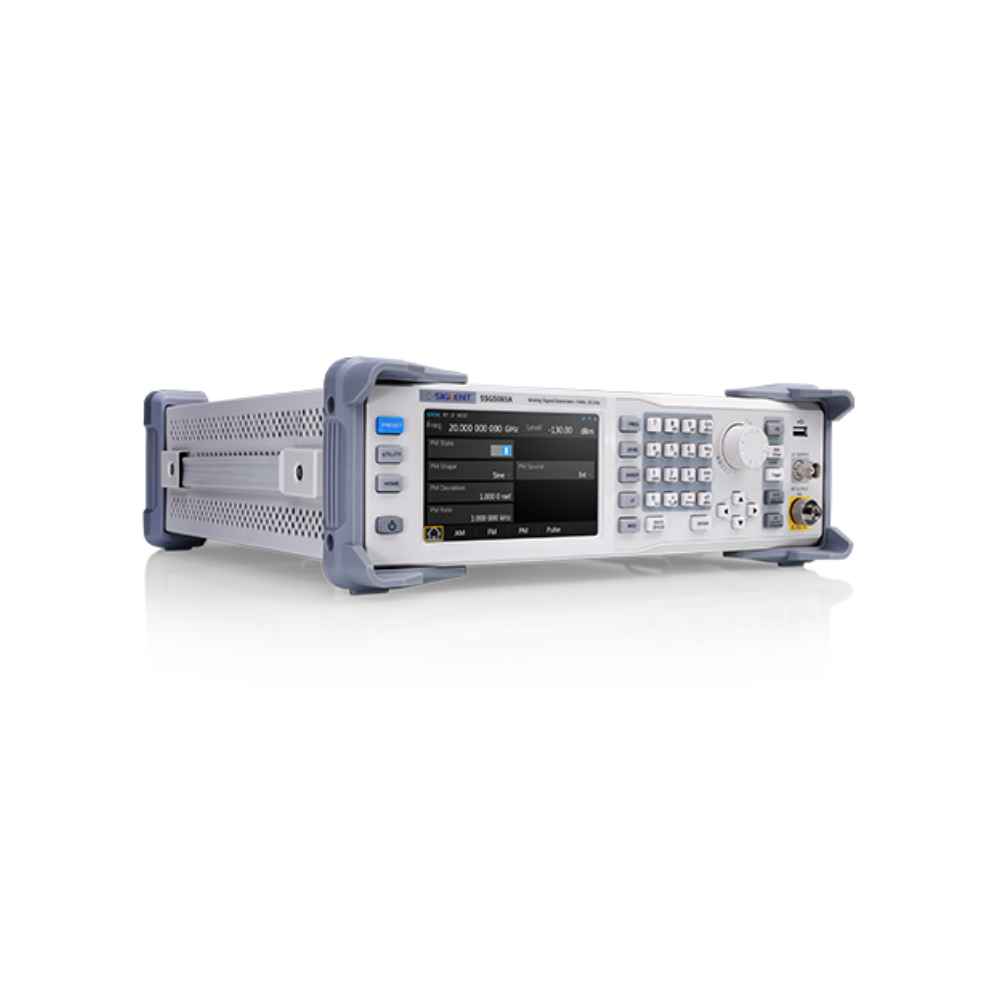

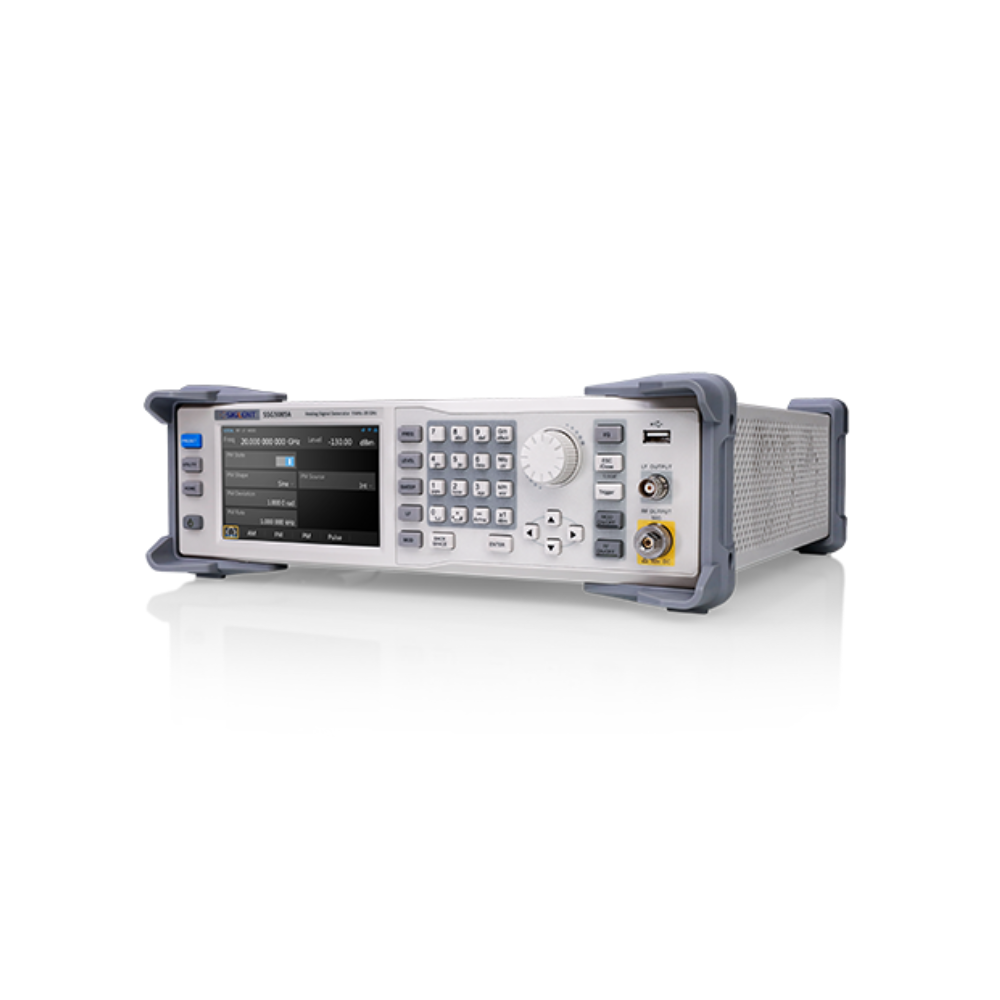

SSG5000A Series
RF Signal Generator

Main Features

Frequency up to 13.6 GHz / 20 GHz
0.001 Hz frequency setting resolution
Level setting range: -130 dBm ~ 25 dBm
Phase Noise: -120 dBc / Hz @ 1 GHz, 20 kHz offset (typ.)
Level error ≤ 0.7 dB (typ.)
Provides AM, FM, PM analog modulation with internal, external or Int+Ext source
Single pulse, double pulse and pulse train generator (opt.)

OVERVIEW

Wide-ranging application

SSG5083A/SSG5085A microwave signal generator’s output frequency range from 9 kHz to 13.6/20 GHz, supports AM & FM & PM modulation, pulse modulation, pulse sequence generator, power meter control and other functions. With standard OCXO reference hardware module inside ensures high precision and high stability signal output. It is designed for communication, aerospace, national defense and other fields. And it is suitable for various application scenarios such as R&D and production.

Pulse generator

Standard pulse generator function, with a minimum pulse width of 20 ns. The optional pulse train generator function can simulate complex pulse scenes, and the number of pulses is 1-2047.

Specifications

Frequency range	CW MODE 9 kHz~ 13.6 GHz/20 GHz
Frequency resolution	0.001 Hz
Amplitude Resolution	0.01 dB
Phase noise	-120 dBc/Hz offset 20 kHz @1 GHz（typ.）
Level error	≤0.7 dB（typ.）
modulation	AM & FM & PM modulation, pulse modulation,

Level setting range	-130 dBm~+25 dBm
Maximum output power	+23 dBm
other characteristics	Pulse generator，Pulse train generator
Display	5 inch capacitance touch screen, RGB (800*480)
Interface	Standard：USB-HOST, USB DEVICE (USBTMC), LAN (VXI-11,10/100Base，RJ-45)； Option：GPIB

MODEL

Model	Frequency range	Frequency Resolutıon	IQ modulatıon	Max output power	Phase noıse	Dısplay
SSG5083A	9 kHz ~ 13.6 GHz	0.001 Hz	0.01 dB	≤ 0.7 dB(typ.)	-120 dBc/Hz @1 GHz, offset 20 kHz (typ.)	5 inch capacitance touch screen, RGB (800*480)
SSG5085A	9 kHz ~ 20 GHz	0.001 Hz	0.01 dB	≤ 0.7 dB(typ.)	-120 dBc/Hz @1 GHz, offset 20 kHz (typ.)	5 inch capacitance touch screen, RGB (800*480)
