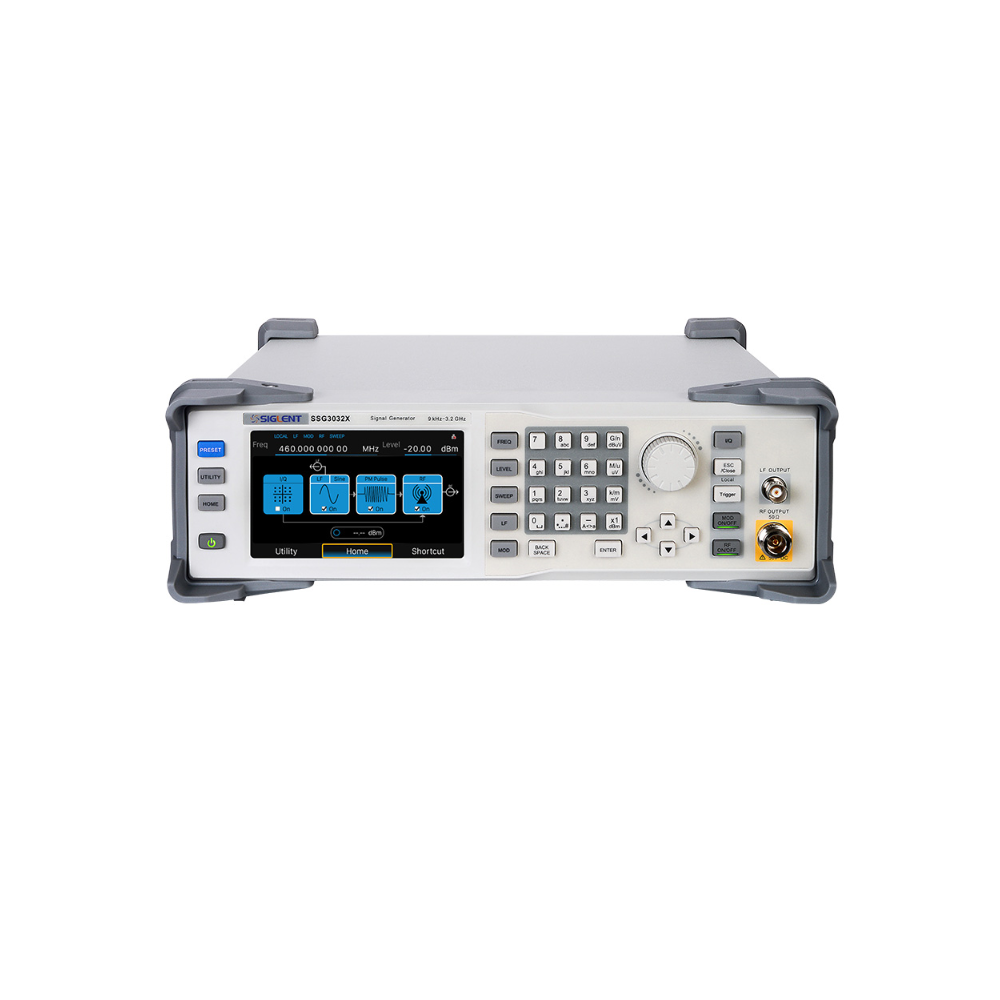

SSG3000X Series
RF Generator

Main Features

  • Frequency up to 2.1 GHz / 3.2 GHz
  • Maximum level up to +20 dBm  (typ.)
  • Level output from -110 dBm to +13 dBm
  • Level accuracy ≤0.7 dB  (typ.)
  • Standard AM & FM & PM & pulse modulation

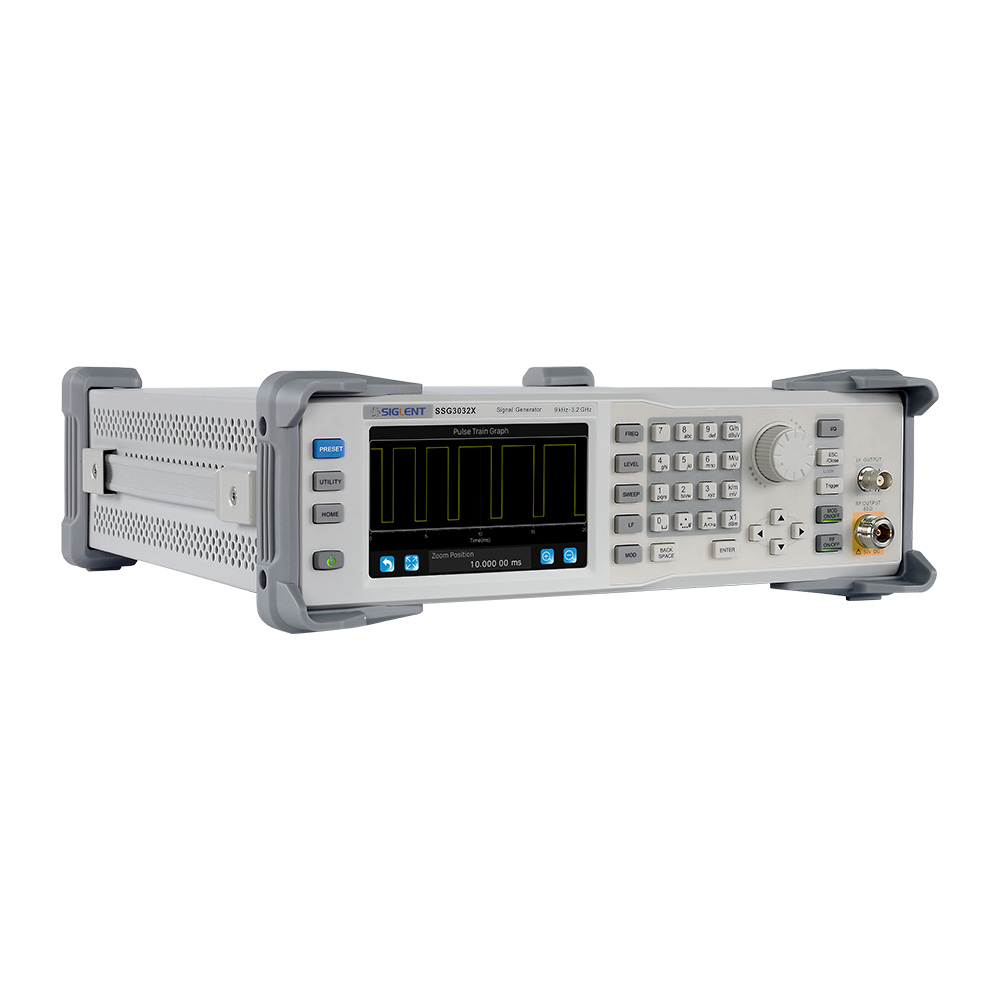

  • Pulse train Generator  (optional)
  • External IQ signal Generator （optional）

OVERVIEW

Section with Image right

Lorem ipsum dolor sit amet, consectetuer adipiscing elit, sed diam nonummy nibh euismod tincidunt ut laoreet dolore magna aliquam erat volutpat.

Section with image left

Lorem ipsum dolor sit amet, consectetuer adipiscing elit, sed diam nonummy nibh euismod tincidunt ut laoreet dolore magna aliquam erat volutpat.

Section with Image right

Lorem ipsum dolor sit amet, consectetuer adipiscing elit, sed diam nonummy nibh euismod tincidunt ut laoreet dolore magna aliquam erat volutpat.

Specifications

Frequency(Max.) 2.1 GHz/3.2 GHz
Frequency Resolution 0.01 Hz
Level setting range +13 dBm ~ -110 dBm
Phase Noise -110 dBc/Hz @1 GHz ,offset 20 kHz (typ.)
Level Accuracy 0.7 dB (typ.)
Modulation types AM/FM/PM,Pulse,I/Q
Display TFT LCD, RGB (800*480), 5 inch capacitive touch screen

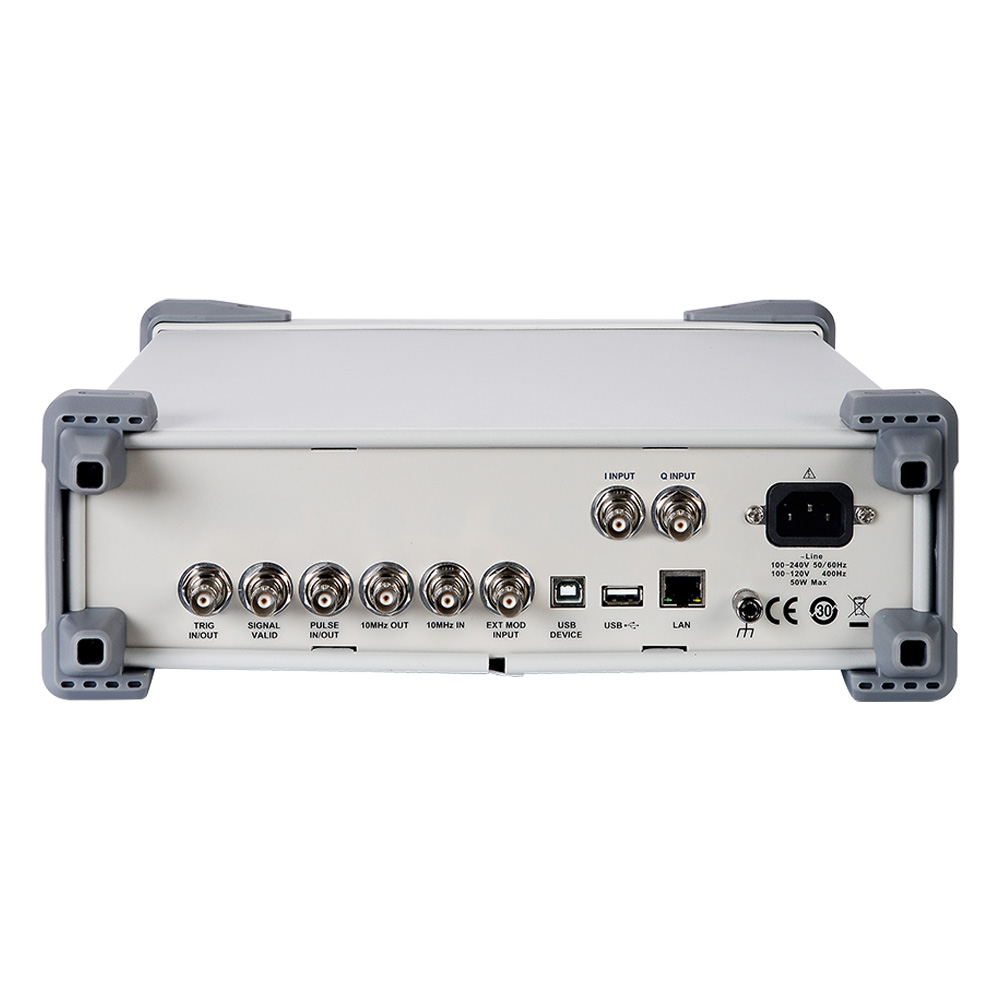

Interface Standard：USB-HOST, USB DEVICE (USBTMC), LAN (VXI-11,Socket,Telnet)；
Option：GPIB

MODEL

Model
 Frequency range
Frequency resolutıon
 IQ modulatıon Max output power Phase noıse Dısplay
SSG3032X
 9 kHz ~ 3.2 GHz 0.01 Hz NO +20 dBm 110 dBc/ Hz @ 1 GHz , 20 kHz offset (typ.) 5 inch TFT capacitive touch screen，RGB (800*480)
SSG3021X
9 kHz ~ 2.1GHz
 0.01 Hz NO +20 dBm -110 dBc/ Hz @ 1 GHz , 20 kHz offset (typ.) 5 inch TFT capacitive touch screen，RGB (800*480)
SSG3032X-IQE 9 kHz ~ 3.2 GHz 0.01 Hz YES +20 dBm -110 dBc/ Hz @ 1 GHz , 20 kHz offset (typ.) 5 inch TFT capacitive touch screen，RGB (800*480)
SSG3021X-IQE
9 kHz ~ 2.1GHz
 0.01 Hz YES +20 dBm -110 dBc/ Hz @ 1 GHz , 20 kHz offset (typ.) 5 inch TFT capacitive touch screen，RGB (800*480)

COMPARE

Comparatıve Data SSG3000X
Keysıght N9310A
R&S SMC100A
Frequency Range
9 kHz ~ 3.2 GHz
9 kHz ~ 3.0 GHz
9 kHz ~ 3.2 GHz
Frequency Resolutıon
0.01 Hz
0.1 Hz
0.001 Hz
Temperature stabılıty
1 ppm
1 ppm
2 ppm
Level Settıng Range
-110 dBm ~ + 13 dBm
-127 dBm – + 13 dBm
-120 dBm ~ + 13 dBm
Level Accuracy
< 0.7 dB
< 1 dB
< 0.9 dB
Phase Noıse
-110 dBc/Hz
-95 dBc/Hz
-111 dBc/Hz
Pulse Generator
 Standard
Not support
 Standard
Pulse traın Generator
 Support
Not support
Not support
IQ Modulatıon
 Support Support Support
Web Servıce
 Support
Not support
Not support
Interface
USB Host/Device,LAN,GPIB (option)
USB Host,USB Device
USB Host,USB Device，LAN
Dısplay
5 inch touch screen TFT-LCD（800*480）
LCD 640*480
LCD screen
