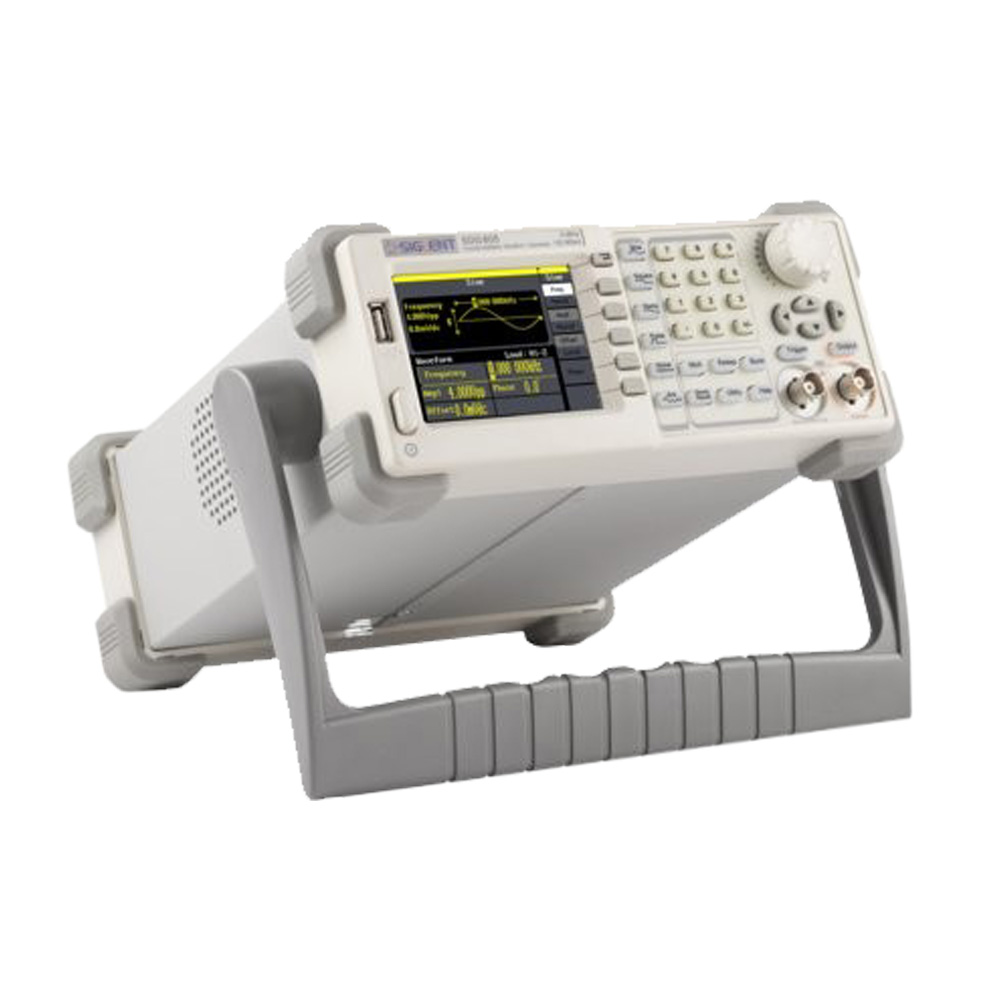

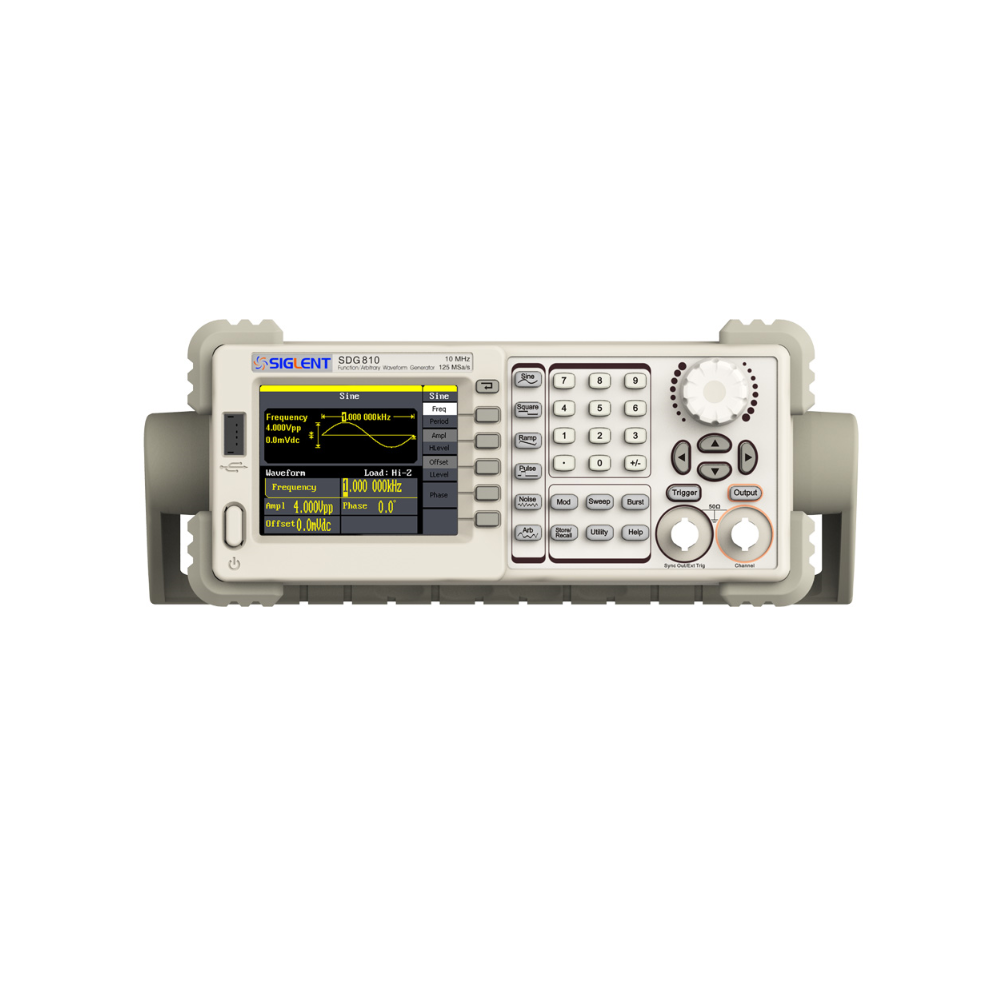

OVERVIEW
Multiple Types of Waveform Output
SDG800 supports Sine, Square, Pulse, Triangle, Gaussian White Noise and other waveforms output.
· Sine wave – maximum output frequency 30 MHz
· Square wave characteristics – duty cycle up to 20% -80%; rise time less than 24 ns
· Pulse characteristics – minimum pulse width 48 ns; rise/fall time down to 20 ns
· Triangle wave characteristics – symmetry 0% – 100%
· DC signal – 0 to ±10 V output
Innovative EasyPulse Technology
With traditional DDS technology, there will be a jitter of one sampling period when sampling rate and output frequency are not integer multiple. With EasyPulse technology, this can be solved perfectly. In addition to output low jitter Square and Pulse signals, EasyPulse tech has advantages by:
· Pulse frequency up to 5 MHz
· The rise and fall time can be set separately, fastest 20 ns
· Pulse width finely adjustable, down to 48 ns
· Low jitter
Complex Signal Generation Capability
The SDG800 has powerful waveform generation capabilities. It can implement various types of modulations, sweeps, burst output and signal synthesis. It supports internal, external, and manual trigger sources.
· Supports multiple modulations such as AM, FM, PM, FSK, ASK, DSB-AM and PWM
· Support linear and logarithmic sweep mode
· Support “N Cycle” and “Gate” burst mode
Arbitrary Waveform Output
· 16 kpts arbitrary waveform length
· 14 bit vertical resolution
· Built-in 46 kinds of arbitrary waveforms
· Standard powerful arbitrary waveform editing software, equipped with standard waveforms (Sine, Square, Ramp, Pulse, ExpRise, ExpFall, Sinc, Noise and DC) and manual, line, coordinates, formula to create arbitrary waveforms per your needs.
Specifications
| Bandwidth | 10 MHz、30 MHz |
| Sample Rate | 125 MSa/s |
| Channels | 1 |
| Arbitrary Waveform Length | 16 Kpts |
| Frequency Resolution | 1 μHz |
| Vertical Resolution | 14 bit |
| Waveform | Sine,Square,Ramp,Pulse,Gaussian white noise,46 types of built-in Arb |
| Max.Amplitude | ±10 V |
| Size | Width×Height×Depth=229 mm×105 mm×281 mm |

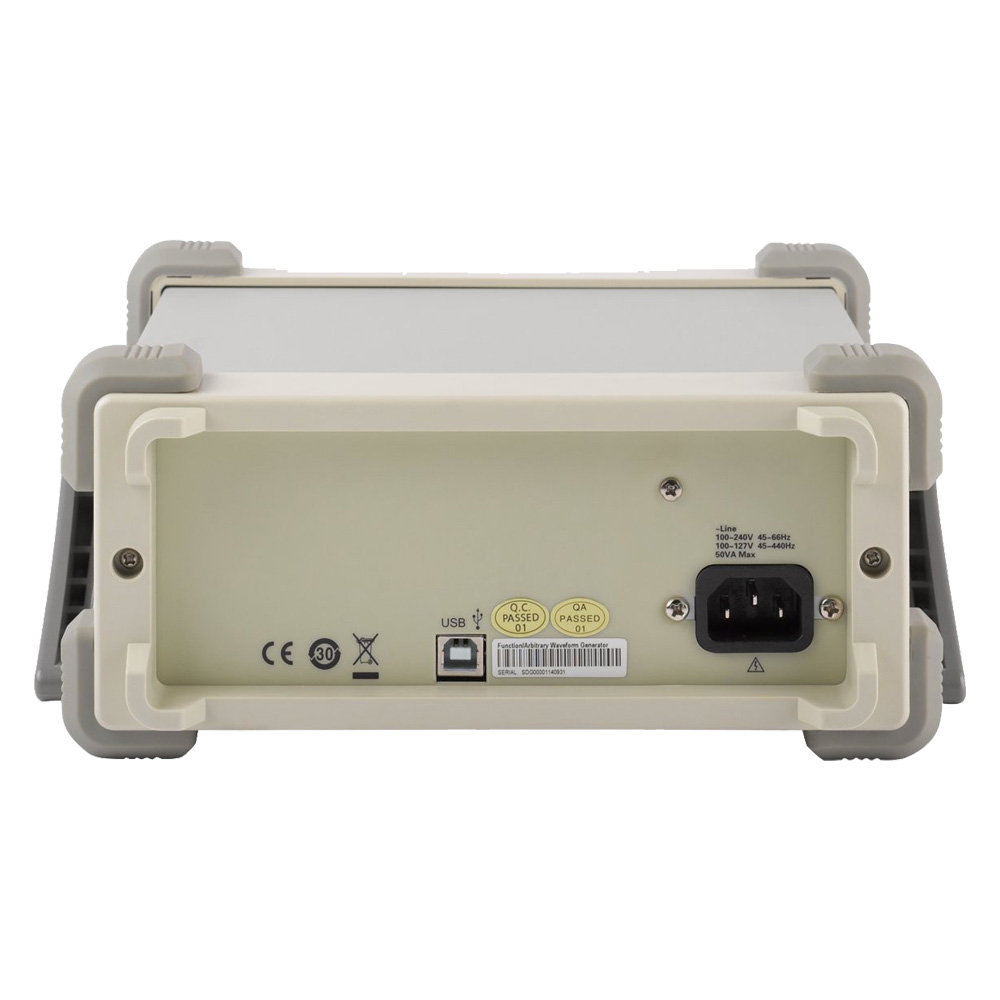

| Interface | USB Host, USB Device |
| Modulation Types | AM、 FM、PM、FSK、ASK、DSB-AM、PWM、Sweep、Burst |
