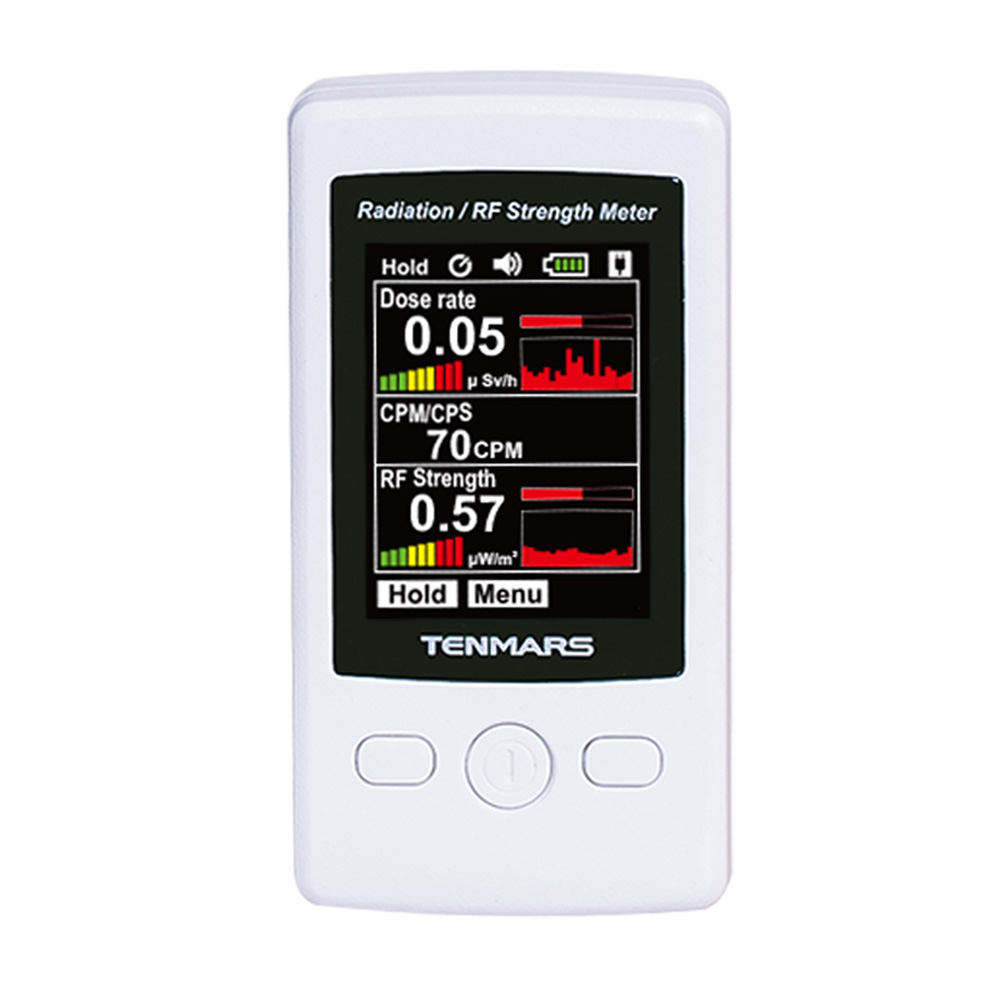

TM-93
Radiation / RF strength Meter

  • Radiation dose rate measurement.
  • CPS/CPM:
    Geiger Counter count per second (CPS)
    count per minute(CPM).
  • RF strength measurement

APPLICATION

  • Radiation dose rate measurement.。
  • CPS/CPM : Geiger Counter count per second (CPS) or count per minute(CPM).
  • RF strength measurement。
  • Languages : English; Traditional Chinese; Simplified Chinese; Japanese; Español.
  • Radiation dose rate alarm setting。
  • RF strength warning range settings.
  • Radiation dose rate audible alert measurement。
  • Calibration factor。

FEATURES

  • 2.4” 240*320 resolution color TFT,4 digital maximum display 3999.
  • Radiation dose rate unit: µSv/h or µRem/h。
  • Radiation dose unit:µsv or µRem。
  • RF Strength unit: Wave power density (uW/m² / mW/m²), wave power density (μW/cm²), electric field strength (mV/m / V/m), magnetic field strength (mA/m),power strength (dBm) five options.
  • Radiation dose and RF strength bar graph display.
  • Radiation dose and RF strength historical figure display:  20-set display

SPECIFICATIONS

  • Dimensions:115x60x31mm(length x width x height).
  • Weight: Approximately 170 grams.
Radiation Dose Rate and Dose
 Sample rate
 1 time/10 seconds or
 1 time/40 seconds
 Radiation sensor
 geiger-mueller tube
 Measurement Range
 0.05µSv/h~1400µSv/h
 5.00µRem/h~140mµRem
 Resolution
 0.01µSv/h
 0.01µRem/h
 Accuracy
 ±15% Cesium-137
 Gamma
 energy range
 10KeV~1.25 MeV
 X-rays
 energy range
 3KeV~3.0 MeV
 β-beta
 energy range
 25KeV~3.5 MeV
 CPM
 0~1999
 CPS
 0~212
 Dose logger interval
 1~999 days

RF Strength

 Sample rate
 1 times/10 seconds
 RF sensor
 Single axis sensor
 Measurement Range
 0.1 ~ 14.0 V/m
 Accuracy
 ±2dB at 2.45GHz
 Frequency Range
 50MHz to 3.5GHz
 Range
 (0.02uW/m² to 484.6uW/m²)
 (0.01uW/cm² to 45.3uW/cm²)
 (36.1mV/m to13.90V/m)
 (0.01mA/m to 30.01mA/m)
 (-46dBm to 16dBm)
 Resolution
 0.01µW/m²,0.01µW/cm²,
 0.2mV/m,0.02mA/m, 2dB

ACCESSORIES

  • Manual
  • 9V alkaline battery
  • Carrying case
