Wider display range and multiple frequency square wave options

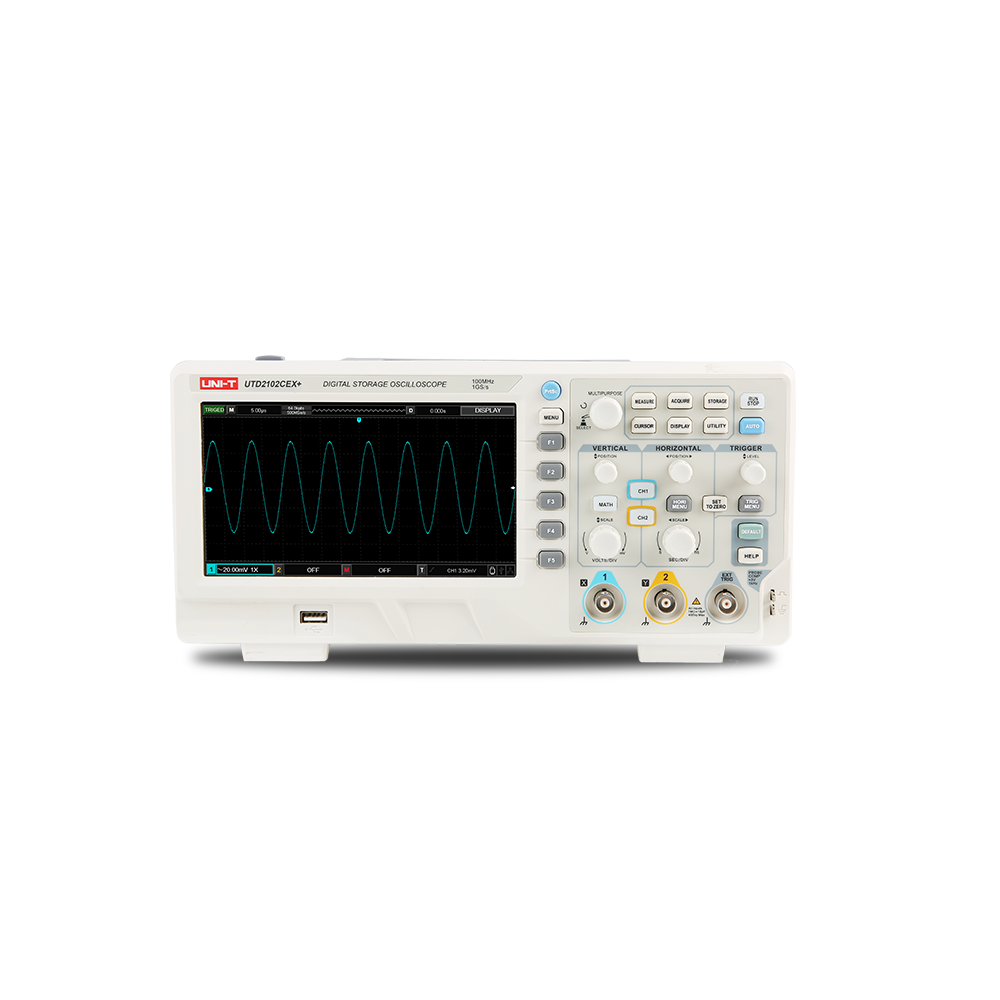

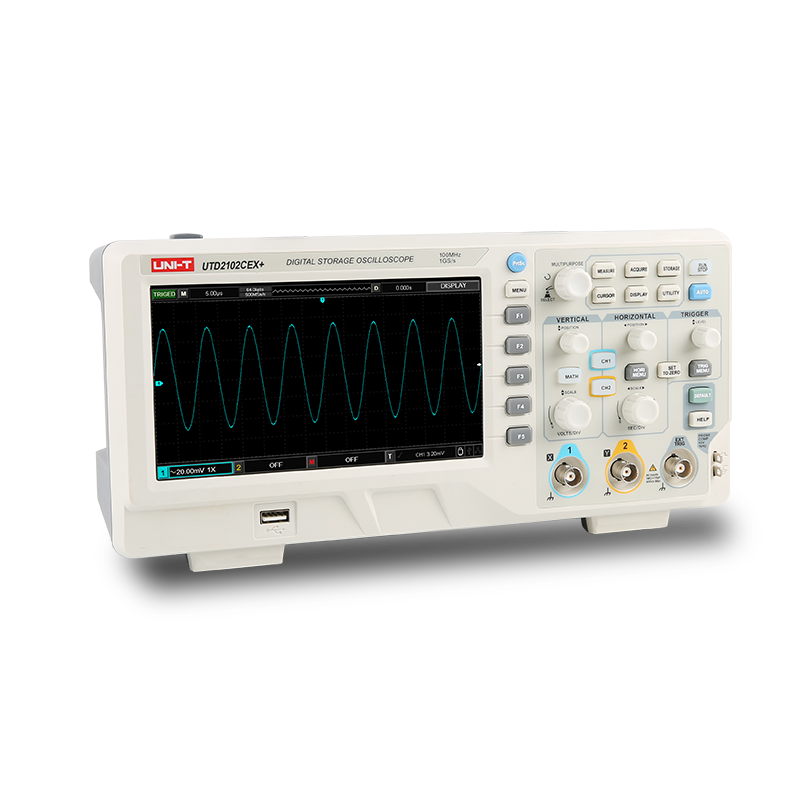

The UTD2000CEX+ series display range is 8divX16div,
and has a new AUTOSET strategy, which can easily cope
with complex test scenarios.
Multi-language optional, multi-frequency square wave optional
With 9 languages, it can meet the needs of users in more countries.
Output standard square wave 10Hz, 100Hz, 1kHz, 10kz optional.
Various parameter measurement and waveform recording functions
The UTD2000CEX+ series supports 34 kinds of automatic measurement functions
and waveform recording functions.which can record up to 1000 frames, and can
achieve better waveform analysis effects through playback and storage functions.
| Model | Bandwidth | Analog Channels | Real-Time Sample Rate | Max. Memory Depth | Waveform Capture Rate | Digital Channels | Waveform Generator |
|---|---|---|---|---|---|---|---|
| UTD2202CEX+ | 200 MHz | 2 | 1 GSa/s | 64 kpts | 5,000 wfms/s | – | – |
| UTD2102CEX+ | 100 MHz | 2 | 1 GSa/s | 64 kpts | 5,000 wfms/s | – | – |
| UTD2052CEX+ | 50 MHz | 2 | 1 GSa/s | 64 kpts | 5,000 wfms/s | – | – |
