APPLICATION
-
Test Pin Configuration for 10/100 Base-T Cable
-
10 Base-2 cable, RJ45/RJ11 modular cables
-
Verify cable continuity, open, short and miss wired
-
Auto and Manual Scan
-
Ground Wire Test
LC-90

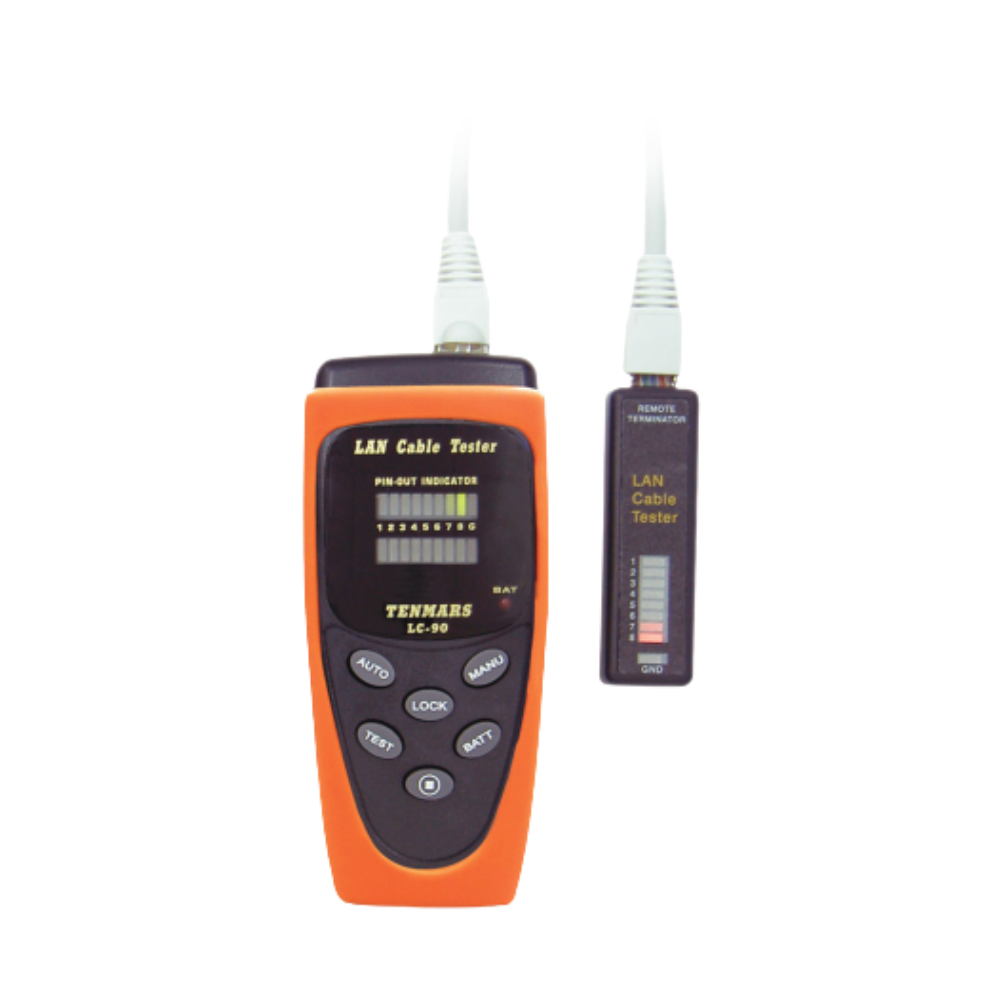

Lan Cable Tester
Test pin configuration for 10/100 base-T cable, 10 base-2 cable, RJ45/RJ11 modular cables, AT and T 258 A cable, EIA/TIA 568A/568B cables and Token Ring Cables etc.
FEATURES
-
LED display.
-
Test pin configuration for 10/100 base-T cable, 10 base-2 cable, RJ45/RJ11 modular cables, AT and T 258 A cable, EIA/TIA 568A/568B cables and Token Ring Cables etc.
-
Verify cable continuity, opens, shorts and miss-wired.
-
Auto and manual scan function.
-
Ground wire test.
-
Locked status wire function.
-
Buzzer sound warning for defective wire detected
-
Function Keys: ON/OFF, Test, Auto, Lock, Manual.
SPECIFICATIONS
|
Display
|
LED
|
|
Connectors
|
RJ-45 (8P8C) input/output
|
|
Power
|
9V 006P battery
|
|
Cable types
|
Unshielded twisted pair (UTP100,cat3,4 &5)
Foil-screened twisted pair (FTP100 and 120, cat3,4 &5)
Shielded twisted pair (STP150 IBM type 1&6)
|
|
Remote terminators
|
Sequence number#1
|
|
Function keys
|
ON-OFF, TEST, AUTO, LOCK, MANU, BATT
|
|
Dimension
|
130x56x38mm (LxWxH)
|
|
Weight
|
About 150g
|
|
Recognize wiring schemes
|
EIA /TIA-568A/B,USOC,10 (100)
Base/HUB,BNC/10 Base-2, 10 (100) Base-T, token ring
|
ACCESSORIES
-
User’s Manual
-
Carrying case
-
9V battery
-
One path cable(RJ-45 to RJ-45)
