DBSRX2 800
2300 MHz Rx

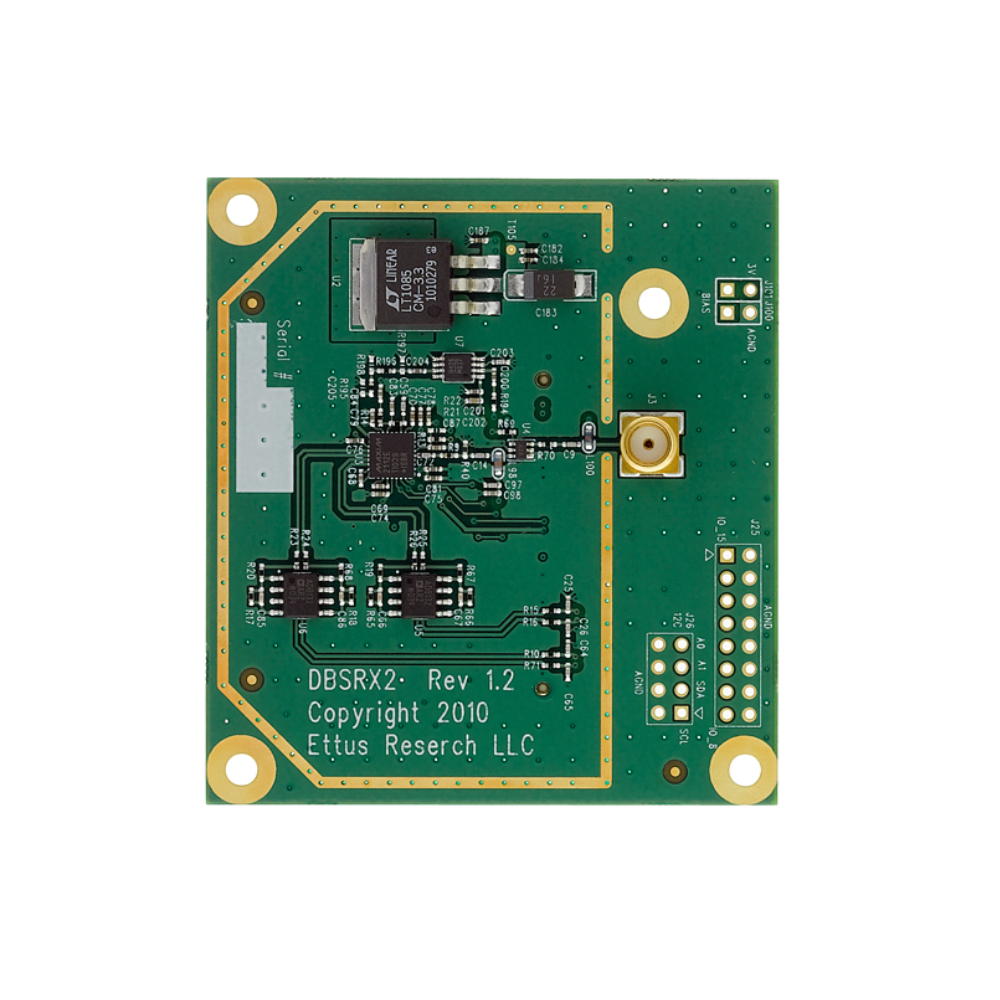

DBSRX2 USRP Daughterboard (800 MHz to 2.3 GHz)
The DBSRX2 is a configurable receiver that can operate from 0.8-2.3 GHz. The DBSRX2 has a programmable 1-60 MHz channel filter that allows users to serve a wide variety of applications while providing the appropriate level of selectivity in the analog path. The DBSRX2 is MIMO capable, and can also power an external LNA or active antenna. Example applications include 902-928 MHz ISM, cellular and PCS, hydrogen and hydroxyl astronomy bands, and DECT.

Note: The maximum operating frequency specification has been reduced from 2.4 to 2.3 GHz.
