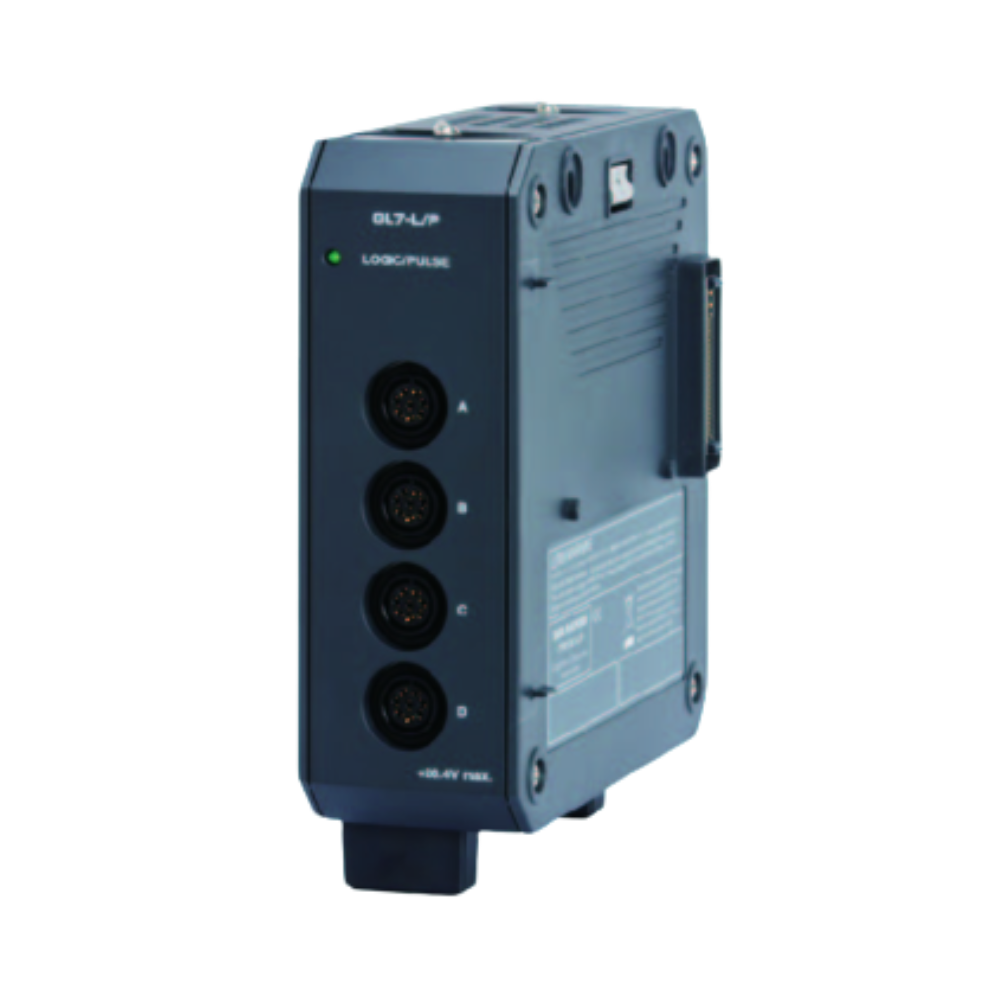

GL7-L/P
Logic / Pulse Module

This is a digital input module capable of measuring the timing of the control signals or the number of pulses.
In Logic mode: sampling in 1MS/s (1μs) to 1S/hr. (1hr.).

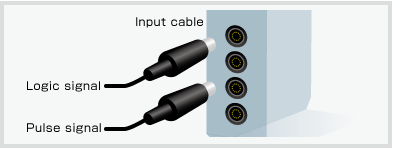

It is able to measure the timing of the control signals as the relay by this module. It allows to measure simultaneously both the timing of control signals and an analog waveform using other analog input modules.
In Pulse mode: sampling in 10kS/s (100μs) to 1S/hr.(1hr.) It is able to count the number of pulses for measuring such as the encoder output, a rotation speed, or flow rate. It allows to measure simultaneously both the number of pulses and an analog waveform using other analog input modules.

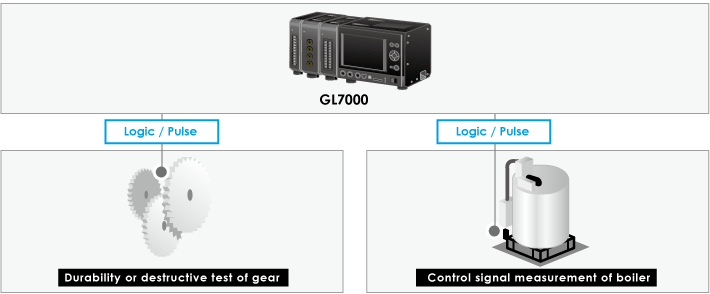

Application examples

Industry Agriculture, Forestry,
and Fisheries		 Machinery industry Electrical
equipment industry		 Transportation
equipment industry		 Energy
(Electricity, Gas)
Application
examples		 Plant factory Control signal of the device Control signal of the machine Rotation of the engine Control signal
Precipitation Gear rotation speed Rotation of the motor Rotation of the motor Flow velocity, flow rate
Flow velocity, flow rate Pulse count

GL7-L/P Specification

Item Description
Type of module Logic or Pulse measurement module
Model number GL7-L/P
Number of input channels 16 channels
Input method All channels common ground, Simultaneous sampling,
Circular connector (4ch/connector) (*1)
Sampling speed (interval) Logic mode 1 M Samples/s to 1 Sample/h (1 μs to 1 hr.)
Pulse mode 10 k Samples/s to 1 Sample/h (100 μs to 1 hr.)
Built-in RAM 2 million samples for each channels
Measurement mode Logic input mode or Pulse input mode (*2)
Pulse input mode Rotation count (RPM), Accumulating count, Instant count
Rotation count (RPM) Function Counting the number of pulses per sampling interval and then it is converted to RPM
Span 50, 500, 5000, 50 k, 500 k, 5 M, 50 M, 500 M rpm Full Scale
Accumulating count Function Accumulating the number of pulses from the start of measurement
Span 50, 500, 5000, 50 k, 500 k, 5 M, 50 M, 500 M counts Full Scale
Instant count Function Counting the number of pulses per sampling interval (count is reset at each sampling)
Span 50, 500, 5000, 50 k, 500 k, 5 M, 50 M, 500 M counts Full Scale
Maximum input frequency 1 MHz
Maximum number of count 15 M counts (24 bits counter is used)
Input signal Voltage range 0 to 24 V (common ground)
Signal type Contact (Relay), Open collector, Voltage
Threshold Approx. 2.5 V
Hysteresis Approx. 0.5 V (2.5 V to 3 V)
Filter Off or On (-3 dB at 50 Hz)
External dimensions (W×D×H) Approx. 49 x 136 x 160 mm (Excluding projections)
Weight Approx. 700 g

(*1)Input prove (RIC-10A) is required to connect signals.

(*2)The measuring mode is set in each module (16 channels). In Logic mode, up to 7 modules (Up to 112ch.) can be attached to one main module. In Pulse mode, up to 2 modules (Up to 32ch.) can be attached to one main modules. The maximum number of module and channels are limited to up to 10 units with a mixed condition and 112 channels.
