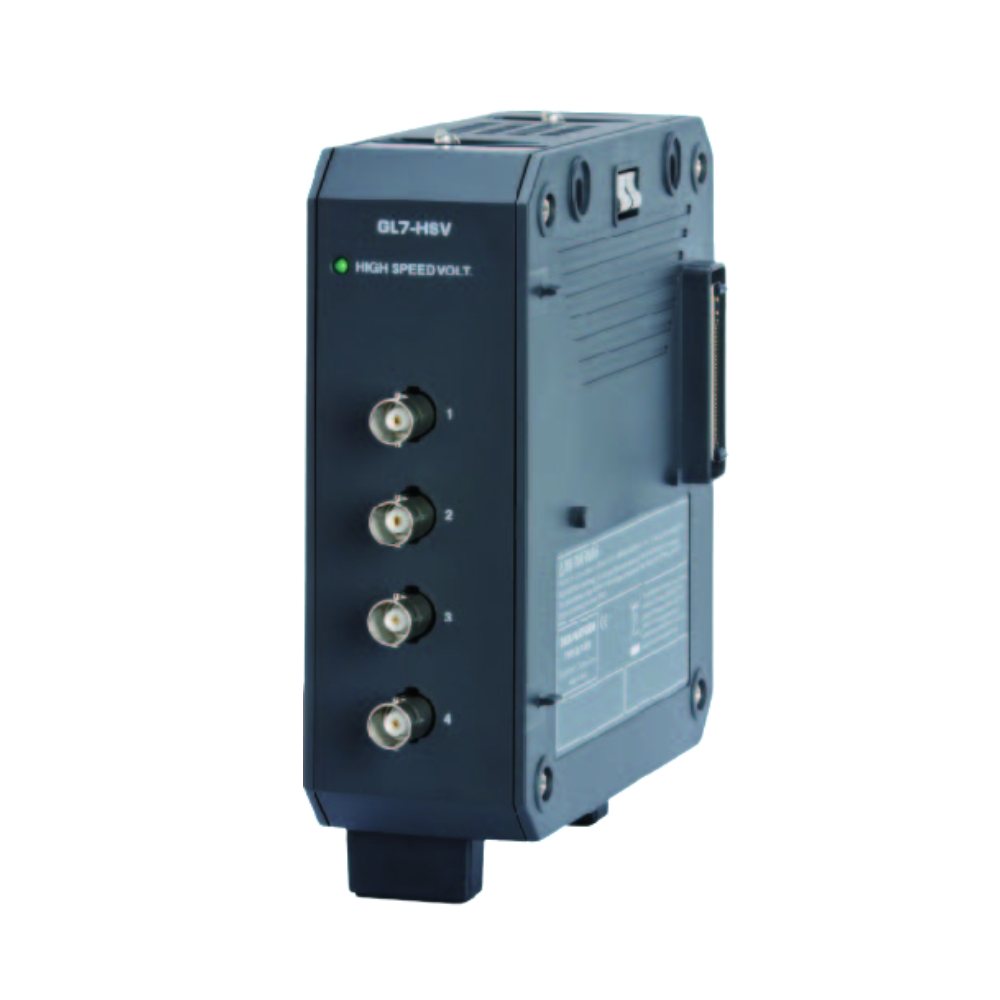

GL7-HSV
High-speed Voltage Module

This is the high-speed sampling voltage input module capable to measure high-speed voltage as control signal in inverter-based system, output of sensors in the characteristic test, output of vibration/displacement meter, and others. It can capture the signal by a high resolution using 16-bit converter even if it is sampled at fast speed as maximum 1MS/s (1μs interval).

Industry Agriculture, Forestry,
and Fisheries		 Construction &
Public Works		 Machinery industry Electrical
equipment industry		 Transportation
equipment industry		 Energy
(Electricity, Gas)

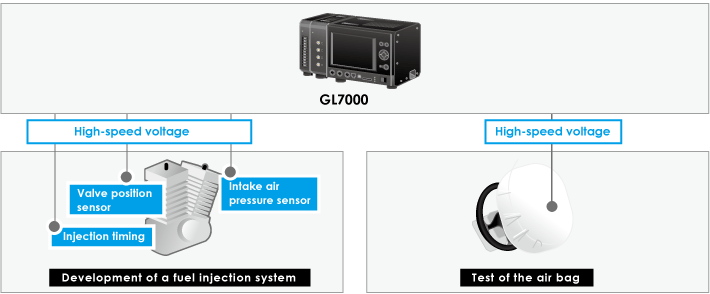

Application
examples		 Flow measurement Displacement measurement Machine/motor load Inverter control signal Airbag test Inverter control signal
Sensor operating characteristics Injection characteristics

GL7-HSV specification

Item Description
Type of module Voltage measurement module – High-speed sampling model –
Model number GL7-HSV
Number of input channels 4 channels

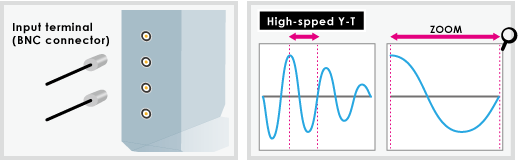

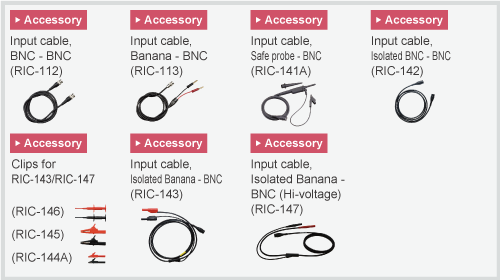

Input method All channels isolated unbalanced input, Simultaneous sampling,
BNC connector
Sampling speed (interval) 1 M Samples/s to 1 Sample/h (1μs to 1 hr.)
Built in RAM 2 million samples for each channel
Measurement range 100, 200, 500 m , 1, 2, 5, 10, 20, 50, 100 V, and 1-5 V Full Scale
Measurement accuracy (*1) ±0.25% of Full Scale
A/D converter Successive approximation type, 16 bits (effective resolution: 1/40000 of the measuring full range)
Input impedance 1 M ±5%
Maximum input voltage Between (+)/(-) terminal 100 m to 1 V range: 60 VP-p,
2 V to 100 V range: 100 VP-p
Between channels ((-) terminals) 60 VP-p
Between channel/GND 60 VP-p
Max. voltage (withstand) Between channels 1000 VP-p (1 minute)
Between channel/GND 1000 VP-p (1 minute)
Isolation Between input/GND Min. 50 M (at 500 V DC)
Common-mode rejection ratio Min. 90 dB (50/60 Hz, Signal source impedance: Max. 300 Ω)
Frequency response DC to 200 kHz (+1/-3 dB)
Filter Low pass Off, Line(1.5 Hz), 5, 50, 500, 5k, 50k Hz (at -3 dB, 6dB/cot)
External dimensions (W×D×H) Approx. 49 x 136 x 160 mm (Excluding projections)
Weight Approx. 740 g
(*1)
Subject to the conditions:
● Room temperature is 23℃ ±5℃. ● When 30 minutes or more have elapsed after power was turned on.
● Filter is set to 10 or Line. ● Sampling rate is set to 1 second.
● GND terminal is connected to ground.
