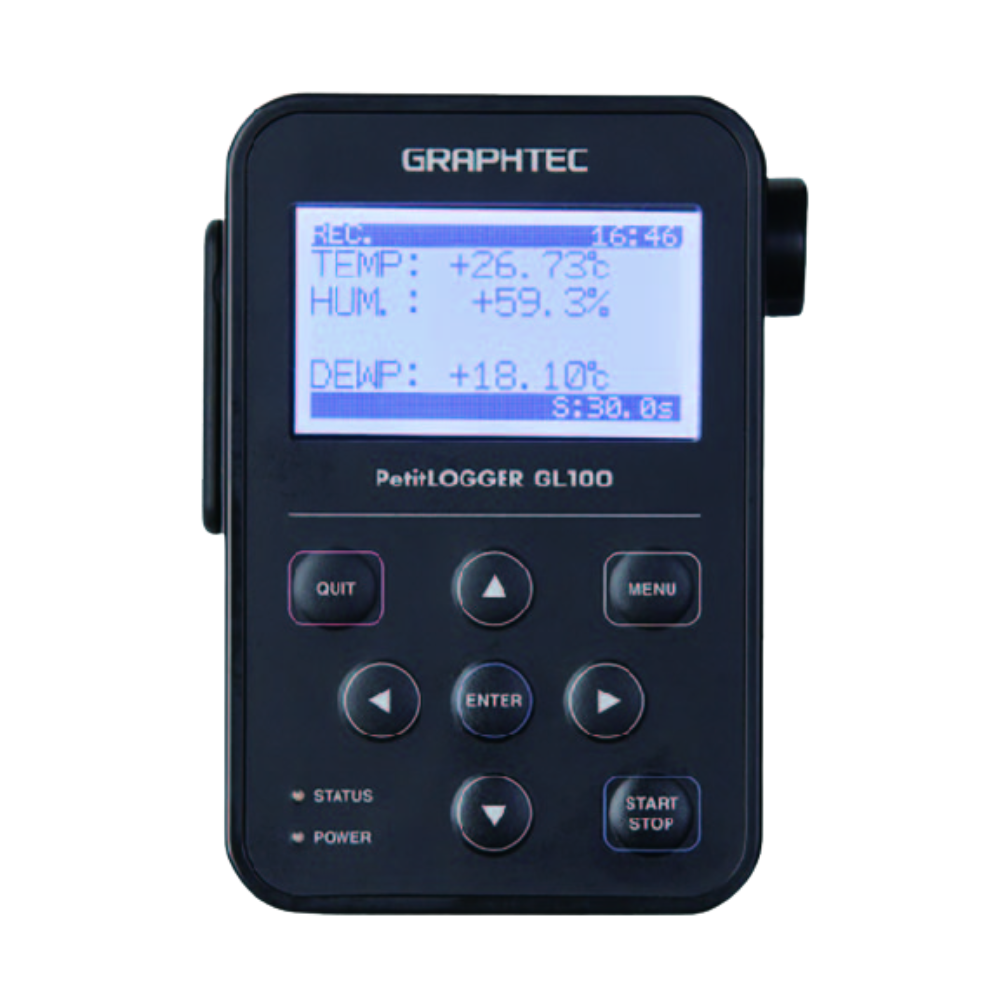

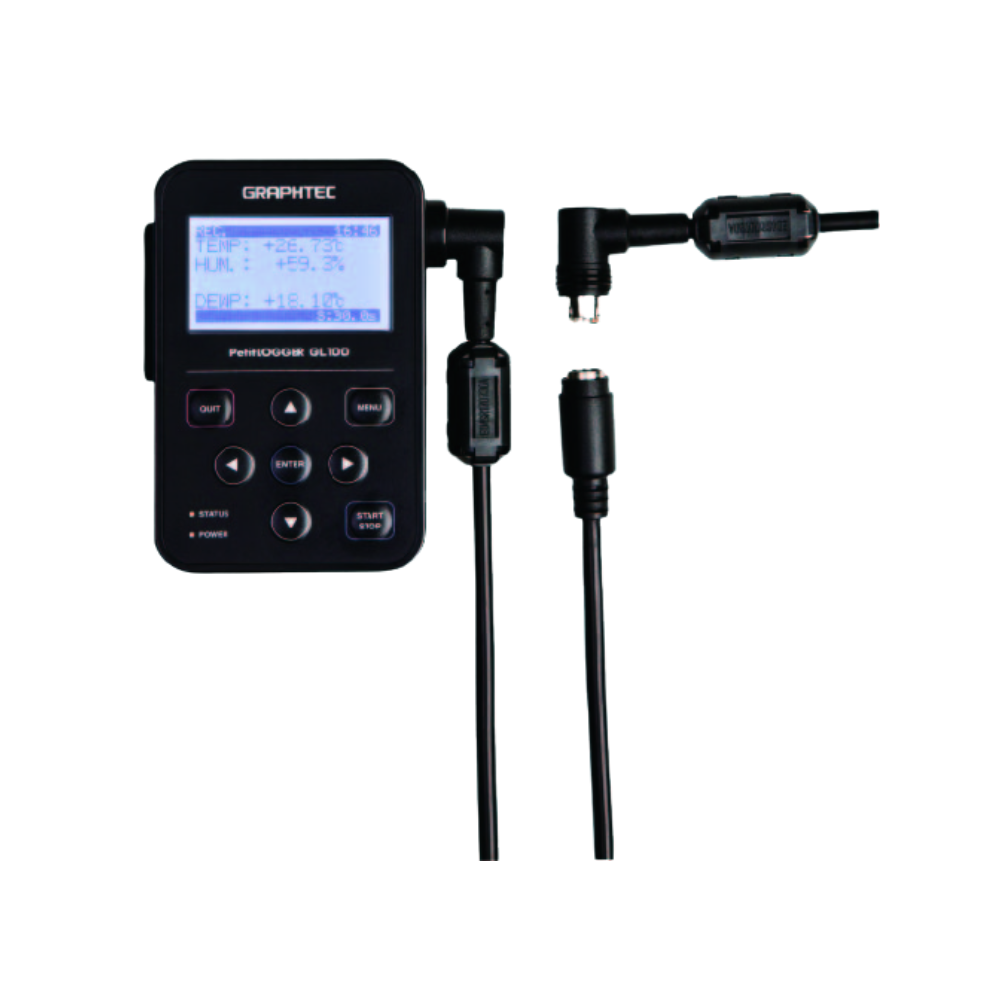

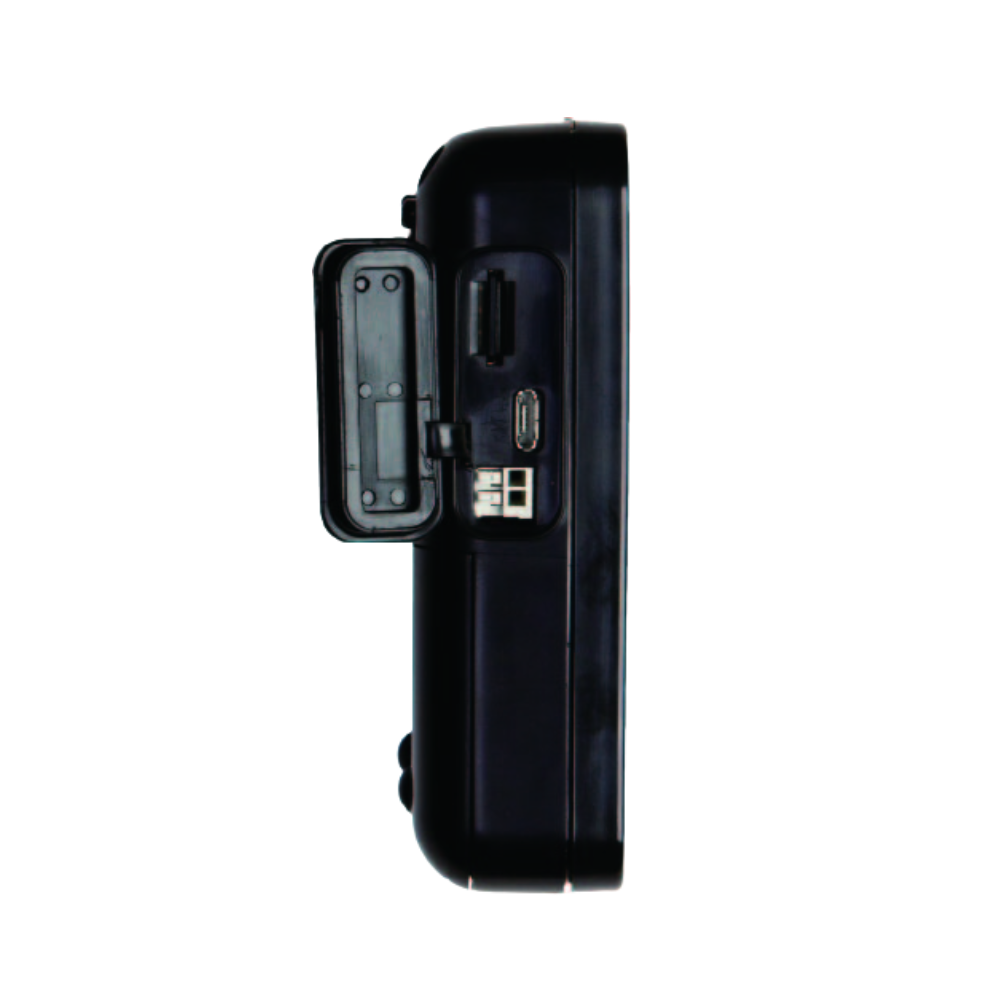

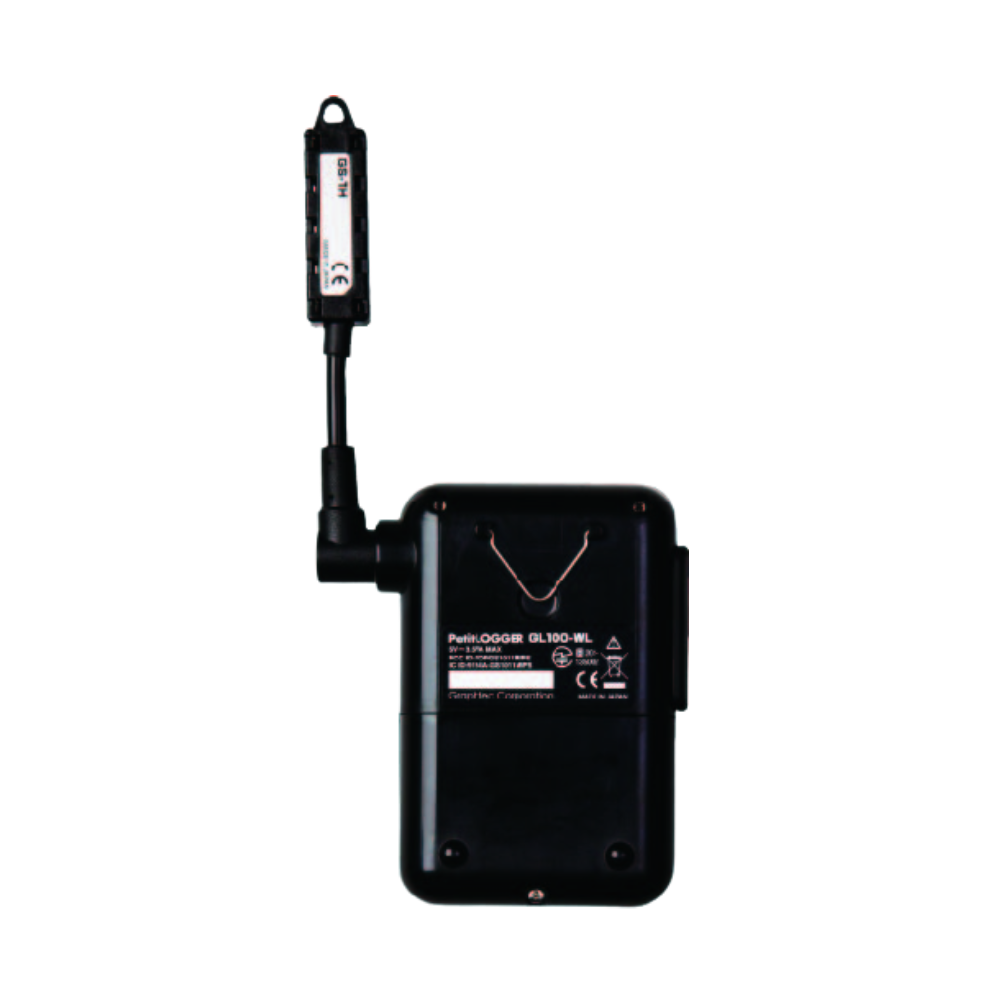

GL100
Compact Data Logger

Kategoriler
  • Mekanik (745)
  • PRO-AV (1140)
  • Test ve Ölçü (971)
    • Çevresel Ölçüm (244)
    • Elektriksel Ölçüm (269)
    • Fiber Optik Ölçüm (4)
    • Gelişmiş Ölçüm (478)
      • Antenler (101)
      • Boroskop (4)
      • Data Logger (Veri Kayıt Cihazı) (27)
      • Daughterboard & USRP (58)
      • Lan Kablo Ölçüm Cihazı (7)
      • Osiloskop (21)
      • Patern Jeneratörü (2)
      • Radyasyon Ölçüm Cihazı (2)
      • RF Güç Ölçüm Cihazı (13)
      • Sinyal Jeneratörü (59)
      • Spectroradiometer (12)
      • Spektrum Analizörü (165)
      • Vektör Network Analizörü (2)
      • Yüksek Hızlı Kamera (7)
  • DESCRIPTION
  • FEATURE
  • SPECIFICATION
  • OPTIONS AND SUPPLIES
  • DOCUMENTS

Flexible input module allows wide range of measurements

The GL100 series announces support for additional sensors in volatile wireless and non-wireless environments with ability to exchange input module.

GL100 are using the Wireless LAN (WLAN) of the IEEEE802 standards. Area that can use it is limited by the Wireless Telegraphy Act in the region.

FEATURE

Easy measurement by multifunction input

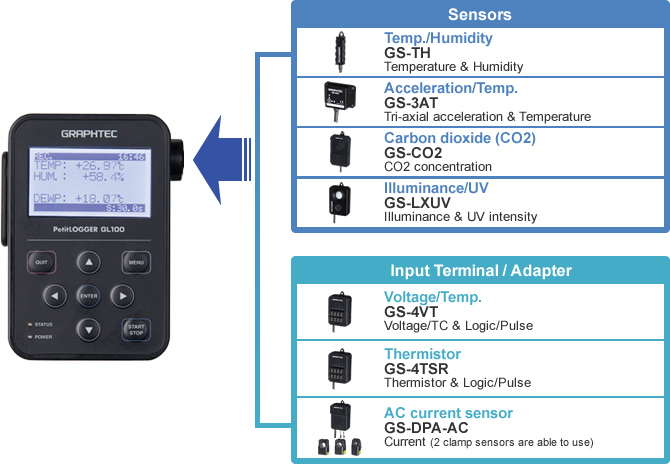

The input module can be expanded to accommodate a wide variety of measurements

It is not able to connect two sensors of the same type.

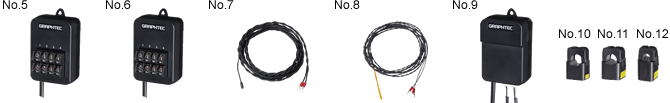

Providing a variety of sensors and input terminals corresponding to the application.

There is the following input module.
Number of channels and measurement type are fixed with each input module.

Sensor

No. Input module Measurement (actual sensing) Measurement (calculated value)

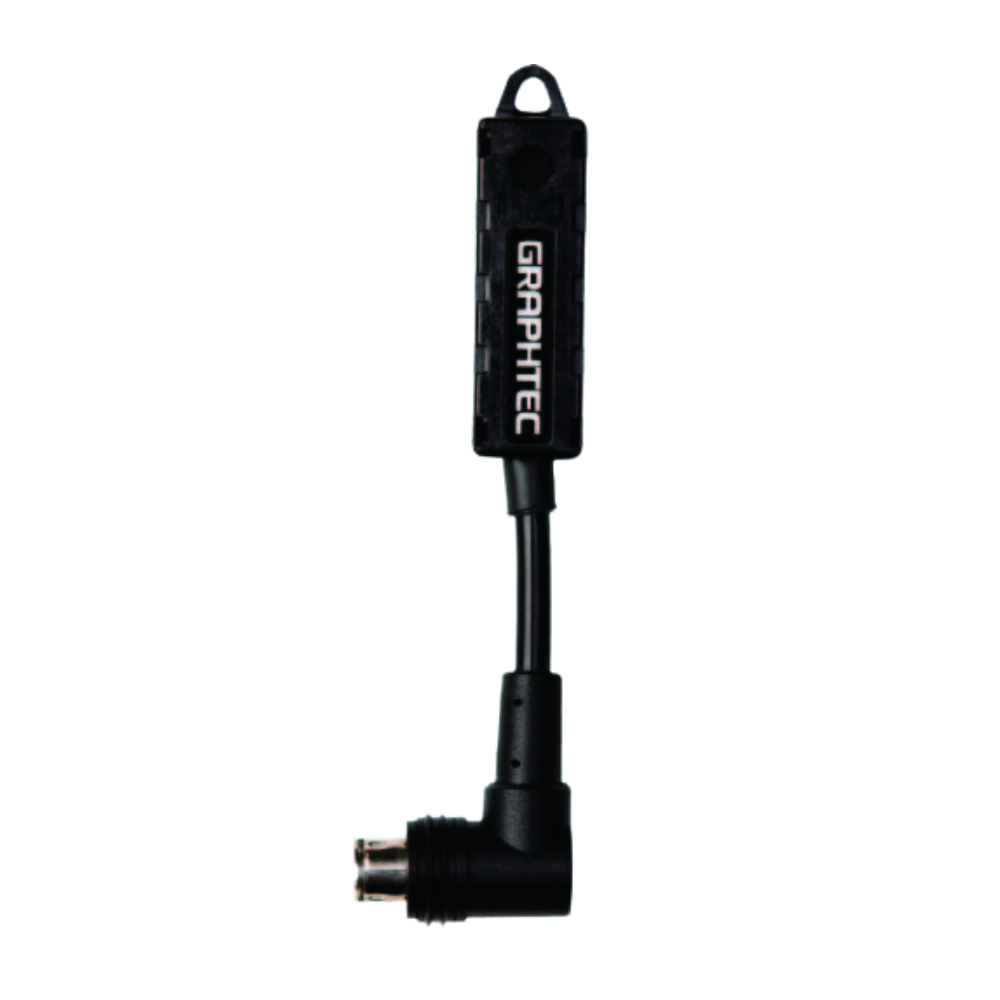

1 Temp./Humidity sensor
GS-TH
Temperature (-20 to 85 oC),
Humidity (0 to 100 % RH)
Accumulated temperature,
Dew-point temperature

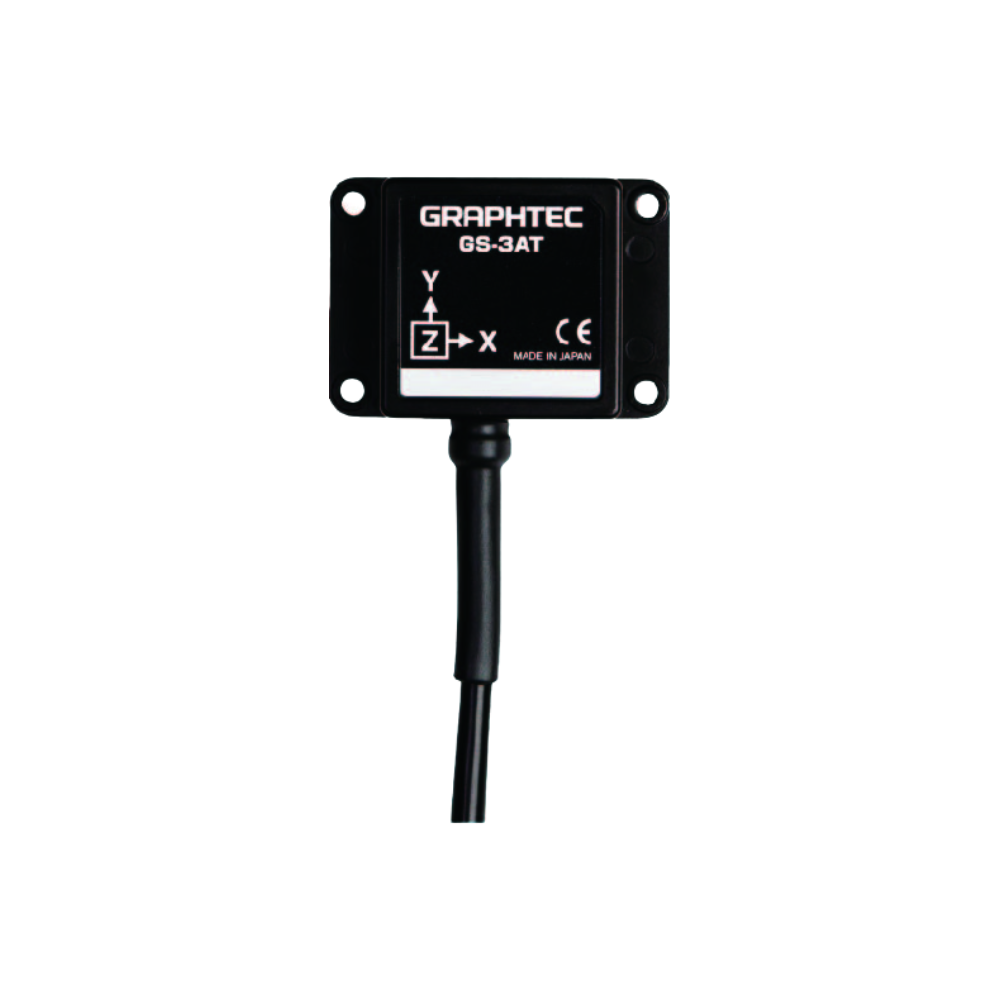

2 Acceleration/Temp. sensor
GS-3AT
Acceleration in 3-axis (max. 10 G),
Temperature (-10 to 50 oC)
N/A
3 Illuminance/UV sensor
GS-LXUV
Illuminance (max. 200 k lx),
UV intensity (max. 30 mW/cm2)
Accumulated Illuminance,
Accumulated UV intensity

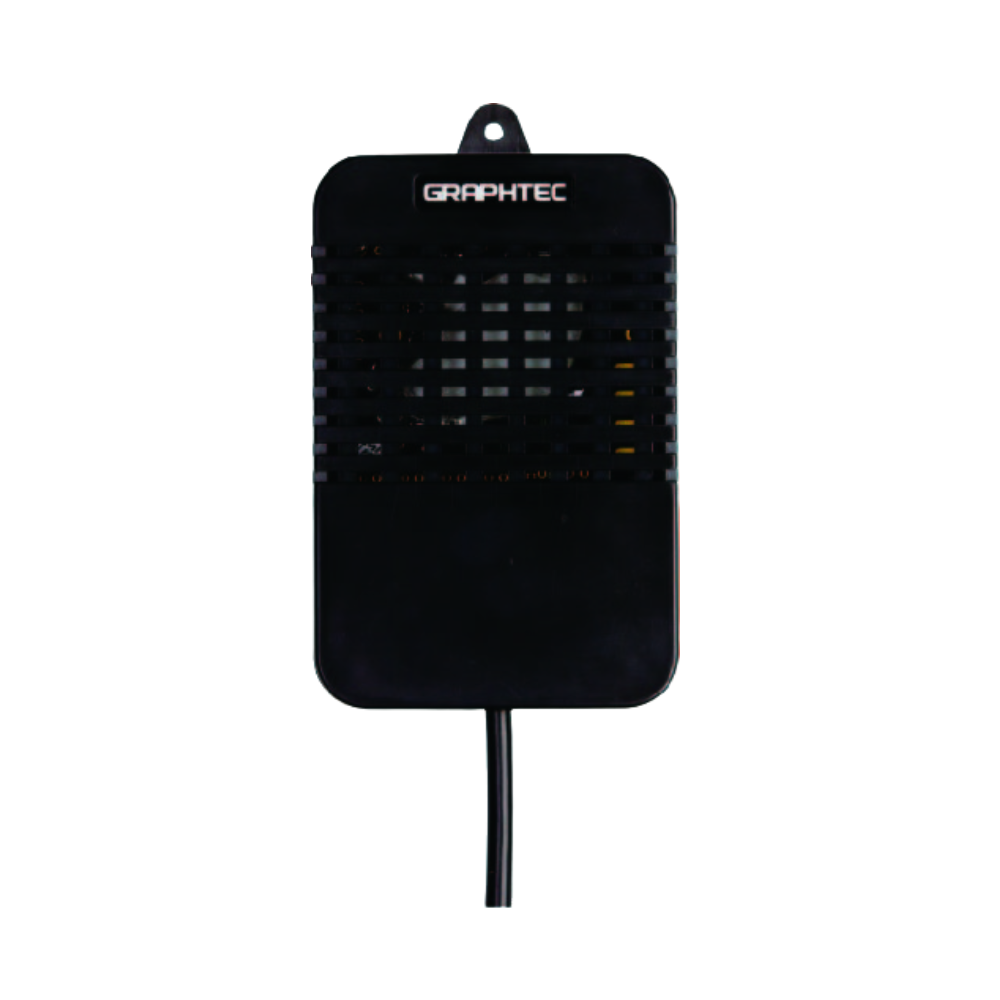

4 Carbon dioxide sensor
GS-CO2
CO2 concentration
(max. 9999 ppm)
N/A

Input terminals / Adapter

No. Input module Measurement (actual sensing) Measurement (calculated value)

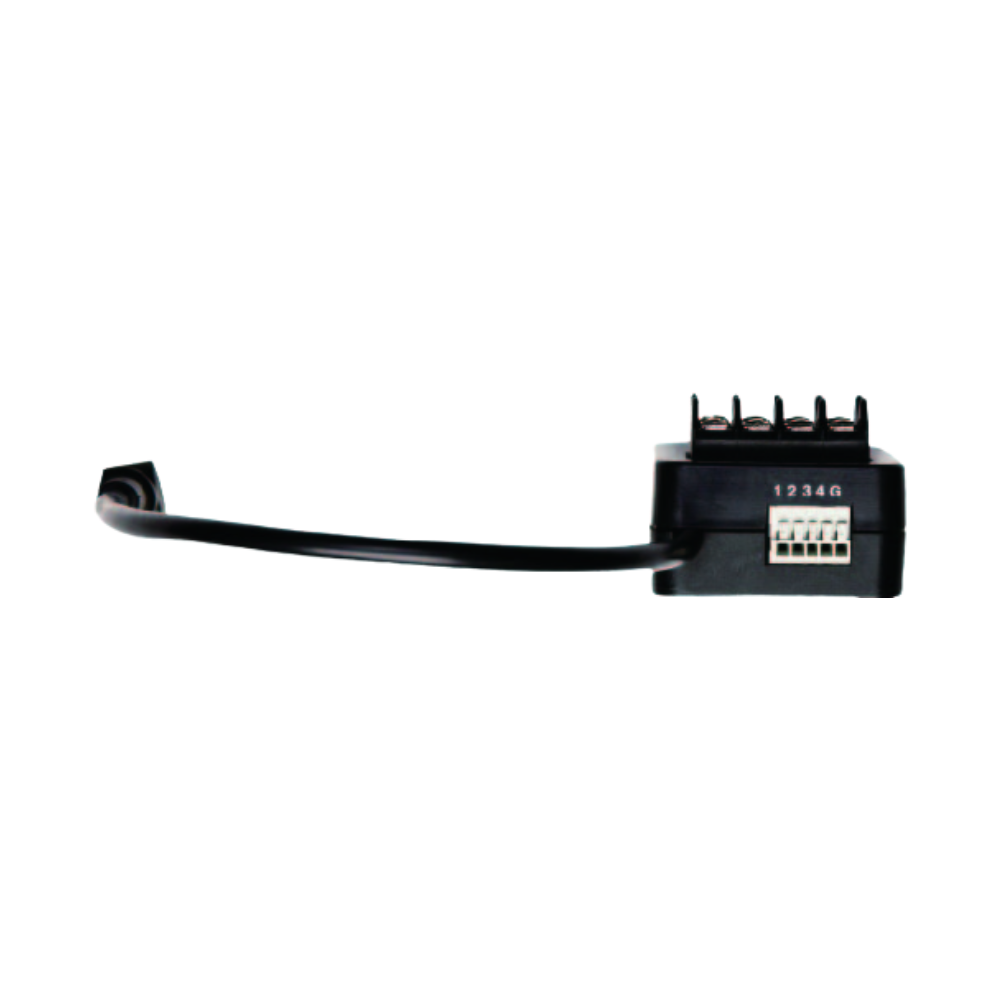

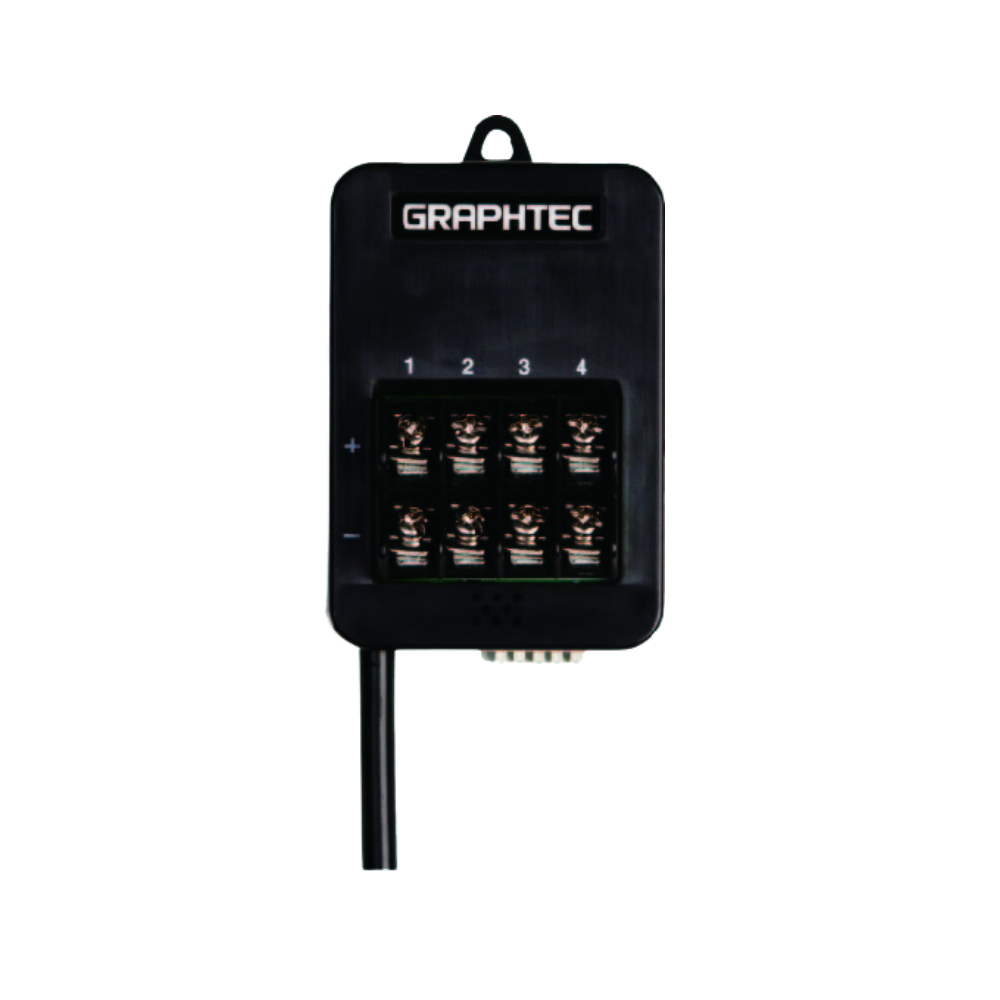

5 Voltage/Temp. input module
GS-4VT
Voltage (max. 50 V) or Temp. (TC: K/T type) of 4 ch,
Logic or Pulse of 4 ch
6 Temperature input terminal
GS-4TSR
Thermistor (max. 120 oC) of 4 ch,
Logic or Pulse of 4 ch

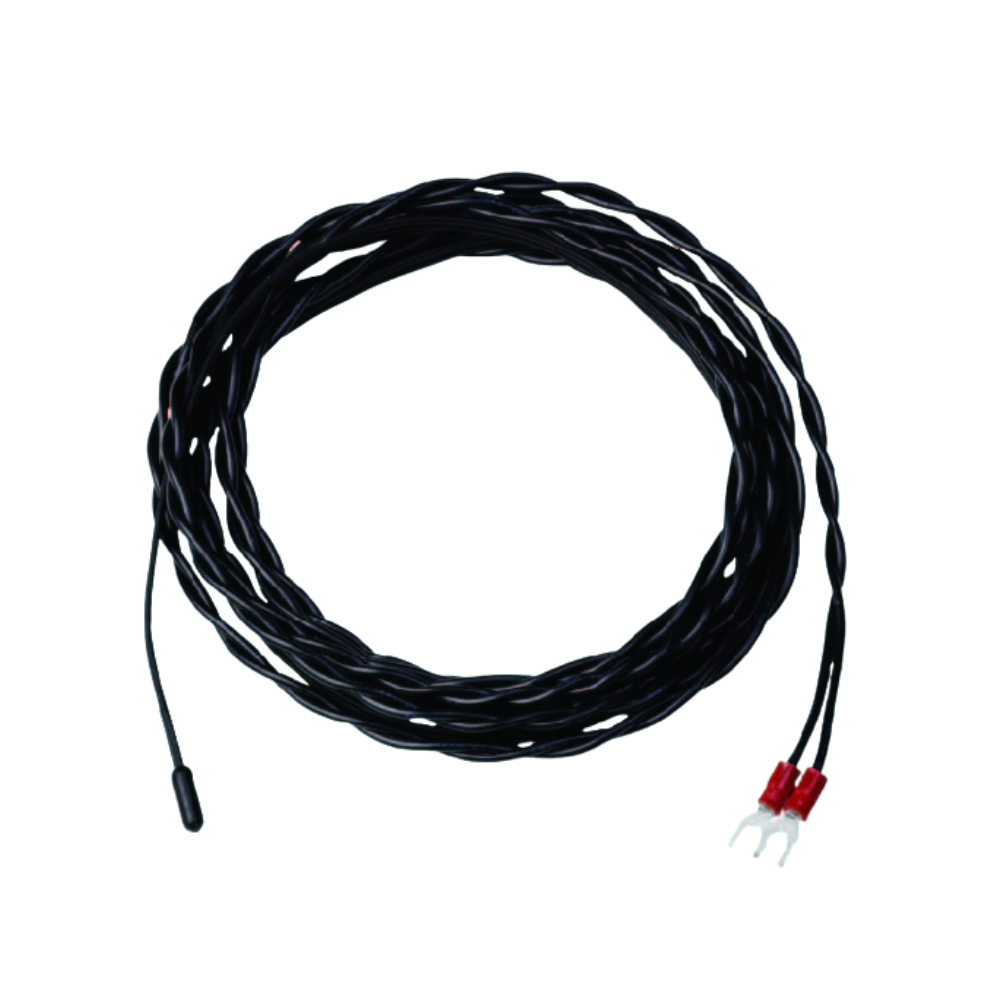

7 Thermistor sensor
GS-103AT-4P
Temperature sensor (-40 to 105 oC), Normal type
use with GS-4TSR module
8 Thermistor sensor
GS-103JT-4P
Temperature sensor (-40 to 120 oC), Ultrathin type
use with GS-4TSR module

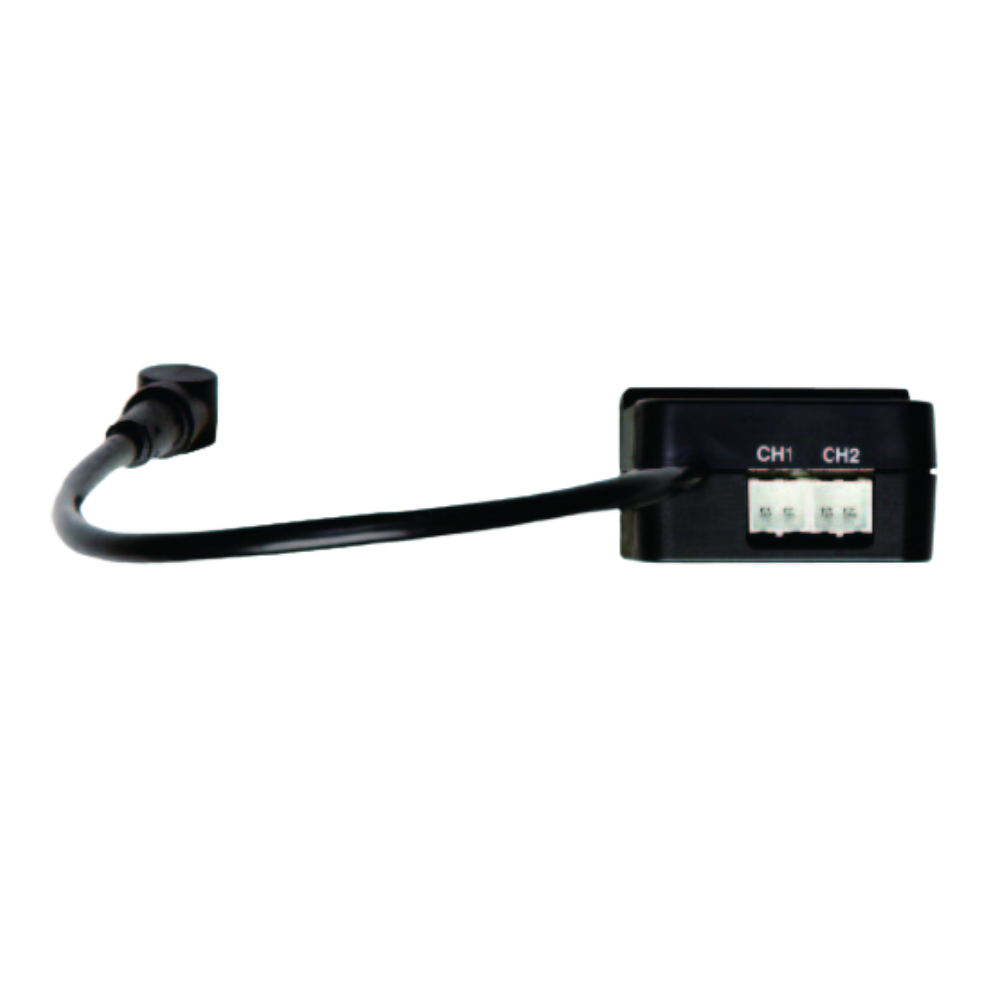

9 AC current sensor adapter
GS-DAP-AC
AC current,
2 sensors are able to connect (*1)
Power (instantaneous),
Integrated power (Electric energy)

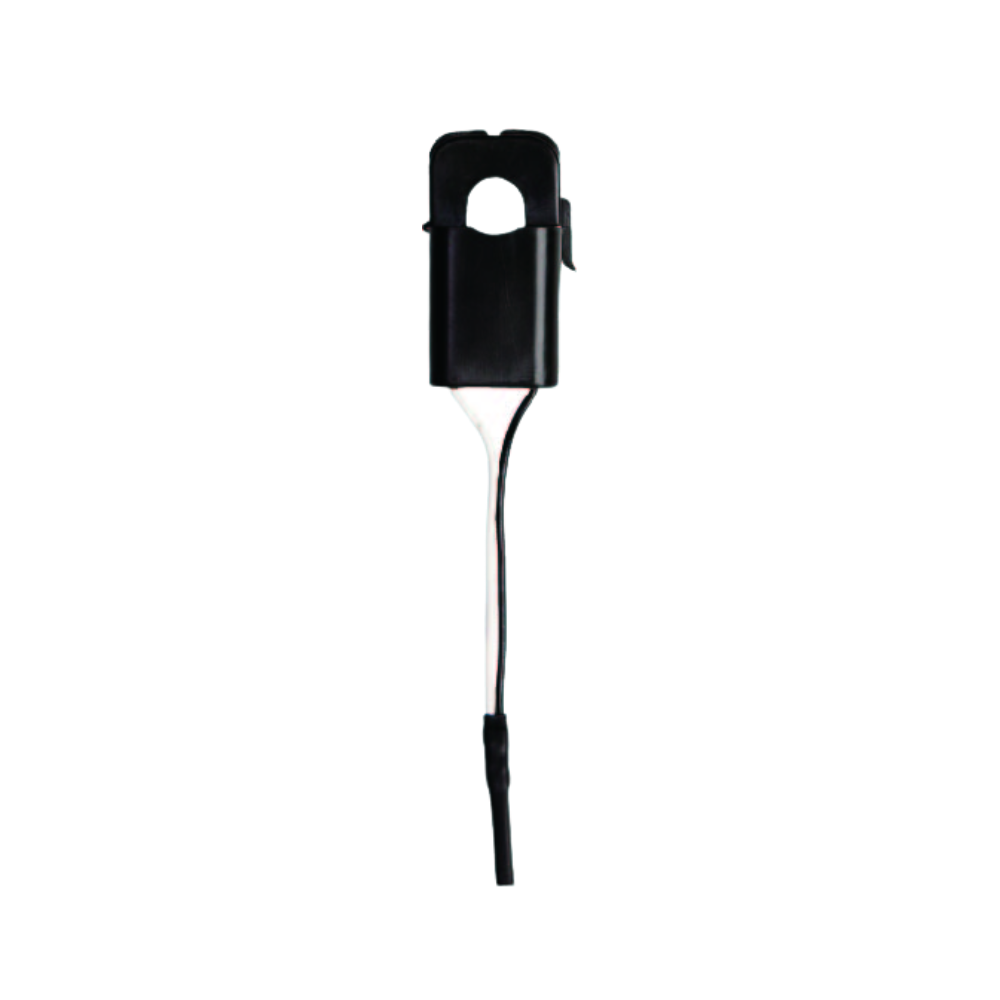

10 AC current sensor
GS-AC50A
Clamp-on type (max. 50 A AC),
use with GS-DAP-AC module
11 AC current sensor
GS-AC100A
Clamp-on type (max. 100 A AC),
use with GS-DAP-AC module
12 AC current sensor
GS-AC200A
Clamp-on type (max. 200 A AC),
use with GS-DAP-AC module
(*1)it is required to use the same type sensor and it is used in the same power system of the single- or three-phase.

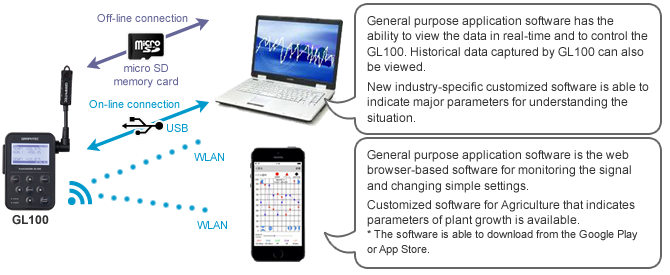

Available the software for PC & Smart devices

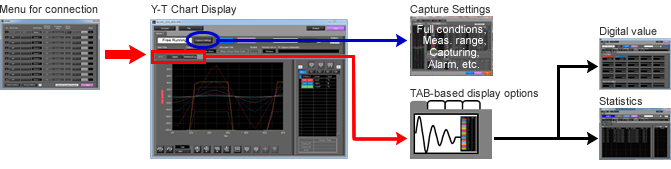

The GL100 is able to use with the PC or the Smart devices. The data on the GL100 can be monitored using the software.

General-purpose software for PC

General purpose application software will continue to have the ability to view in Y-T chart, waveform, and digital values. It is able to be also controlled the GL100 in real-time.

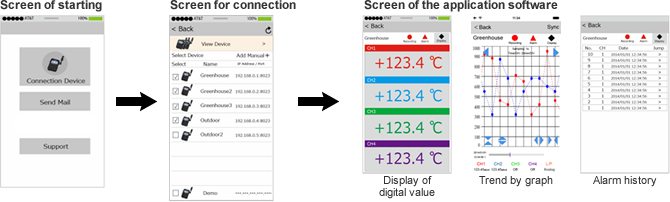

General-purpose software for the Smart devices

General purpose application software has the ability to view in Y-T chart and digital values. The displayed information will be refreshed by request. The simple settings of GL100 are able to control.
* It is available for the Android OS and the iOS in the Google Play or App Store.
Supported OS : Android 4.1 to 6.0, iOS 9 / 10 / 11

The most recent captured data is displayed in the digital value, trend graph or the alarm history. It is updated by operation of synchronous.

Industry-specific software (for PC and Smart device)

The new industry-specific customize software will feature targeted software in accommodating users with indicators that are specific and familiar to that industry.

Agriculture
Indicators of plant growth

Logistics
Indicators of safe transportation and storage

Logistics
Indicators of safe transportation and storage

Specific-industry Measurement capability Description
Agriculture
  • Temperature Accumulation
  • Humidity Deficit
  • Amount of solar radiation
  • Amount of ultraviolet rays
Confirm temperature accumulation, humidity deficit, solar radiation, ultraviolet rays as part of the vital indicators for healthy plant growth. Measure optimal saturation deficit by understanding the best conditions applied for growth, flowering, and fruiting using temperature accumulation and optimal growth environment scheme.
Logistics
  • Search and display
    acceleration thresholds
  • Temperature Accumulation
  • Humidity Deficit
Transpiration of industrial equipment, temperature controlled transport of food, and warehouse temperature management can all be monitored to provide the safest and secured operation. Safety measurements through monitoring the vibration of the transport vehicles can be vital to heavy-industrial and vibration sensitive equipment. Accumulated temperature monitoring and humidity levels will be vital to keeping food fresh in a controlled environment.
Power measurement
  • AC current
  • Power
  • Integrated power
Power and electric energy levels will be displayed on the graph using measured AC current locally at the factory, buildings and industrial equipment. Corresponds to three power systems including two-wire single-phase, three-wire single-phase, or three-wire in three-phase.

Possible to check the data in multiple method

Wireless access will support multiple configurations for both secured and world wide internet access.

The following configuration is available to communicate with the GL100. The available function varies by the configuration.

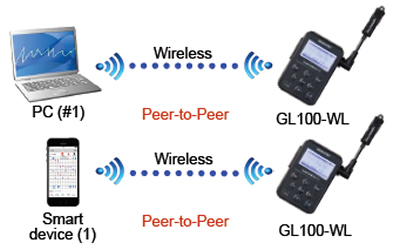

Configuration Case 1

Direct connection (peer-to-peer) with no LAN connection

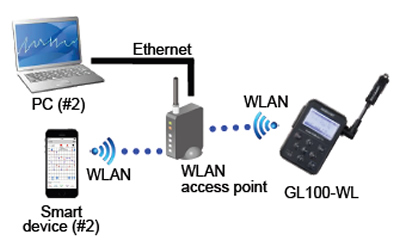

Configuration Case 2 *1

Local area network (LAN) with no Internet connection

Configuration Case 3 *1

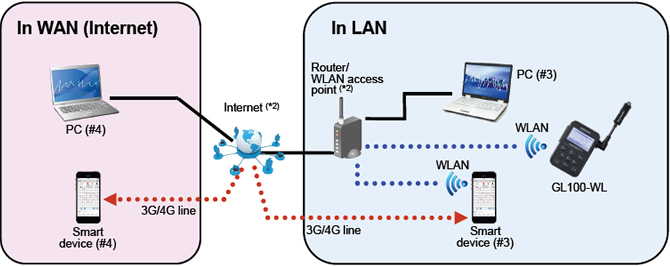

Local area network (LAN) with Internet connection

Available functions Configuration Case 1 Configuration Case 2 Configuration Case 3
PC (#1) Smart
device (#1)
PC (#2) *1 Smart
device (#2)
PC (#3) *1 Smart
device (#3)
PC (#4) Smart
device (#4)
Control of full functions Ο Ο Ο Δ*2
Control of simple functions
(Start/Stop, Sampling, Alarm)
Ο Ο Ο Δ*2
Display Waveform/Digital value Ο Ο Ο Ο Ο Ο Δ*2 Δ*2
Save data to PC Ο Ο Ο Δ*2
Receive message via email Ο Ο Ο Ο

Ο:Function is available. Δ:Function is available in the condition.

*1:Multiple PC cannot make connection to the same GL100 simultaneously.
*2:Assign a static global IP. Or DDNS service must be available within network and the GL100 configured as a device within the WAN.
*
When the router has the static IP address, it is able to access from the Internet (WAN) using the static IP address.
*
When the DDNS (Dynamic Domain Name Server) is used, the ISP provide the DDNS service and the router supports the DDNS. The router will have the domain name. It is able to access from the Internet (WAN) using the domain name.

Reliable measurement with useful functions

Sufficient capacity of data

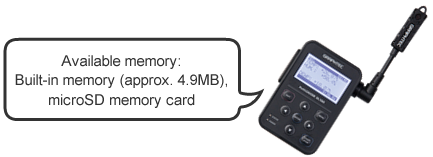

The captured data is able to save to the built-in memory or the microSD memory card. It has sufficient capacity of data.

Data Capturing Time

Condition: Using with Temp/Humidity sensor (GS-TH) by 1 minute sampling interval.

Destination Capturing time
Built-in memory (approx. 4.9 MB) Approx. 254 days
microSD memory card Over 2 years
*File size for captured data is up to 1.9GB on the microSD memory card.

Available battery operation

The GL100 can be operated with batteries or USB bus-power. The power of the GL100 is automatically switched between the battery and the USB bus-power.

Battery Operating Time

Condition: Using with Temp./Humidity sensor (GS-TH), 1 minute sampling interval, Alkaline battery (AA size x 2). The microSD memory card is not installed.

Condition Operating time
When saving data to the built-in memory with WLAN disabled Approx. 2 weeks
*The operating time varies by the environmental condition.
*USB power source will be required for Voltage/Temp. (GS-4VT) and CO2 sensor (GS-CO2).

Recommended power source for the sensor module

Measurement items Input module Driven by battery (*2) Powered by USB (*4)
Temp. & Humidity GS-TH Available Available
Acceleration & Temp. GS-3AT Available Available
4ch, Voltage or Temp GS-4VT (*3) Available
4ch, Temp. (Thermistor) GS-4TSR Available Available
Illuminance & UV GS-LXUV Available Available
Carbon dioxide (CO2) GS-CO2 N/A Available
AC Current & Power GS-DPA-AC Available Available
Temp./Humidity + CO2 GS-DPA(*1) + GS-TH + GS-CO2 N/A Available
Temp./Humidity + Illuminance/UV GS-DPA(*1) + GS-TH + GS-LXUV Available Available
CO2 + Illuminance/UV GS-DPA(*1) + GS-CO2 + GS-LXUV N/A Available

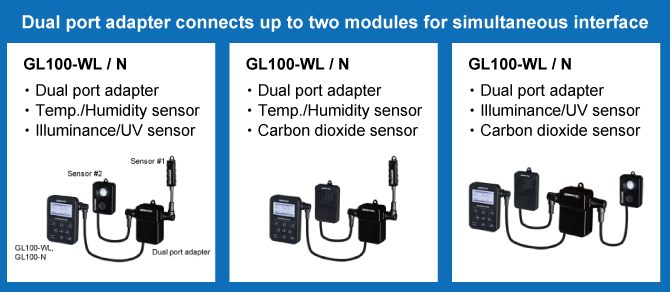

*1:GS-DPA (Dual Port Adapter) is used for connecting two sensors.
*2:When GL100 is driven by the USB bus-power, power is automatically switched to battery after USB bus-power is down. If the capacity of the battery is low, the power of GL100 may be turned off. The battery is able to use as an auxiliary power of a power failure of the USB bus-power. In this case, it is recommended to install new battery to GL100.
*3:It is able to drive by battery. In this case, an operating time will be shorter because power consumption is relatively high.
*4:When AC adapter for the USB device is used, it is recommended to have power capacity of the 200mA except to use the GS-CO2 sensor. The power capacity of the 1A is required for using the GS-CO2 sensor.

Functions of email

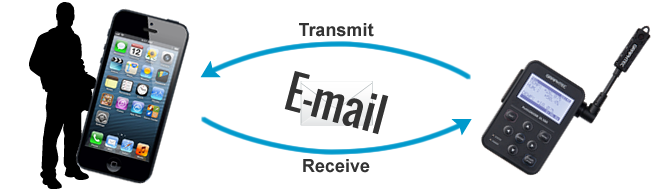

The GL100-WL is able to transferring email and receiving email. The warning and other messages are transferred from the GL100-WL. The command of simple control for the GL100-WL can be received.

You do not need to sensitive for the measured values at all times because you are able to have the better understanding of the situation by receiving email from the GL100.

  • Warning message for the captured data (When the alarm occurs, message is sent via email.)
  • Summary data (Sending summary data in specified period that are the current value, value of maximum, minimum, and average.)
  • Low battery warning (If the level of dry cell is low, message is sent.)
  • Confirmation of setting change (When the settings has been changed, message is sent.)

You can change simple setting using the software for the smart drive. The simple setting is the start/stop, sampling and alarm. (The setting change commands are transferred using the email function.)

Setting of capture condition in the GL100 can be changed by receiving command by email.
(Setting change may be delayed. It varies by condition of communication for the email.)

SPECIFICATION

Main unit specifications

Item Description
Number of channels Varies by the input module used, and measurement type is fixed with each input module
Input method, Type of input terminal
Output signal Alarm (1 channel), solid state switch with optical isolation (Optocoupler, Max. load is the 30 V, 50 mA)
Interface to PC USB (micro USB B type connector), Wireless LAN (WLAN) in GL100-WL
Wireless LAN (in GL100-WL) Standards: IEEE802.11b, Communication distance: approx. 40 m
* It varies by the condition of the LAN. Real-time transfer rate is up to 500ms. The WLAN is able to disable. (It is enabled in the factory default setting)
Storage device Built-in memory: RAM (Approx. 4.9 MB)
External memory: microSD memory card
* Maximum file size for captured data is 1.9MB. It is recommended to use the microSD memory card that supports sleep mode.
Display LCD (backlit monochrome, graphical type 128 x 64 dots)
Contents: Captured data and Setting menu (Stored data is not able to replay. It is able to replay using the PC application software.)
Functions • Real-time data capturing
• Display the captured data value to the LCD in real-time and save the monitoring values
• Set conditions using the Menu setting
While using USB port:
• Output captured data in real-time
• Output the saved data from the internal memory
• Full control of the GL100 from the PC application software
While using Wireless LAN (in GL100-WL):
• Output captured data in real-time
• Output the saved data from the internal memory
• Full control of the GL100 from the PC application software
• Simple control of the GL100 from the application software of Smart Device
• Send warnings via the e-mail
Alarm • Action
Outputs the signal when the measuring data reaches the present conditions of alarm
• Source
Level of measuring data
• Detecting method
Condition: Higher or lower (signal is higher or lower than the threshold)
Combination: OR
Trigger • Action
Start or stop the recording of captured data by trigger
• Source
Start trigger: OFF, Level (*), Alarm, or Date
Stop trigger: OFF, Level (*), Alarm
* Level trigger is available in the analog input of the GS-4VT, GS-4TSR, and GS-3AT module.
• Detecting method of the Level (*)
Condition: Rising or Falling (signal is passed through the threshold)
Combination: OR or AND
Dustproof and waterproof IP54 compatible (*)
* It is effective only in the condition that the input module is set to the GL100 and then the covers of connector and battery are closed. It is recommended to replace the packing of cover in periodically.
Power source • Alkaline battery (AA size x 2)
• USB bus-power (5V, 200 mA) (*)
* When AC adapter for USB device is used, the required power capacity is 5V, 1A. Battery and AC adapter is not included.
Operating environment Temperature: -10 °C to 50 °C
Humidity: up to 80 % RH (non condensed)
External dimension [W x D x H] Approx. 66 x 100 x 27 mm (exclude protrusion)
Weight GL100-N: Approx. 125 g, GL100-WL: Approx. 130 g

Various sensor specifications

Temperature & Humidity sensor (GS-TH) input module

Item Description
Type of measurement Actual measuring Temperature and Humidity
Calculated value Dew-point temperature and Accumulated temperature (The temperature will be accumulated during it is higher or lower than the reference temperature.)
Method of measurement C-MOS sensor
Measuring range Temperature -20 to 85 °C
Humidity 0.0 to 100.0 % RH
Accuracy Temperature -20 ≤ TS < 0: ± 0.8 °C
0 ≤ TS ≤ 60: ± 0.5 °C
60 < TS ≤ 85: ± 0.8 °C
Humidity at 25 °C
Measuring 0 to 10 % RH: ± 10% RH
Measuring 10 to 20 % RH: ± 8% RH
Measuring 20 to 80 % RH: ± 5% RH
Measuring 80 to 90 % RH: ± 8% RH
Measuring 90 to 100 % RH: ± 10% RH
Response Temperature, Humidity: Approx. 100 seconds
(Time to reach 63%, at 25 °C and air flow 1 m/s)
* It varies by environment condition.
Sampling interval 0.5, 1, 2, 5, 10, 20, 30 seconds, 1, 2, 5, 10, 20, 30, 60 minutes
Unit of temperature measurement Switchable °C and °F
Water resistance Protect by waterproof filter at the sensing part
Operating environment Within temperature and humidity measurement range (When sensor is attached directly to the GL100, it is the same specifications as the GL100.)
External dimension [W x D x H] Approx. 15 x 45 x 10 mm (exclude protrusion)
Weight Approx. 14 g

Acceleration & Temperature sensor (GS-3AT) input module

Item Description
Type of measurement Tri-axial aceleration (X-, Y-, Z-axis) and Temperature
Measuring range Acceleration ±2 G (20m/s2), ±5 G (50m/s2), ±10 G (10m/s2)
Temperature -10 to 50 °C (using C-MOS sensor)
Accuracy Acceleration ±2 % of F.S. (including non linearity)
Temperature -10 ≤ TS < 50: ± 1.0 °C
Response (acceleration measurement) 0 Hz to 100 Hz
Measuring mode Memory, or Direct mode
Memory capacity 16, 32, 64, 128 k Samples (for memory mode)
Pre-trigger 10, 25, 50, 100 % of selected memory capacity, and OFF (function is available for memory mode)
Sampling interval Memory mode: 5, 10, 20, 50, 100 ms
Direct mode: 0.5, 1, 2, 5, 10, 20, 30 seconds, 1, 2, 5, 10, 20, 30, 60 minutes
Calculation function (in Direct mode) Function: The data is captured in every 5ms interval, and then the result of calculation between selected interval will be saved.
Type of calculation: Average, Peak, RMS, or OFF (selected one value will be saved)
Unit of temperature measurement Switchable °C and °F
Offset adjustment function OFF, ON (sets the static acceleration value of current to zero)
Dustproof and waterproof IP54
Length of cable Approx. 200 mm
Operating environment Temperature: -10 °C to 50 °C
Humidity: up to 80 % RH (non condensed)
External dimension [W x D x H] Approx. 51 x 36 x 20 mm (exclude protrusion)
Weight Approx. 64 g

Illuminance & Ultraviolet sensor (GS-LXUV) input module

Item Description
Type of measurement Actual measuring Illuminance and UV intensity
Calculated value Accumulated illuminance and Accumulated UV intensity
Measuring range Illuminance 0 lx to 200 k lx
UV intensity 0 to 30 mW/cm2
Measuring accuracy Illuminance ±5 % at 25 °C (Temperature characteristic: 5 % at 10 °C to 40 °C)
UV intensity ±5 % at 25 °C (Temperature characteristic: 5 % at 10 °C to 40 °C)
Response 1 ms or less
Accumulating function Illuminance 0 to 99999 k lxh (Accumulated value is reset by starting the data recording or pressing the QUIT key.)
UV intensity 0 to 99999 mW/cm2h (Accumulated value is reset by starting the data recording or pressing the QUIT key.)
Sampling interval 0.5, 1, 2, 5, 10, 20, 30 seconds, 1, 2, 5, 10, 20, 30, 60 minutes
Length of cable Approx. 200 mm
Operating environment Temperature: -10 °C to 50 °C
Humidity: up to 80 % RH (non condensed)
External dimension [W x D x H] Approx. 46 x 66 x 19 mm (exclude protrusion)
Weight Approx. 65 g

Carbon dioxide (CO2) sensor (GS-CO2) input module

Item Description
Type of measurement Carbon dioxide concentration
Method of measurement NDIR (Non Dispersive Infra-red)
Measuring range 0 to 9999 ppm
Measuring accuracy ±0.5 % of reading + 30 ppm (in range of 0 to 5000 ppm)
Response 3 minutes or less
Sampling interval 0.5, 1, 2, 5, 10, 20, 30 seconds, 1, 2, 5, 10, 20, 30, 60 minutes
(Sensing of carbon dioxide is done at interval of 2 seconds or slower. When sampling is selected to 0.5 or 1 second, the same value is recorded in each time and then value is updated every 2 seconds.)
Length of cable Approx. 200 mm
Operating environment Temperature: 0 °C to 50 °C
Humidity: up to 80 % RH (non condensed)
External dimension [W x D x H] Approx. 66 x 100 x 25 mm (exclude protrusion)
Weight Approx. 99 g

AC Current sensor Adapter (GS-DPA-AC) input module & AC Current sensor

Item Description
Type of measurement Actual measuring Current (using optional AC current sensor)
Calculated value Power, Accumulated power (Electric energy)
Type of sensor Clamp-on current probe (optional)
Application circuit Single-phase two-wire, Single-phase three-wire, or Three-phase three-wire
Number of sensor Two (2) sensors are able to connect (using the same type of sensor and the power system)
Method of measurement Scans channels (sensors), Non-isolated input, using RMS converter
Measuring range 50, 100, 200 A RMS (varies by the sensor)
Applicable frequency 50 or 60 Hz
Measuring accuracy ±2 % of full sale ± 1 digit (at temperature 23 °C, and within rated current and frequency)
Sampling interval 0.5, 1, 2, 5, 10, 20, 30 seconds, 1, 2, 5, 10, 20, 30, 60 minutes
Length of cable Approx. 200 mm
Operating environment Temperature: -10 °C to 50 °C
Humidity: up to 80 % RH (non condensed)
External dimension [W x D x H] Approx. 46 x 66 x 27 mm (exclude protrusion)
Weight Approx. 55 g

AC Current sensor

Item Description
GS-AC50A Rated measuring current: 50 A AC (Length of cable to adapter is approx. 200 mm)
GS-AC100A Rated measuring current: 100 A AC (Length of cable to adapter is approx. 200 mm)
GS-AC200A Rated measuring current: 200 A AC (Length of cable to adapter is approx. 200 mm)

Voltage & Temperature Input Terminal (GS-4VT) input module

Item Description
Type of measurement Analog voltage or Temperature,
Logic (signal pattern) or Pulse (instant or accumulated count)
Number of channel Voltage/Temperature: 4 channels (measurement type for channels can each be separately selected)
Logic/pulse: 4 channels (measurement type for channels can be selected as set of 4 channels)
Input method of voltage/temp. Scans by the photo-MOS-relay, all channels isolated input
Measuring range of voltage 20, 50, 100, 200, 500 mV, 1, 2, 5, 10, 20, 50 V F.S. and 1-5V F.S.
Measuring accuracy 0.15 % of F.S.
Input impedance 1 M ohms
Maximum input voltage Between positive (“+”) and negative (“-“) input terminal: 60 V
Between negative (“-“) terminal of channels: 60 V
Between negative (“-“) terminal of channel and “GND”: 60 V
Withstand voltage Between negative (“-“) terminal of channels: 350 V p-p (1 minute)
Between negative (“-“) terminal of channel and “GND”: 350 V p-p (1 minute)
Measuring range of temperature Thermocouple: K type -200 °C to 1370 °C, T type -200 °C to 400 °C
Measuring accuracy K type -200 ≤ TS ≤ -100 °C: ± (0.05% of reading + 2.0 °C)
-100 < TS ≤ 1370 °C: ± (0.05% of reading + 1.0 °C)
T type -200 ≤ TS ≤ -100 °C: ± (0.1% of reading + 1.5 °C)
-100 < TS ≤ 400 °C: ± (0.1% of reading + 0.5 °C)
Reference Junction Compensation (R.J.C.): ± 0.5 °C
Burnout checking Displaying warning when Thermocouple has failed
Unit of temperature measurement Switchable °C and °F
Input of Logic/Pulse Input signal: Voltage or Dry contact signal
Voltage input: 0 to +24V (common ground)
Dry contact signal: Relay or Solid state relay
Threshold voltage: Approx. +2.5V, Hysteresis: Approx. 0.5V (Status of the signal is changed in the 2V and the 2.5V.)
Measuring rage of Pulse ・Instant count: up to 200 counts/sampling interval
・Accumulated count: up to 65535 counts (Accumulated value is reset by starting the data recording or pressing the QUIT key.)
・Max. input frequency : 400Hz
Sampling interval 0.5, 1, 2, 5, 10, 20, 30 seconds, 1, 2, 5, 10, 20, 30, 60 minutes
Length of cable Approx. 200 mm
Operating environment Temperature: -10 °C to 50 °C
Humidity: up to 80 % RH (non condensed)
External dimension [W x D x H] Approx. 46 x 66 x 36 mm (exclude protrusion)
Weight Approx. 85 g

Thermistor Sensor Input Terminal (GS-4TSR) input module

Item Description
Type of measurement Temperature,
Logic (signal pattern) or Pulse (instant or accumulated count)
Number of channel Temperature: 4 channels (measurement type for channels can each be separately selected)
Logic/pulse: 4 channels (measurement type for channels can be selected as set of 4 channels)
Input method of temperature Scans by the photo-MOS-relay, all channels non-isolated input
Temperature sensor Thermistor (optional)
Measuring range Temperature: -40 to 120 °C (varies by the type of sensor)
(Sensor GS-103AT-4P: -40 to 105 °C, GS-103JT-4P: -40 to 120 °C)
Measuring accuracy • GL100 main body
-40 ≤ TS < 0 °C: ± 0.7 °C
0 ≤ TS ≤ 35 °C: ± 0.2 °C
35 < TS ≤ 70 °C: ± 0.4 °C
70 < TS ≤ 120 °C: ± 1.0 °C
• Thermistor sensor (GS-103AT-4P or GS-103JT-4P)
Typical ± 0.4 °C
Unit of temperature measurement Switchable °C and °F
Input of Logic/Pulse Input signal: Voltage or Dry contact signal
Voltage input: 0 to +24V (common ground)
Dry contact signal: Relay or Solid state relay
Threshold voltage: Approx. +2.5V, Hysteresis: Approx. 0.5V (Status of the signal is changed in the 2V and the 2.5V.)
Measuring rage of Pulse ・Instant count: up to 200 counts/sampling interval
・Accumulated count: up to 65535 counts (Accumulated value is reset by starting the data recording or pressing the QUIT key.)
・Max. input frequency : 400Hz
Sampling interval 0.5, 1, 2, 5, 10, 20, 30 seconds, 1, 2, 5, 10, 20, 30, 60 minutes
Length of cable Approx. 200 mm
Operating environment Temperature: -10 °C to 50 °C
Humidity: up to 80 % RH (non condensed)
External dimension [W x D x H] Approx. 46 x 66 x 36 mm (exclude protrusion)
Weight Approx. 83 g

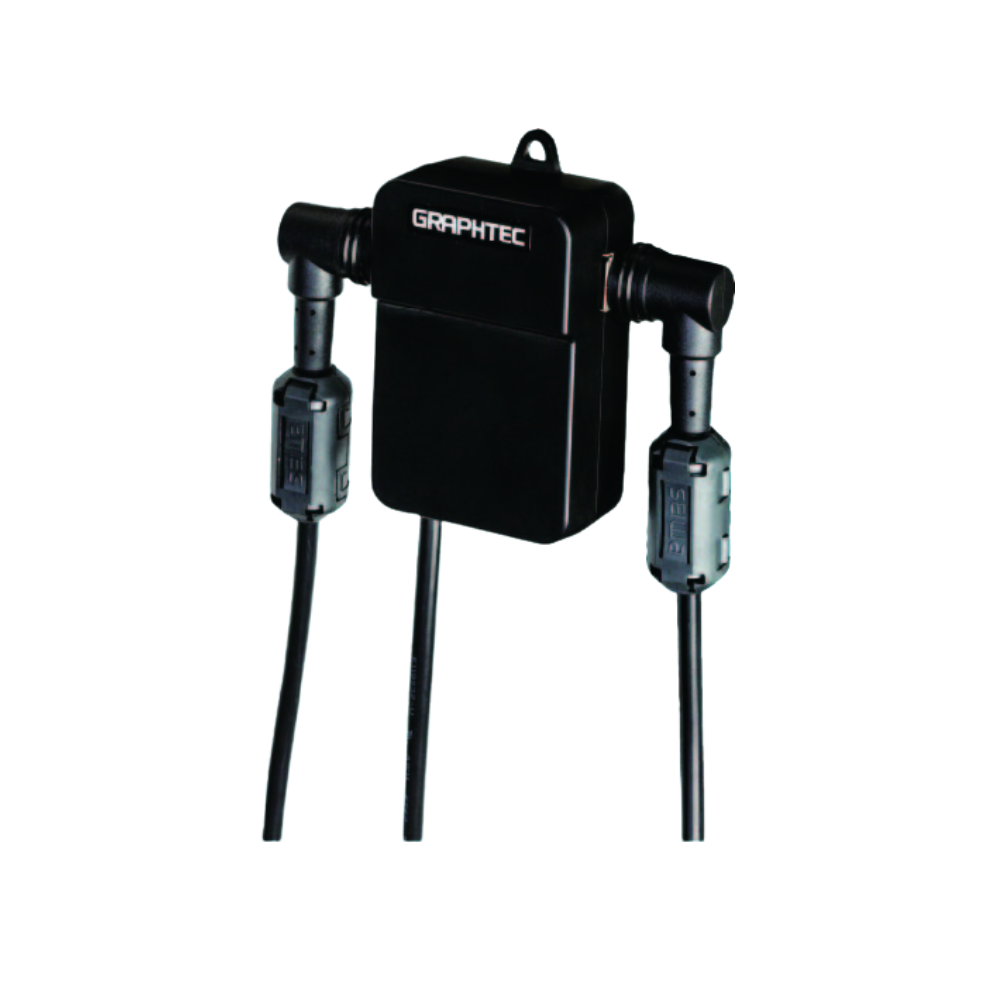

Dual port adapter (GS-DPA) input module

Item Description
Number of sensors Two (2) sensors
Connectable sensors GS-TH (Temp./Humidity), GS-CO2 (Carbon dioxide (CO2)), GS-LXUV (Illuminance & Ultraviolet)
It is not able to connect two sensors of the same type.
Length of cable Approx. 200 mm
Operating environment Temperature: -10 °C to 50 °C
Humidity: up to 80 % RH (non condensed)
External dimension [W x D x H] Approx. 46 x 66 x 27 mm (exclude protrusion)
Weight Approx. 68 g

Module Extension Cable (GS-EXC)

Item Description
Connectable input module All types of input module
Cable is connected between the input module and the GL100.
Length of cable Approx. 1.5 m
Operating environment Temperature: -10 °C to 50 °C
Humidity: up to 80 % RH (non condensed)

OPTIONS AND SUPPLIES

Main body

Item Model number Description
PetitLOGGER GL100 GL100-WL Main body with Wireless LAN
PetitLOGGER GL100 GL100-N Main body without Wireless LAN

Input module and Accessories

Item Model number Description
Temp./Humidity Sensor GS-TH Sensor of Temperature (-20 to 85 ºC) and Humidity (0 to 100 % RH)
Acceleration/Temp. Sensor GS-3AT Sensor of Acceleration (up to 10 G), Temperature (-10 to 85 ºC)
Voltage/Temp. Input terminal GS-4VT Input terminal of Voltage (20 mV to 50 V), Thermocouple (K/T)
Thermistor Input terminal GS-4TSR Input terminal of Temperature (Thermistor -40 to 120 ºC)
Thermistor Sensor (Normal type) GS-103AT-4P Sensor for GS-4TSR module, 3 m long, 4 pcs/set, Temp.: -40 to 105 ºC
Thermistor Sensor (Ultrathin type) GS-103JT-4P Sensor for GS-4TSR module, 3 m long, 4 pcs/set, Temp.: -40 to 120 ºC
Illuminance/UV Sensor GS-LXUV Sensor of Illuminance and UV intensity
Carbon dioxide (CO2) Sensor GS-CO2 Sensor of Carbon dioxide (CO2) (up to 9999 ppm)
AC Current Sensor GS-AC50A For GS-DAP-AC module, Cable 200 mm, Current: 50 A AC
AC Current Sensor GS-AC100A For GS-DAP-AC module, Cable 200 mm, Current: 100 A AC
AC Current Sensor GS-AC200A For GS-DAP-AC module, Cable 200 mm, Current: 200 A AC
AC Current Sensor Adapter GS-DPA-AC Adapter of AC Current sensor (Two sensors are able to connect)
Dual port adapter GS-DPA Connect up to two (2) sensors
Module Extension Cable GS-EXC Extension cable for input module, 1.5 m long

DOCUMENTS

GL100 Brochure

Hızlı Linkler
  • Ana Sayfa
  • PRO-AV
  • Test Ölçü
  • Mekanik
  • İletişim
Kataloglar
  • Gefen
  • Opticis
  • Siglent
  • Itech
  • Mountz
Sosyal
  • Ana Sayfa
  • Markalar
  • ProAV
  • Test-Ölçüm
  • Mekanik
  • İletişim

Giriş Yap

Parolanızı mı unuttunuz?
