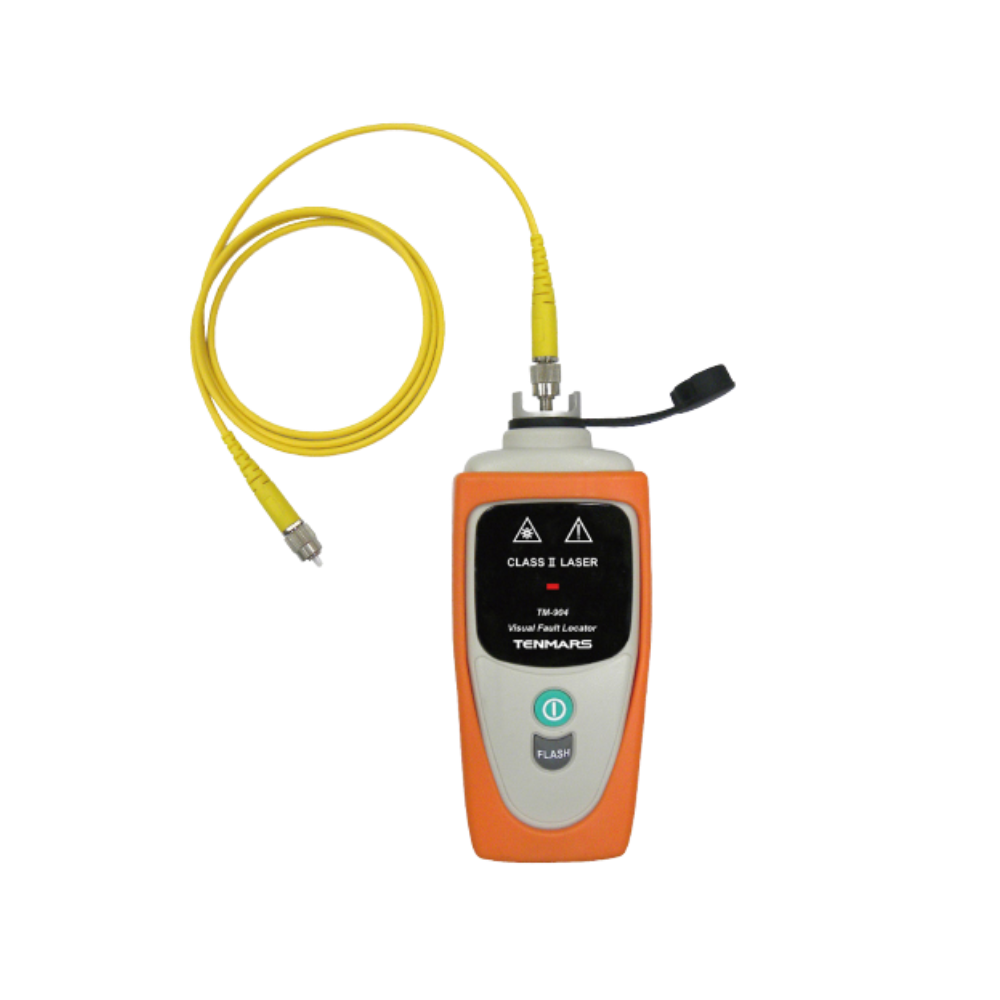

TM-904
Fiber Fault LOCATOR

IEC 60825-1:2014(3rd Edition)

APPLICATION

This fiber fault locator is designed for locating a fault on a fiber. When there is a breakpoint on the fiber, the laser beam emitting along the fiber will locate the breakpoint. The continuous and flash modes facilitate users to locate the fault more easily. Whether it is installation of new fibers or diagnosis of existing fibers, this device can help users quickly locate and then fix the breakpoint efficiently.

FEATURES

  • Compatible with 2.5mm universal Ferrule connetcor(FC) for visually identifies and locates faults in fibre optic cabling.
  • Easy to identify the connection by the continuous and flashing modes.
  • Locates visual faults including tight bends, breaks and defective connectors.

SPECIFICATIONS

 Wavelength
 635nm＜1mW (EU Class II )
 Fiber compatibility
 Multi-mode and single-mode
 Range
 Multi-mode: 3 KM
 Single-mode: 4KM
 Operating temperature
and humidity
 0°C to 40°C (32°F to 104°F), RH≤90%
 Storage temperature
and humidity
 -10°C to 60 °C (14°F to 140°F), RH≤80%
 Output modes
 Continuous/Flash (freq. 2Hz)
 Output port
 2.5mm universal (FC connector)
 Altitude
 Below 2,000m elevation
 Dimensions
 152 x 61 x 40mm
 Weight
 200g
