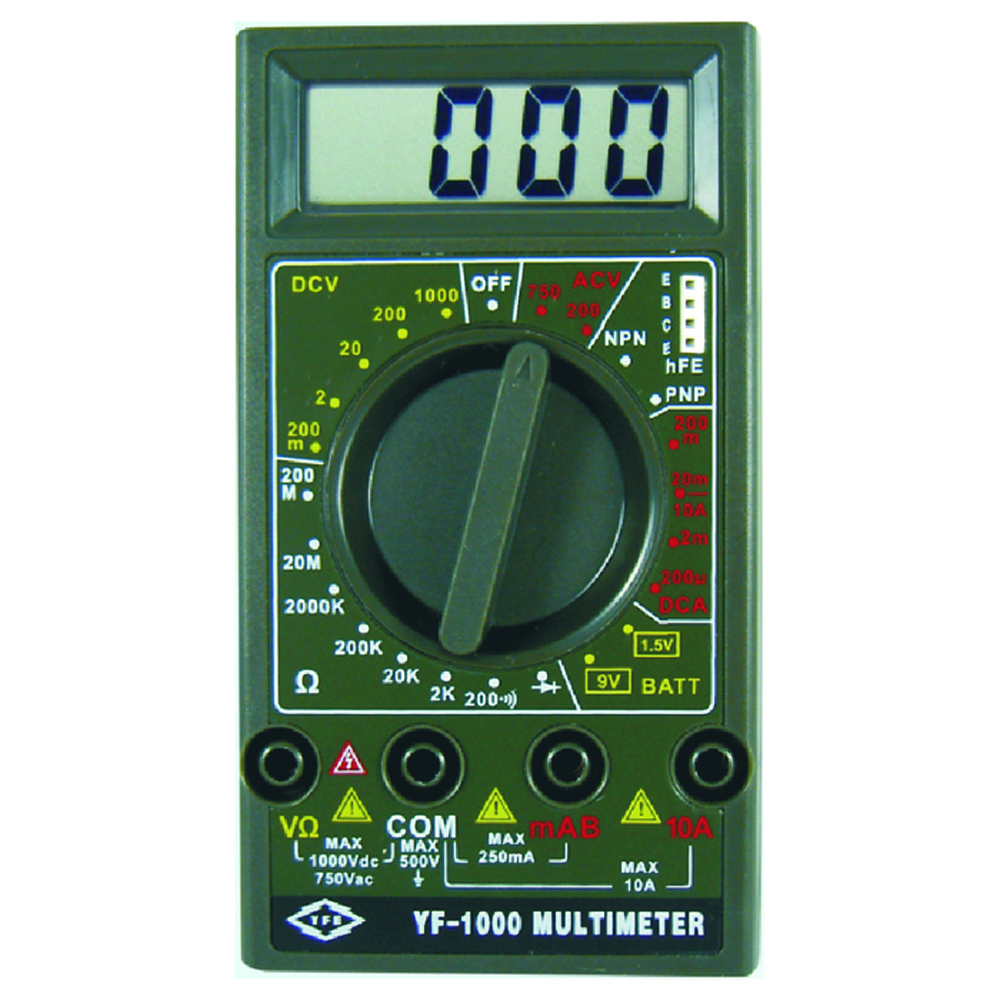

YF-1000
DIGITAL MULTIMETER

INFORMATION The digital multimeter has been designed according to IEC-1010 concerning electronic measuring instruments with a measurement category (CATII 600V) and pollution degree 2.

APPLICATION

  • DISPLAYS 3 1/2 digit LCD. Max. reading 1999.
  • FUNCTION / RANGE SWITCH This switch is used to select the function and desired range as well as to turn ON/OFF the instrument. To extend the life of the battery, the switch should be set to the “OFF” position when the instrument is not in use.
  • “COM” JACK Plug in connector for the black (Negative) test lead.
  • “VO” JACK Plug in connector for the red (Positive) test lead for all voltage and resistance measurements.
  •  “MAB” JACK Plug in connector for the red (positive) test lead for current and BATT measurements
  • “10A” JACK Plug in connector for the red (positive) test lead for current (between 200mA and 10A) measurements.

FEATURES

  • Maximum Display: 1999 counts (3 1/2 digits) with automatic polarity indication
  • Polarity: Automatic negative polarity
  • indication Indication Method: LCD display
  • Sampling Speed: 2-3 time/sec
  • Operating Temperature: 0 C – 50 C, <75% RH.
  • Storage Temperature: -20 C – 60 C, <85% R.H.
  • Power Supply: One 9-volt battery (NEDA 1604, 6F22)
  • Low Battery Indication

SPECIFICATIONS

  • Dimensions:128x72x36mm(length x width x height).
  • Weight: Approximately 140 grams.(incl. Battery)
Electrical Specifications(23℃±5℃, below 80％RH )
 Max measuring current
 10A
 Display counts
 2000
 Overvoltage category
 ——
 DC Current
 0.1µA~10A ±(1.2%+5)
 AC Voltage
 1V~750V ±(1.2%+10)
 DC Voltage
 1V~1000V ±(1.2%+5)
 Resistance
 0.1Ω~200MΩ
 Continuity buzzer
 YES(<50Ω)
 Diode
 About 2.8V
