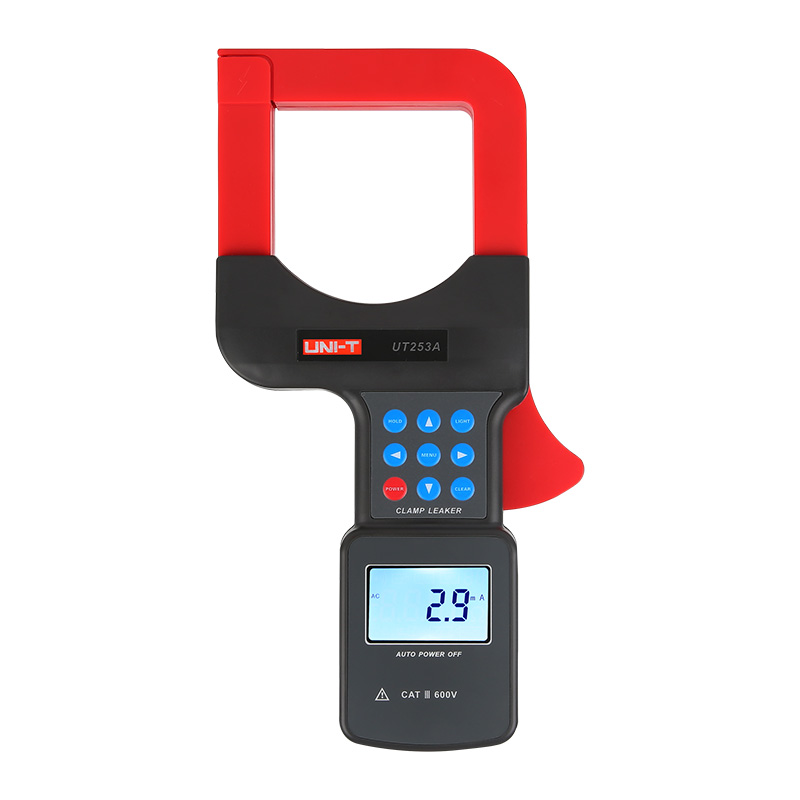

UT253A
Large Jaws Leakage Current Clamp Meter

UT253 series are large current high precision leakage clamp meters that can measure up to 2000A. Its large 80mm×80mm jaw is able to clamp up to 96mm cables or flat-steel ground wires. UT253’ s intelligent design can measure leakage current, three-phase voltages and display them on the screen simultaneously.

Features of UT253A Large Jaws Leakage Current Clamp Meter

  • Auto range; RS-232
  • LCD backlight; Data hold
  • Over-range display
  • Auto power off
  • Low battery indication

SPECIFICATIONS

Specifications of UT253A Large Jaws Leakage Current Clamp Meter

Specifications Range UT253A
Leakage current (A) 0mA～300A ±(1.5%+3)
300A～1200A ±(2%+3)
0-600V (50-60Hz) ±(1.5%+3)
Resolution 0.01mA
Features
Display mode 128 dots×64 dots LCD
Clamp size 80mm×80mm
Data logging 200
Test mode Clamp CT, integration √
General Characterisitics
Power 1.5V Battery (LR6) x 4
Display 47mm x 28.5mm
Product color Red and grey
Product net weight 830g
Product size 275mm x 145mm x 40mm
Standard accessories Batteries, test leads (3 red, 1 black), USB cable, PC software CD
Standard individual packing Gift box, English manual, tool box
Standard quantity per carton 6pcs
Standard carton measurement 610mm x 375mm x 320mm
Standard carton gross weight 16.4kg

APPLICATIONS

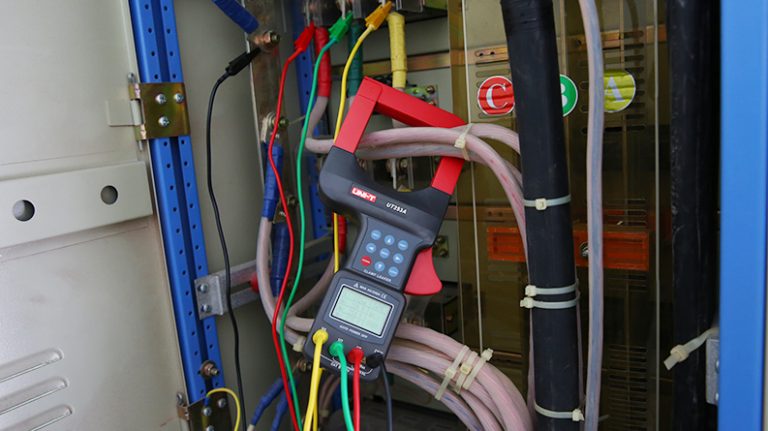

Applications of UT253A Large Jaws Leakage Current Clamp Meter
