UT216 series digital clamp meters are designed for measuring high frequency currents (up to 400Hz) in server rooms, IT systems, etc. Its double injection design gives users a more comfortable grip and enhanced durability. UT216’s 6000 count display also provides more precise readings for users.

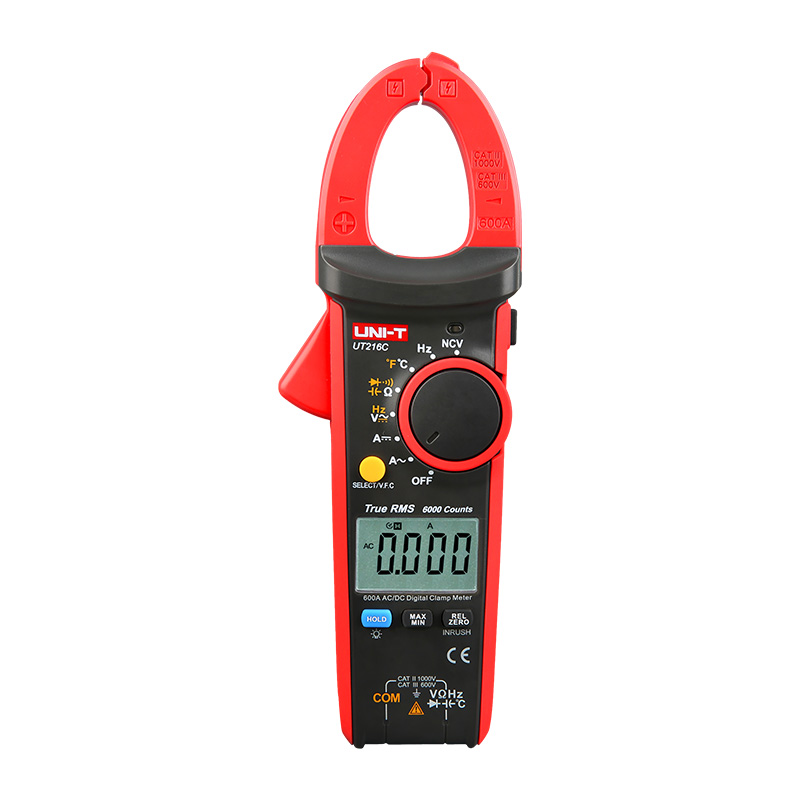

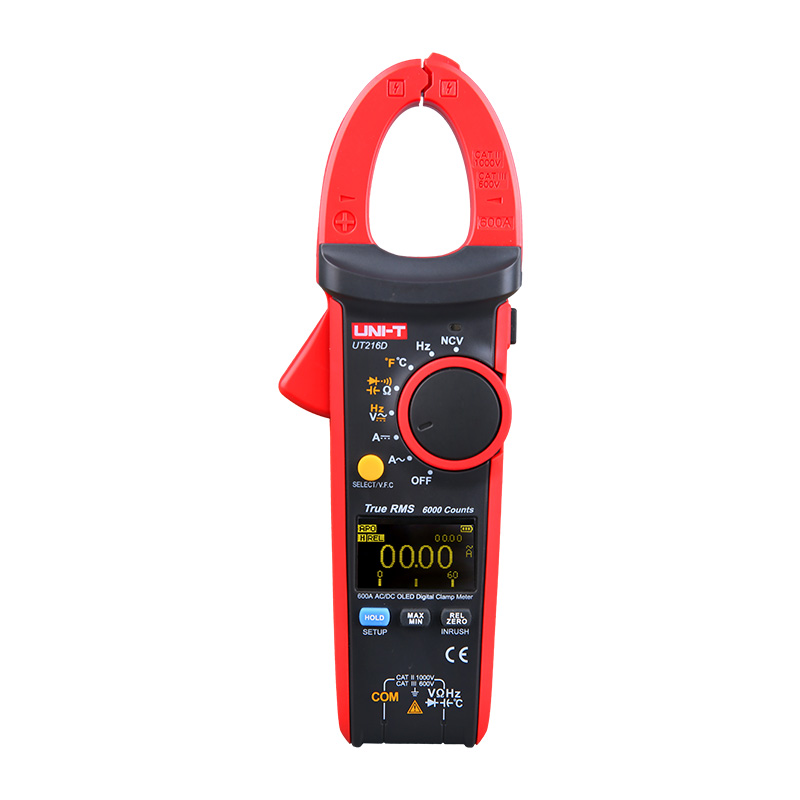

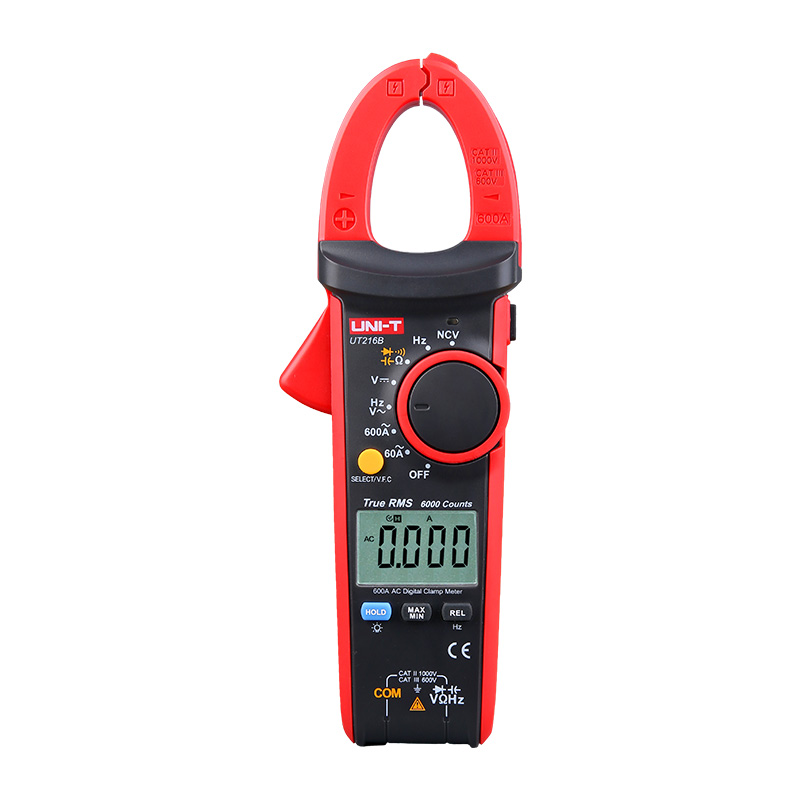

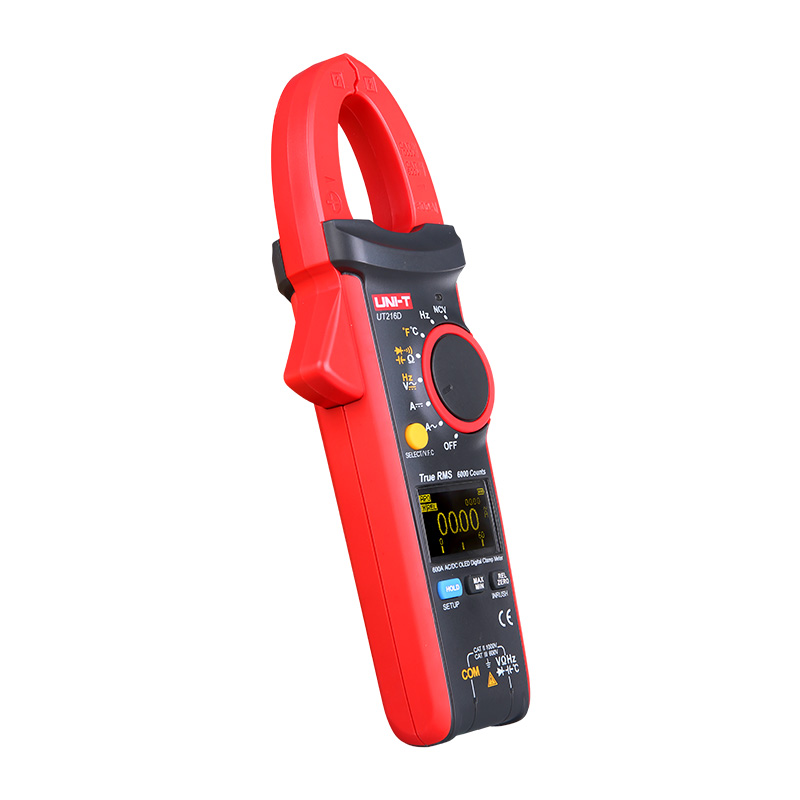

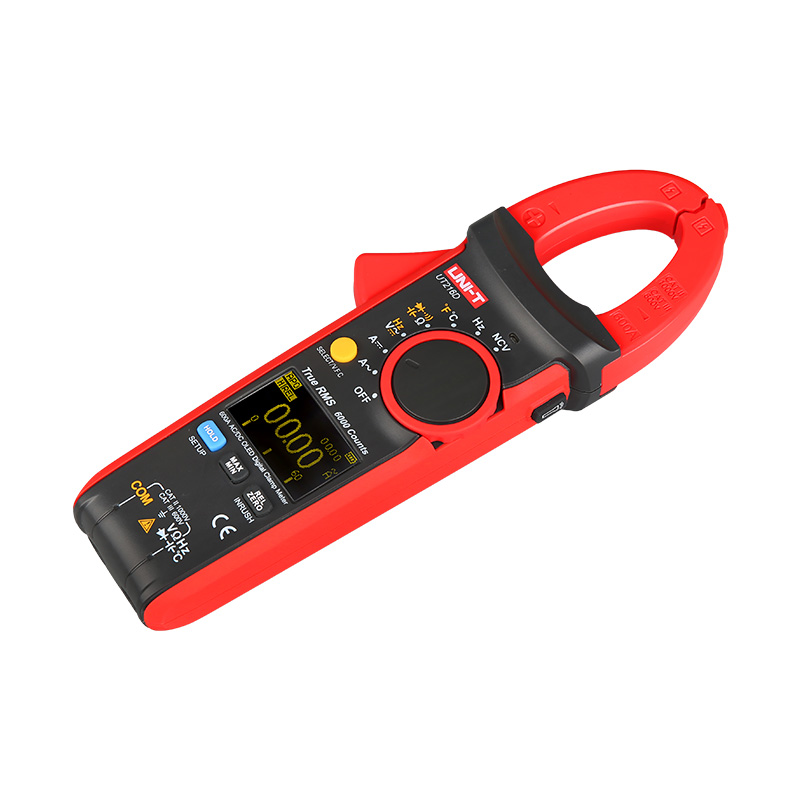

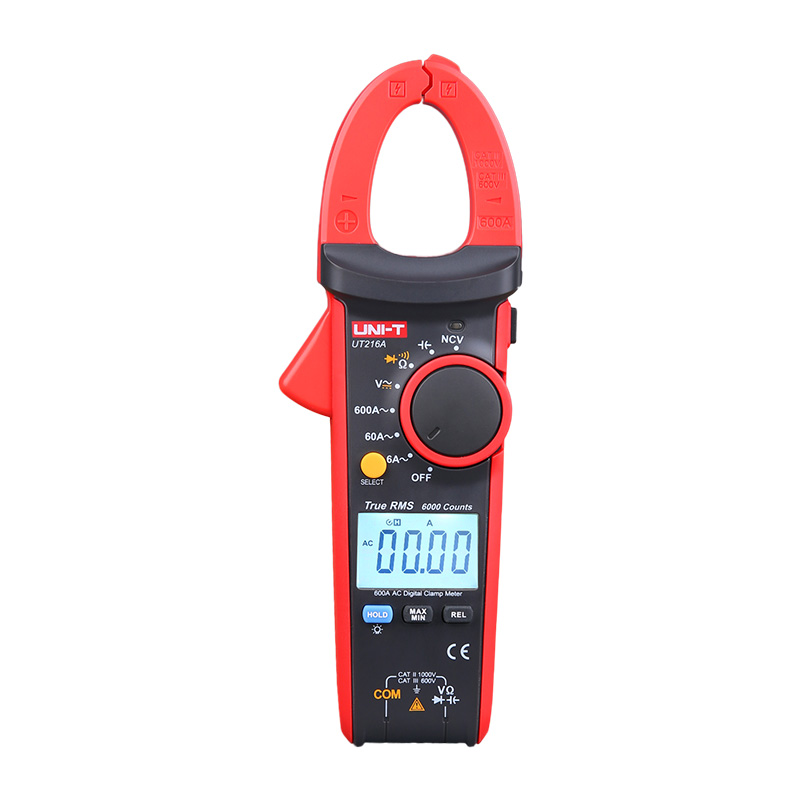

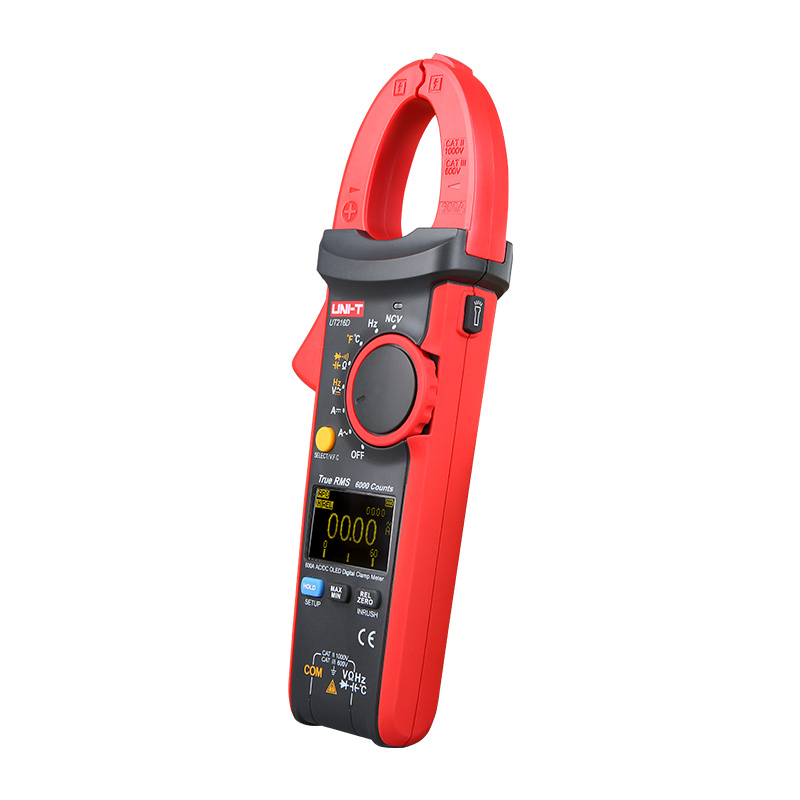

Models in UT216 series: UT216A, UT216B, UT216C, UT216D
Features of UT216 Series 600A True RMS Digital Clamp Meters
Certifications: CE, UKCA, cETLus
Specifications of UT216 Series 600A True RMS Digital Clamp Meters
| Specifications | Range | UT216A | UT216B | UT216C | UT216D |
| AC current (A) | 600A | ±(2.5%+5) | ±(2.5%+5) | ±(2.5%+5) | ±(2.5%+5) |
| AC current frequency response | 50/60Hz | 40~400Hz | 40~400Hz | 40~400Hz | |
| DC current (A) | 600A | ±(2.5%+5) | ±(2.5%+5) | ||
| AC voltage (V) | 750V | ±(1.2%+5) | ±(1.2%+5) | ±(1.2%+5) | ±(1.2%+5) |
| AC voltage frequency response | 40~400Hz | 40~400Hz | 40~400Hz | 45~400Hz | |
| DC voltage (V) | 1000V | ±(0.8%+1) | ±(0.8%+1) | ±(0.8%+1) | ±(0.8%+1) |
| Resistance (Ω) | 60MΩ | ±(1%+2) | ±(1%+2) | ±(1%+2) | ±(1%+2) |
| Capacitance (F) | 60mF | ±(4%+5) | ±(4%+5) | ±(4%+5) | ±(4%+5) |
| Frequency (Hz) | 10Hz~1MHz | ±(0.1%+4) | ±(0.1%+4) | ±(0.1%+4) | |
| Temperature | -40°C~1000°C | ±(2%+5) | ±(2.5%+3) | ||
| -40°F~1832°F | ±(2%+10) | ±(2.5%+6) | |||
| Features | |||||
| Display count | 6000 | 6000 | 6000 | 6000 | |
| Auto range | √ | √ | √ | √ | |
| Jaw opening | 30mm | 30mm | 30mm | 30mm | |
| True RMS | √ | √ | √ | √ | |
| Diode | Around 3.0V | √ | √ | √ | √ |
| V.F.C. | √ | √ | √ | ||
| NCV | √ | √ | √ | √ | |
| Data hold | √ | √ | √ | √ | |
| Relative mode | √ | √ | √ | √ | |
| MAX/MIN | √ | √ | √ | √ | |
| LCD backlight | √ | √ | √ | ||
| Inrush current | √ | √ | |||
| OLED display | √ | ||||
| Analog bar graph | 61 | 21 | |||
| Flashlight | √ | √ | √ | √ | |
| Auto power off | √ | √ | √ | √ | |
| Continuity buzzer | √ | √ | √ | √ | |
| Low battery indication | ≤3.6V | √ | √ | √ | √ |
| Input protection | √ | √ | √ | √ | |
| Input impedance for DCV | ≥10MΩ | √ | √ | √ | √ |
| General Characteristics | |||||
| Power | 1.5V battery (R03) x 3 | ||||
| Display | 38mm x 24mm | ||||
| Product color | Red and grey | ||||
| Product net weight | UT216A: 280g; UT216B/C/D: 231.7g | ||||
| Product size | 220mm x 75mm x 40mm | ||||
| Standard accessories | Batteries, test leads, point contact temperature probe (UT216C/UT216D) | ||||
| Standard individual packing | Gift box, carrying bag, English manual | ||||
| Standard quantity per carton | 40pcs | ||||
| Standard carton measurement | 485mm x 345mm x 385mm | ||||
| Standard carton gross weight | UT216A: 20.6kg; UT216B: 19.3kg; UT216C: 20.1kg; UT216D: 20.3kg | ||||
Applications of UT216 Series 600A True RMS Digital Clamp Meters

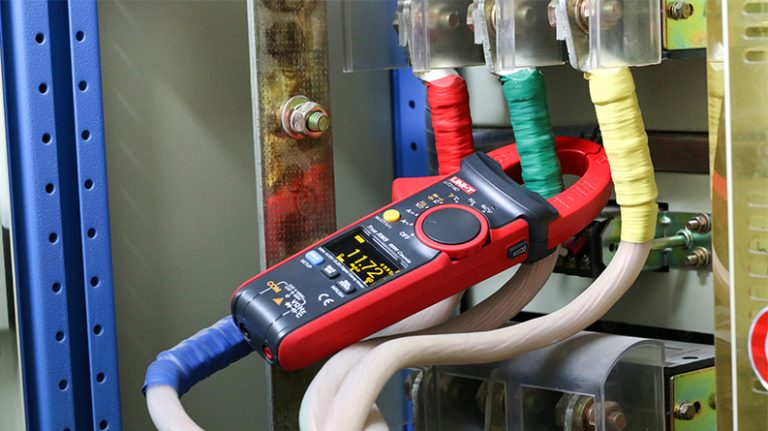

Current measurement

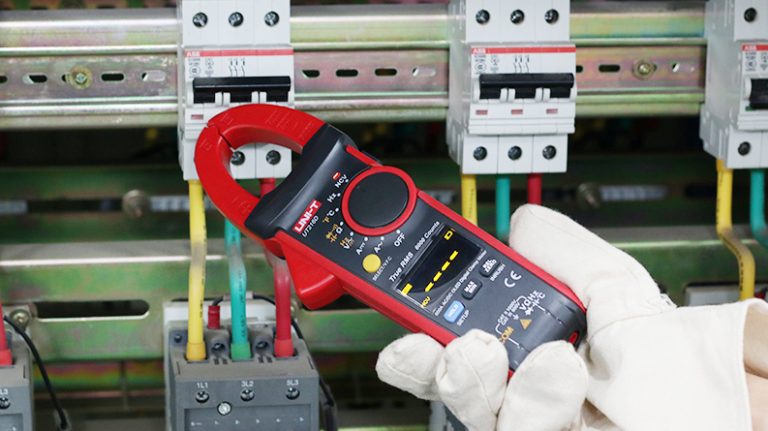

NCV measurement
