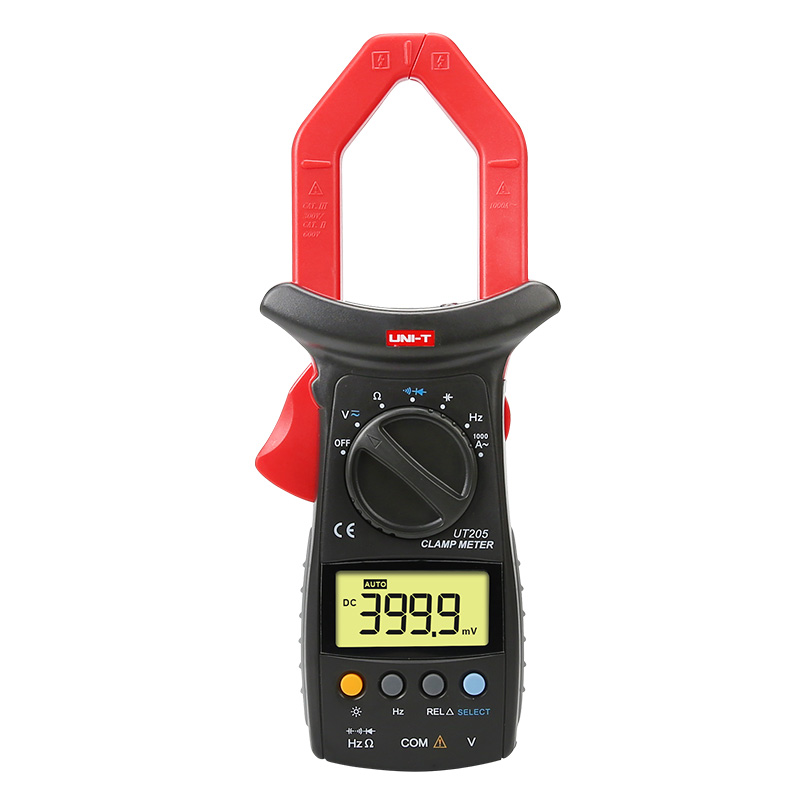

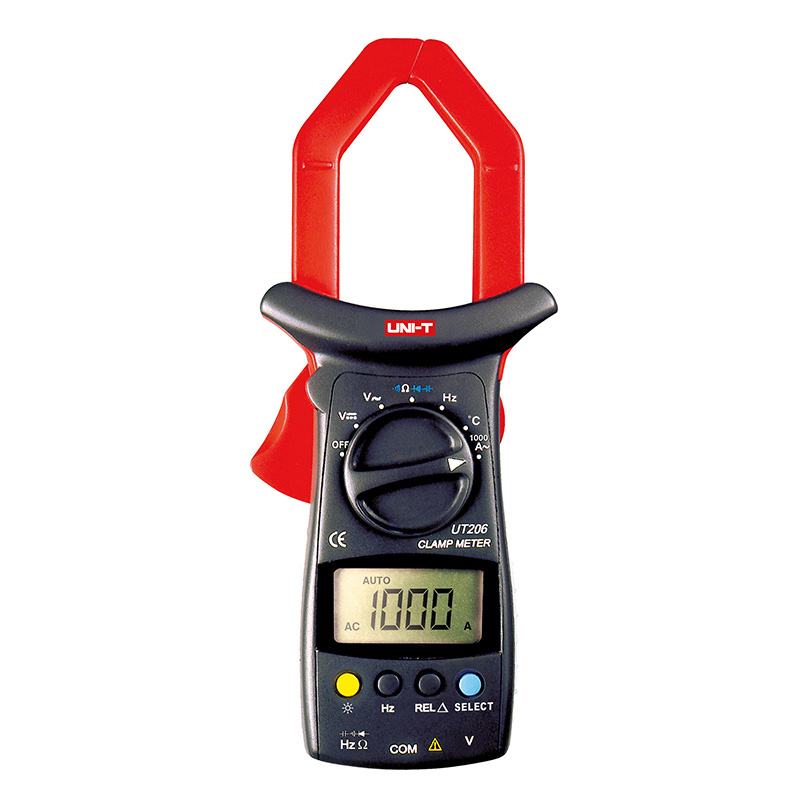

UT205/UT206
1000A Digital Clamp Meters

UT205/UT206 is a low-power, stable, safe and reliable 4000-count AC digital clamp meter. The full range overload protection circuit and unique design make it a special electrical meter with superior performance. The meter is an ideal tool for maintenance in smelting, manufacturing, petroleum, chemical and other industries.

Models: UT205, UT206

Features of UT205/UT206 1000A Digital Clamp Meters

Certificates: CE, EN:61010-1, EN:61326-1, EN:61010-2-032

  • Display count: 4000
  • Auto range
  • Jaw opening: 40mm
  • CAT II 600V/CAT III 300V

SPECIFICATIONS

Specifications of UT205/UT206 1000A Digital Clamp Meters

Specifications Range UT205 UT206
AC Current (A) 400A/1000A ±(1.5%+5) ±(1.5%+5)
400A/1000A  ≥800A: ±(3%+5) ±(3%+5)
AC Voltage (V) 4V/40V/400V/600V ±(1.2%+5) ±(1.2%+5)
DC Voltage (V) 400mV/4V/40V/400V/600V ±(0.8%+1) ±(0.8%+1)
Resistance (Ω) 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ ±(1%+2) ±(1%+2)
Frequency (Hz) 10Hz~10MHz ±(0.1%+3) ±(0.1%+3)
Temperature (°C) -40 °C ～ 0°C ±(3%+4)
0 °C~400 °C 1%+3
400 °C~1000 °C 2%+10
Features
Display count 3999 3999
Auto range √ √
Jaw opening 40mm 40mm
Duty cycle 0.1%~99.9% √
Diode test √ √
Auto power off √ √
Continuity buzzer √ √
Low battery indication √ √
Date hold √ √
Relative mode √
LCD backlight √ √
Flashlight √ √
Full icon display √ √
Input impedance for DCV ≥10MΩ √ √
General Characteristics
Power 9V battery (6F22)
LCD size 56.4mm × 37mm
Product color Red and grey
Product net weight 522g
Product size 106.4mm × 52mm × 257mm
Standard accessories Battery, test leads, alligator clips, piont contact temperature probe (UT206)
standard individual packing Tool box, gift box
Standard quantity per carton 20pcs
Standard carton measurement 598mm × 375mm × 485mm
Standard carton gross weight 27.3kg
