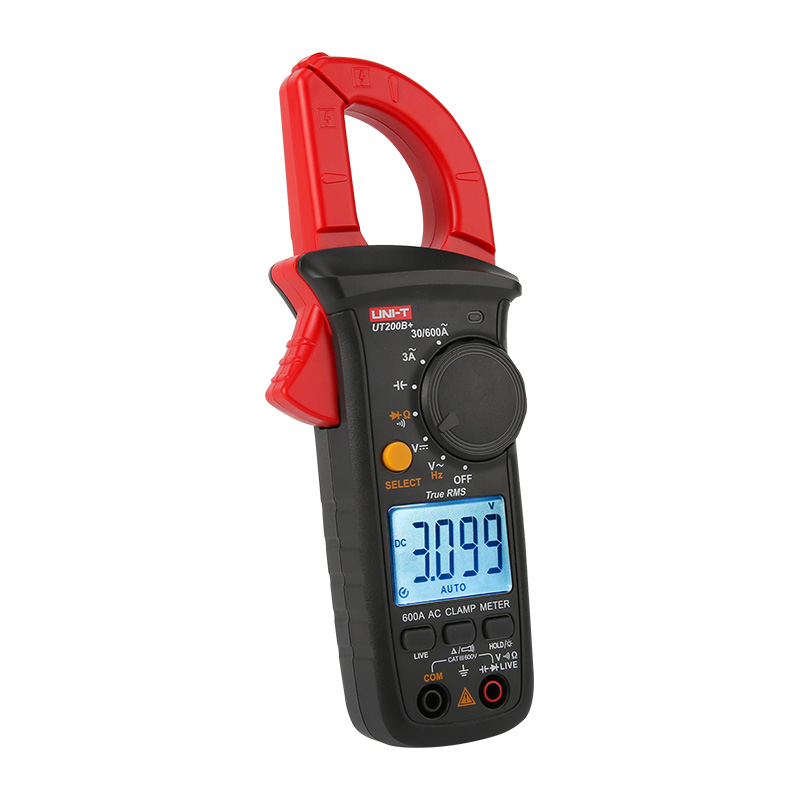

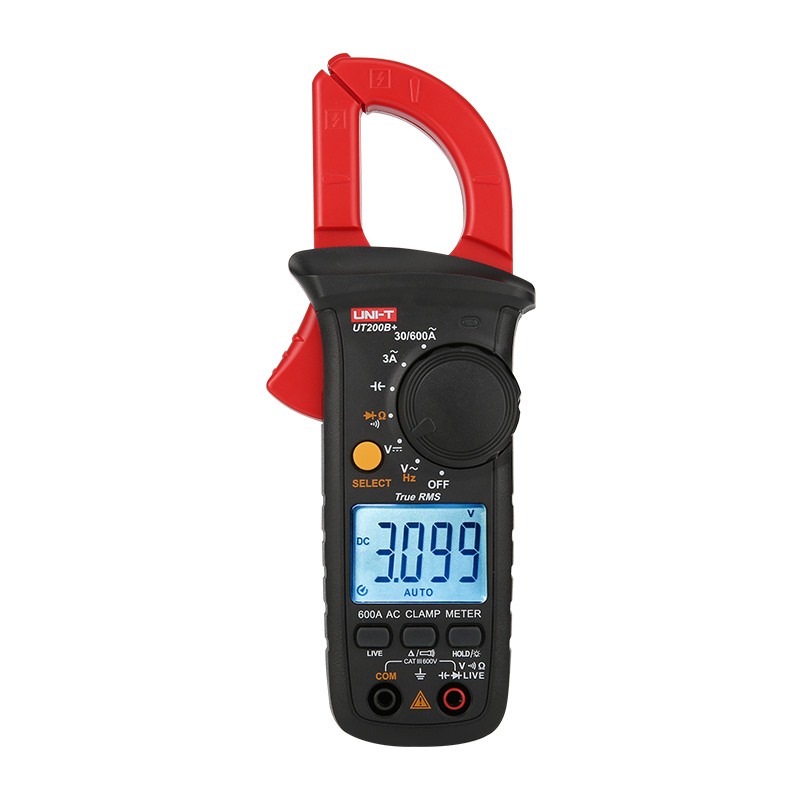

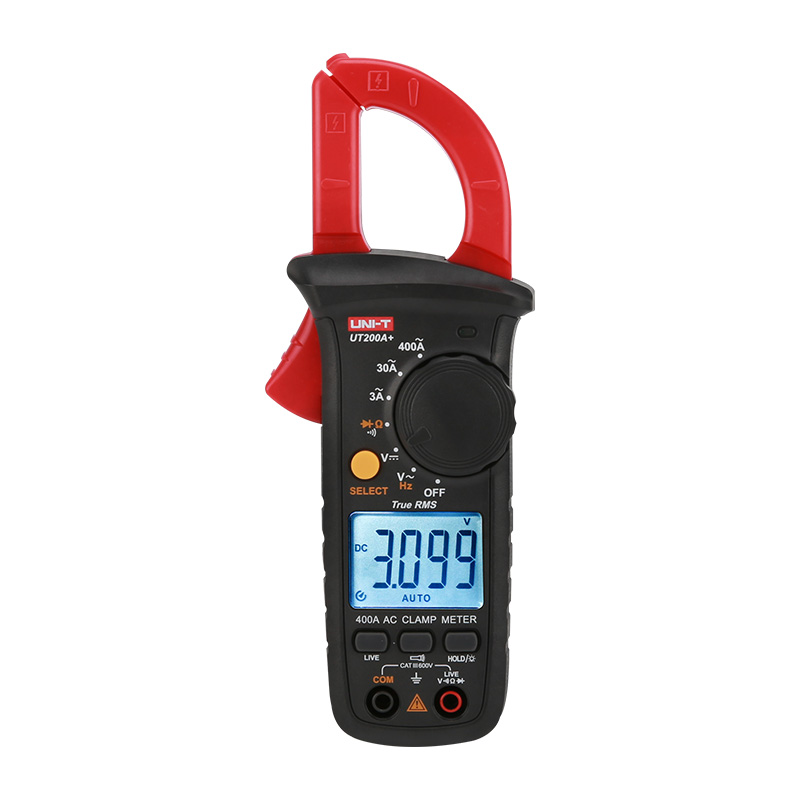

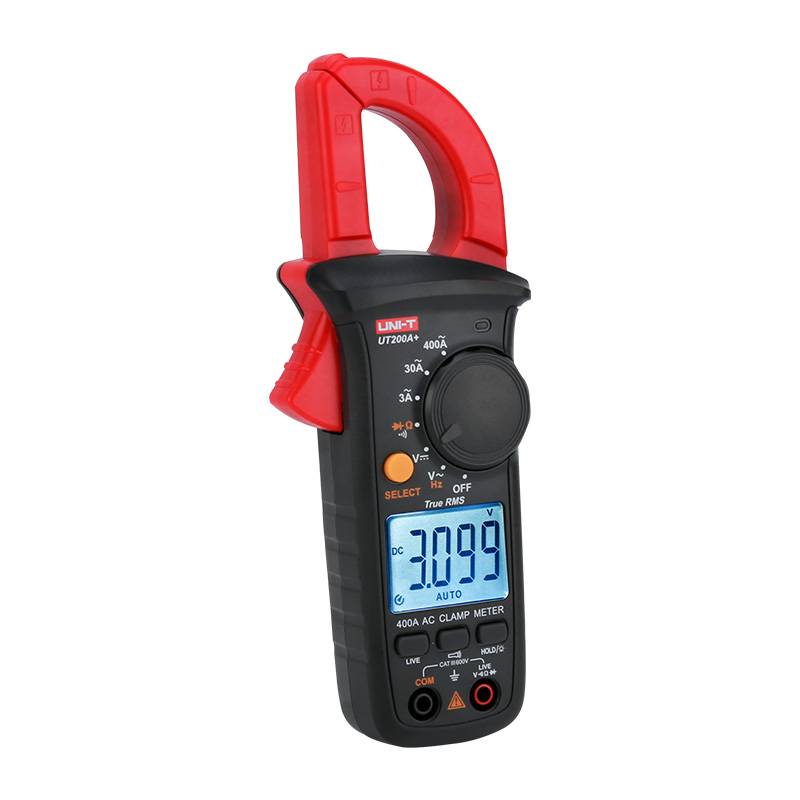

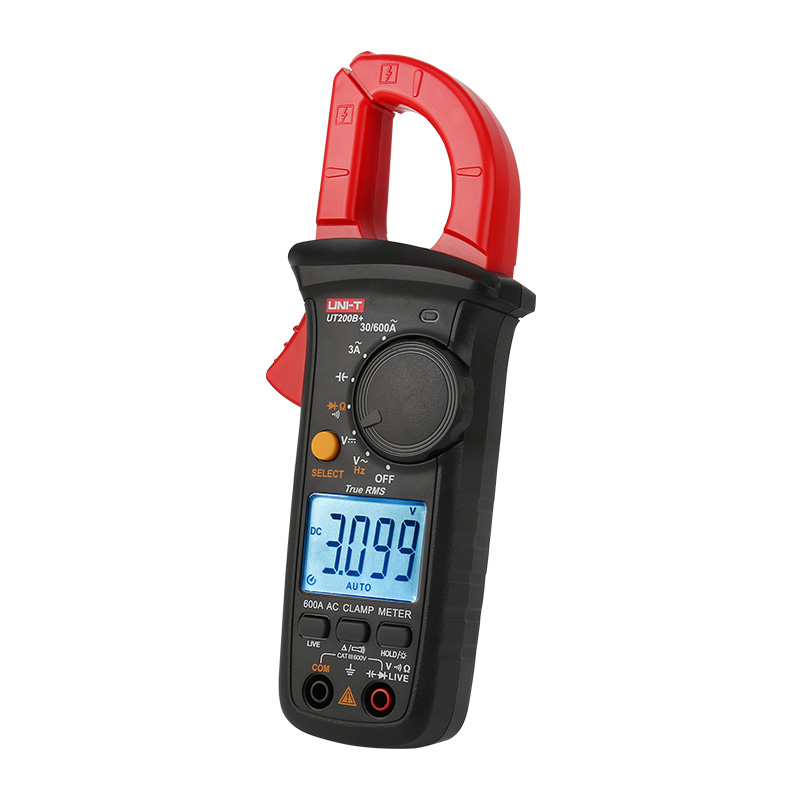

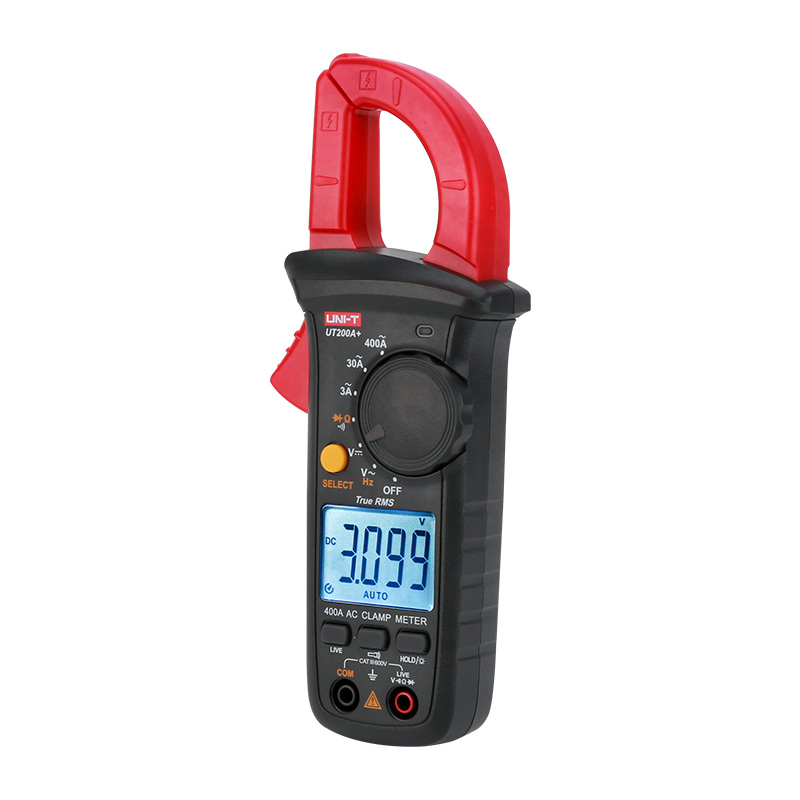

UT200A+/UT200B+
Digital Clamp Meters

UT200A+ and UT200B+ AC current digital clamp meters are suitable for daily repair and maintenance of household equipment, mainly used by electricians; Featured minimum 3A AC current measurement, True RMS, LIVE test, and Audible/Visual alarm functions, they are good tools for home users or DIY enthusiasts.

Models: UT200A+, UT200B+

Features of UT200A+/UT200B+ Digital Clamp Meters

Certificates: ROW

  • True RMS
  • AC/DC 600V voltage measurement
  • AC 400A current measurement (UT200A+)
  • AC 600A current measurement (UT200B+)
  • Continuity/resistance/diode/high voltage frequency measurement (UT200A+)
  • Continuity/resistance/capacitance/diode/high voltage frequency measurement (UT200B+)
  • LIVE function & Flashlight
  • Continuity and Diode, two-in-one
  • 3000 counts

SPECIFICATIONS

Specifications of UT200A+/UT200B+ Digital Clamp Meters

Specification Range UT200A+ UT200B+
Current (ACA) 3.000A ±(4%+10) ±(4%+10)
30.00A ±(3%+5) ±(4%+5)
400.0A ±(3%+5) –
600.0A – ±(4%+5)
Voltage (ACV) 3.000V~600V ±(1.2%＋5) ±(1.2%＋5)
Frequency(Hz) 10H～10kHz ±(1.0%+5) ±(1.0%+5)
Voltage (DCV) 3.000V~300.0V  ±(1.0%+5)  ±(1.0%+5)
300.0V~600V  ±(1.0%+3)  ±(1.0%+3)
Resistance 300.0Ω~300.0kΩ  ±(1.0％+5）  ±(1.0％+5）
300.0kΩ~3.000MΩ ±(2.0%+5) ±(2.0%+5)
Capacitance 30.00nF～300.0nF – ±(4%+10)
3.000μF～300.0μF – ±(4%+5)
1.000mF – ±(5%+10)
Features
Jaw size 28mm 28mm
Display count 3099 3099
Diode/Continuity √ √
Auto range √ √
High voltage warning √ √
Hold/Backlight √ √
Flashlight √ √
Overvoltage category CAT III 600V CAT III 600V

APPLICATIONS

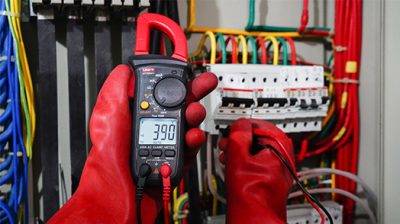

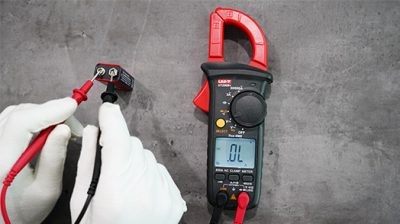

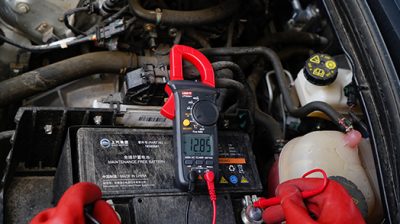

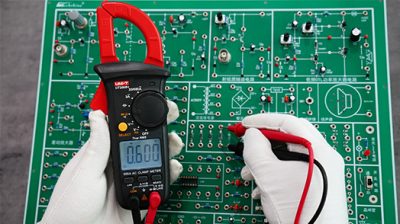

Applications of UT200A+/UT200B+ Digital Clamp Meters
